A compact, 5-port, Layer 2 switch that supports 10 GbE speeds and can be powered with PoE or a 5V USB-C adapter.
5-Port 10GbE Compact Managed Switch
Dimensions: 135 × 185 × 32 mm (5.3 × 7.3 × 1.3")
Ports:
• 4 × 10GbE RJ45
• 1 × 1GbE RJ45

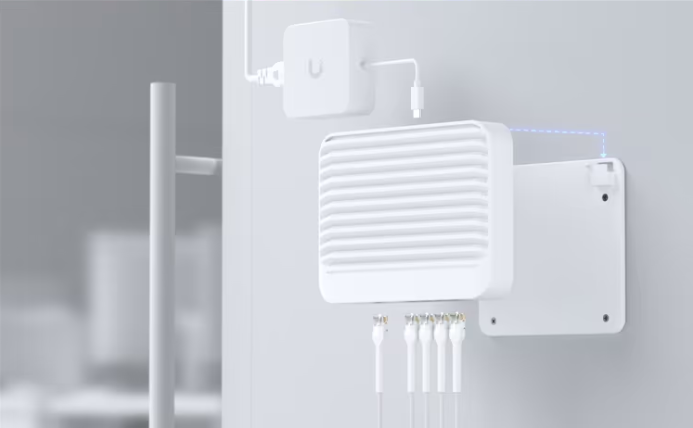

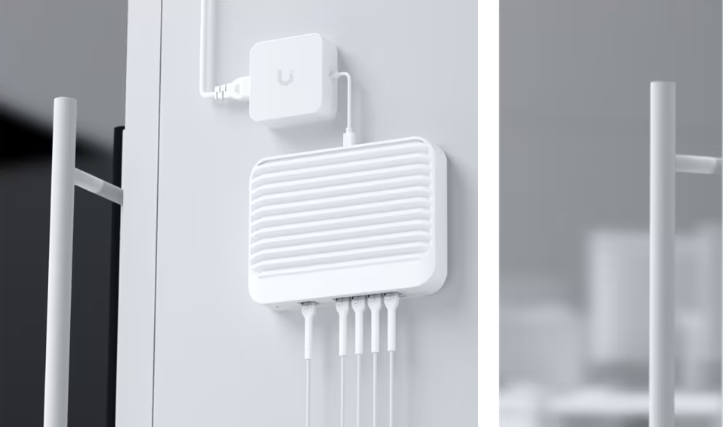

Form Factor: Compact desktop or wall-mount
Performance:
• 82 Gbps switching capacity
• 41 Gbps non-blocking throughput
• 61 Mpps forwarding rate
• 1,000 VLANs; 16K MAC addresses
• 1.5 MB packet buffer
Layer 2 Features: LACP, STP/RSTP, advanced IGMP options, IGMP snooping, 802.1X, DHCP snooping/guarding, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection
Access Lists:
• IPv4: 12
• MAC: 10
Hardware & Power:
• Max power draw: 25W
• Power options: PoE+ input or USB-C 5V DC
• External 25W AC/DC power supply (USB-C)
• Supported voltage: 4.8–5.2V DC (USB), 44–57V (PoE)
• Heat dissipation: 85.3 BTU/hr
• Polycarbonate enclosure
• Weight: 1.2 kg (2.7 lb)
Environmental: –5 to 45°C operating; 10–90% non-condensing humidity
Compliance: NDAA compliant; CE, FCC, IC, Anatel certified
