UniFi Drive Rackmount (2U)
High-capacity rackmount network storage system with redundant power support for enterprise-grade UniFi Drive deployments.

• Dimensions: 442.4 × 325 × 87.4 mm (17.4 × 12.8 × 3.4 in)

• Weight: 9.2 kg (20.3 lb) without brackets / 9.5 kg (20.8 lb) with brackets

• Storage Capacity: (7) 3.5" drive bays supporting HDD or SSD configurations (up to 135 W total drive power budget)

• Networking: (1) 10G SFP+ (10G/1G) port, (1) GbE RJ45 (1G/100M/10M)

• Power: Internal 200 W AC/DC power supply; supports power redundancy via USP-RPS (11.5 V DC, 13.91 A)

• Processor: Quad-Core ARM® Cortex®-A57 @ 1.7 GHz

• Memory: 8 GB

• Display: 1.3" touchscreen for system monitoring

• Management Interfaces: Ethernet and Bluetooth 4.1

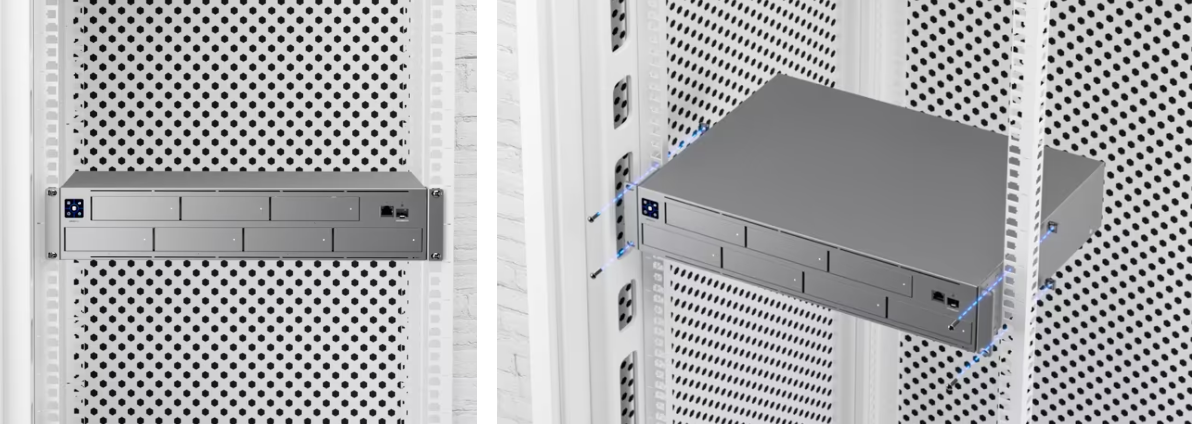

• Construction: SGCC steel enclosure and mounting brackets; 2U rackmount form factor

• Power Input: 100–240 V AC, 3 A max., 50/60 Hz

• Operating Conditions: –5 to 40 °C (23 to 104 °F); 5–95 % RH non-condensing

• LED Indicators: Ethernet, SFP+, HDD, and RPS status

• Compliance: NDAA compliant; FCC, CE, IC certified

• Software: Managed via UniFi Drive (version 1.16.0 or later)
