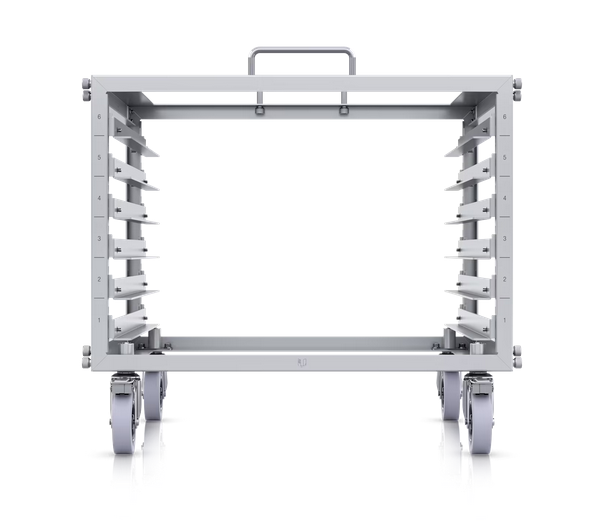

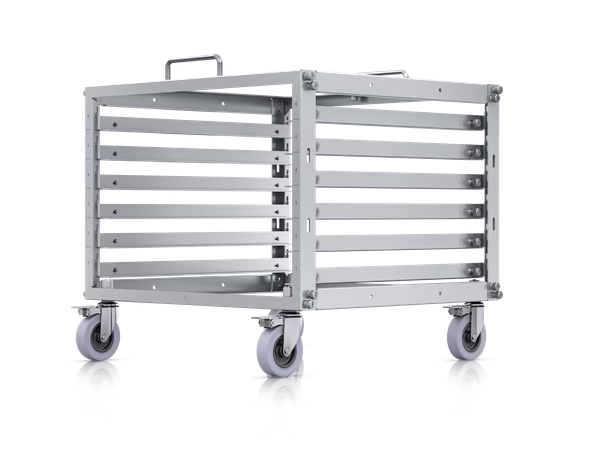

Compact, stackable, and toolless 6U open-frame rack designed for UniFi rack-mount devices.*
6U-sized device rack
Combine two Mini Racks into a 12U rack with a Stacking Kit
Toolless assembly and device mounting
Lockable casters
*Check the technical specification for device compatibility.
Dimensions
With Handle and Caster: 519 x 460 x 485 mm (20.43 x 18.11 x 19.09")
Without Handle and Caster: 519 x 460 x 351 mm (20.43 x 18.11 x 13.82")
U Height
6U
Weight
10.3 kg (22.7 lb)
Rack Type
Open Frame
Material
Frame/Bracket: Cold-rolled carbon steel (SPCC)
Handle: Stainless steel
Surface Treatment
Liquid Coating
Max. Weight Capacity
Single Toolless Mini Rack
Static: 80 kg (176 lb)
Rolling: 45 kg (99 lb)
Double Toolless Mini Racks with Stacking Kit
Static: 70 kg (154 lb)
Rolling: 35 kg (77 lb)
Incompatible Devices
UniFi Switch (Gen1)
US-24-250W
US-24-500W
US-48-500W
US-48-750W
USG Series
USG
USG-Pro-4
EdgeSwitch
ES-24-250W
ES-24-500W
ES-48-500W
ES-48-750W
EdgeRouter
ER-8
Other Devices
CKG2-RM
ER-RMKIT
UACC-Pro-Max-16-RM
