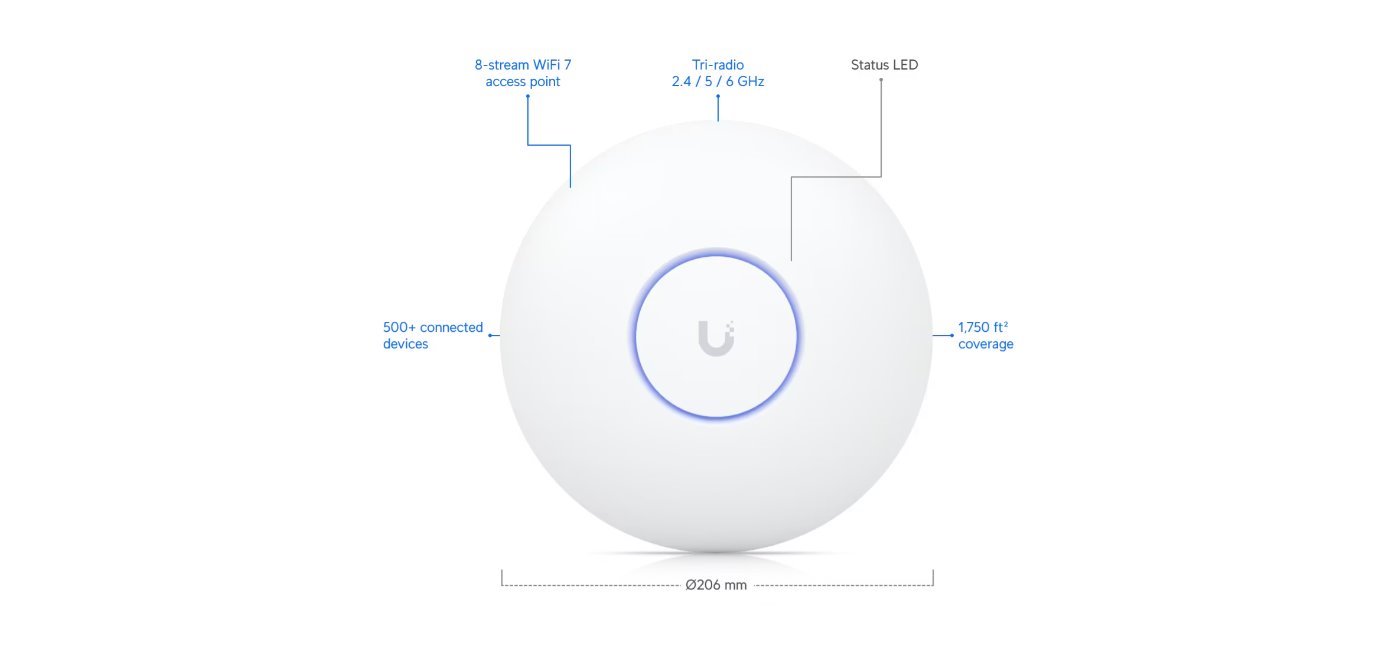

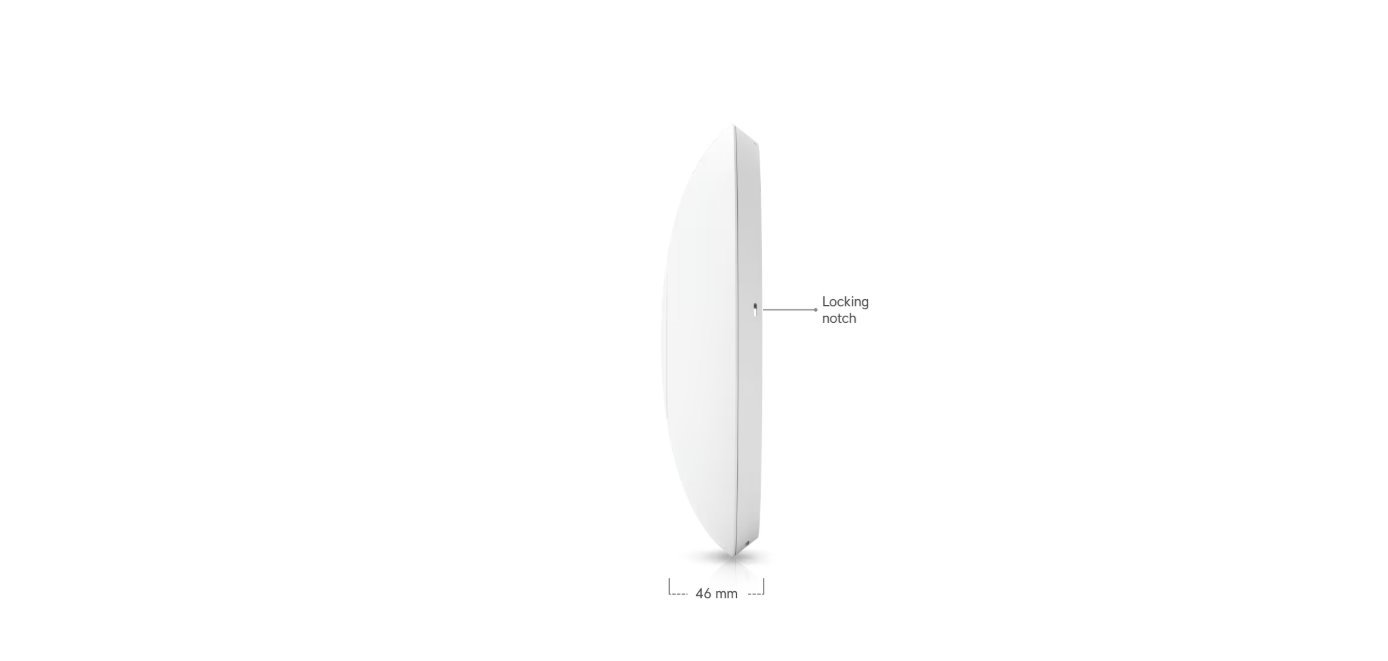

Dimensions
⌀206 × 46 mm (⌀8.1 × 1.8 in)
WiFi Standard
WiFi 7
Spatial Streams
8
Coverage Area
160 m² (1,750 ft²)
Maximum Client Count
500+
Uplink
2.5 GbE

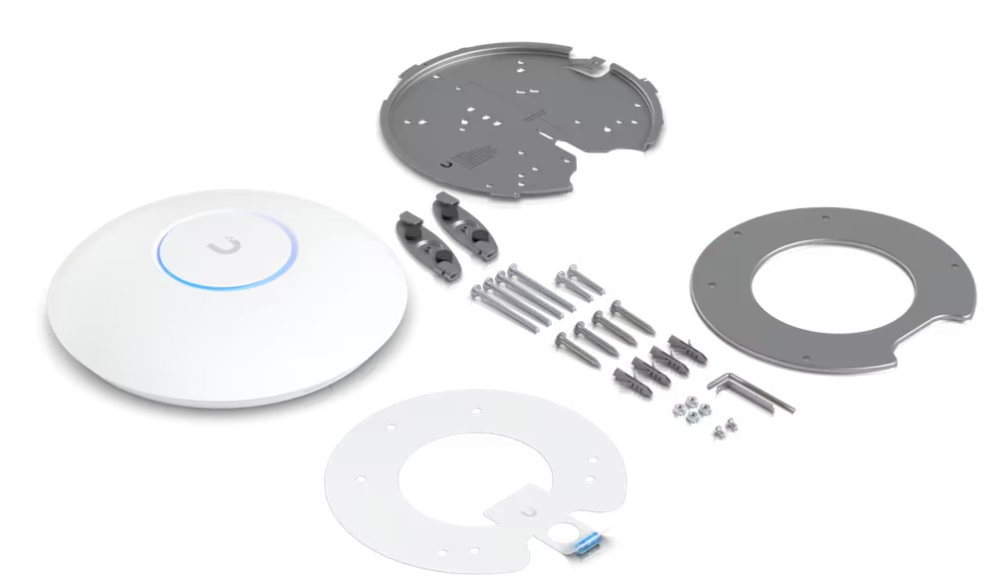

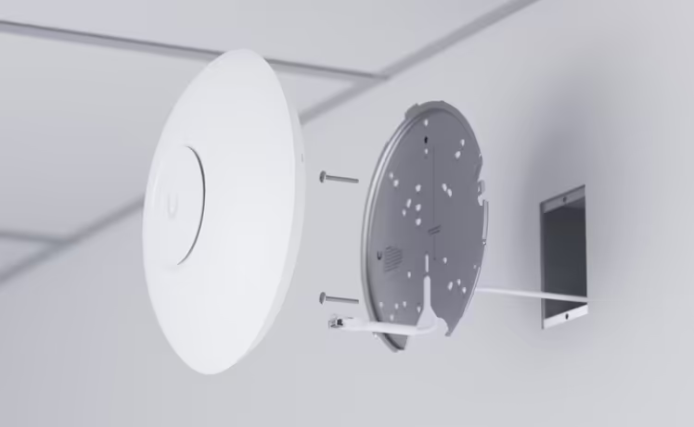

Mounting

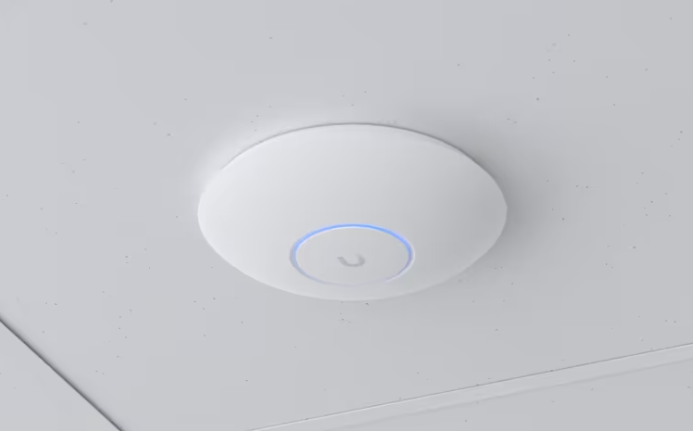

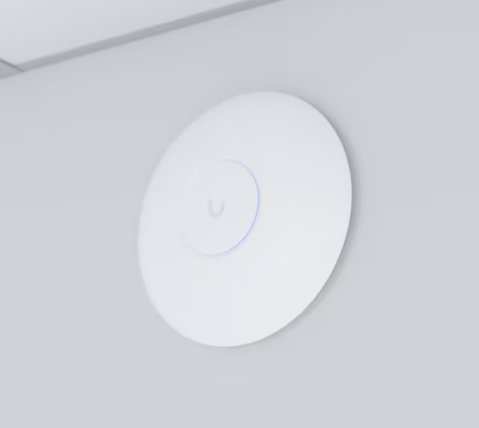

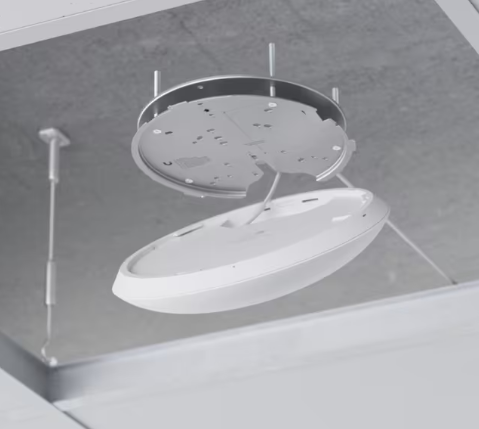

Ceiling or wall mount (Pro Mount included)
Power Method
PoE+
Hardware
Maximum Power Consumption
25W
Supported Voltage Range
44–57V DC

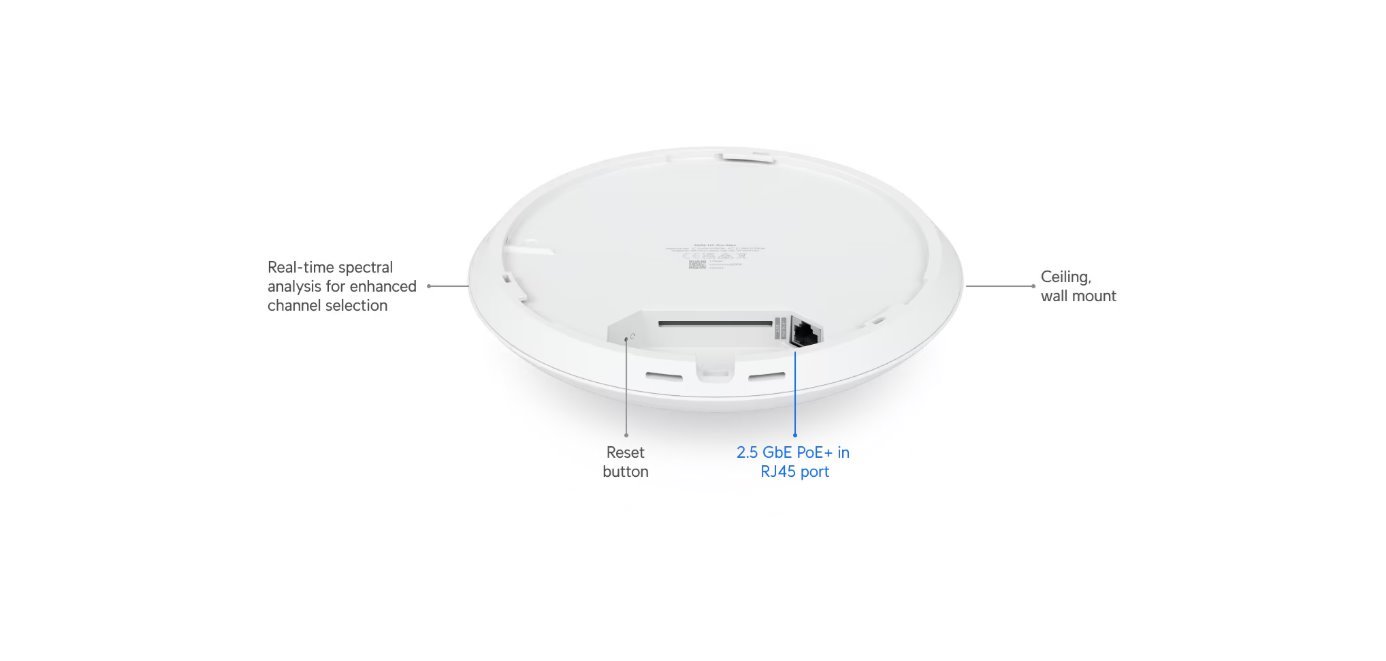

Networking Interface
1 × 1/2.5 GbE RJ45 port
Weight
680 g (1.5 lb)
Enclosure Material
Polycarbonate, aluminum
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LED Indicators
System, white/blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 MHz
Compliance
NDAA compliant
CE, FCC, IC, Anatel: 08959-24-08356
Performance
MIMO
6 GHz: 2 × 2 DL/UL MU-MIMO
5 GHz: 4 × 4 DL/UL MU-MIMO
2.4 GHz: 2 × 2 DL/UL MU-MIMO
Maximum Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 5.9 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Maximum TX Power
6 GHz: 23 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm
Maximum BSSIDs
8 per radio
Supported Data Rates
802.11be (WiFi 7): 6 GHz, 7.3 Mbps to 5.8 Gbps; 5 GHz, 7.3 Mbps to 8.6 Gbps
802.11ax (WiFi 6/6E): 7.3 Mbps to 4.8 Gbps
802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps
802.11n: 6.5 Mbps to 600 Mbps
Features
Wireless meshing
Band steering
802.11v BSS transition management
802.11r fast roaming
802.11k radio resource management (RRM)
Zero-wait DFS
Advanced radio management
Real-time spectral analysis
Passpoint (Hotspot 2.0)
Captive hotspot portal with custom branding landing page
Voucher authentication
Payment-based authentication
External portal server support
Password authentication
Guest network isolation
Private pre-shared key (PPSK)
WiFi speed limiting
Client device isolation
WiFi schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Operating Environment
Operating Frequency
US/CA: 2400–2472 MHz, U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz, U-NII-5 to U-NII-8: 5925–7125 MHz
Worldwide: 2400–2483.5 MHz, 5150–5850 MHz, 5925–7125 MHz
Operating Temperature
-30 to 50°C (-22 to 122°F)
Operating Humidity
5–95% non-condensing
Software Requirements
UniFi Network
Version 8.2.93 or later
