SuperLink remote control key fob with programmable actions for your UniFi deployment, featuring up to 10 years of battery life.
Programmable SuperLink key fob designed for instant control across UniFi systems, with battery life of up to 10 years.
Compact SuperLink key fob for quick, programmable actions throughout your UniFi deployment, with up to 10 years of battery life.
Dimensions
67 × 35 × 18.5 mm (2.6 × 1.4 × 0.7 in)
Platform Compatibility
UniFi Protect (UniFi Application Suite)
Connectivity

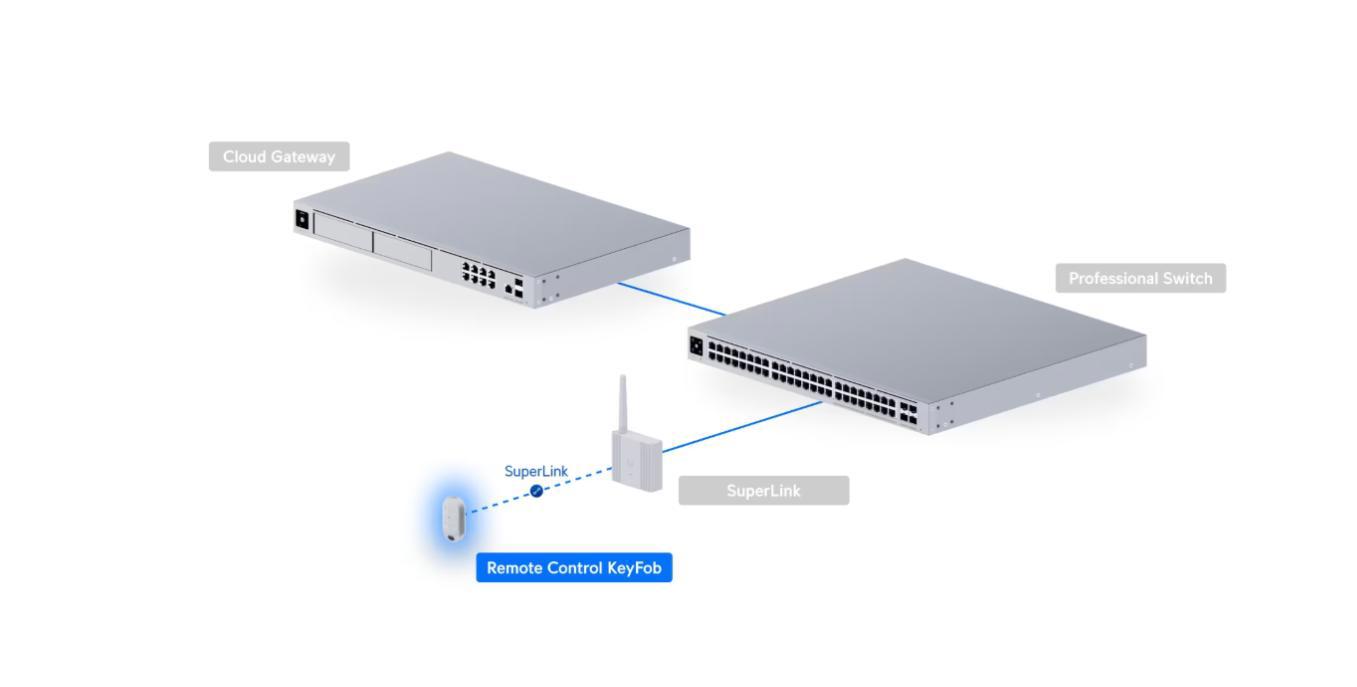

SuperLink (proprietary)
Operating Frequency
US: 915.6–927.6 MHz
EU: 865.1–869.5 MHz
Antenna Gain
SuperLink: -1 dBi
Maximum Transmit Power
SuperLink: 14 dBm
Maximum Range
SuperLink: Up to 2 km (1.2 miles)
Hardware
Power Consumption
150 mW
Power Source

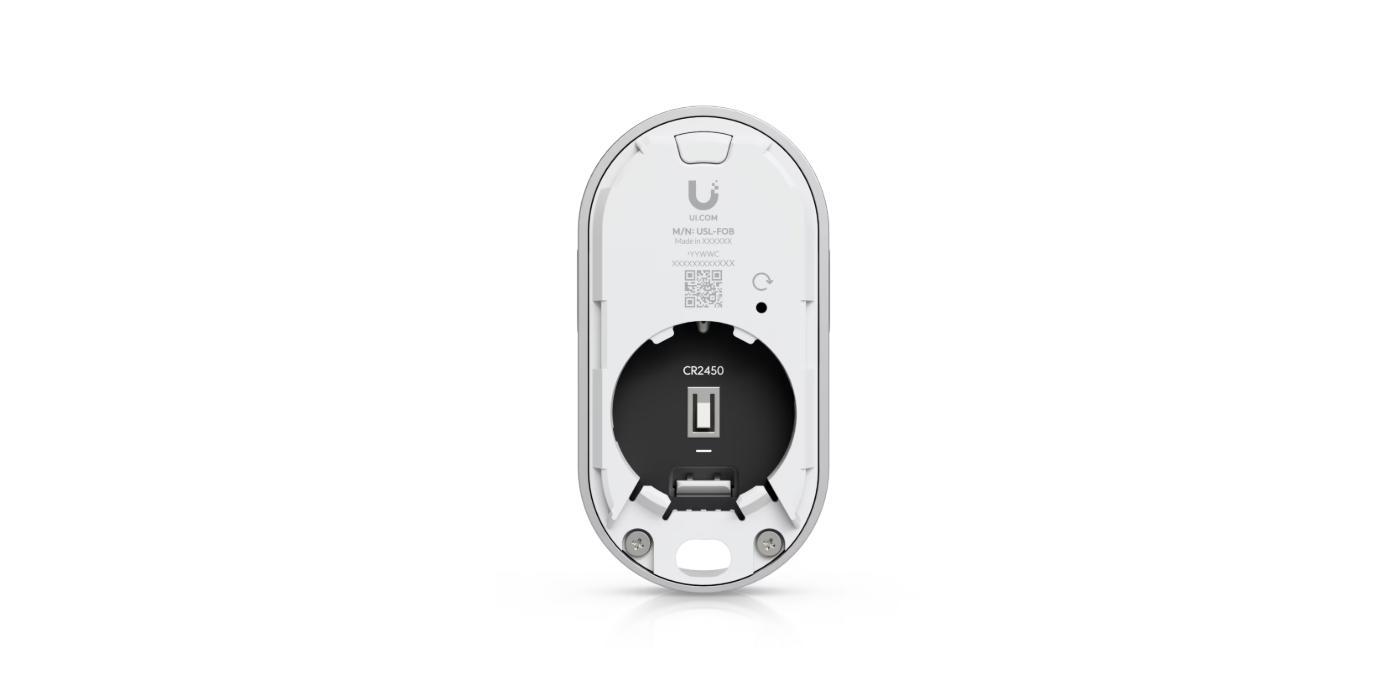

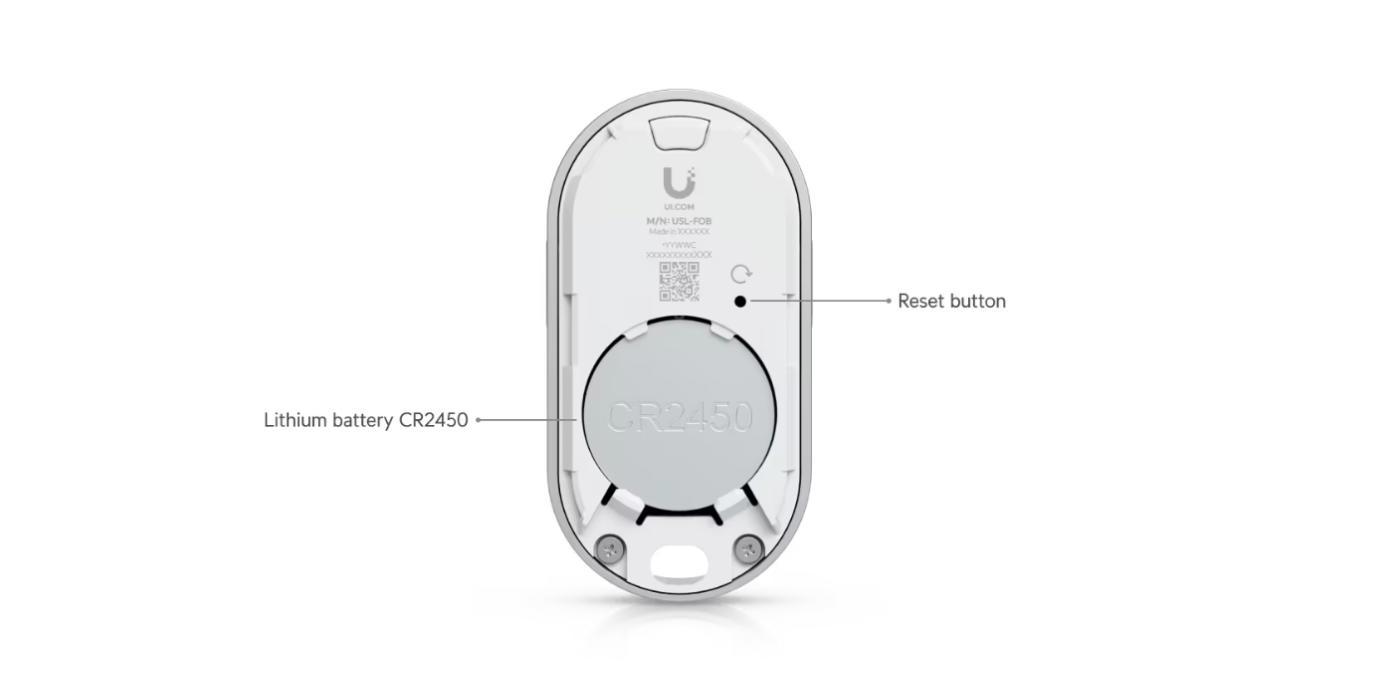

1 × CR2450 lithium battery
Capacity: 600 mAh
Maximum pulse current: 50 mA
Battery Life
Up to 10 years
Weight
32 g (1.1 oz)
Enclosure Material
Polycarbonate
Buttons

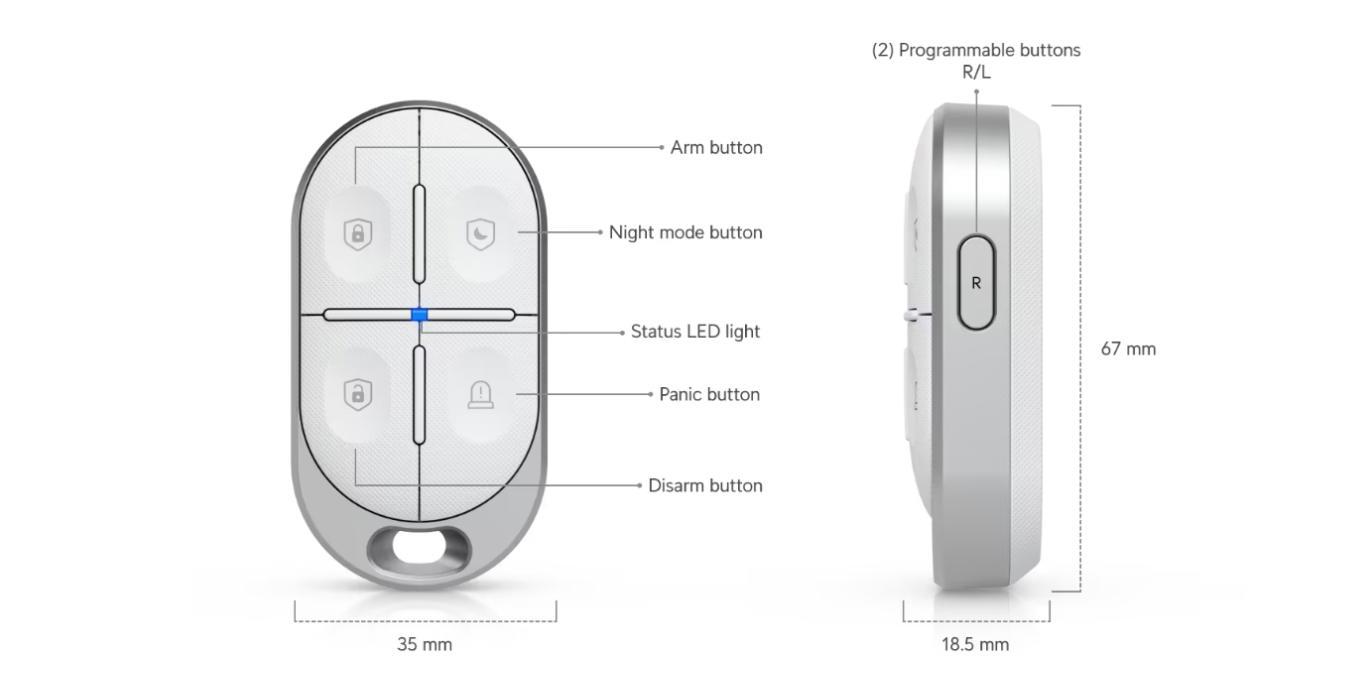

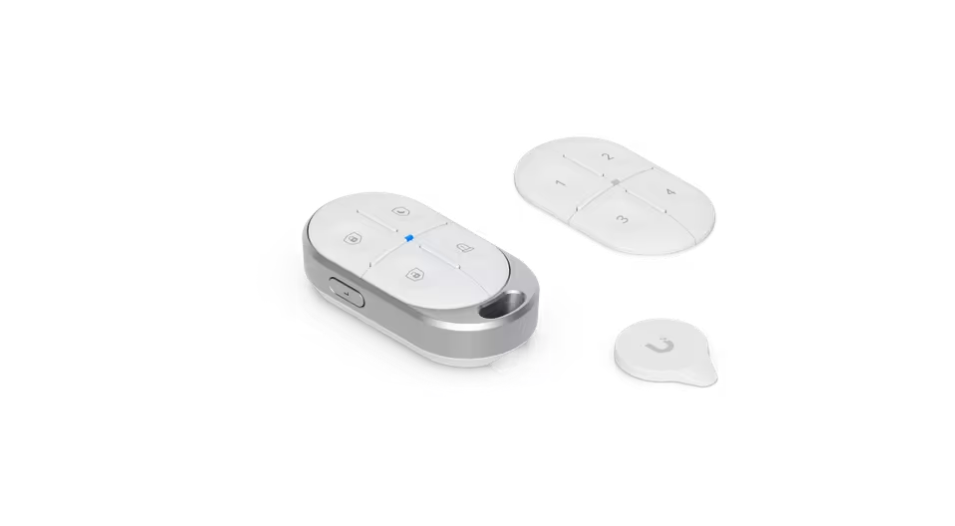

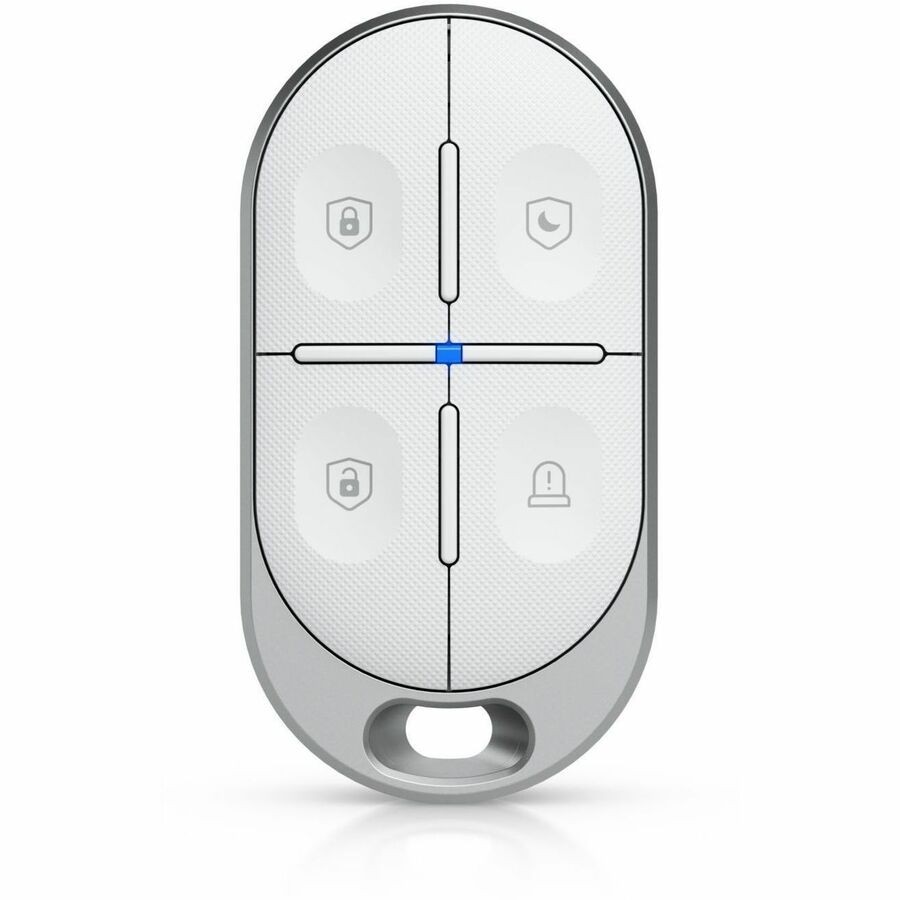

4 top buttons: Arm, Disarm, Night Mode, Panic on primary faceplate; numeric 1, 2, 3, 4 on secondary faceplate for programmable functions
2 side buttons for programmable functions
LED Indicators
1 status LED (red/blue/white)
1 signal LED (blue/red)
Environmental
Operating Temperature
0 to 40°C (32 to 104°F)
Operating Humidity
10–90% non-condensing
Compliance
CE, FCC, IC, UL 4200A
NDAA compliant
Software Requirements
Web Application
UniFi Protect
Mobile Applications
UniFi Protect for iOS and Android
