Physical & Power

• Dimensions: 170 × 208 × 54.5 mm (6.7 × 8.2 × 2.1")

• Weight: 1.2 kg (2.6 lb)

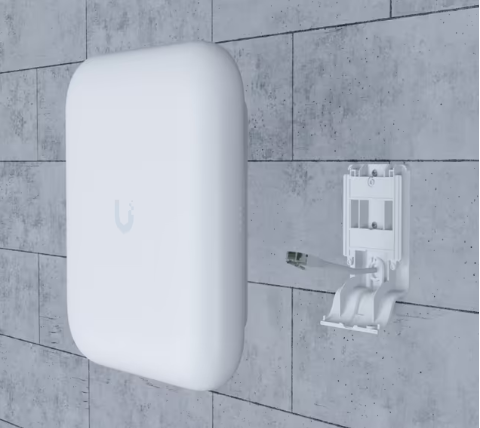

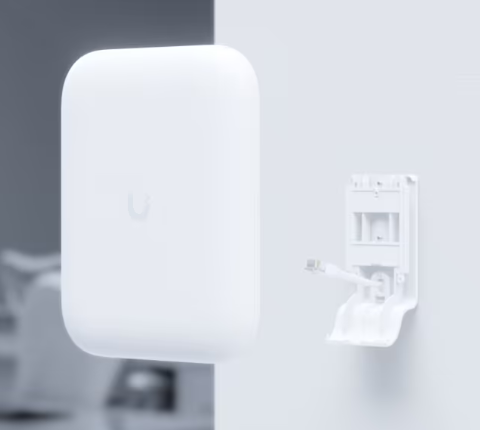

• Mounting: Wall / Pole (mounts included)

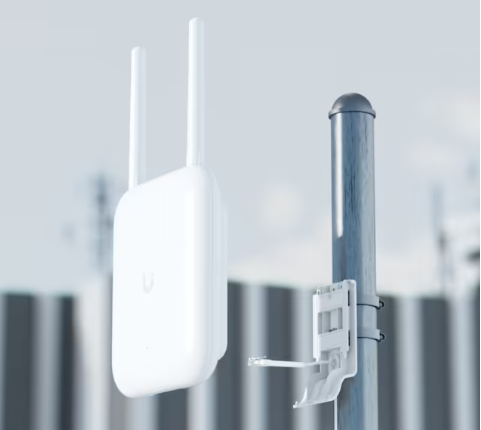

• Pole Mount Diameter: 1–2.36" (25–60 mm)

• Weatherproofing: IPX6

• Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

• Mount Material: Polycarbonate, SGCC steel

• Power Method: PoE+

• Max Power Consumption: 19W

• Supported Voltage: 42.5–57V DC

• Operating Temperature: –30 to 60°C (–22 to 140°F)

• Operating Humidity: 5–95% non-condensing

• Wind Loading: 74.6 N @ 200 km/h (16.8 lbf @ 125 mph)

• NDAA Compliant

Networking & Interface

• WiFi Standard: WiFi 7 (802.11be)

• Spatial Streams: 4

• Coverage Area: 465 m² (5,000 ft²)

• Max Client Count: 250+

• Uplink: 1/2.5 GbE RJ45 port

• Management: Ethernet

• LEDs:

  • Power: White/Blue

  • System: White/Blue

  • Mesh Signal: (4) Blue

Radio Performance

• MIMO (DL/UL MU-MIMO):

  • 5 GHz: 2×2

  • 2.4 GHz: 2×2

• Max Data Rates:

  • 5 GHz: 4.3 Gbps (BW240)

  • 2.4 GHz: 688 Mbps (BW40)

• Antenna Gain:

  • 5 GHz: 12.5 dBi directional (45° × 45°); 4 dBi external omni (360° × 30°)

  • 2.4 GHz: 8 dBi directional (90° × 90°); 3 dBi external omni (360° × 30°)

• Max TX Power:

  • 5 GHz: 26 dBm

  • 2.4 GHz: 23 dBm

• Antenna System:

  • (1) Directional internal antenna

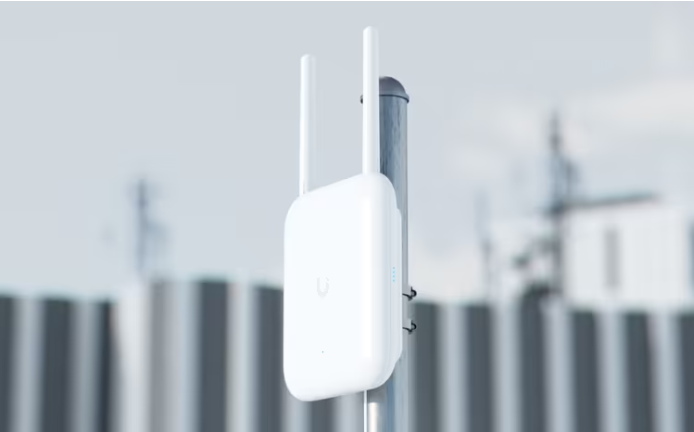

  • (2) External omni antennas

  • (2) RP-SMA connectors for external antennas

• Antenna Beamwidth:

  • 5 GHz: 45°

  • 2.4 GHz: 90°

• Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160/240 MHz

• Max BSSIDs: 8 per radio

• Operating Frequencies:

  • US/CA: 2.4 GHz (2400–2472 MHz), 5 GHz U-NII-1/2A/2C/3

  • Worldwide: 2400–2483.5 MHz, 5150–5725 MHz

Supported Data Rates

• 802.11be (WiFi 7): 7.3 Mbps–4.3 Gbps

• 802.11ax (WiFi 6): 7.3 Mbps–2.4 Gbps

• 802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps

• 802.11n: 6.5 Mbps–300 Mbps

Features

• Wireless Meshing

• Band Steering

• 802.11v BSS Transition Management

• 802.11r Fast Roaming

• 802.11k Radio Resource Management (RRM)

• Advanced Radio Management

• Passpoint (Hotspot 2.0)

• Captive Portal w/ Custom Branding

• Voucher / Payment / Password Authentication

• External Portal Server Support

• Guest Network Isolation

• Private Pre-Shared Key (PPSK)

• WiFi Speed Limiting

• Client Device Isolation

• WiFi Scheduling

• RADIUS over TLS (RadSec)

• Dynamic RADIUS-assigned VLAN

Certifications

• CE, FCC, IC, Anatel: 08999-24-08356

Software Requirements

• UniFi Network version 8.2.93+
