Overview
This managed mobile WiFi router delivers plug-and-play connectivity for deployments requiring rapid network access in virtually any environment. Designed as a standalone solution, the router operates independently of UniFi consoles while supporting flexible local or remote management options.
Intelligence
The device ships with a pre-installed AT&T nano-SIM supporting selectable LTE data plans or allows deployment using a customer-provided AT&T SIM on supported firmware versions. Management can be performed through WiFi, Ethernet, or remotely via an optional Mobility Cloud subscription, enabling centralized oversight without dedicated infrastructure.
Features
The standalone architecture enables setup and administration without requiring a UniFi Console. Flexible connectivity supports quick deployment scenarios, while PoE+ input allows optional passthrough power capability when infrastructure supports it. Integrated LTE connectivity ensures dependable mobile access for temporary, mobile, or remote site deployments.
Applications
Temporary or mobile connectivity deployments
Remote job site networking
Backup WAN access scenarios
Standalone small office or branch networking
Field operations requiring managed LTE connectivity
Data Plan Options (AT&T SIM)
$15/month — 1 GB LTE data
$30/month — 5 GB LTE data
$70/month — 20 GB LTE data
$15 per additional GB
Notes
Compatible with AT&T network within the United States
Bring-your-own AT&T nano-SIM supported on device version 1.5.0+
Firmware update possible using included SIM trial or wired WAN
PoE+ input required for PoE passthrough
Physical
• Dimensions: 190 × 89.8 × 28.8 mm (7.4 × 3.5 × 1.1")
• Enclosure Material: Polycarbonate; Aluminum Alloy
• Mount Material: Polycarbonate

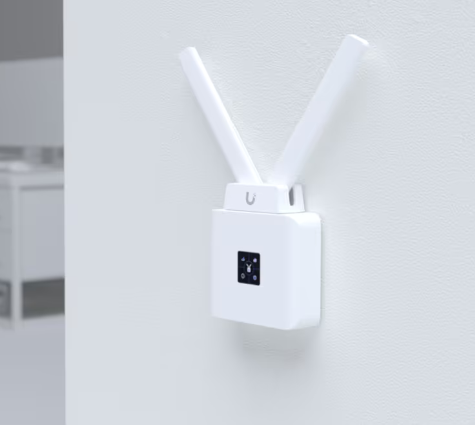

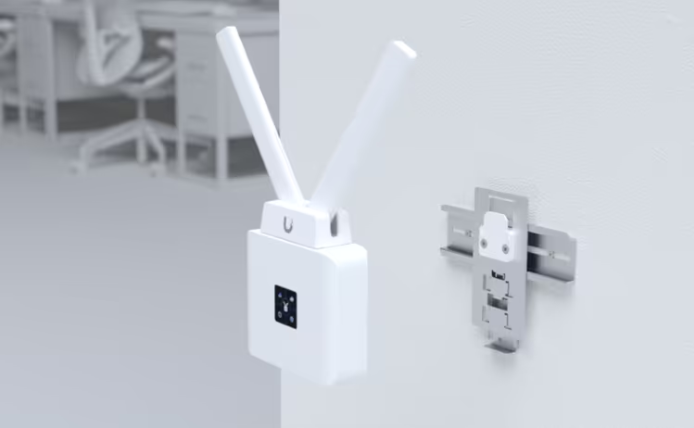

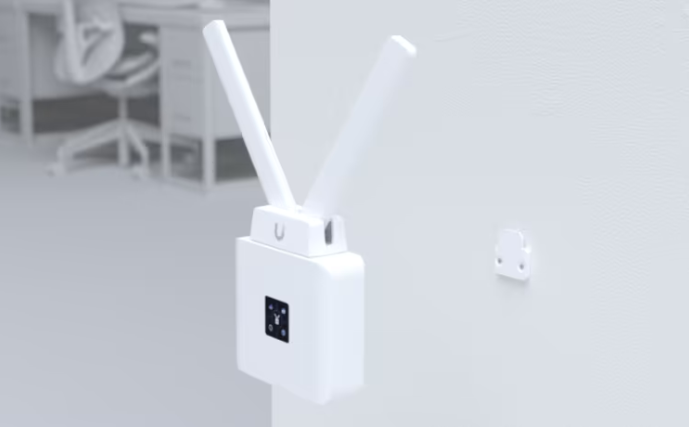

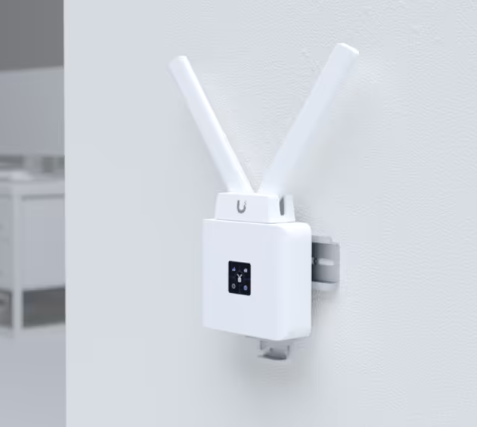

• Mounting Options: DIN Rail; Wall (Mounts Included)
• Weight — Without Mount: 257 g (9.1 oz)
• Weight — With Mount: 303 g (10.7 oz)
Networking Interface
• Ethernet Ports: 2 × GbE RJ45
• Cellular Radio: LTE Cat 4
• WiFi: WiFi 4
SIM
• Pre-installed AT&T Nano SIM
Cellular
• LTE Bands: B2; B4; B5; B12; B14; B66
• LTE Throughput: 150 Mbps Downlink; 50 Mbps Uplink
PoE
• PoE Input: 1 × PoE
• PoE Output: 1 × PoE (Max 10 W; Requires PoE+ Switch)
Features — WAN / Routing
• Priority & Fallback: Yes
• Cellular WAN: Yes
• Ethernet WAN: Yes
• LTE Passthrough Mode: Yes
• Ethernet Bridge Mode: Yes
• VPN Client: OpenVPN; WireGuard
• Site-to-Site VPN: IPsec; WireGuard
• Port Forwarding: Yes
• Firewall: Yes
• Static Routes: Yes
Wireless
• WiFi Standard: WiFi 4 (802.11n)
• WiFi MIMO: 1 × 1
• Max TX Power: 19 dBm
Supported Data Rates
• 802.11n: 6.5 Mbps – 150 Mbps (MCS0–MCS7, HT 20/40)
• 802.11g: 6; 9; 12; 18; 24; 36; 48; 54 Mbps
• 802.11b: 1; 2; 5.5; 11 Mbps
Hardware / Management
• Management Interfaces: Ethernet; WiFi
• GPS: Yes
• Antennas:
• External LTE Antenna Port: TS9 Male
• Internal WiFi Antenna
• Internal GPS Antenna
• Display: 1.3" Touchscreen
• Buttons: 1 × Factory Reset
• Max Power Consumption: 9 W
Power
• Power Methods:
• PoE+ (48–54 VDC)
• USB-C (5 VDC; 3 A)
• 4-Pin ATX DC (9 VDC; 1 A)
• Power Supply: USB-C 5 VDC; 3 A (Adapter Included)
Environmental
• Operating Temperature: −20°C to +45°C (−4°F to 113°F)
• Operating Humidity: 5%–95% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; PTCRB; AT&T
