Firewall Security Gateway
The UniFi Enterprise Gateway delivers an all-in-one, rack-mountable solution for advanced network management, security, VPN, and unified application support. Engineered to support over 1,000 simultaneous users and 100+ managed UniFi devices, it is an ideal platform for scalable enterprise deployments with robust multi-WAN, security, and PoE capabilities.
- Includes 5 Year Warranty
- 1 Year of Advanced Cyber Security Protection
Key Specifications
| Category | Details |
|---|---|
| Form Factor | Rack Mount (1U) |
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2 in) |
| Weight | 5 kg (10.9 lbs) |
| Enclosure | Aluminum CNC, SGCC Steel |
| Display | 1.3" Touchscreen LCM |

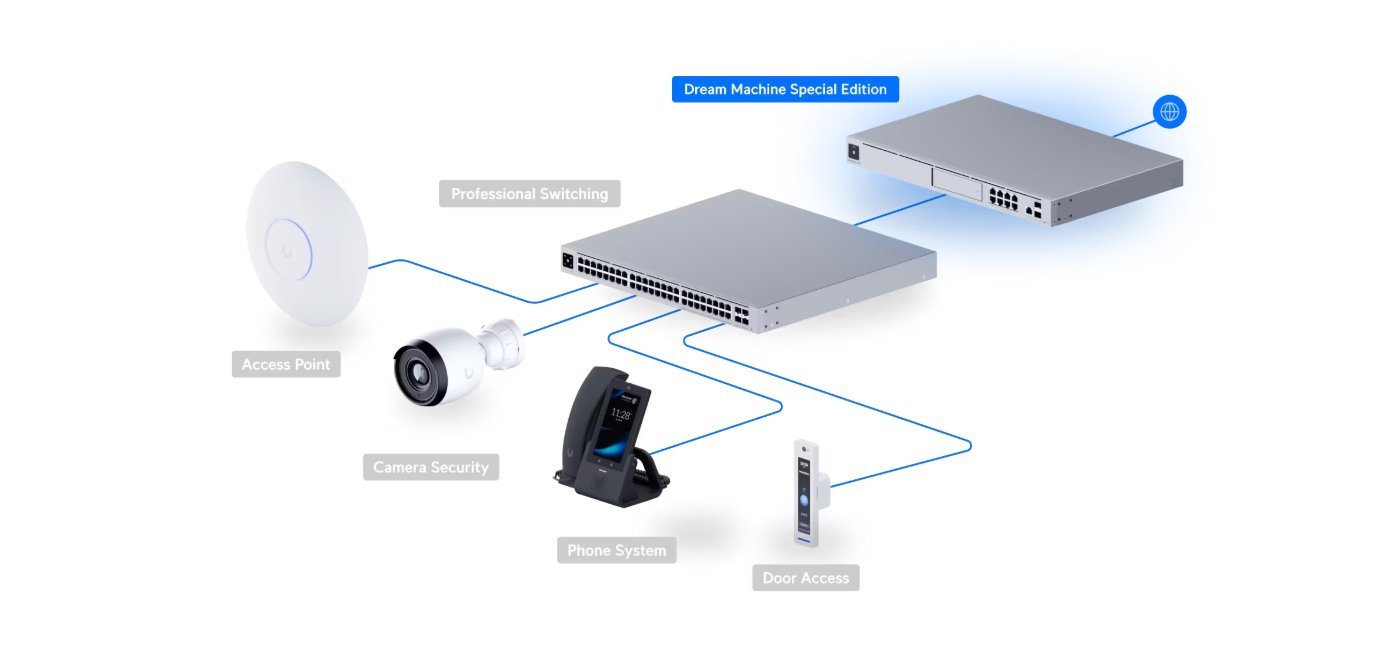

Unified Application Suite
Supports the full UniFi stack:
Network
Protect (Video Surveillance)
Access (Door Control)
Talk (VoIP)
Connect (Device Management)
Performance & Capacity
| Feature | Specification |
|---|---|
| Managed Devices | 100+ UniFi Devices |
| Managed Cameras | 24 HD, 14 2K, 8 4K |
| Simultaneous Users | 1,000+ |
| Max. WAN Ports | 8 |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5GbE RJ45 |
| IDS/IPS Throughput | 3.5 Gbps |

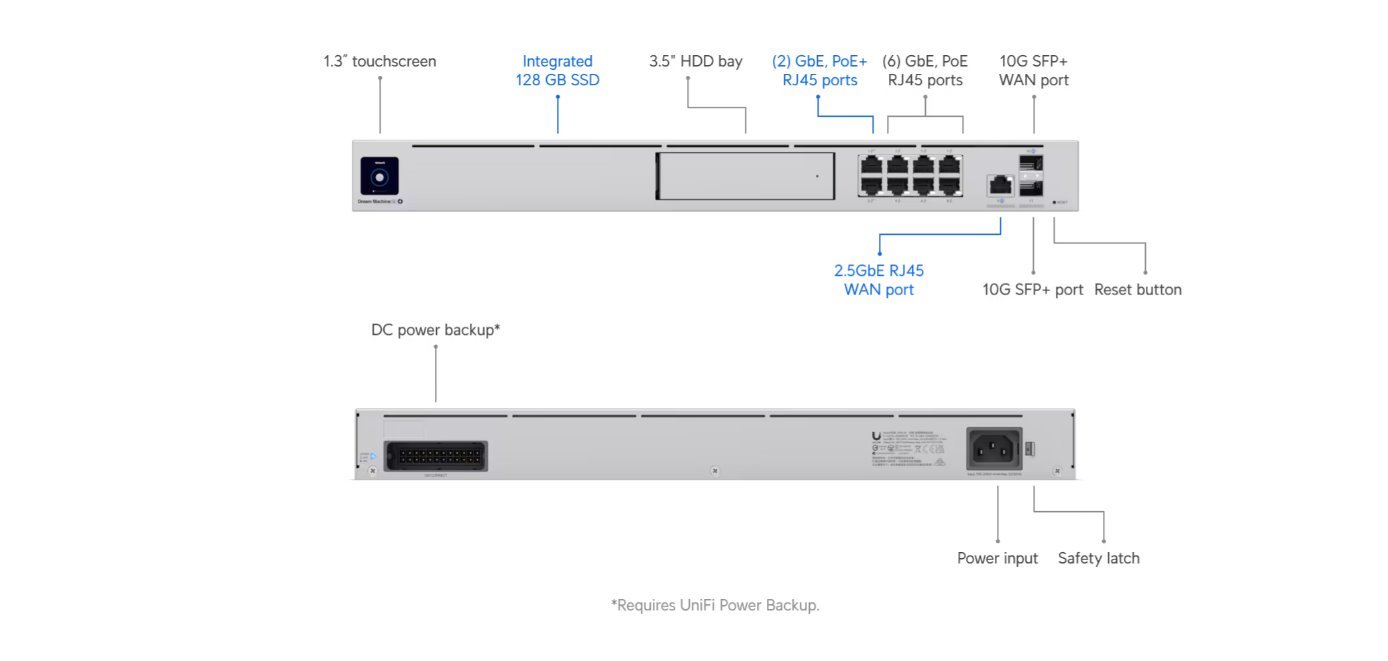

Port Configuration
| Port Type | Quantity | Speed |
|---|---|---|
| 1 GbE RJ45 | 8 | 10M / 100M / 1G |
| 2.5 GbE RJ45 | 1 | 10M / 100M / 1G / 2.5G |
| 10G SFP+ | 2 | 1G / 10G |
Security Features
Stateful Firewall & Layer 7 Filtering
DPI & Traffic Identification
Zone-Based Firewall (Regions, Domains, Apps)
Content Filtering & Ad Blocking
Intrusion Detection/Prevention (55,000+ Signatures with CyberSecure)
VLAN/Subnet-Based Segmentation
VPN & SD-WAN Capabilities
License-Free SD-WAN
Teleport Zero-Config VPN
Identity Endpoint One-Click VPN
Site-to-Site VPN: Site Magic, IPsec, OpenVPN
VPN Server/Client: WireGuard, OpenVPN, L2TP
Advanced Networking
Multi-WAN Load Balancing
VRRP Gateway Failover (Shadow Mode)
OSPF & BGP Dynamic Routing
Integrated RADIUS with RadSec Support
Internet Failover with UniFi LTE
IPv6, IGMP Proxy, mDNS, NAT Pooling, QoS
Power & PoE
| Feature | Specification |
|---|---|
| PoE Budget | 180W |
| Max PoE per Port | PoE: 15.4W, PoE+: 30W |
| Voltage Range | PoE: 44–57V, PoE+: 50–57V |
| Power Supply | Internal 240W AC/DC |
| Power Input | 100–240V AC, 52V DC RPS Backup Option |
System Hardware
Processor: Quad-core ARM Cortex-A57 1.7 GHz
System Memory: 4 GB
Storage: 16 GB eMMC + 128 GB SSD (Built-In)
NVR Bay: (1) 3.5" HDD Bay
Environmental & Compliance
Operating Temp: -10°C to 40°C (14°F to 104°F)
Operating Humidity: 5–95% Noncondensing
ESD/EMP Protection: ±15kV Air, ±8kV Contact
NDAA Compliant: ✅
Certifications: CE, FCC, IC, Anatel, SRRC
