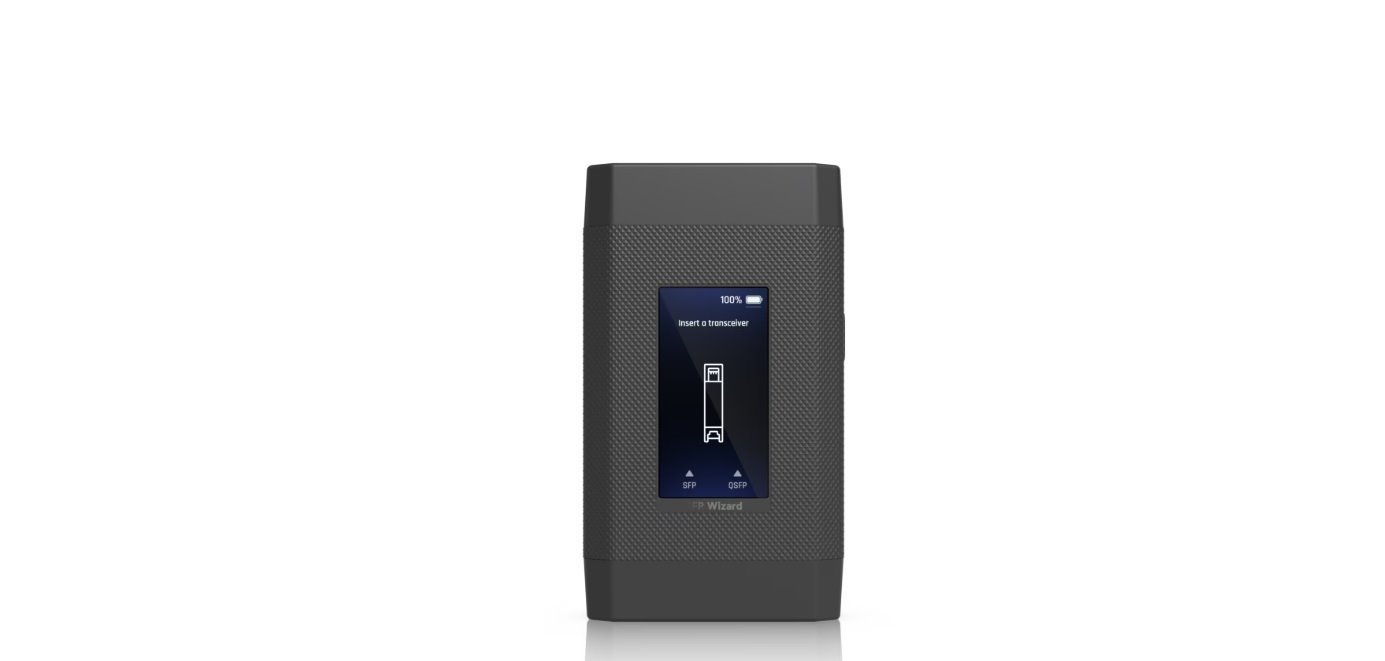

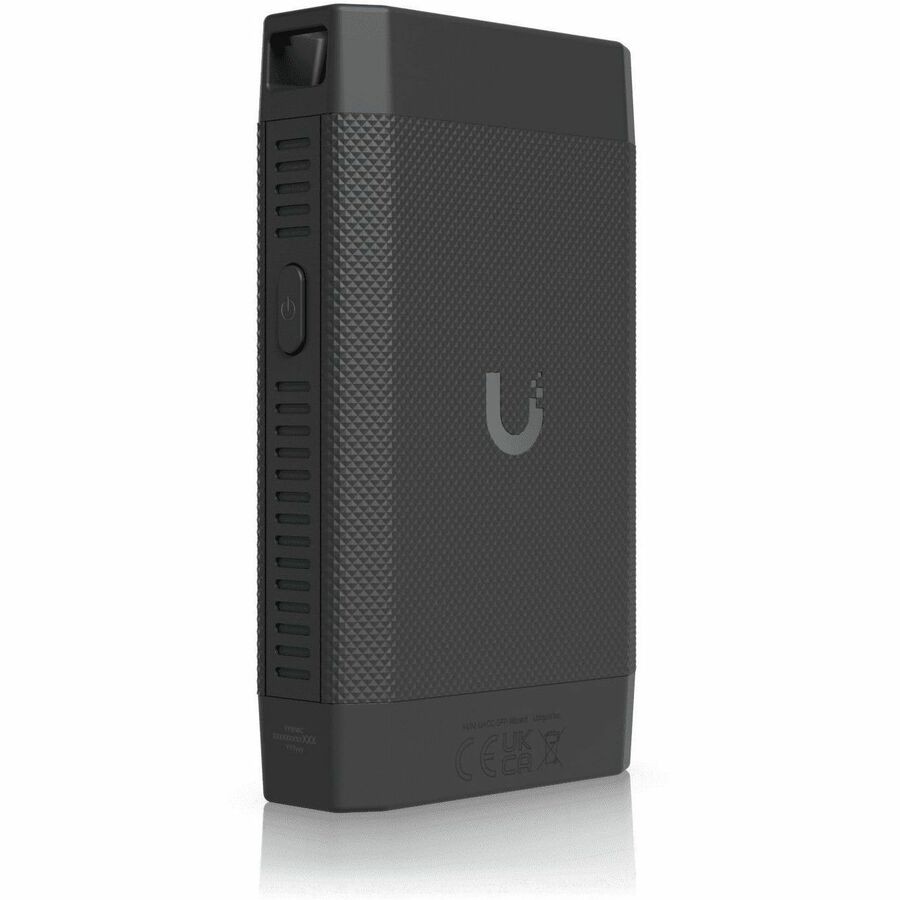

Instantly reprogram, test, and unlock universal compatibility for every optical module — with full diagnostics and OTA updates built in.
Copy optical module profiles
Write or restore profile to Ubiquiti optical module instantly
Monitor optical module health in real time via DDM
Physical & Power

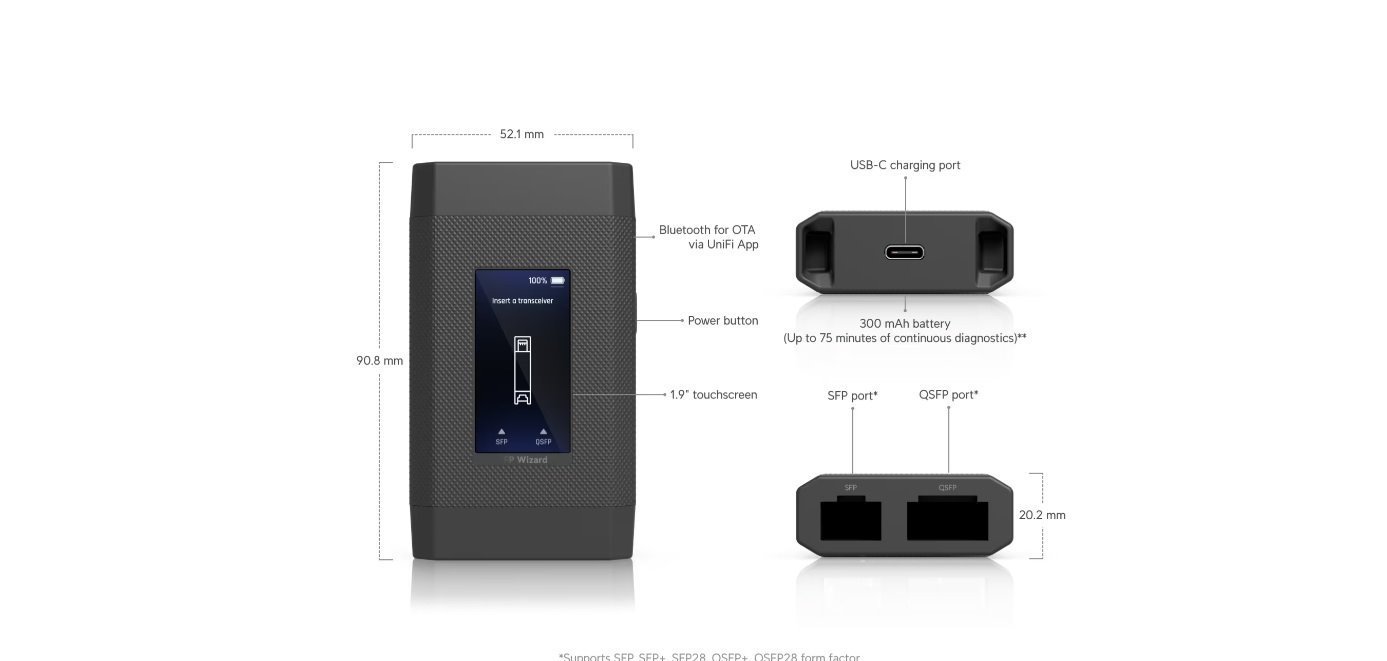

Dimensions: 90.8 × 52.1 × 20.2 mm (3.6 × 2.1 × 0.8")
Weight: 84 g (3 oz)
Enclosure Material: Polycarbonate
Power Method: Rechargeable Li-ion battery, 3.7V DC, 300mAh

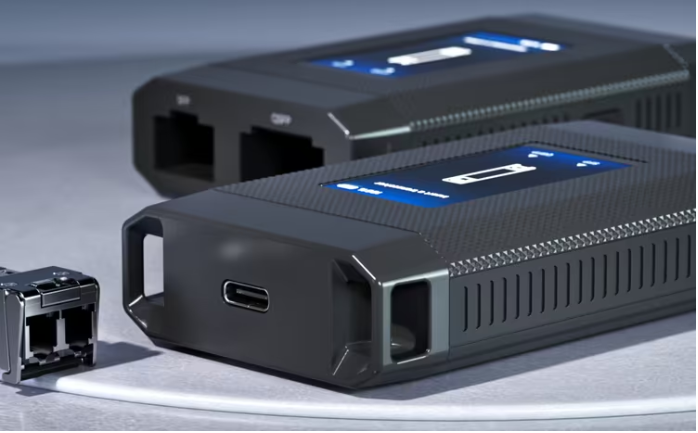

Supported Voltage Range: USB-C: 5V DC / 0.5A
Max Power Consumption: 0.6 W
Battery Life:
Up to 75 minutes (continuous SFP transceiver diagnostics with laser on)
Up to 35 minutes (with QSFP transceivers)
Ambient Operating Temperature: 0 to 40°C (32 to 104°F)
Ambient Operating Humidity: 10 to 90% non-condensing
NDAA Compliant
Networking & Interfaces
Networking Interface: BLE

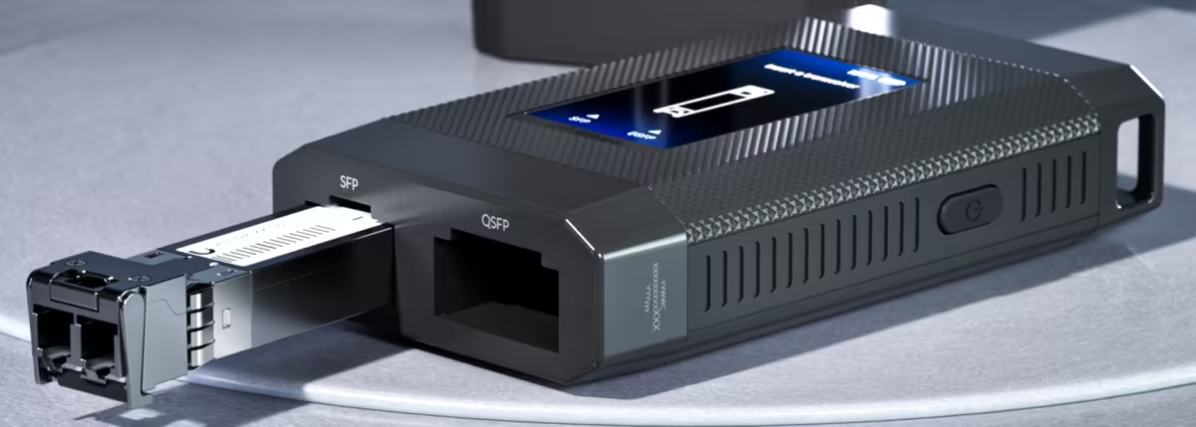

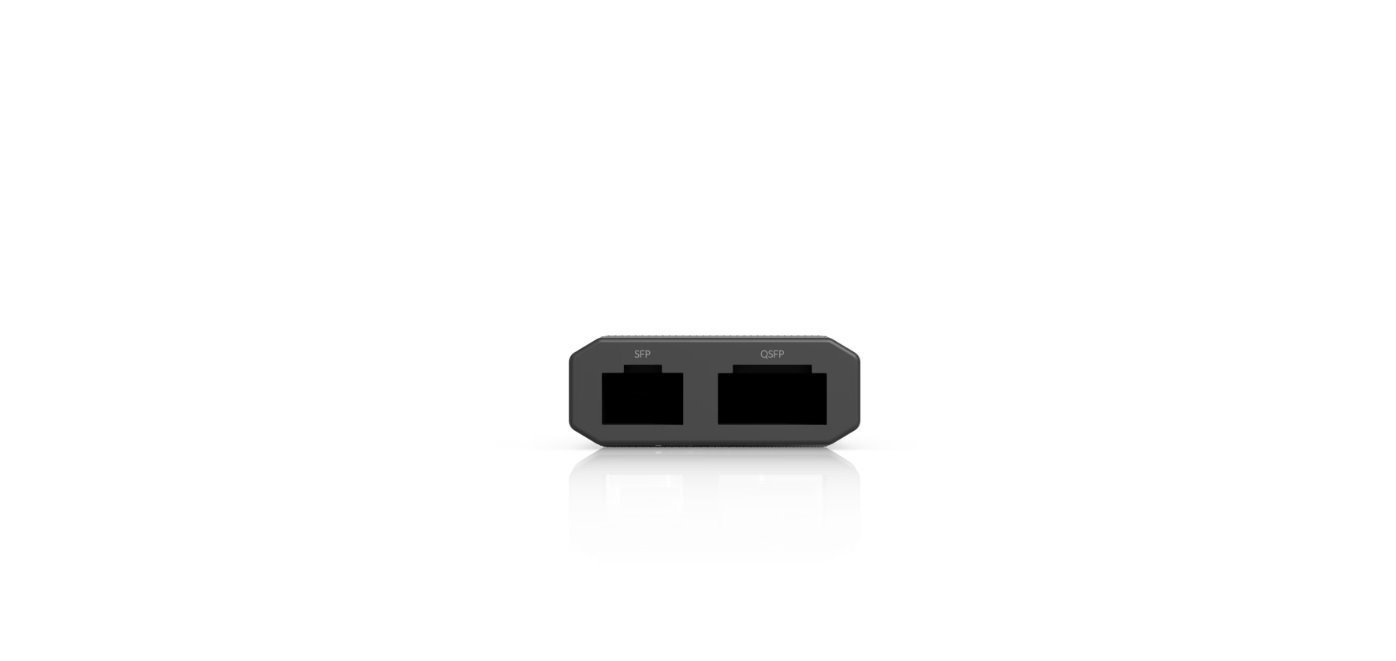

Supported Form Factors: SFP, SFP+, SFP28, QSFP+, QSFP28
LCM Display: 1.9" touchscreen
Buttons: 1 Power button
Certifications
FCC, IC, CE
Software Requirements
Mobile App:
UniFi iOS™ version 10.29.1 and later
UniFi Android™ version 10.30.2 and later
