DOES NOT INCLUDE HDD (sold separately)
Overview

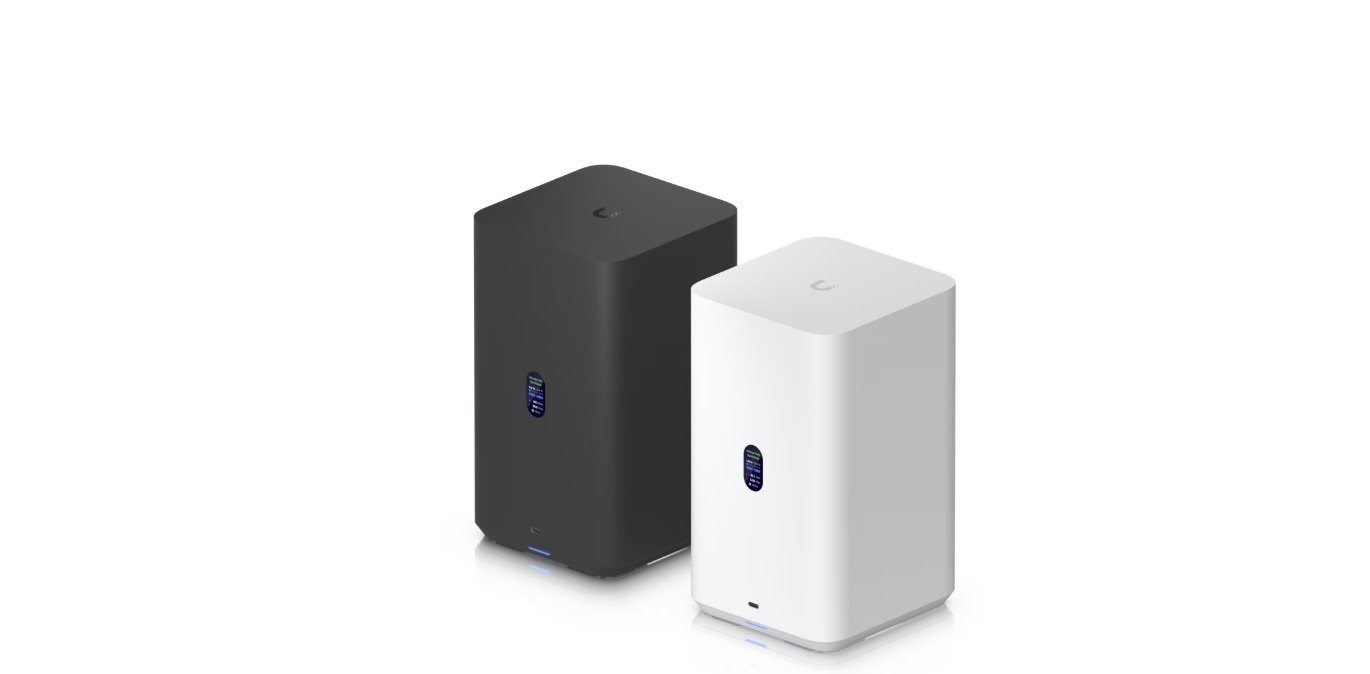

This UniFi Network Attached Storage solution delivers centralized data storage in a compact form factor designed for professional network environments. Featuring dual 3.5" HDD bays, high-speed 2.5 GbE connectivity, and USB-C support, the unit enables efficient file storage, backup, and data access within UniFi-managed infrastructures.
Intelligence

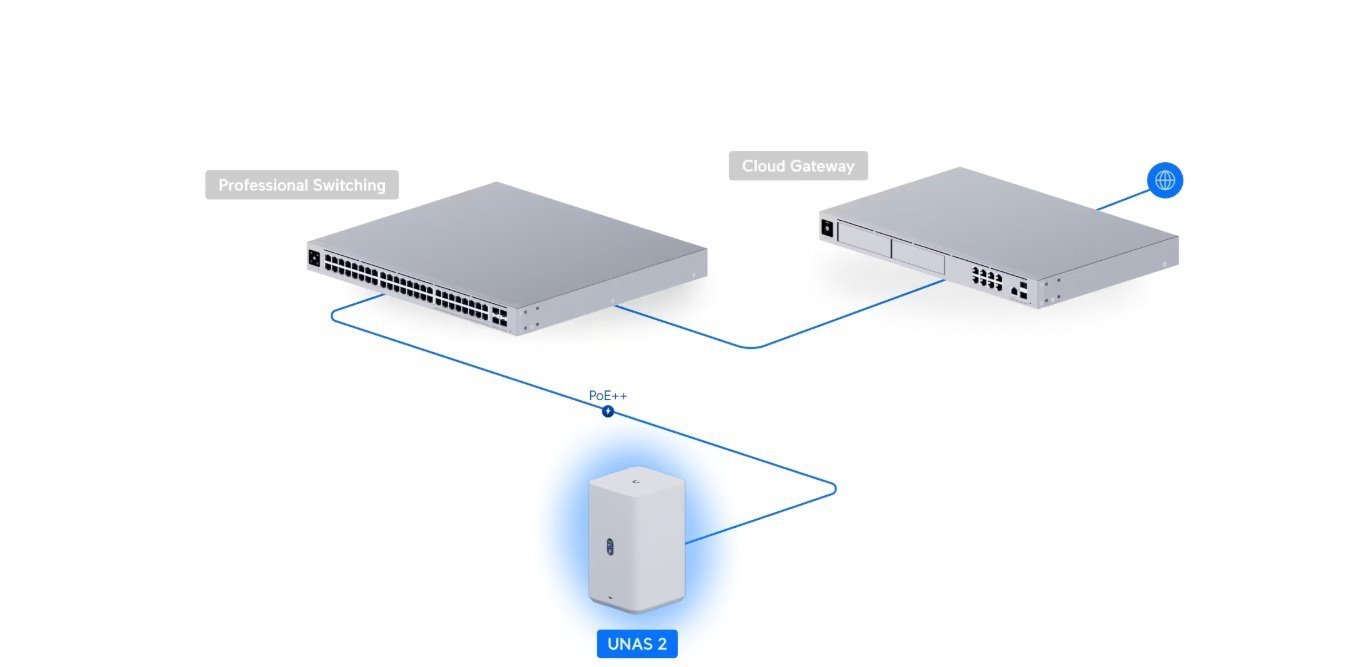

Optimized for integration into UniFi deployments, the NAS supports high-throughput data access through multi-gigabit networking while maintaining streamlined connectivity with external devices through USB-C. The included PoE++ adapter simplifies installation by supporting flexible power delivery options.
Features

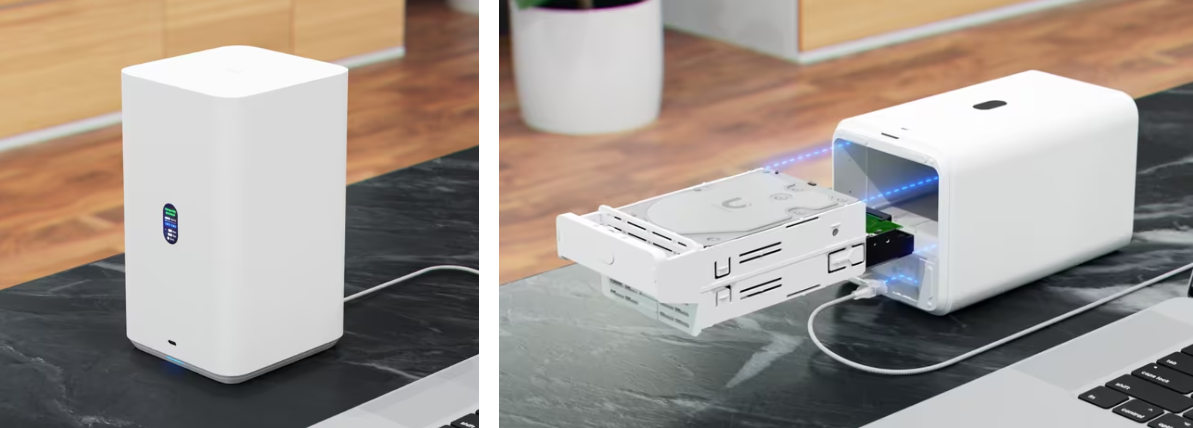

Dual drive bays allow scalable storage configuration using 3.5" HDDs, enabling capacity expansion as needs evolve. Compact physical design supports deployment in space-constrained environments without sacrificing performance. Included UI Care coverage provides extended operational assurance, prioritizing support and minimizing downtime through advanced replacement services.
Applications
Centralized storage for UniFi network environments
File sharing and backup infrastructure
Small business or branch office data storage
Network-integrated media or archive repositories
UI Care Coverage
5-Year Protection Coverage Included
Replacement ships before inspection
RMA requests prioritized end-to-end
Prepaid return shipping provided
Supported HDD Compatibility
• Seagate — ST24000NM002H-3KS133 — HDD Firmware: SE05 — UNAS Firmware: 5.0.4
• Seagate — ST10000NT001-3LY101 — HDD Firmware: EN01 — UNAS Firmware: 5.0.4
• Seagate — ST8000VN002-2ZM188 — HDD Firmware: SC60 — UNAS Firmware: 5.0.4
• Seagate — ST16000NM000J-2TW103 — HDD Firmware: SN04 — UNAS Firmware: 5.0.4
• Seagate — ST1000DM010-2EP102 — HDD Firmware: CC46 — UNAS Firmware: 5.0.4
• Seagate — ST8000NM017B-2TJ103 — HDD Firmware: SN03 — UNAS Firmware: 5.0.4
• Toshiba — HDWG780UZSVA — HDD Firmware: 0501 — UNAS Firmware: 5.0.4
• Toshiba — MG10ADA800E — HDD Firmware: 0101 — UNAS Firmware: 5.0.4
• Western Digital — HUH721212ALE604 — HDD Firmware: LEGNWB01 — UNAS Firmware: 5.0.4
• Western Digital — WD10PURZ-85U8XY0 — HDD Firmware: 01.01A01 — UNAS Firmware: 5.0.4
• Western Digital — WD8005FRYZ-01CBLB0 — HDD Firmware: 01.01H01 — UNAS Firmware: 5.0.4
• Western Digital — WD103KFBX-68CCLN0 — HDD Firmware: 83.00A83 — UNAS Firmware: 5.0.4
• Western Digital — WD120EFBX-68B0EN0 — HDD Firmware: 85.00A85 — UNAS Firmware: 5.0.4
UniFi Drive
Compact PoE++-powered network storage unit designed for seamless integration with the UniFi Application Suite.

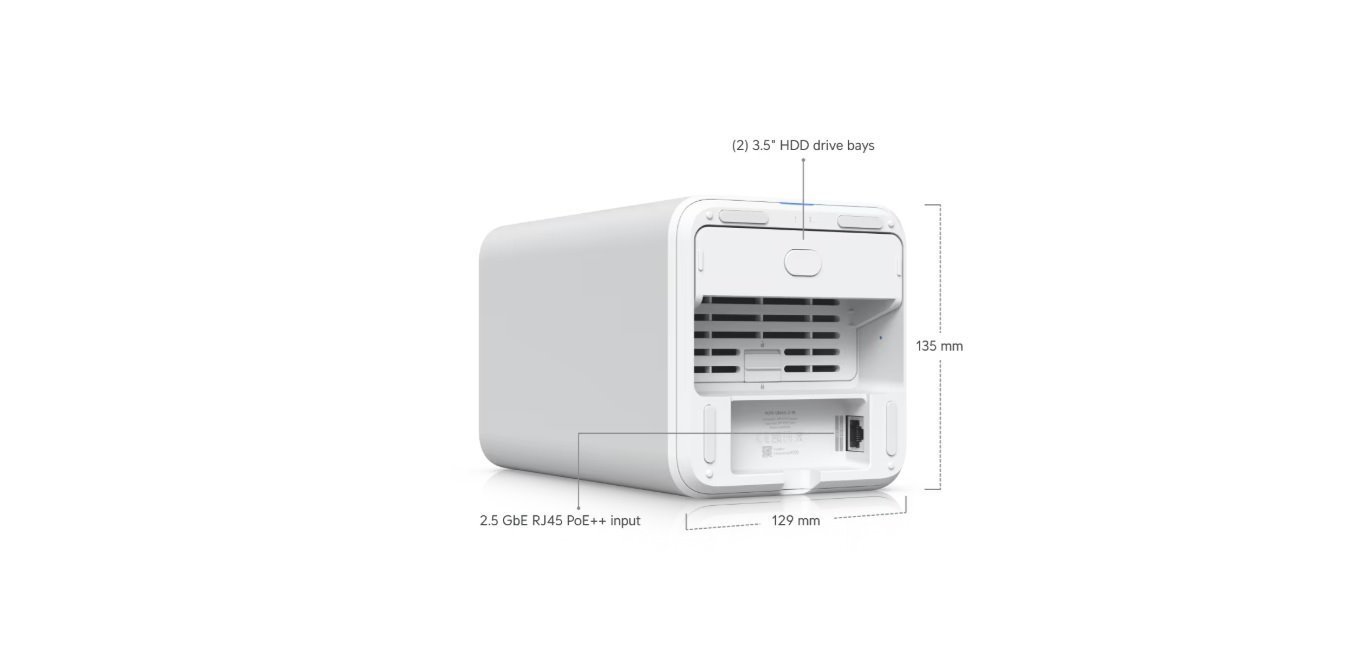

Dimensions: 135 × 129 × 223.7 mm (5.3 × 5.1 × 8.8 in)
Weight: 1.3 kg (2.85 lb)
Storage Capacity: (2) 3.5" drive bays supporting dual-HDD configurations (up to 52 W total power budget)
Networking: (1) 2.5 GbE RJ45 port (supports 2.5G/1G/100M/10M)
Expansion Port: (1) 5 Gbps USB-C
Processor: Quad-Core ARM® Cortex®-A55 @ 1.7 GHz
Memory: 4 GB

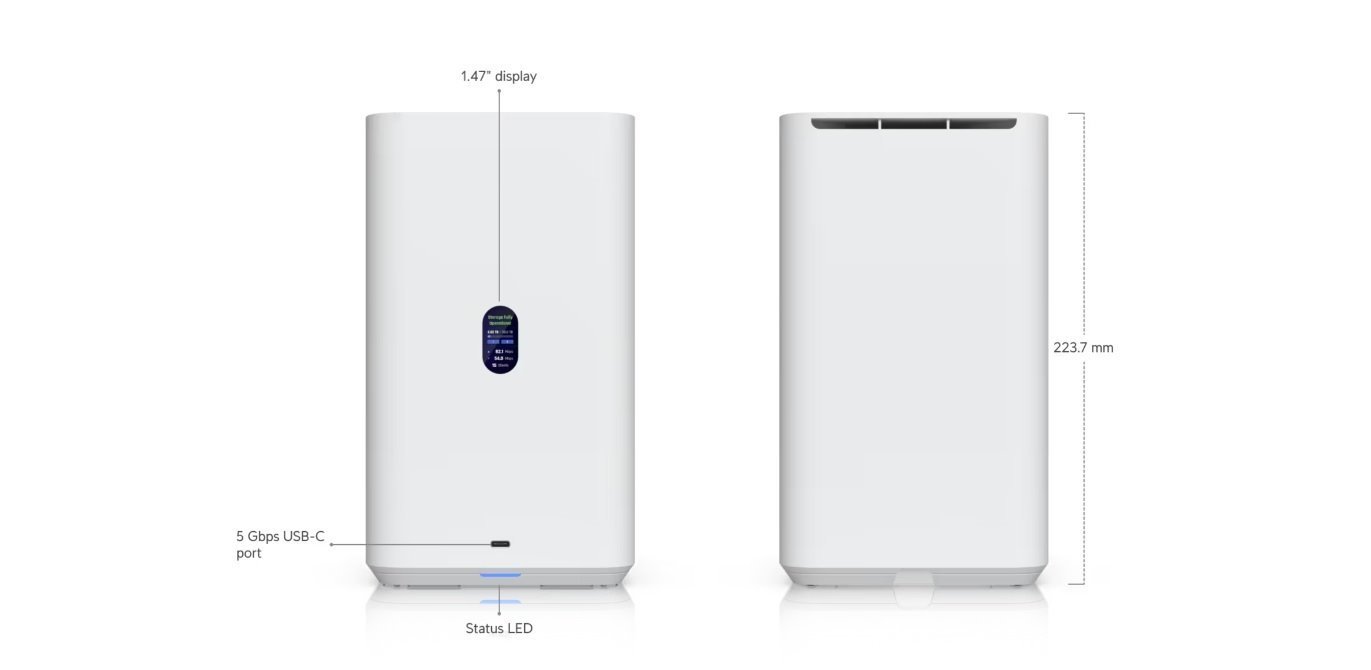

Display: 1.47" color LCM for device status and system information
Power: PoE++ (60 W adapter included); max power consumption 60 W
Management Interfaces: Ethernet and Bluetooth 4.1
Form Factor: Desktop enclosure made of durable polycarbonate
Operating Conditions: –5 to 40 °C (23 to 104 °F); 10 – 90 % RH non-condensing
Compliance: NDAA compliant; FCC, CE, IC certified
Software: Managed via UniFi Drive application (version 3.1.7 or later); compatible with UniFi Mobile App for iOS v10.28.0+ and Android v10.28.3+
