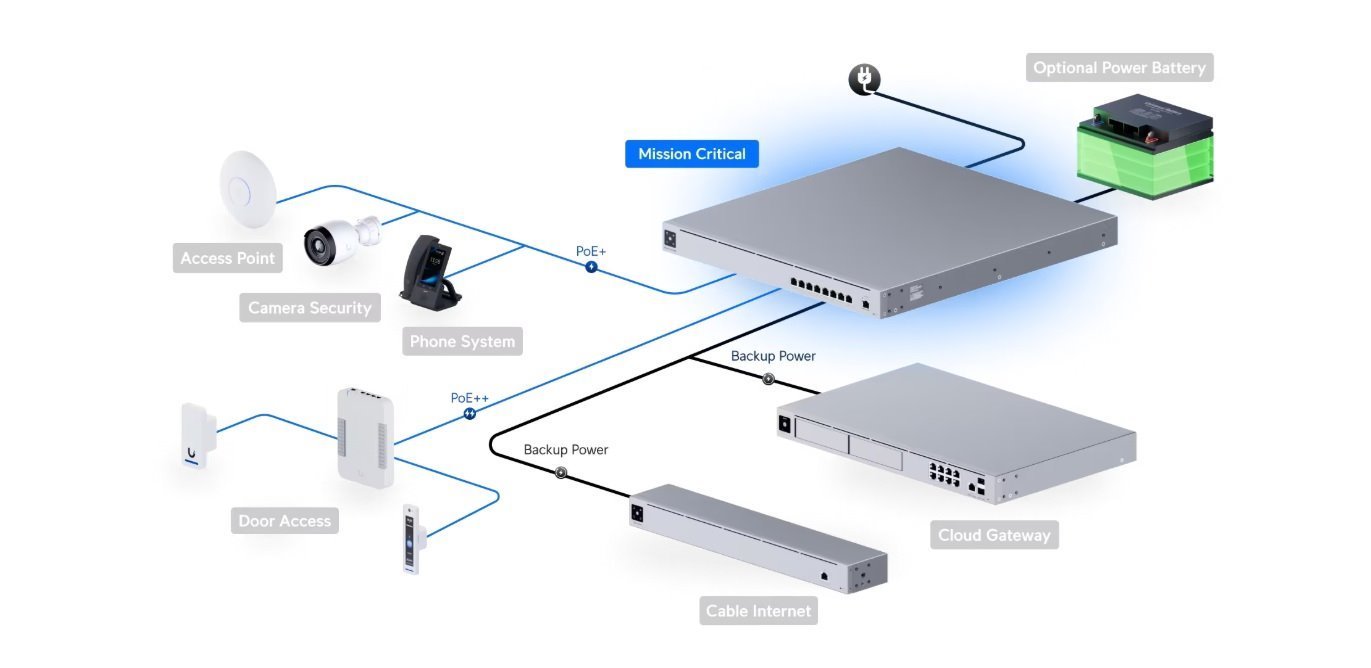

A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
8-Port Layer 3 Managed PoE Switch – NDAA Compliant
High-performance 1U rackmount switch with advanced Layer 2 and Layer 3 management features, built for reliable network and power delivery in enterprise environments.

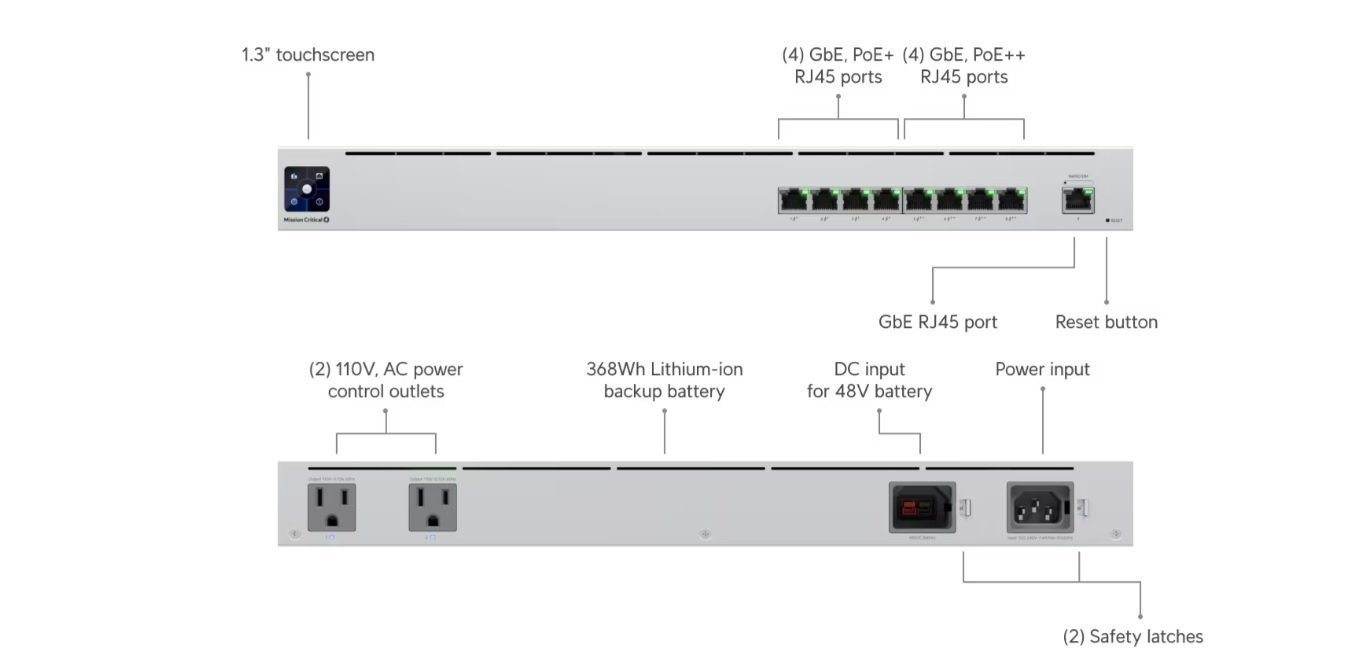

Ports: 9 × 1 GbE RJ45 (4 × PoE+, 4 × PoE++, 1 × Non-PoE)
PoE Capability: Up to PoE++ (total PoE power budget 120W)
Performance: 18 Gbps switching capacity; 9 Gbps non-blocking throughput; 13 Mpps forwarding rate
Layer 3 Features: Static routing, DHCP services, ACLs (IPv4 & MAC), VLAN support (up to 1,000 VLANs)
Layer 2 Features: LACP, STP/RSTP, IGMP Snooping & Querier, 802.1X control, DHCP Guarding, Flow & Storm Control, Port Isolation, Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection
Hardware:
• Form Factor: 1U rack mount (SGCC steel chassis)

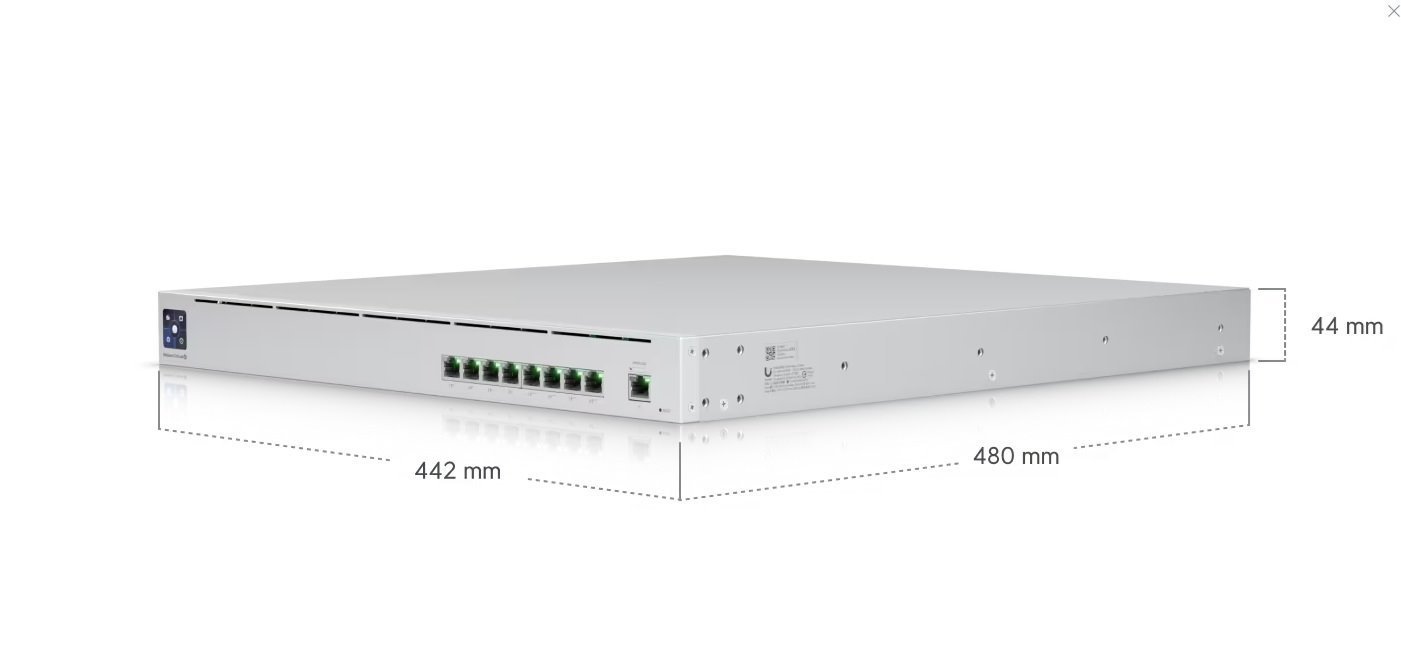

• Dimensions: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7")
• Weight: 9 kg (19.9 lb)
• Display: 1.3" touchscreen (LCM)

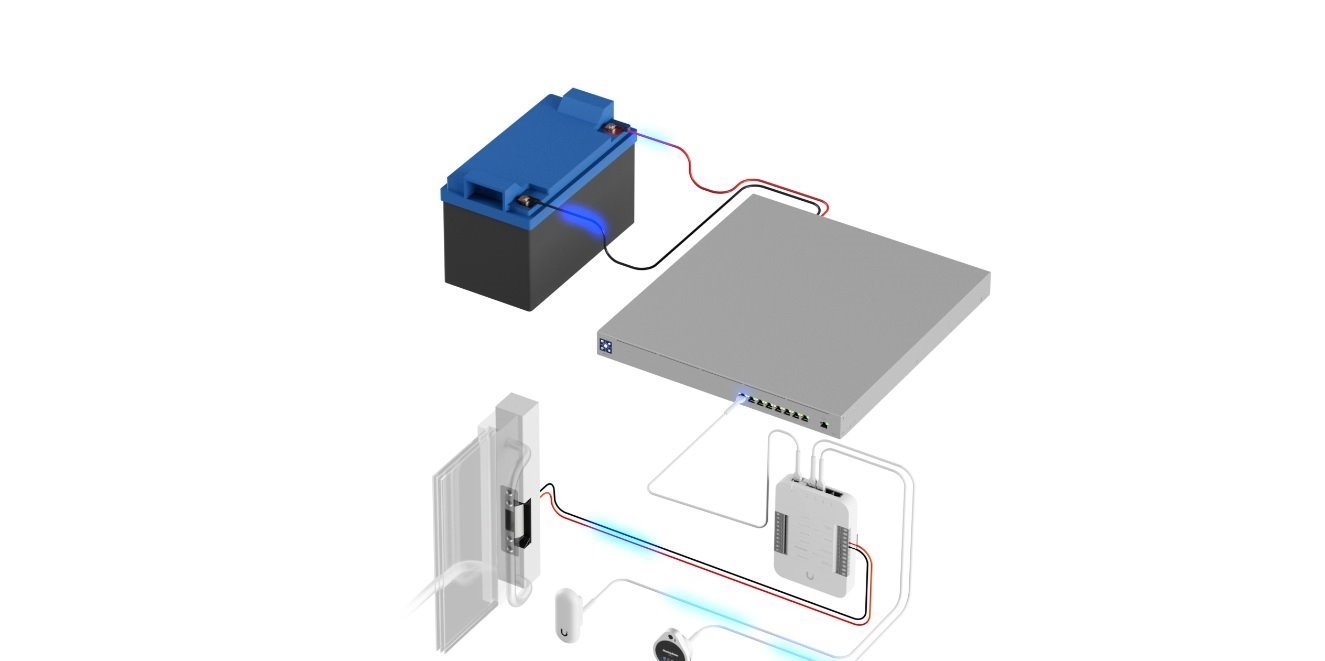

• Redundancy: Battery power backup supported (48V DC input)
• Power Supply: Internal 240W AC/DC; 100–240V AC, 50/60 Hz
• Max Power Consumption: 50W (base), 240W (with PoE and AC output)Environmental: Operating temp –5 to 40 °C (23 to 104 °F); humidity 5–95% noncondensing
Protection: ESD ±24kV (air/contact)
Compliance & Certifications: NDAA Compliant; CE, FCC, IC, Anatel (06679-25-08356)
