• WiFi Standard: WiFi 7 (802.11be)

• Radios / MIMO:

  • 5 GHz: 2×2 MU-MIMO

  • 2.4 GHz: 2×2 MU-MIMO

• Max Data Rates:

  • 5 GHz: 4.3 Gbps (BW240)

  • 2.4 GHz: 688 Mbps (BW40)

• Spatial Streams: 4

• Coverage & Capacity: Up to 115 m² (1,250 ft²), 200+ clients

• Antenna Gain: 8 dBi (5 GHz), 4 dBi (2.4 GHz)

• Max TX Power: 24 dBm (5 GHz), 23 dBm (2.4 GHz)

• BSSIDs: Up to 8 per radio

• Channel Bandwidth: 20/40/80/160/240 MHz (HT/VHT/HE/EHT)

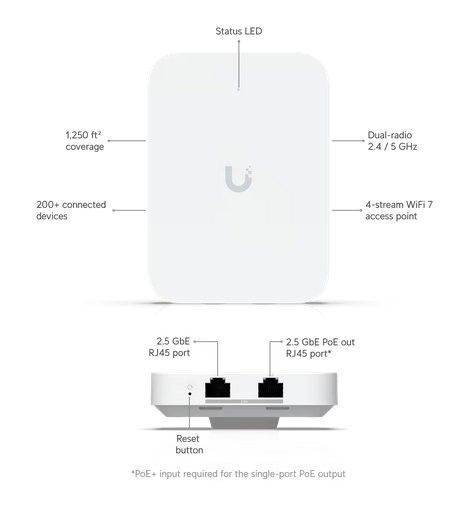

Hardware & Connectivity

• Uplink: 2.5 GbE

• Networking Interfaces: (3) × 2.5 GbE RJ45 ports

• Built-in Switch:

  • (1) PoE+ input

  • (1) PoE output (requires PoE+)

• Power: PoE / PoE+

• Max Power Consumption: 13W (excluding PoE output)

• Supported Voltage Range: 42.5–57V DC

• Management: Ethernet

• Construction: Polycarbonate + aluminum alloy enclosure; aluminum alloy mount

• LED: White/Blue system indicator

• Dimensions / Weight: 137 × 98.7 × 30.2 mm; 400 g

• Mounting: Wall (metal mount included)

Advanced Wireless & Network Features

• Wireless meshing

• Band steering

• 802.11k/v/r fast roaming

• Advanced radio management

• PPSK (Private Pre-Shared Key)

• Client & guest isolation

• WiFi speed limiting & scheduling

• RADIUS over TLS (RadSec)

• Dynamic RADIUS VLANs

Captive Portal Capabilities

• Custom-branded landing page

• Voucher authentication

• Payment-based authentication

• External portal server support

• Password authentication

Environmental & Compliance

• Operating Temperature: –30 to 40°C

• Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC

• NDAA Compliant: Yes

Application Requirements

• UniFi Network 9.0.114+

• iOS app 10.20.2+

• Android app 10.21.7+
