Physical Specifications

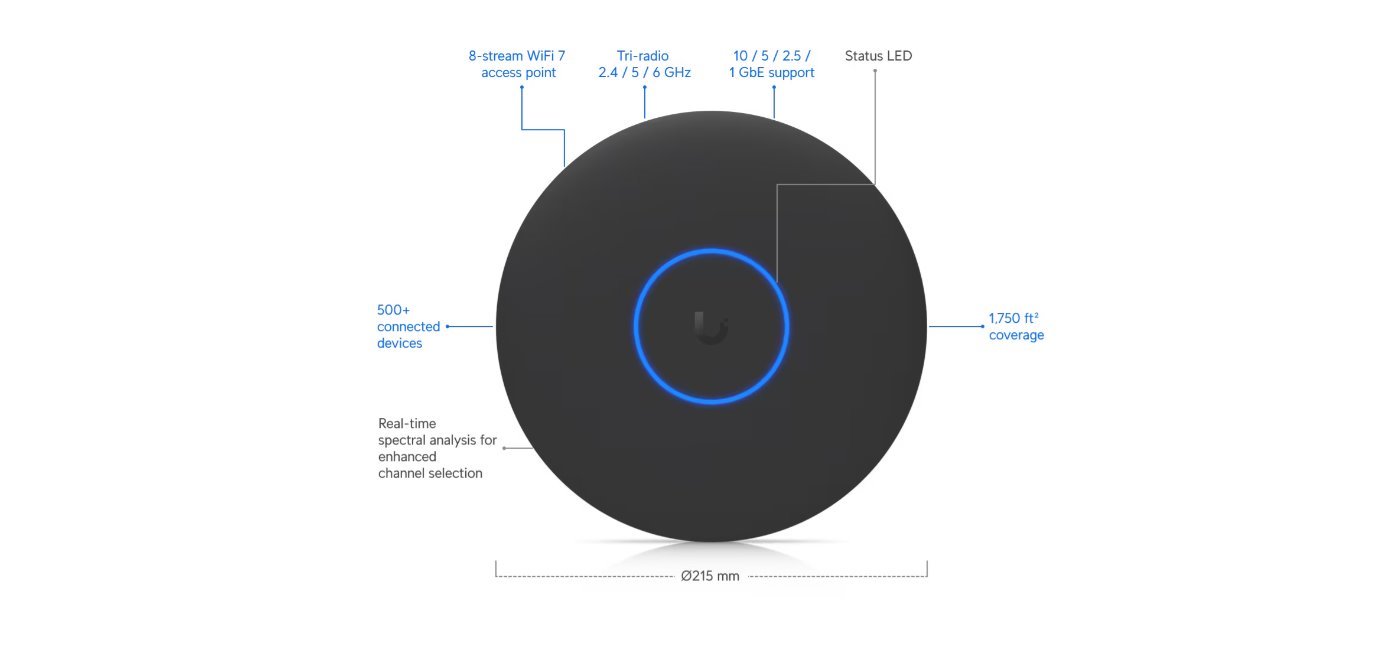

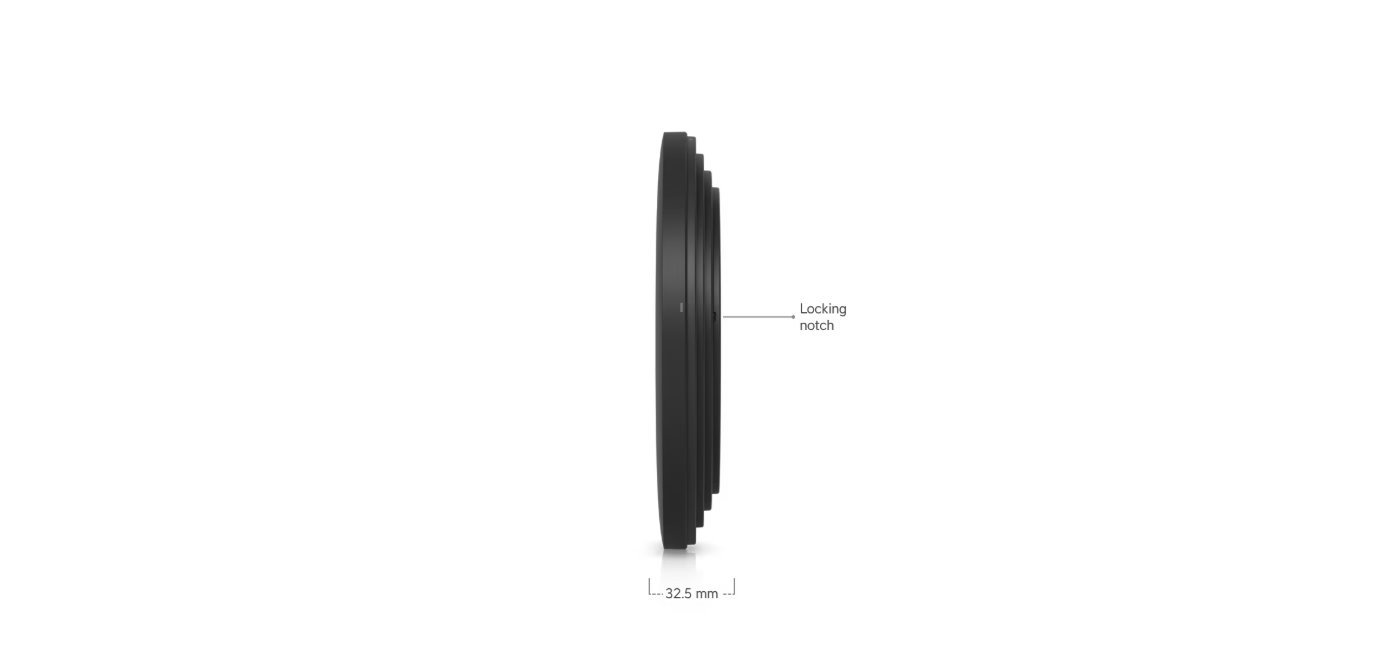

Dimensions: 215mm diameter x 32.5mm height (8.5" x 1.3")
Weight: 800g (1.8 lbs)
Enclosure: UV-stabilized polycarbonate with aluminum alloy

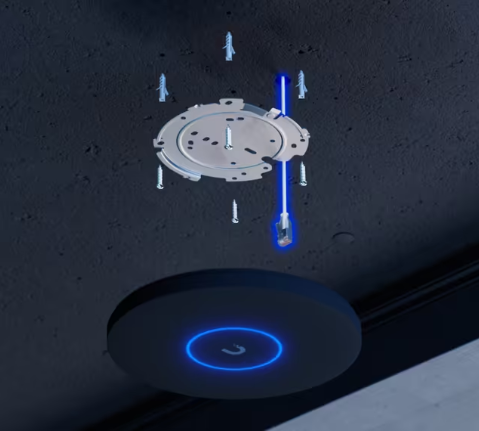

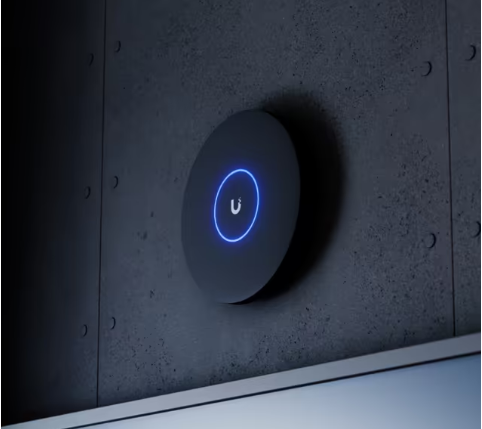

Mounting Options: Ceiling or wall mount (Lite mount included)
Compliance: NDAA Compliant; CE, FCC, IC Certified
Connectivity & Power
WiFi Standard: WiFi 7 (802.11be)

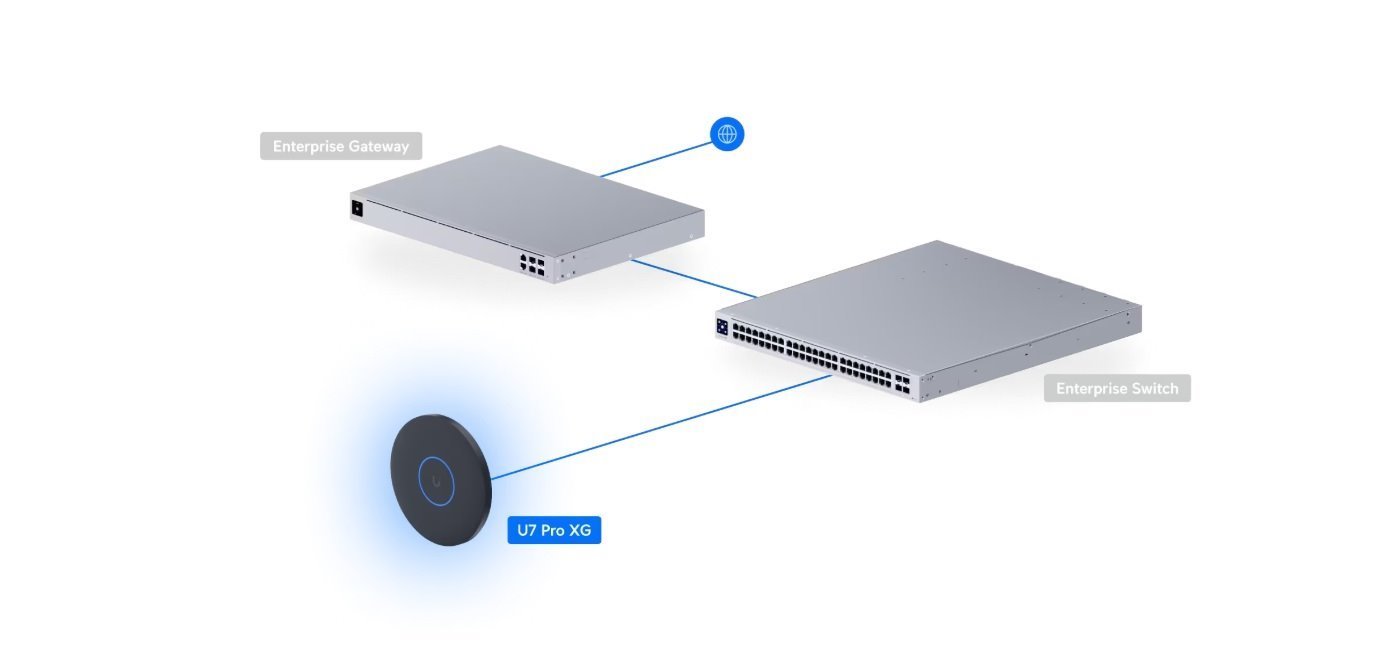

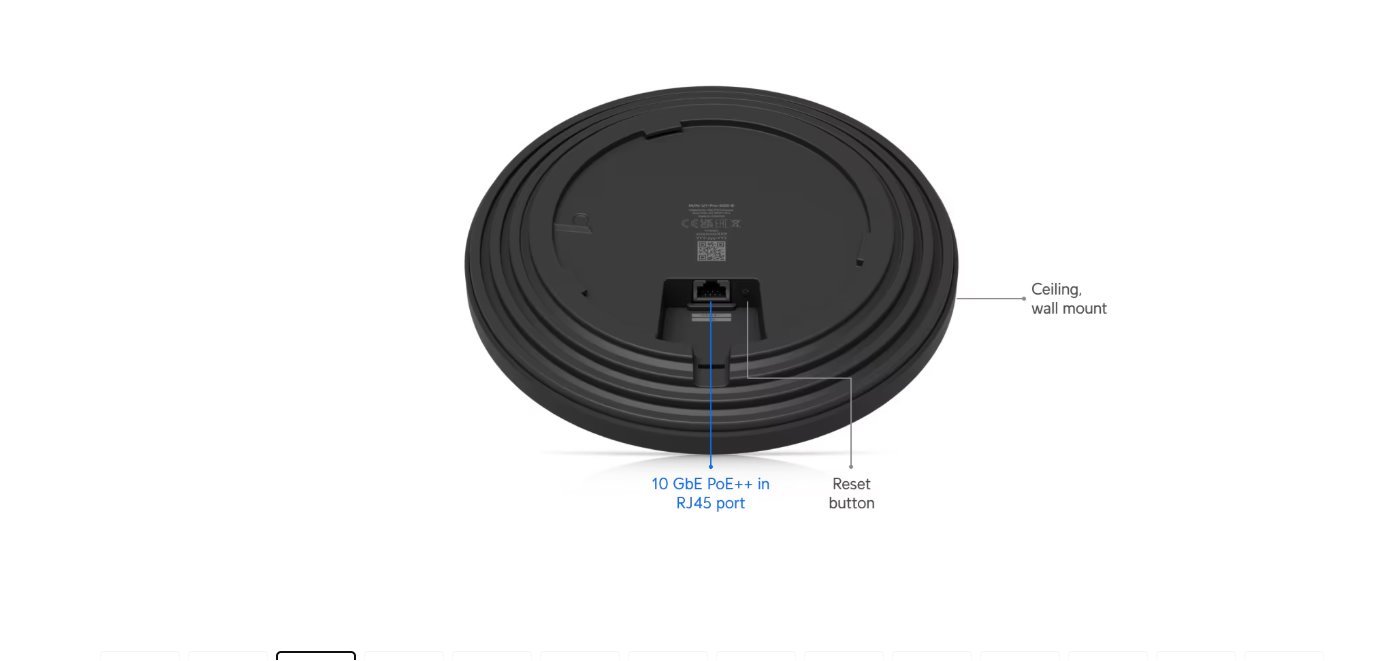

Uplink Interface: 1 x 10 Gigabit Ethernet (RJ45)
Power Method: PoE++ (42.5V–57V DC)
Maximum Power Consumption: 29W
Coverage & Capacity
Coverage Area: Up to 1,750 sq. ft (160 m²)
Maximum Client Capacity: 500+ devices
Radio Performance
MIMO Configuration:
6 GHz: 2x2 MU-MIMO (DL/UL)
5 GHz: 4x4 MU-MIMO (DL/UL)
2.4 GHz: 2x2 MU-MIMO (DL/UL)
Maximum Data Rates:
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max Transmit Power:
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm
Channel Bandwidth Support:
HT20/40, VHT20/40/80/160, HE20/40/80/160, EHT20/40/80/160/240/320 MHz
BSSID Support: Up to 8 per radio
Supported Data Rates
WiFi 7 (802.11be):
6 GHz: 7.3 Mbps to 5.8 Gbps
5 GHz: 7.3 Mbps to 8.6 Gbps
WiFi 6 (802.11ax): Up to 4.8 Gbps
WiFi 5 (802.11ac): Up to 3.4 Gbps
WiFi 4 (802.11n): Up to 600 Mbps
Advanced Features
Wireless Mesh Networking
Band Steering & Fast Roaming (802.11v/r)
Zero-Wait DFS & Real-Time Spectral Analysis
Guest Access Portal with Custom Branding
Captive Portal with Voucher, Payment, or External Authentication
RADIUS & PPSK Support with Dynamic VLAN Assignment
WiFi Speed Limiting, Scheduling, and Device Isolation
Environmental Conditions
Operating Temperature: -30°C to 40°C (-22°F to 104°F)
Humidity Tolerance: 5% to 95% (non-condensing)
Management Platform
Software Compatibility:
UniFi Network application
Version 9.0.114+ for U7 Pro XGS (White)
Version 9.1.120+ for U7 Pro XGS (Black)
Management Interface: Ethernet
System LED Indicator: White/Blue
