Long-range Gigabit Ethernet adapter that receives PoE/PoE+ and offers passthrough PoE output.
Extend PoE connections up to 1 km*

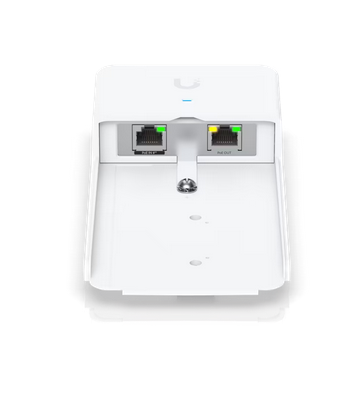

(1) GbE RJ45 port for PoE/PoE+ input**
(1) GbE RJ45 port for passthrough PoE output
10kA+ surge protection
Works reliably in extreme temperatures (-40 to 80° C)
Dimensions
196.5 x 93.5 x 39 mm
(7.7 x 3.7 x 1.5")
Weight
350 g (12.3 oz)
Enclosure Material
UV-stabilized polycarbonate
Mounting Material
Stainless steel
Weatherproofing
IPX5
Power
Power Method: PoE / PoE+ (2-pairs, Pins 1,2+; 3,6−)
Max. Power Consumption: 1.5W (excluding PoE output)
Total Available PoE: 22.5W
Voltage Range (PoE Mode): 37—57V DC
Networking
Networking Interface: (2) GbE RJ45 ports
PoE Interface: (1) Passthrough PoE output (2-pairs, Pins 1,2+; 3,6−)
Total Non-Blocking Line Rate: 2 Gbps
Switching Capacity: 4 Gbps
Forwarding Rate: 1.488 Mpps
Max. MTU: 1,500 bytes
ESD/EMP Protection
Air/Contact: ±30kV
Surge Protection
DC Sparkover Voltage: 90V at 100V/s
Max. Impulse Sparkover Voltage: 700V at 1kV/μs
Discharge Current: 10kA+
LED Indicators
System: Blue (Power ON)
Ethernet:
Green: 1 Gbps
Amber: 10/100 Mbps
PoE: Amber (Passthrough PoE out)
Environmental
Ambient Operating Temperature: -40 to 80° C (-40 to 176° F)
Ambient Operating Humidity: 10 to 95% noncondensing
