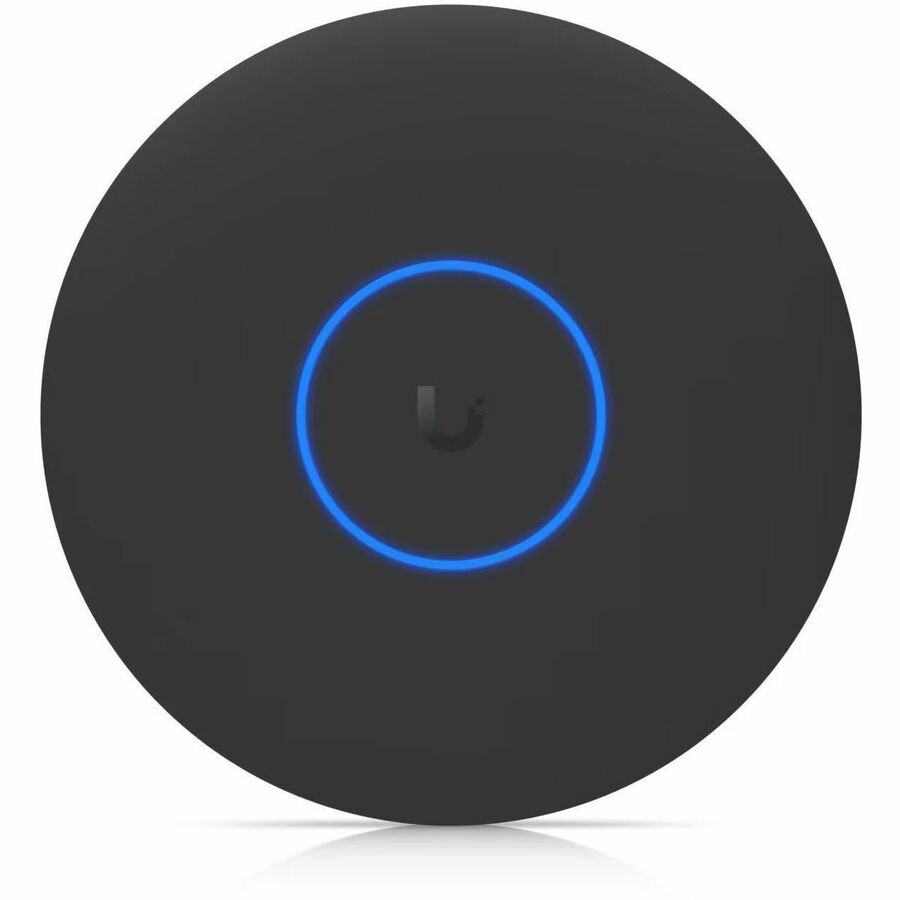

Ceiling-mounted 6-stream WiFi 7 AP with 10/5/2.5/1 GbE support.
Physical & Power

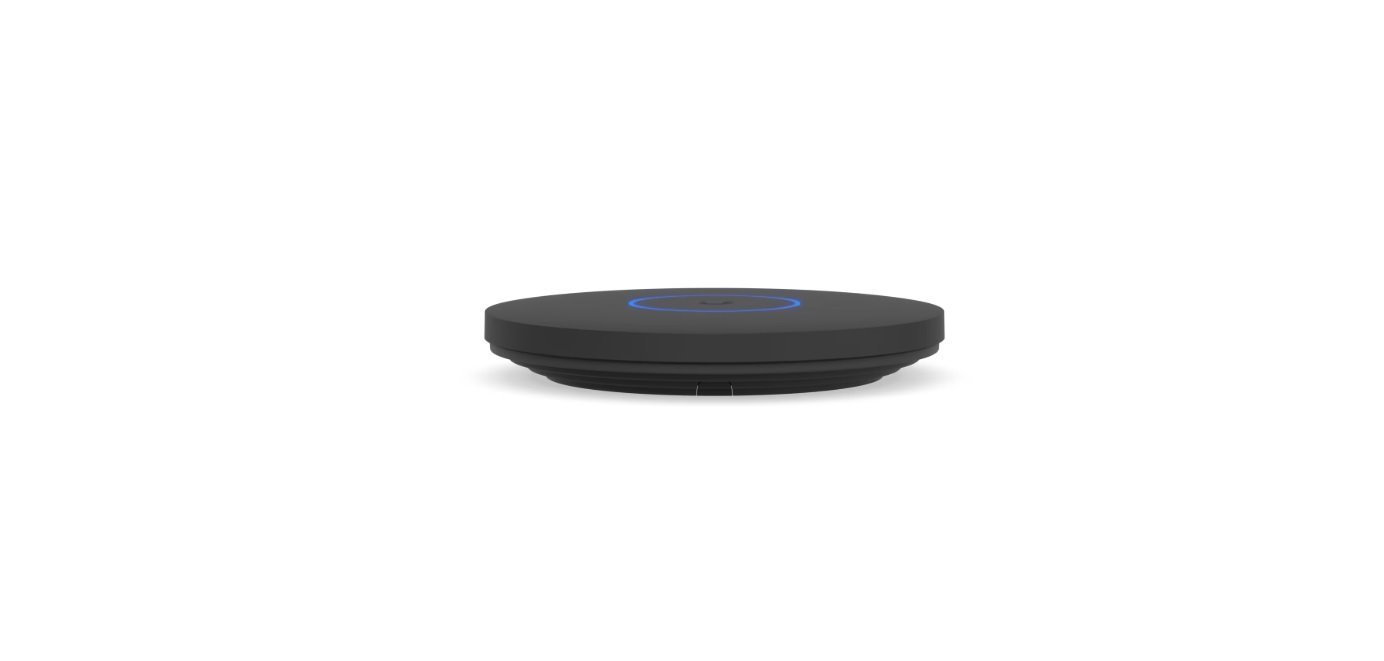

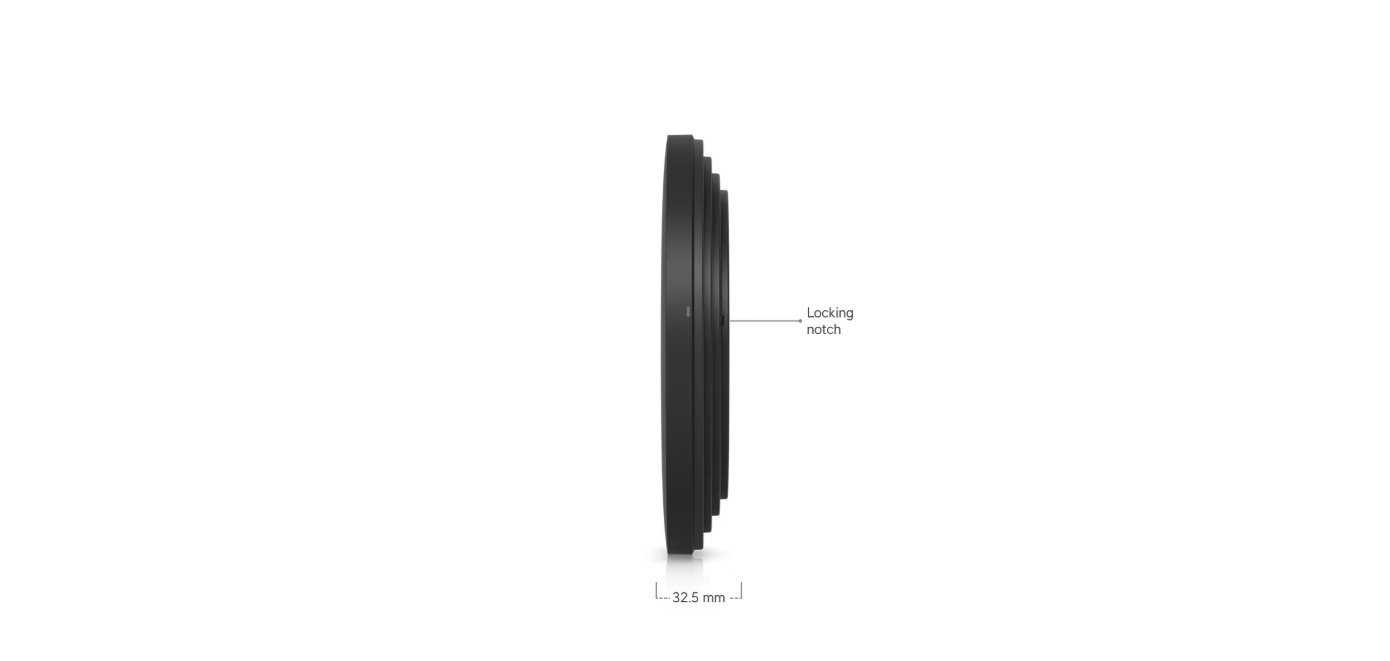

Dimensions: Ø206 × 32.5 mm (Ø8.1 × 1.3")
Weight: 750 g (1.7 lb)

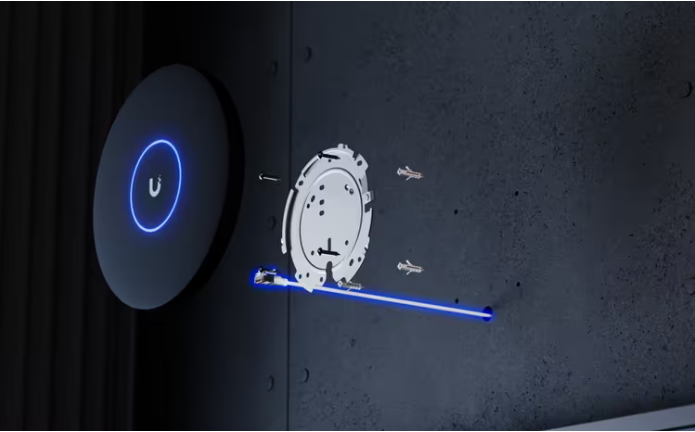

Mounting: Ceiling/Wall (Lite Mount included)
Enclosure: UV-stabilized polycarbonate & aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
Power Method: PoE+
Max Power Consumption: 22W
Supported Voltage: 42.5–57V DC
Operating Temp: –30 to 40°C (–22 to 104°F)
Operating Humidity: 5–95% non-condensing
NDAA Compliant
Networking & Interface
WiFi Standard: WiFi 7 (802.11be)
Spatial Streams: 6
Coverage: 140 m² (1,500 ft²)
Max Client Count: 300+

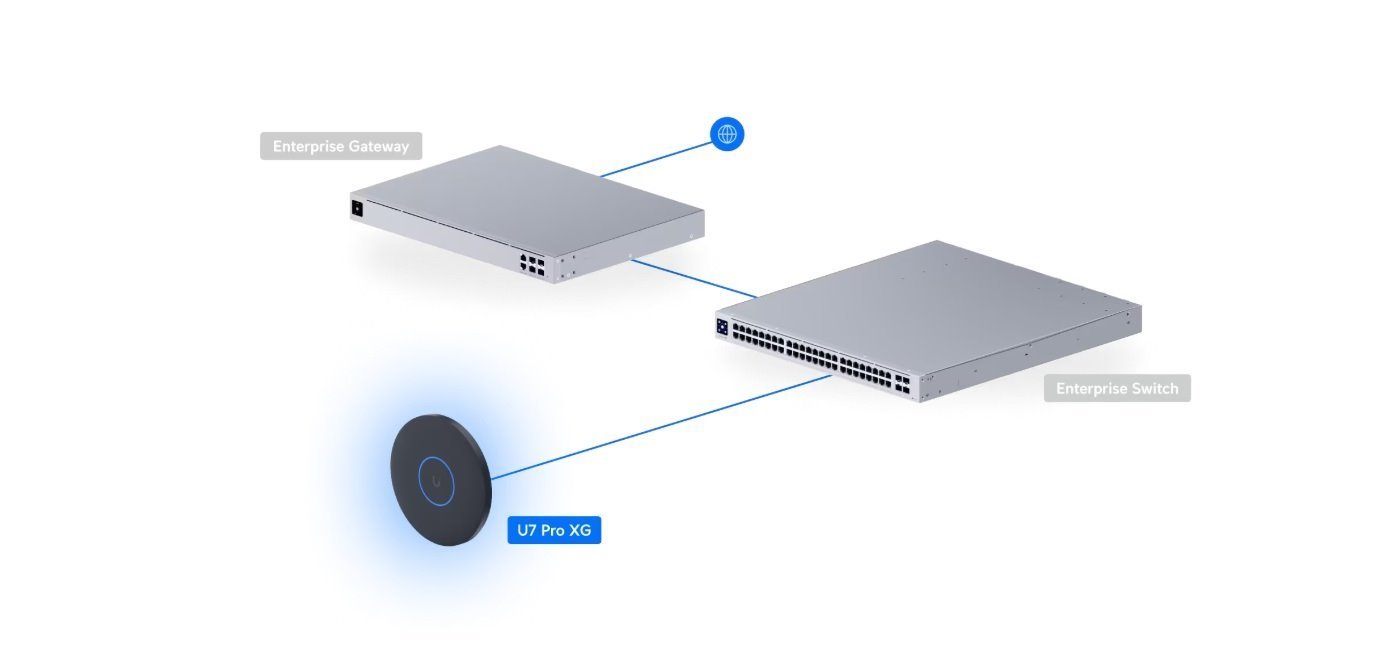

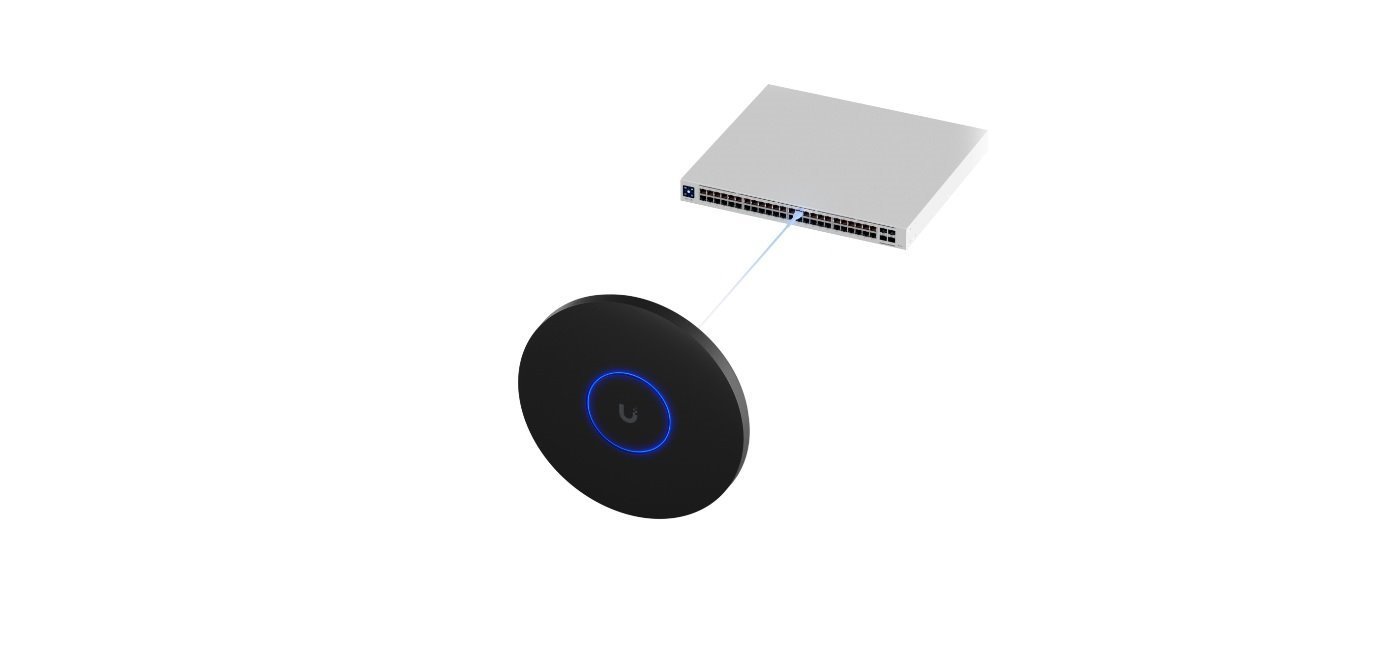

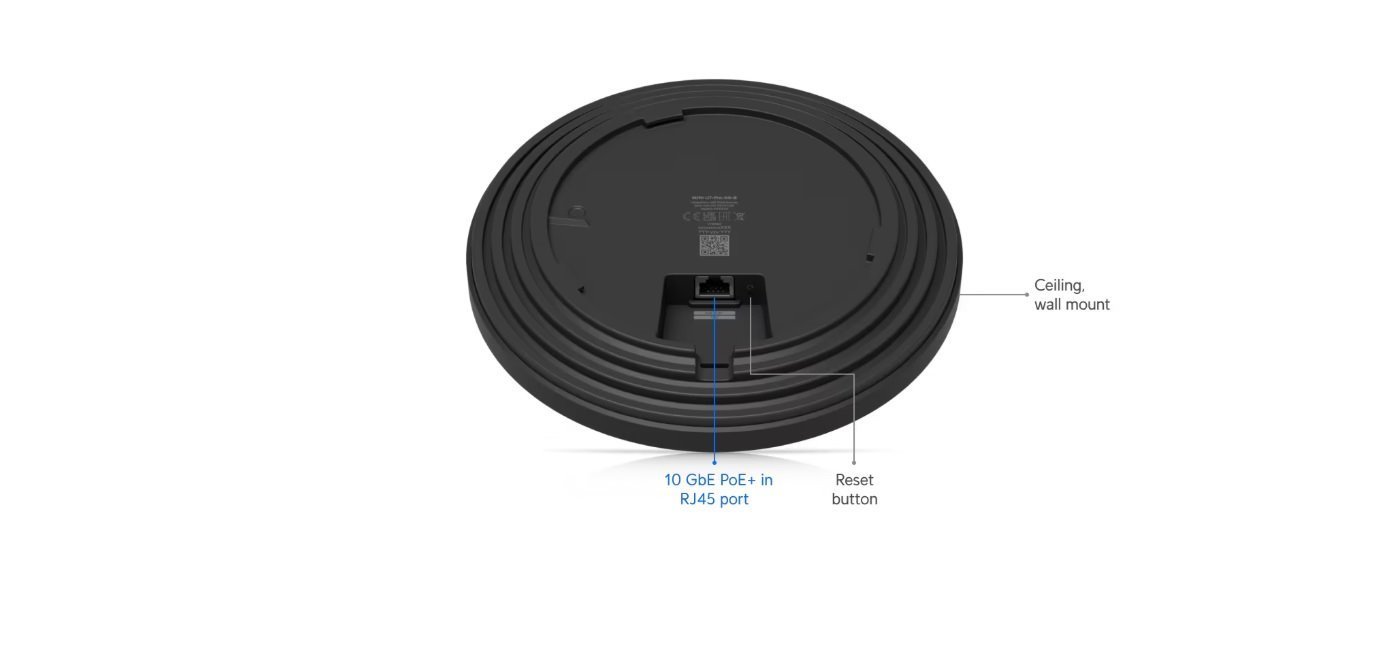

Uplink: 10 GbE RJ45
LEDs: System (White/Blue)
Radio Performance
MIMO (DL/UL MU-MIMO):
6 GHz: 2×2
5 GHz: 2×2
2.4 GHz: 2×2
Max Data Rates:
6 GHz: 5.8 Gbps (BW320)
5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
6 GHz: 6 dBi
5 GHz: 5 dBi
2.4 GHz: 4 dBi
Max TX Power:
6 GHz: 24 dBm
5 GHz: 26 dBm
2.4 GHz: 23 dBm
Max BSSIDs: 8 per radio
Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160/240/320 MHz
Operating Frequencies:
US/CA: 2.4 GHz: 2400–2472 MHz; 5 GHz U-NII-1/2A/2C/3; 6 GHz U-NII-5 to -8
Worldwide: 2400–2483.5 MHz; 5150–5725 MHz; 5925–7125 MHz
Supported Data Rates
802.11be (WiFi 7):
6 GHz: 7.3 Mbps–5.8 Gbps
5 GHz: 7.3 Mbps–4.3 Gbps
802.11ax (WiFi 6): 7.3 Mbps–2.4 Gbps
802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps
802.11n: 6.5 Mbps–300 Mbps
Features
Wireless Meshing
Band Steering
802.11v BSS Transition Management
802.11r Fast Roaming
802.11k Radio Resource Management (RRM)
Advanced Radio Management
Passpoint (Hotspot 2.0)
Captive Portal with Custom Branding
Voucher / Payment / Password Authentication
External Portal Server Support
Guest Network Isolation
Private Pre-Shared Key (PPSK)
WiFi Speed Limiting
Client Device Isolation
WiFi Scheduling
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN
Software & Management
Managed via UniFi Network
Required Versions:

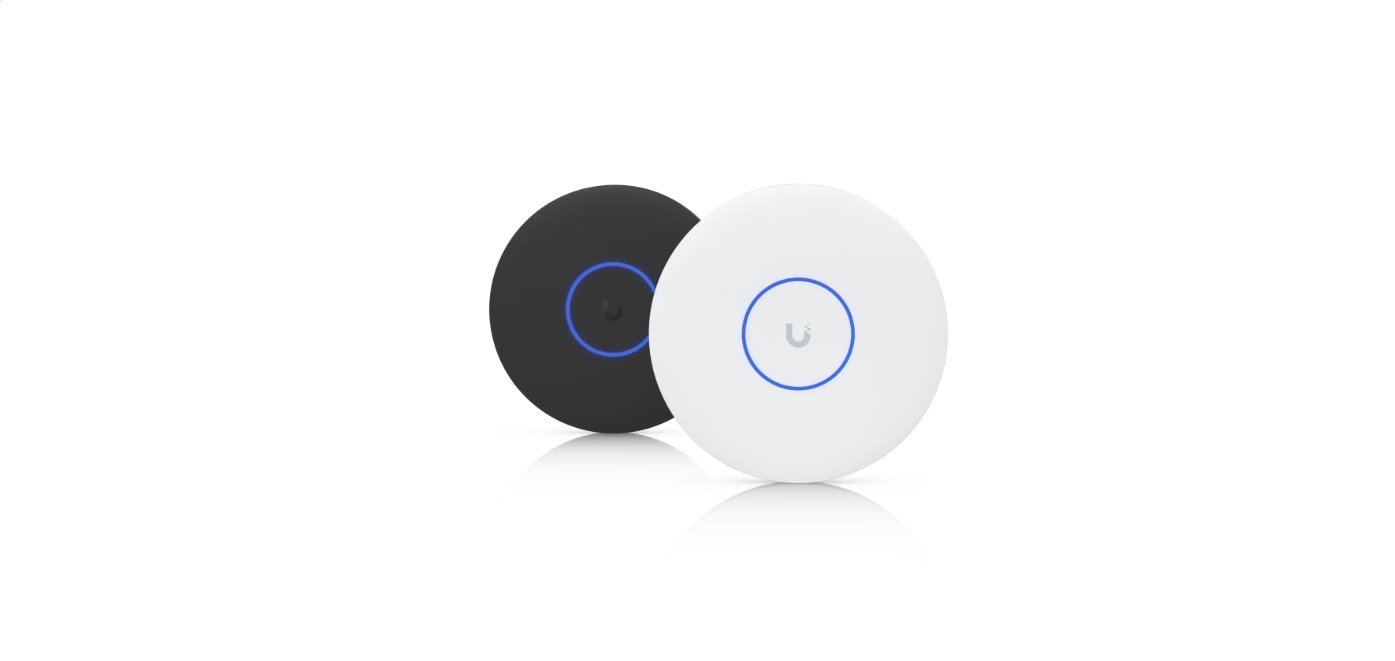

v9.0.114+ (U7 Pro XG — White)
v9.1.120+ (U7 Pro XG — Black)
Management Interface: Ethernet
Certifications
CE, FCC, IC, Anatel: 06630-25-08356
