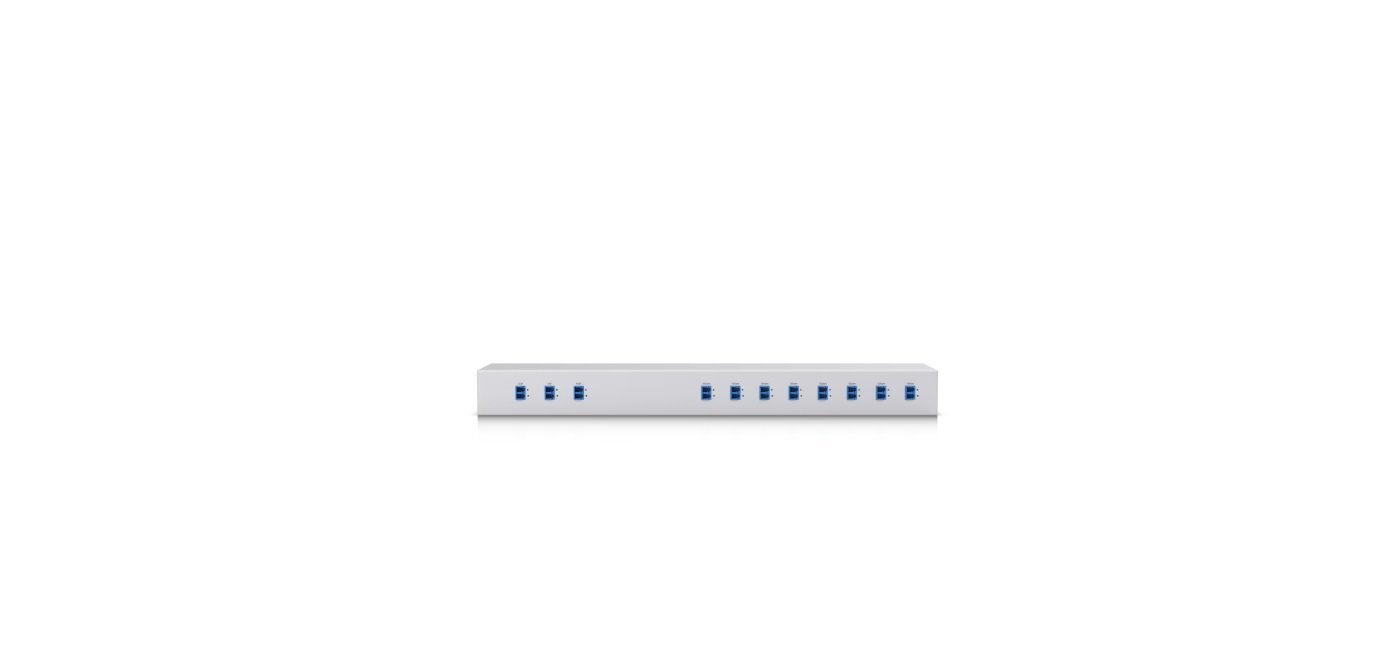

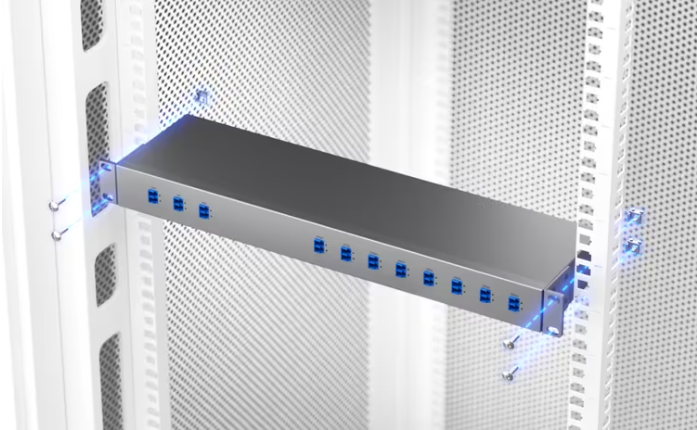

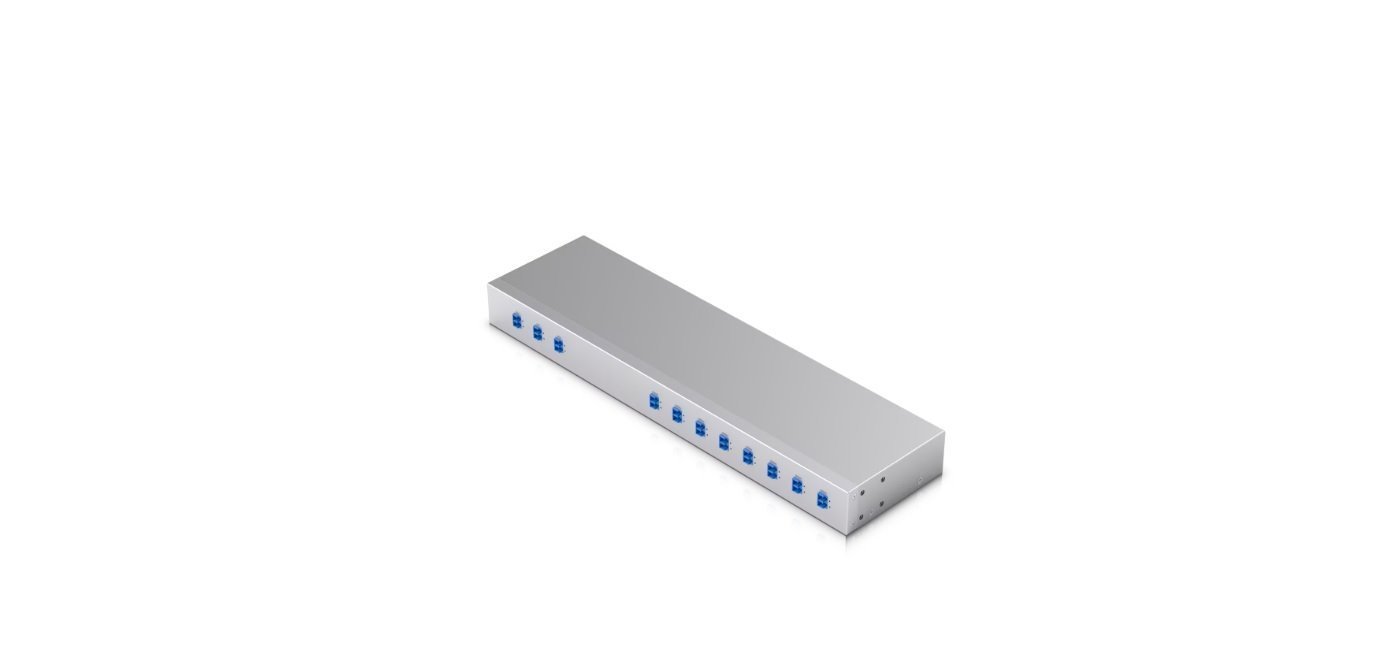

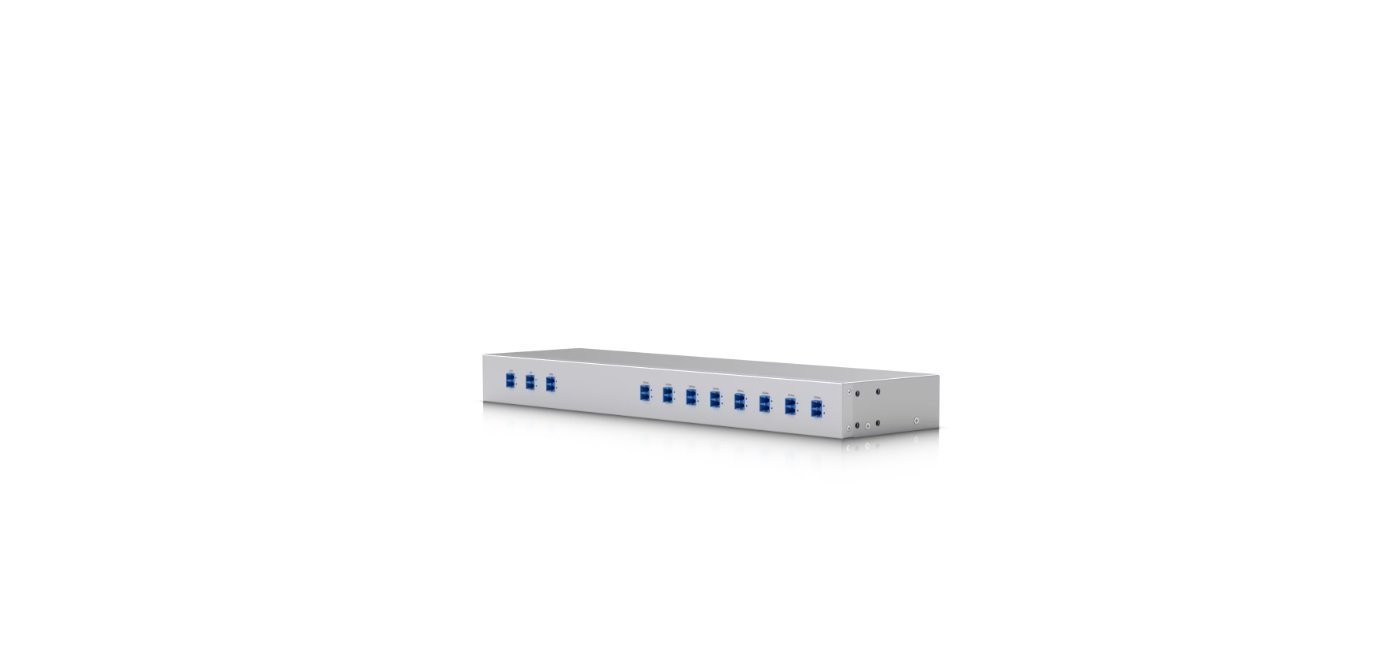

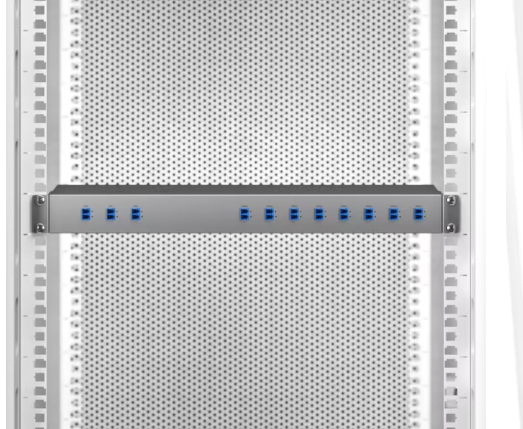

Rack-mountable 8-channel 1450 to 1590 nm CWDM mux demux designed to increase capacity of existing fiber infrastructure.
(8) 1450 to1590 nm channel ports

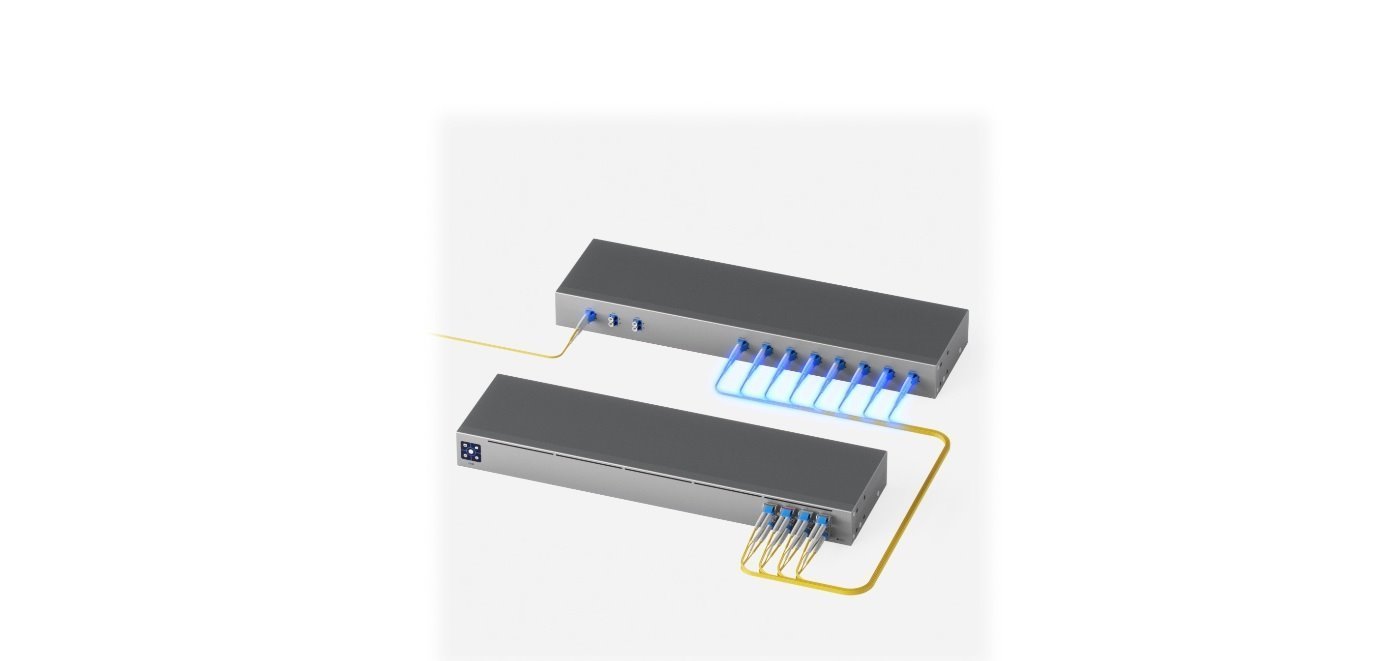

(1) Duplex LC UPC communication port for linking to another CWDM Mux Demux 8 with a pair of single-mode fiber cables
(1) Duplex LC UPC monitor port for seamless observation with a power meter or optical spectrum analyzer
(1) Duplex LC UPC expansion port for linking to CWDM Mux Demux 4 to add more channels
Physical
Dimensions: 442 × 120 × 43.7 mm (17.4 × 4.7 × 1.7")
Enclosure Material: SGCC steel
Weight: 1.4 kg (3.2 lb)
Pigtail & Connector Type:
COM port: 0.9 mm black LC/UPC
Other ports: 0.9 mm white LC/UPC
Connectors:
(1) COM (LC/UPC)
(1) MON (LC/UPC)
(1) EXP (LC/UPC)
(1) LC/UPC port per channel (1450–1590 nm)
Optical
Fiber Type: SMF-28e
Pigtail Length: ≥0.5 to 1 m
Channel Count: 8-channel Mux/Demux
Channel Center Wavelengths: 1450 / 1470 / 1490 / 1510 / 1530 / 1550 / 1570 / 1590 nm
Min. Channel Passband: ±6.5 nm
Performance
Insertion Loss: <2.5 dB (Max.)
Isolation:
Adjacent Channel: Max. 30 dB
Non-Adjacent Channel: Min. 40 dB
Return Loss: 50 dB (Min.)
Directivity: 55 dB (Min.)
Max. Passband Ripple: 0.3 dB
Max. Polarization Dependent Loss (PDL): 0.1 dB
Max. Polarization Mode Dispersion (PMD): 0.1 ps
Max. Power Handling: 500 mW
Environmental
Operating Temperature: –30 to 75°C (–22 to 167°F)
Storage Temperature: –40 to 90°C (–40 to 194°F)
