DOES NOT INCLUDE HDD
Intelligence

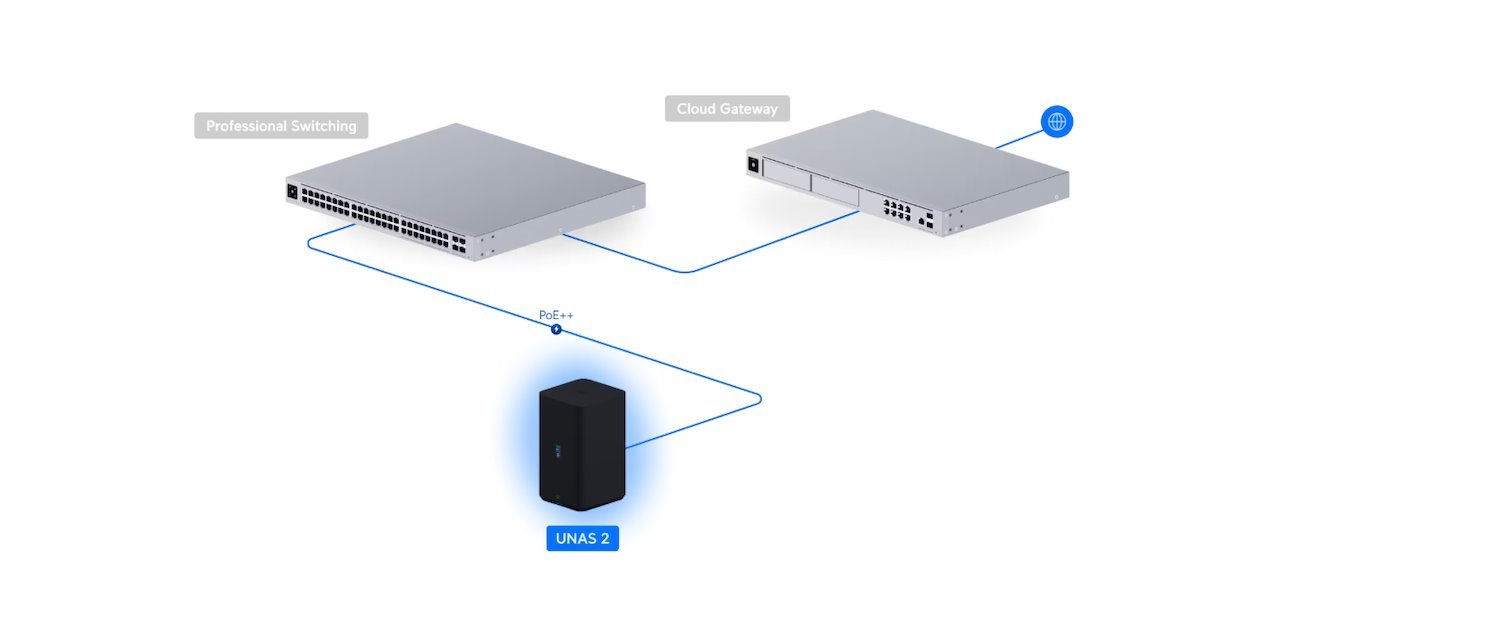

Optimized for integration into UniFi deployments, the NAS supports high-throughput data access through multi-gigabit networking while maintaining streamlined connectivity with external devices through USB-C. The included PoE++ adapter simplifies installation by supporting flexible power delivery options.
Features

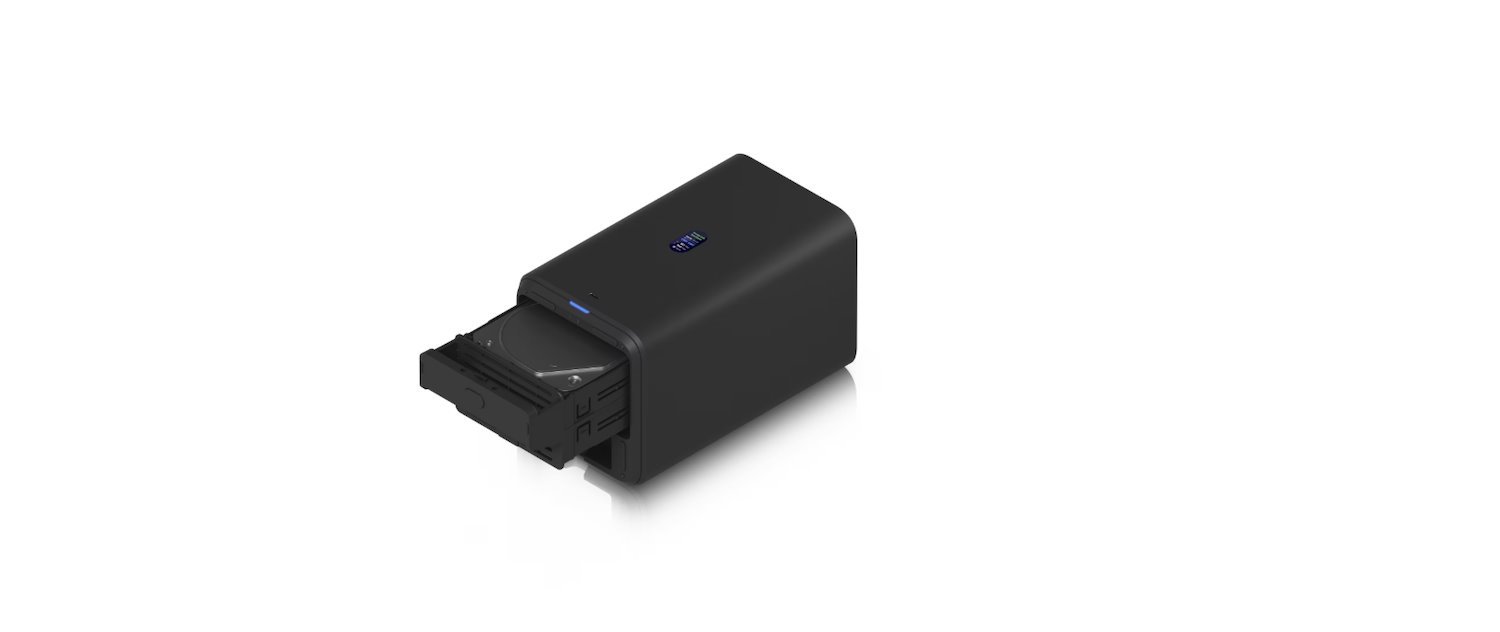

Dual drive bays allow scalable storage configuration using 3.5" HDDs, enabling capacity expansion as needs evolve. Compact physical design supports deployment in space-constrained environments without sacrificing performance. Included UI Care coverage provides extended operational assurance, prioritizing support and minimizing downtime through advanced replacement services.
Applications
Centralized storage for UniFi network environments
File sharing and backup infrastructure
Small business or branch office data storage
Network-integrated media or archive repositories
UI Care Coverage
5-Year Protection Coverage Included
Replacement ships before inspection
RMA requests prioritized end-to-end
Prepaid return shipping provided
Supported HDD Compatibility
• Seagate — ST24000NM002H-3KS133 — HDD Firmware: SE05 — UNAS Firmware: 5.0.4
• Seagate — ST10000NT001-3LY101 — HDD Firmware: EN01 — UNAS Firmware: 5.0.4
• Seagate — ST8000VN002-2ZM188 — HDD Firmware: SC60 — UNAS Firmware: 5.0.4
• Seagate — ST16000NM000J-2TW103 — HDD Firmware: SN04 — UNAS Firmware: 5.0.4
• Seagate — ST1000DM010-2EP102 — HDD Firmware: CC46 — UNAS Firmware: 5.0.4
• Seagate — ST8000NM017B-2TJ103 — HDD Firmware: SN03 — UNAS Firmware: 5.0.4
• Toshiba — HDWG780UZSVA — HDD Firmware: 0501 — UNAS Firmware: 5.0.4
• Toshiba — MG10ADA800E — HDD Firmware: 0101 — UNAS Firmware: 5.0.4
• Western Digital — HUH721212ALE604 — HDD Firmware: LEGNWB01 — UNAS Firmware: 5.0.4
• Western Digital — WD10PURZ-85U8XY0 — HDD Firmware: 01.01A01 — UNAS Firmware: 5.0.4
• Western Digital — WD8005FRYZ-01CBLB0 — HDD Firmware: 01.01H01 — UNAS Firmware: 5.0.4
• Western Digital — WD103KFBX-68CCLN0 — HDD Firmware: 83.00A83 — UNAS Firmware: 5.0.4
• Western Digital — WD120EFBX-68B0EN0 — HDD Firmware: 85.00A85 — UNAS Firmware: 5.0.4
Physical

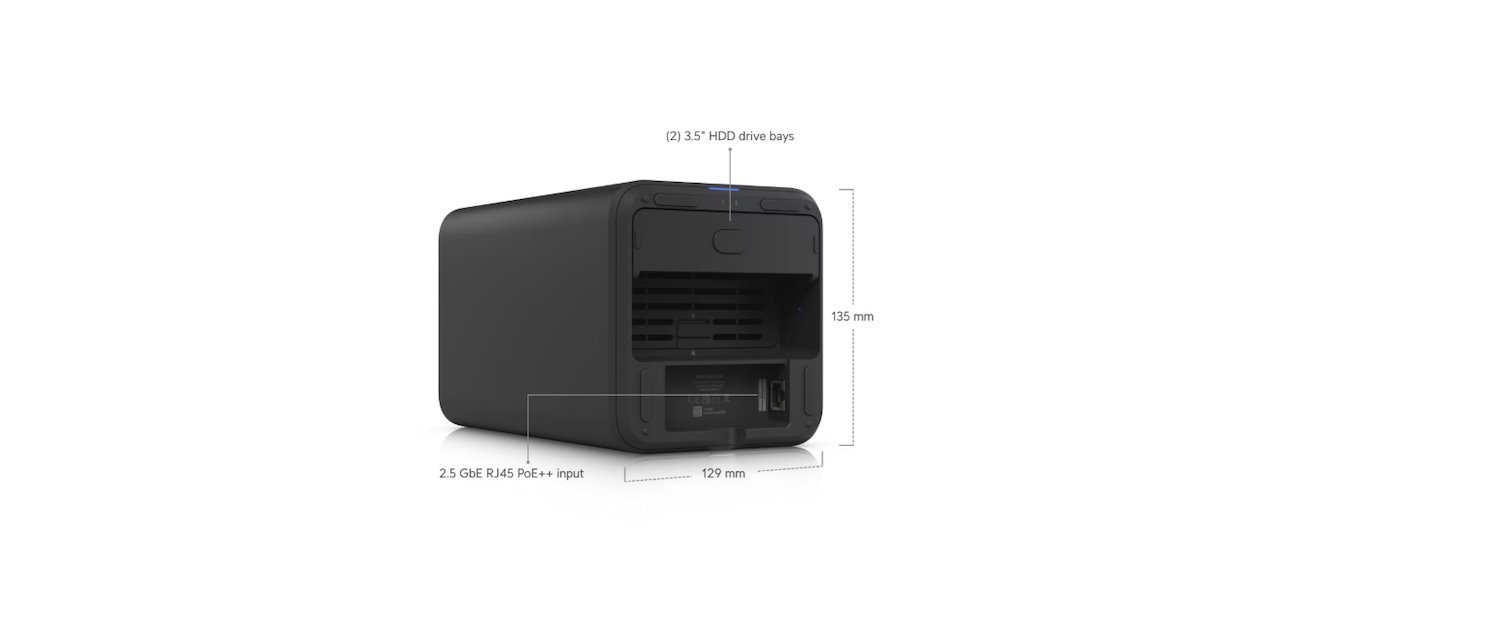

• Dimensions: 135 × 129 × 223.7 mm (5.3 × 5.1 × 8.8")
• Form Factor: Desktop
• Weight: 1.3 kg (2.85 lb)
• Enclosure Material: Polycarbonate

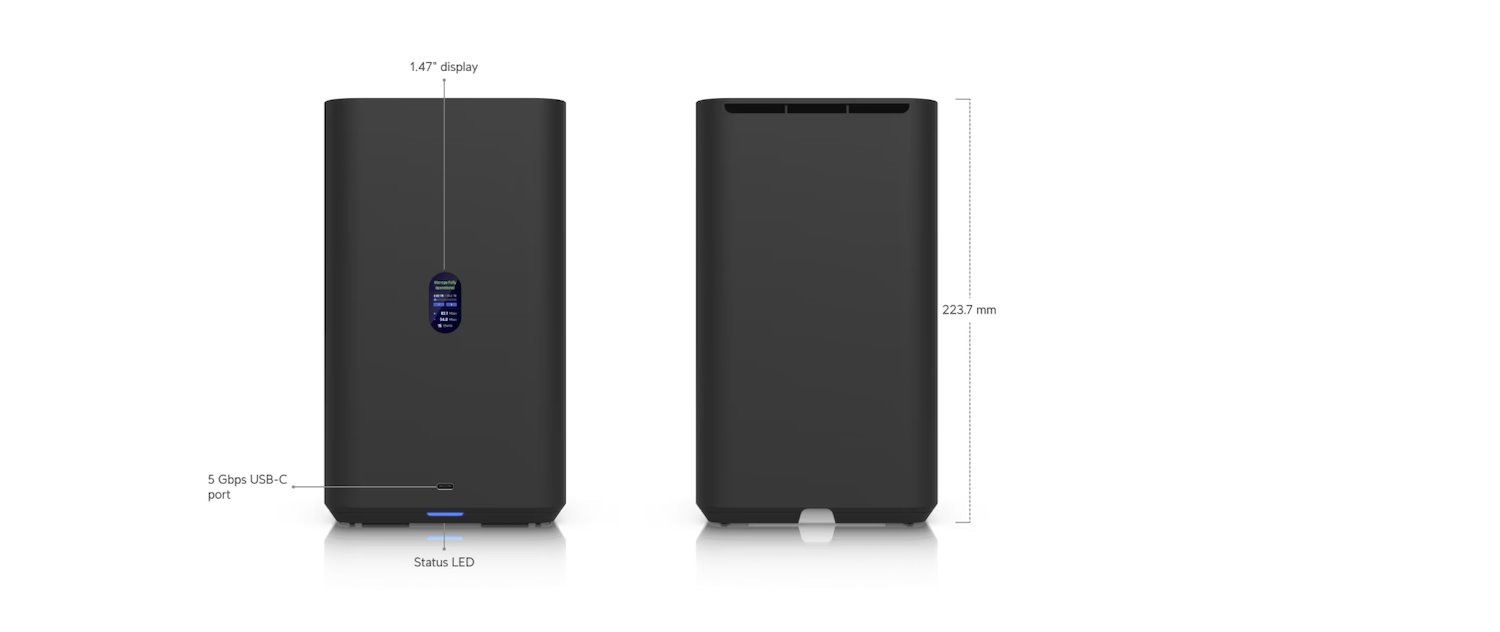

• Display: 1.47" Color LCM
• LEDs: System Indicator
Storage

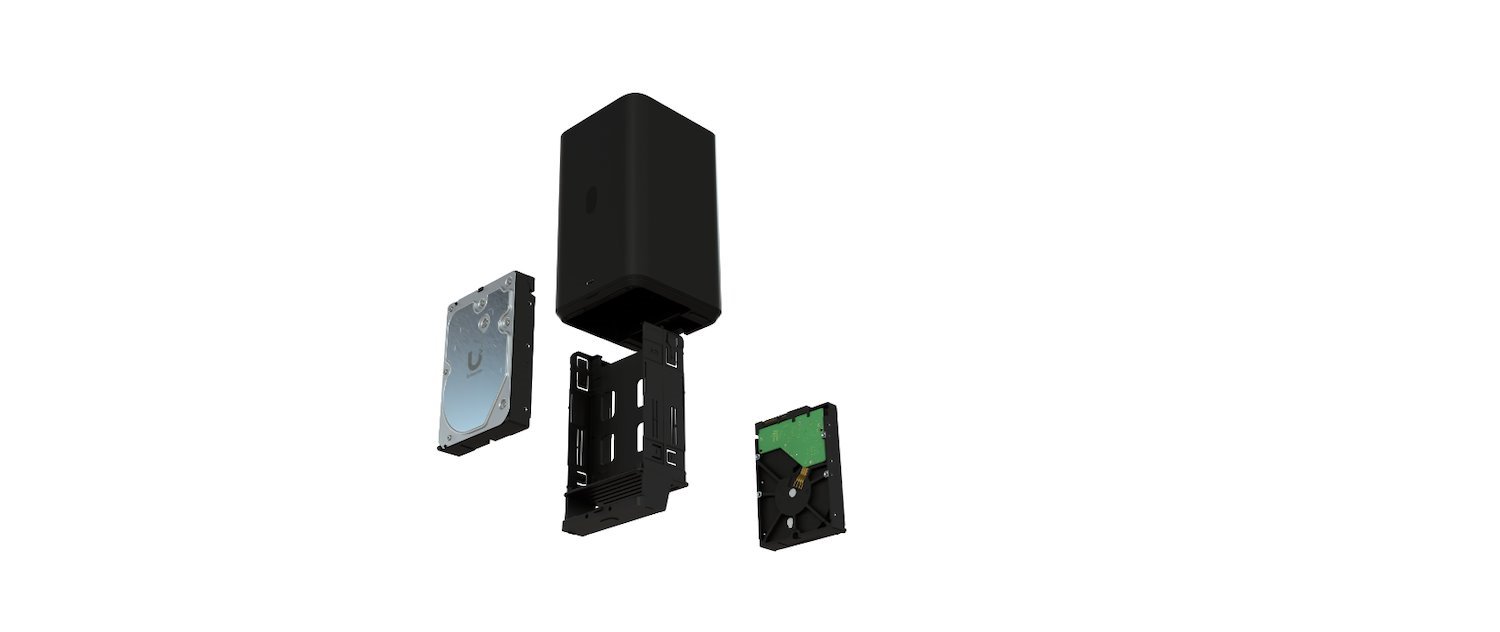

• Drive Bays: 2 × 3.5"
• Hard Drive Support: 2 × 3.5" HDD
• USB Drive Support: Yes
• RAID Type: RAID 1
• RAID Group: Single
Networking / Connectivity
• Ethernet Interface: 1 × 2.5 GbE RJ45 (2.5G/1G/100M/10M)
• Expansion Port: 1 × USB-C (5 Gbps)
• RF Interface: Bluetooth 4.1
Hardware
• Processor: Quad-Core ARM Cortex-A55 @ 1.7 GHz
• Memory: 4 GB
• Max Drive Power Budget: 52 W
• Max Power Consumption: 60 W
Power
• Power Method: PoE++
• Power Supply: 60 W PoE++ Adapter (Included)
Management
• Management Interface: Ethernet
Environmental
• Operating Temperature: −5°C to +40°C (23°F to 104°F)
• Operating Humidity: 10%–90% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; CE; IC
Software
• Application Requirement: UniFi Drive v3.1.7+
• Mobile App Support:
• iOS v10.28.0+
• Android v10.28.3+
• Supported File Protocols:
• NFS
• SMB
• Supported Features (unifi.ui.com):
• Personal Drive & Shared Drive
• File Encryption
• Backup to Remote UNAS
• Backup to CIFS/SMB Server
• Backup to Cloud Services (Google Drive; OneDrive; Dropbox; Amazon S3; Backblaze B2; Wasabi)
• Snapshots
• Share Links
• Time Machine Backup
• Client App Support
• User Groups
