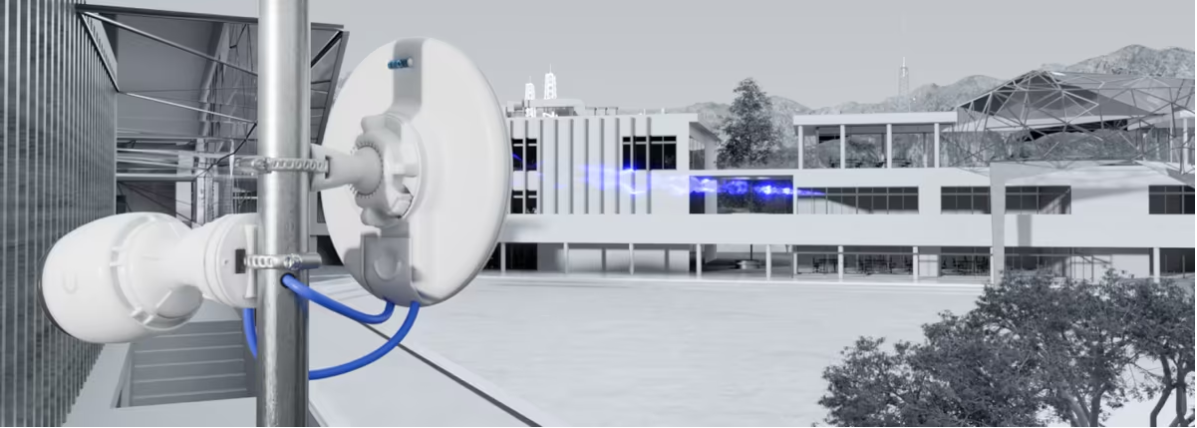

5 GHz wireless bridge with PoE output that connects at 5+ km distances or seamlessly uplinks to UniFi WiFi.
Note. Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
For the longest range, uplink to another UDB Pro or UDB Pro Sector is recommended.
PoE adapter included. PoE+ input required for PoE passthrough.
Physical & Power
Dimensions: Ø189.5 × 64.3 mm (Ø7.4 × 2.5")
Weight:
Device: 431 g (0.95 lb)
With mount: 515 g (1.1 lb)

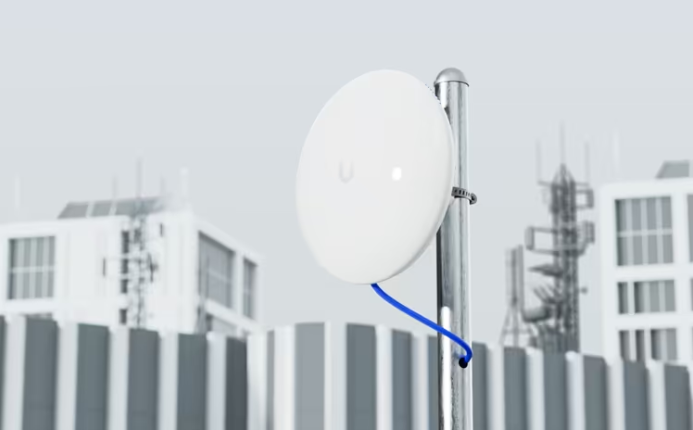

Mounting: Wall / Pole (pole mount included)
Pole Mount Diameter: 0.8–2.1" (20–53.1 mm)
Weatherproofing: IPX6
Power Method: PoE (PoE+ required for PoE output)
Power Supply: 48V 0.32A PoE adapter (included)
Max Power Consumption: 9W
Supported Voltage Range: 42.5–57V DC
Operating Temperature: –40 to 60°C (–40 to 140°F)
Operating Humidity: 5–95% non-condensing
NDAA Compliant
Networking & Interface
WiFi Standard: WiFi 5 (802.11ac)
Spatial Streams: 2
Coverage Distance: 5 km (3.1 miles)
Mounting Locations: Wall, Pole
Networking Interfaces:
(2) GbE RJ45 ports
Management:
(1) PoE In (PoE output not used)
(1) Passive PoE Output
LEDs:
Power
(2) Ethernet status (main/PoE out)
(4) Signal Strength Indicators
Button: Factory Reset
Radio Performance
MIMO (5 GHz): 2 × 2
Max Data Rate: 867 Mbps (BW80)
Antenna: Internal
Antenna Gain (5 GHz): 19 dBi
Max TX Power (5 GHz): 25 dBm
Max Conducted TX Power: 25 dBm (combined)
Channel Bandwidths: 20 / 40 / 80 MHz
Operating Frequencies:
US/CA: U-NII-1/2A/2C/3
Worldwide: 5150–5875 MHz
Wind Loading: 69 N @ 200 km/h (15.5 lbf @ 125 mph)
Supported Data Rates
802.11ac (WiFi 5): 6.5 Mbps–866.7 Mbps (MCS0–9, NSS1/2, VHT 20/40/80)
802.11n: 6.5 Mbps–300 Mbps (MCS0–15, HT 20/40)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Security: WPA2 AES
Hardware
Enclosure Material: UV-resistant polycarbonate
Mount Material: UV-stabilized polycarbonate, stainless steel
Certifications
CE, FCC, IC
