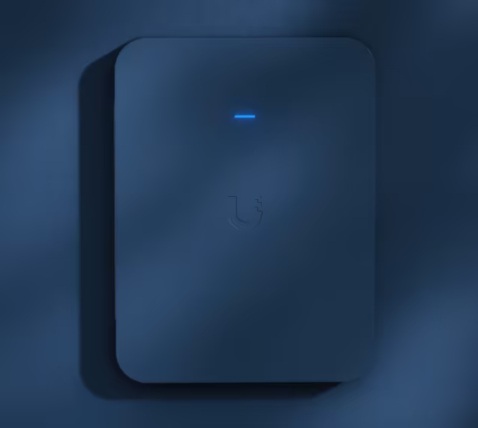

WiFi 7 Indoor Access Point – Key Specifications

• WiFi Standard: WiFi 7 (802.11be)

• Radios / MIMO: Tri-band 2×2 MU-MIMO (6 GHz / 5 GHz / 2.4 GHz)

• Max Data Rates:

  • 6 GHz: 5.8 Gbps (BW320)

  • 5 GHz: 4.3 Gbps (BW240)

  • 2.4 GHz: 688 Mbps (BW40)

• Coverage & Capacity: Up to 140 m² (1,500 ft²), 300+ clients

• Spatial Streams: 6 total

• Antenna Gain: 6 dBi (6 GHz), 5 dBi (5 GHz), 4 dBi (2.4 GHz)

• Uplink: 2.5 GbE RJ45 (PoE+)

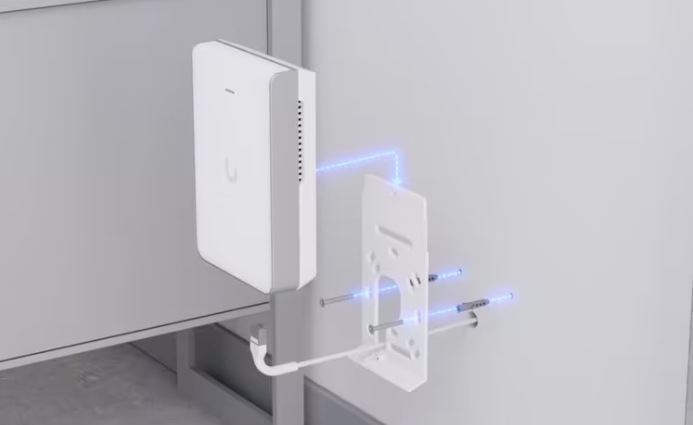

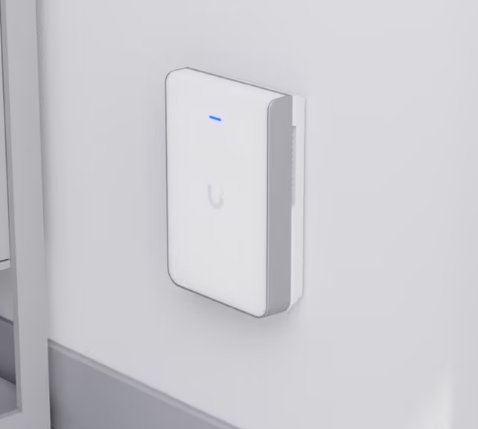

• Mounting: Wall mount (included)

• Power: PoE+ (22W max; 44–57V DC)

• Hardware: Polycarbonate/aluminum enclosure, aluminum mount

• Management: Ethernet-based management; system LED (white/blue)

• Features:

  • Wireless meshing

  • Band steering

  • 802.11k/v/r fast roaming

  • Advanced radio management

  • Passpoint (Hotspot 2.0)

  • Captive portal with custom branding, vouchers, payment auth, external portal

  • Guest network isolation & client isolation

  • Private Pre-Shared Key (PPSK)

  • WiFi scheduling & speed limiting

  • Dynamic RADIUS VLAN, RADIUS over TLS

• BSSIDs: Up to 8 per radio

• Channel Bandwidth: 20/40/80/160/240/320 MHz (HT/VHT/HE/EHT)

• Operating Environment: –30 to 60°C; 5–95% RH (non-condensing)

• Dimensions / Weight: 150 × 103 × 36 mm; 580 g

• Compliance: NDAA compliant; CE/FCC/IC/Anatel certified
