Overview
Enhance visitor notifications with this plug-in chime designed for seamless integration with UniFi doorbell systems. Providing audible alerts within interior spaces, the device ensures incoming calls and events are clearly communicated without requiring additional wiring or infrastructure.
Integration
Pairing directly with supported UniFi doorbell and entry devices, the chime can be configured through the UniFi Protect mobile application. During setup, third-party WiFi configuration is supported, enabling flexible deployment within existing wireless environments.
Features

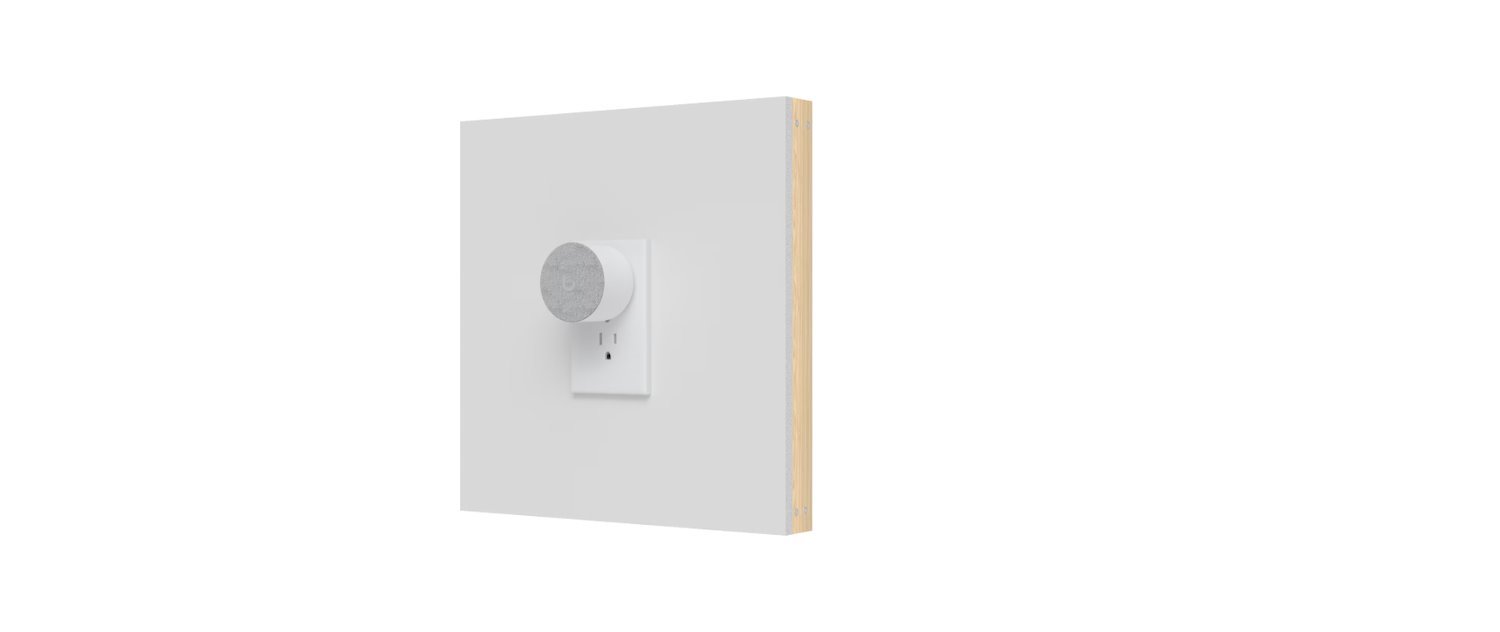

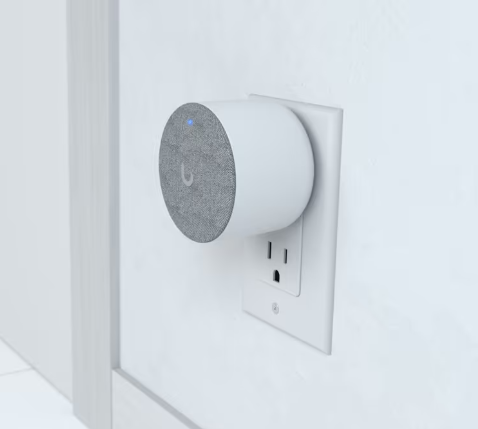

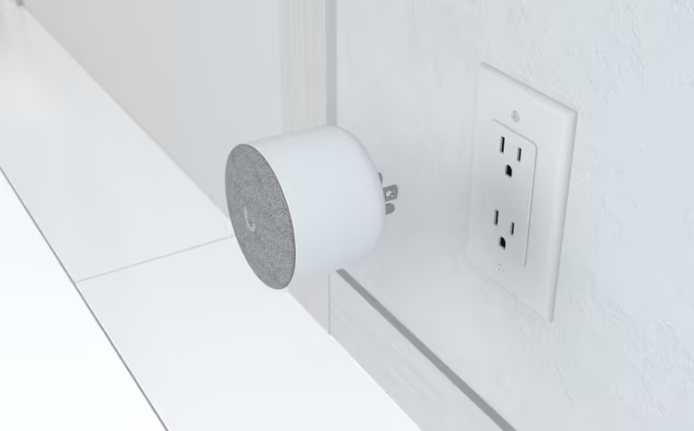

The compact plug-in design simplifies installation by connecting directly to a standard outlet, eliminating complex mounting or cabling. Optimized compatibility across multiple UniFi entry and doorbell products ensures consistent performance within integrated access and surveillance ecosystems.
Applications
Residential interior notification points
Office reception or front desk alerting
Multi-room doorbell coverage
Retail or service counters requiring audible alerts
Facility deployments integrating UniFi entry systems
Mechanical

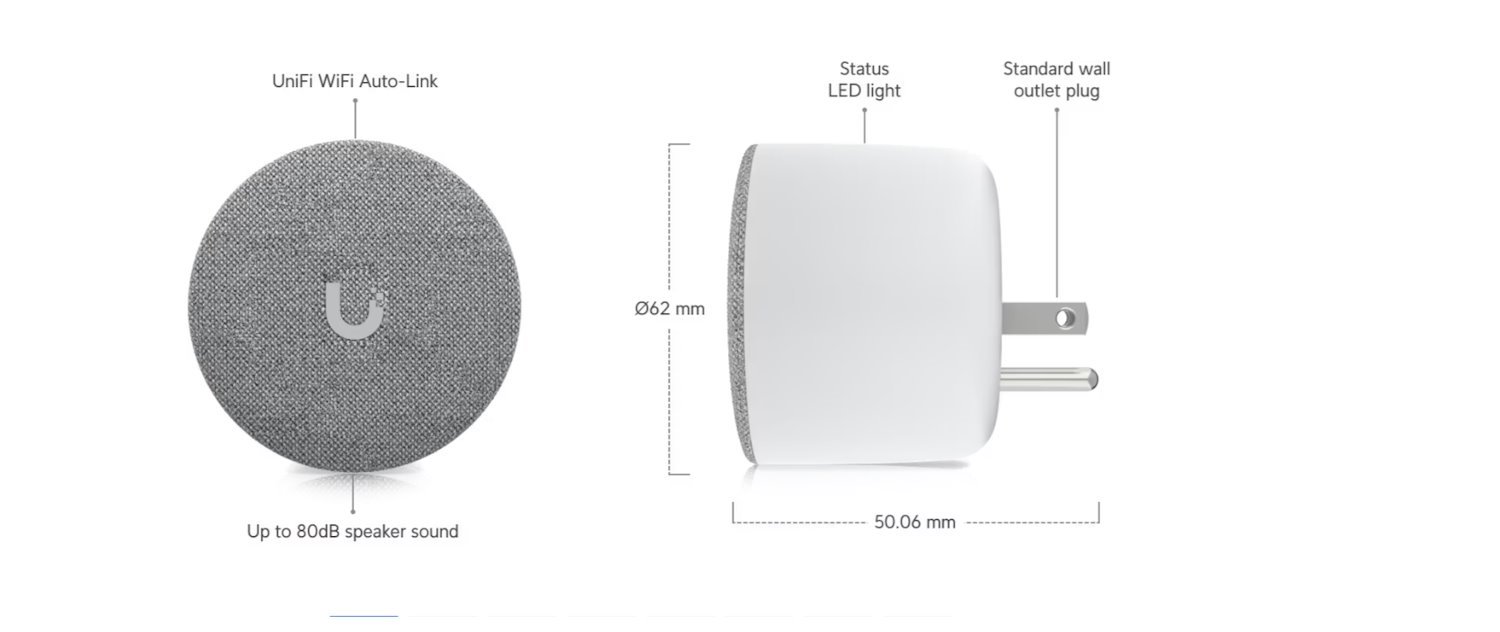

• Dimensions: Ø62 x 50.6 mm (Ø2.4 x 2") — without prong
• Weight: 127 g (4.5 oz)
• Enclosure Material: Polycarbonate; fabric
Hardware
• Networking Interface: WiFi 802.11 b/g/n
• Speaker: Yes
• Buzzer: Yes
• Power Method: AC
• Supported Voltage Range: 100–240V, 50/60 Hz
• Max Power Consumption: 3.7W
• ESD/EMP Protection: Air ±16 kV; Contact ±8 kV
• LEDs: (5) White
Environmental
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 10 to 90% noncondensing
Compliance
• NDAA Compliant: ✓
• Certifications: CE; FCC; IC
Software
• Application Requirements
• Web Application: UniFi Protect Version 2.0 and later
• Mobile App
• UniFi Protect iOS: Version 1.6.2 and later
• UniFi Protect Android: Version 1.6.0 and later
