WiFi 6E Indoor Access Point – Key Specifications

• WiFi Standard: WiFi 6E (802.11ax)

• Radios / MIMO:

  • 6 GHz: 4×4 MU-MIMO

  • 5 GHz: 4×4 MU-MIMO

  • 2.4 GHz: 2×2 MU-MIMO

• Max Data Rates:

  • 6 GHz: 4.8 Gbps (BW160)

  • 5 GHz: 4.8 Gbps (BW160)

  • 2.4 GHz: 573.5 Mbps (BW40)

• Spatial Streams: 10

• Coverage & Capacity: Up to 115 m² (1,250 ft²), 600+ clients

• Antenna Gain: 5.8 dBi (6/5 GHz), 4 dBi (2.4 GHz)

• Max TX Power: 26 dBm (6 & 5 GHz), 22 dBm (2.4 GHz)

• BSSIDs: Up to 8 per radio

• Channel Bandwidth: 20/40/80/160 MHz (HT/VHT/HE)

Hardware & Connectivity

• Uplink: 2.5 GbE RJ45

• Built-in Switch: (4) GbE ports with 1× PoE output (PoE++ required for PoE out)

• Power: PoE+ / PoE++

• Max Power Consumption: 21W (excluding PoE output)

• Management: Ethernet & Bluetooth

• Construction: Polycarbonate/aluminum enclosure; aluminum mount

• LED: White/Blue system indicator

• Dimensions / Weight: 159.7 × 156.7 × 33.8 mm; 884 g

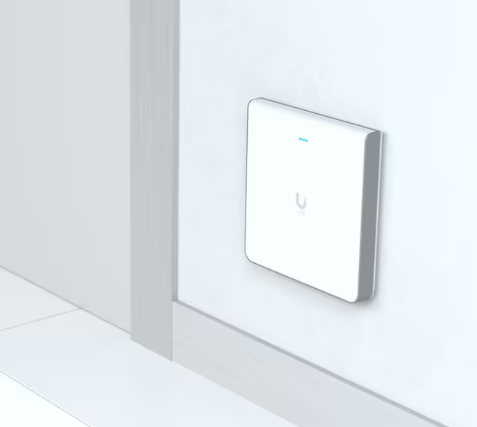

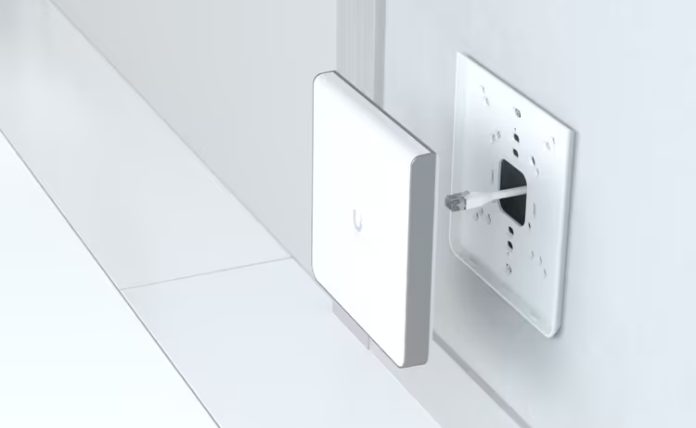

• Mounting: Wall mount (included)

Advanced Features

• Wireless meshing

• Band steering

• 802.11k/v/r fast roaming

• Advanced radio management

• Passpoint (Hotspot 2.0)

• Captive portal with custom branding, vouchers, payment auth, & external portal support

• Guest network isolation & client isolation

• Private Pre-Shared Key (PPSK)

• WiFi speed limiting & scheduling

• RADIUS over TLS (RadSec)

• Dynamic RADIUS-assigned VLANs

Environmental & Compliance

• Operating Temperature: –30 to 60°C

• Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC, Anatel

• NDAA Compliant: Yes
