8-Port Compact PoE+/PoE++ Managed Switch

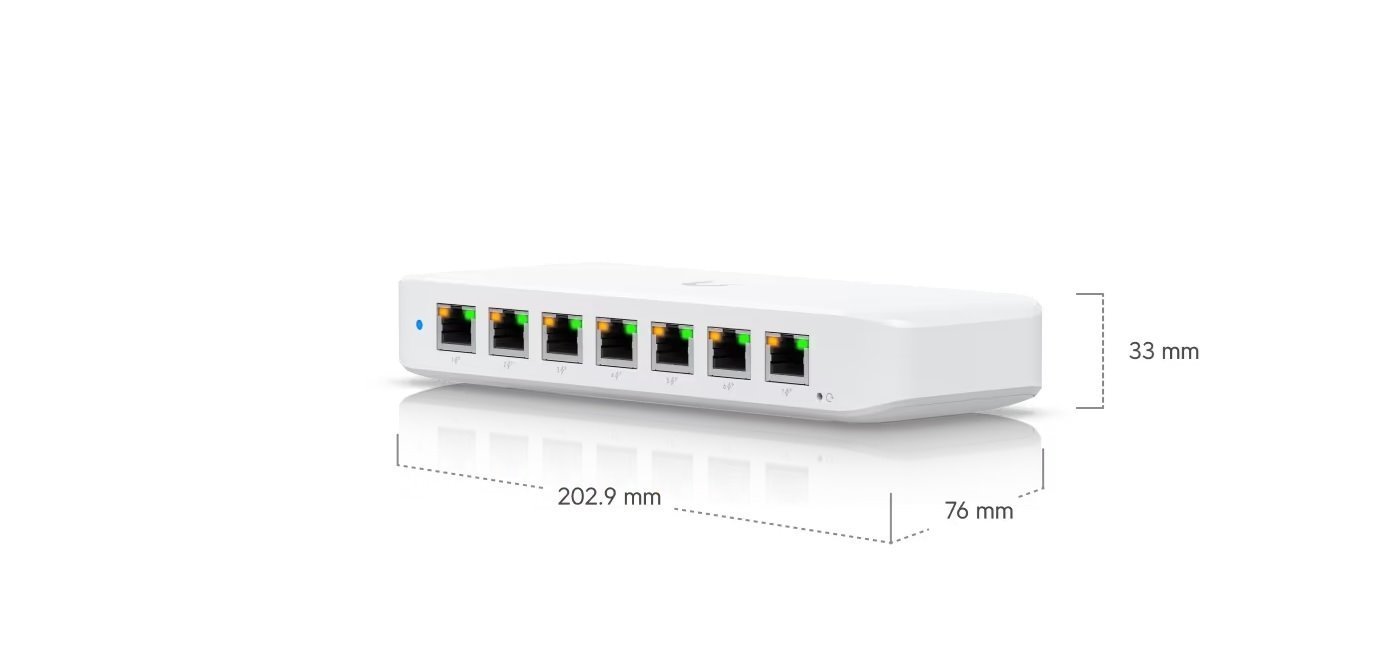

Dimensions: 203 × 76 × 33 mm (8 × 3 × 1.3")

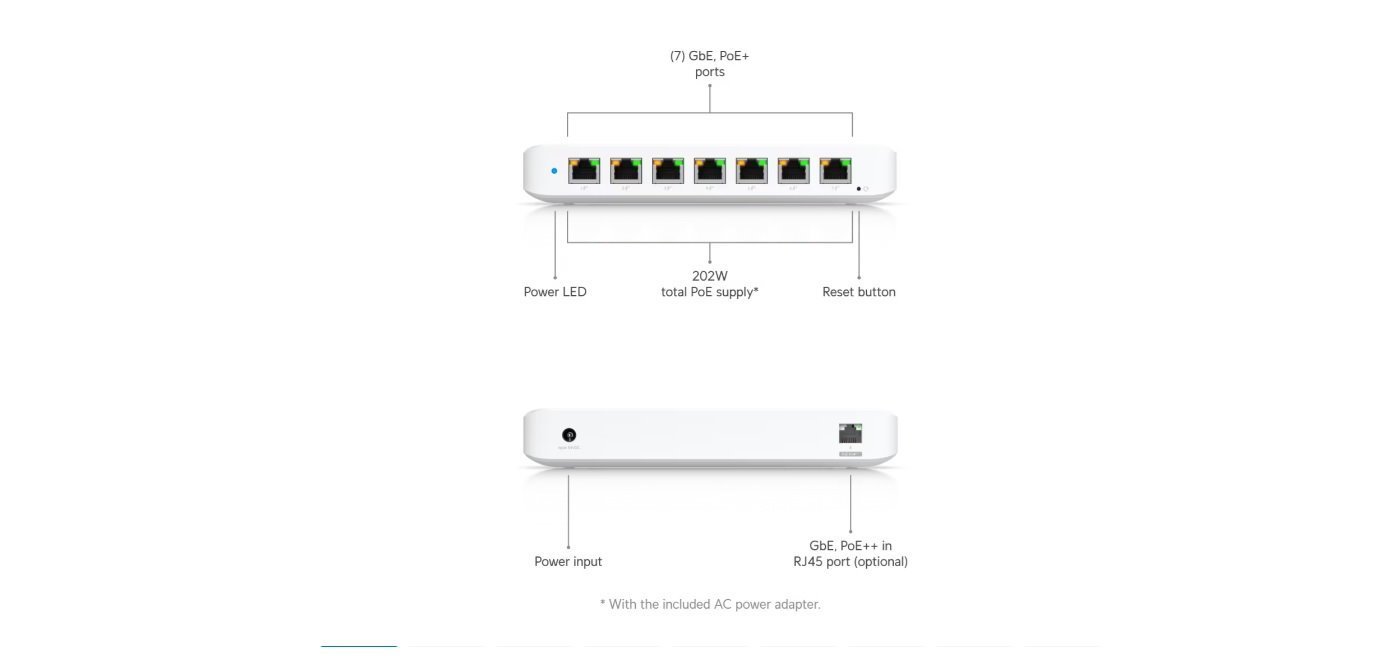

Ports:
• 7 × 1GbE RJ45 (PoE+)
• 1 × 1GbE RJ45 (PoE++ input)
PoE Capability: Up to PoE+ output; total PoE budget dependent on input source
— PoE++ input: 42W available
— PoE+ input: 16W available
— 60W PoE adapter input: 42W available
— 60W AC adapter input: 52W available
— 210W AC adapter input: 202W available
Form Factor: Compact desktop, wall-mount, or magnetic mounting

Performance:
• 16 Gbps switching capacity
• 8 Gbps non-blocking throughput
• 12 Mpps forwarding rate
• 256 VLANs; 4K MAC addresses

Layer 2 Features: STP/RSTP, rate limiting, flow control, storm control, multicast/broadcast limiting, port isolation, port mirroring, jumbo frames, loop protection

Hardware:
• PoE ports: 7 × PoE+, 1 × PoE++ input
• Max power draw: 8–9W (switch only), up to 210W with full PoE output (210W adapter)
• Power options: PoE++, DC input via AC/DC adapter (included)
• Supported voltage: 50–57V DC/PoE
• Heat dissipation: 27–31 BTU/hr (excluding PoE)
• Polycarbonate enclosure
• Weight: 320 g (device), 45 g (wall mount), 770 g (adapter)

Environmental:
• Operating temperature:
— PoE++ input: –30 to 60°C (–22 to 140°F)
— 210W AC adapter input: –20 to 60°C (–4 to 140°F)
• Humidity: 10–90% non-condensing

Compliance: NDAA compliant; CE, FCC, IC, Anatel certified
