18-Port PoE+/PoE++ Layer-3 Managed Switch with 10G SFP+ Uplinks

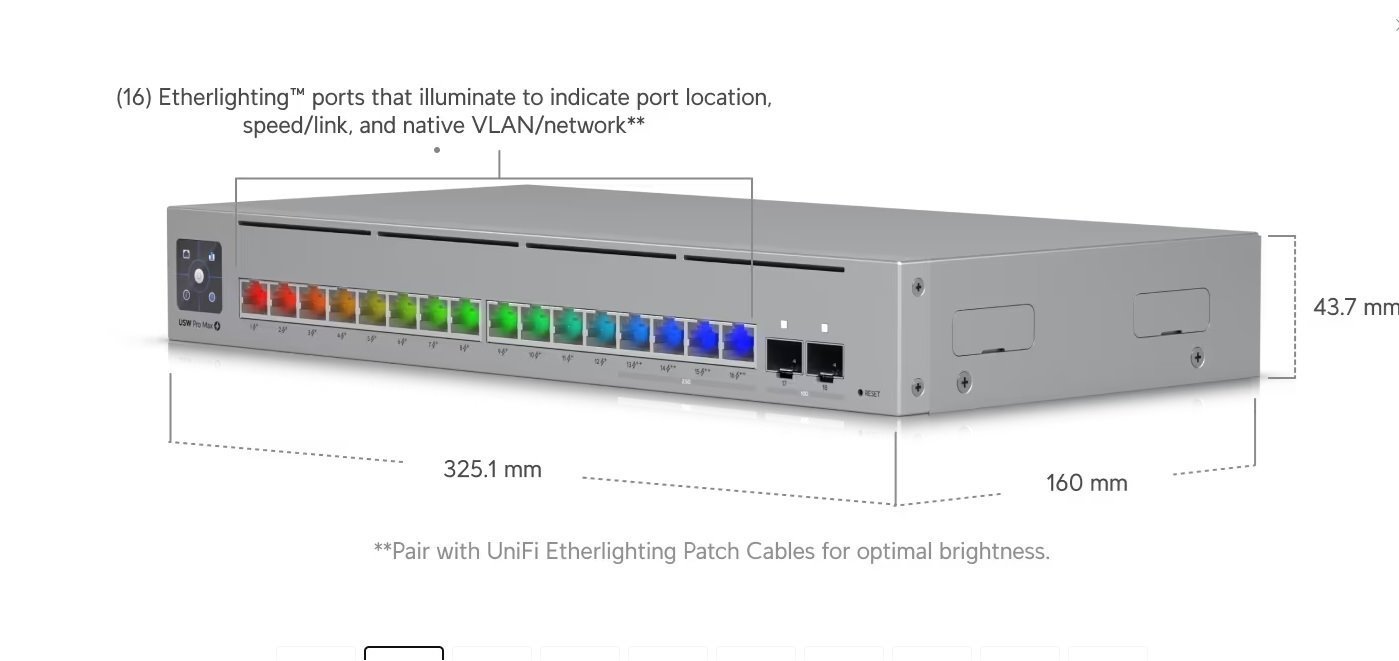

Dimensions: 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7")

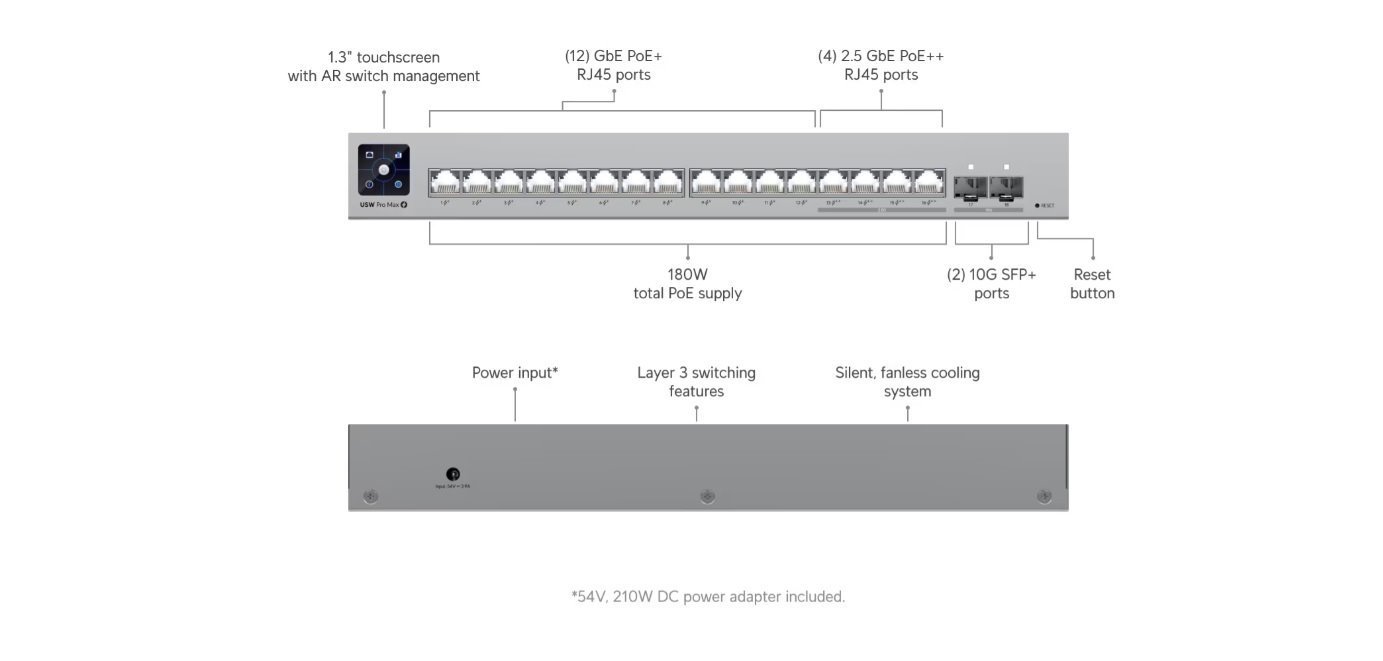

Ports:
• 12 × 1GbE RJ45 (PoE+)
• 4 × 2.5GbE RJ45 (PoE++)
• 2 × 10G SFP+ uplinks
PoE Capability: Up to PoE++ per port (max 64W); 180W total PoE budget

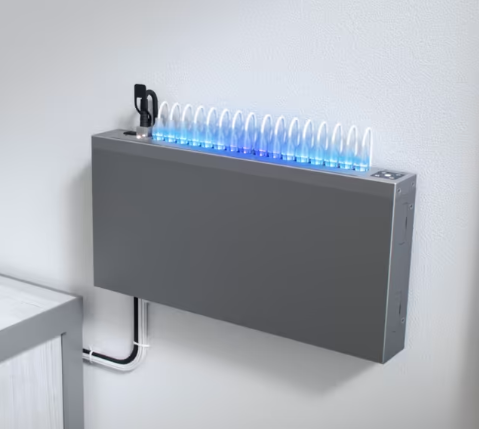

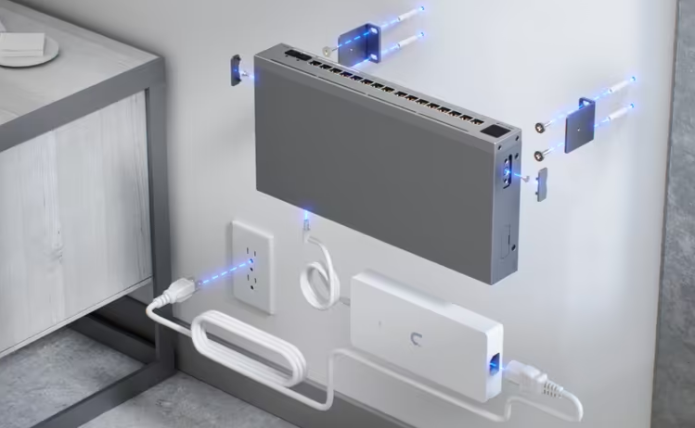

Form Factor: Rack-mount (1U), desktop, or wall-mount
Etherlighting™: Supported

Performance:
• 84 Gbps switching capacity
• 42 Gbps non-blocking throughput
• 62 Mpps forwarding rate
• 1,000 VLANs; 16K MAC table
• L3 tables: 6,000 ARP entries; 512 IPv4 routes
• 1.5 MB packet buffer

Layer 3 Features: DHCP server/relay, static routing, inter-VLAN routing
Layer 2 Features: LACP, STP/RSTP, QoS (DSCP), advanced IGMP, DHCP snooping/guarding, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection
Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron

Hardware:
• PoE ports: 12 × PoE+, 4 × PoE++
• Max power draw: 25W (switch only) / 210W including PoE
• External 210W AC/DC power supply (50–54V DC input)
• SGCC steel enclosure and mount
• 1.3" touchscreen LCM display
• Heat dissipation: 68 BTU/hr
• Weight: 2.1 kg (4.6 lb)
• Supported rack depth: 400–1200 mm

Environmental: –5 to 40°C operating; 10–90% non-condensing humidity
Compliance: NDAA compliant; CE, FCC, IC, Anatel certified
