Buy UI Firewall - Dream Machine Beast

$1,667.00

In Stock

Hyperscale-class Cloud Gateway delivering 25 Gbps IPS/IDS, 7,500+ client capacity, and the full UniFi application platform in one system.

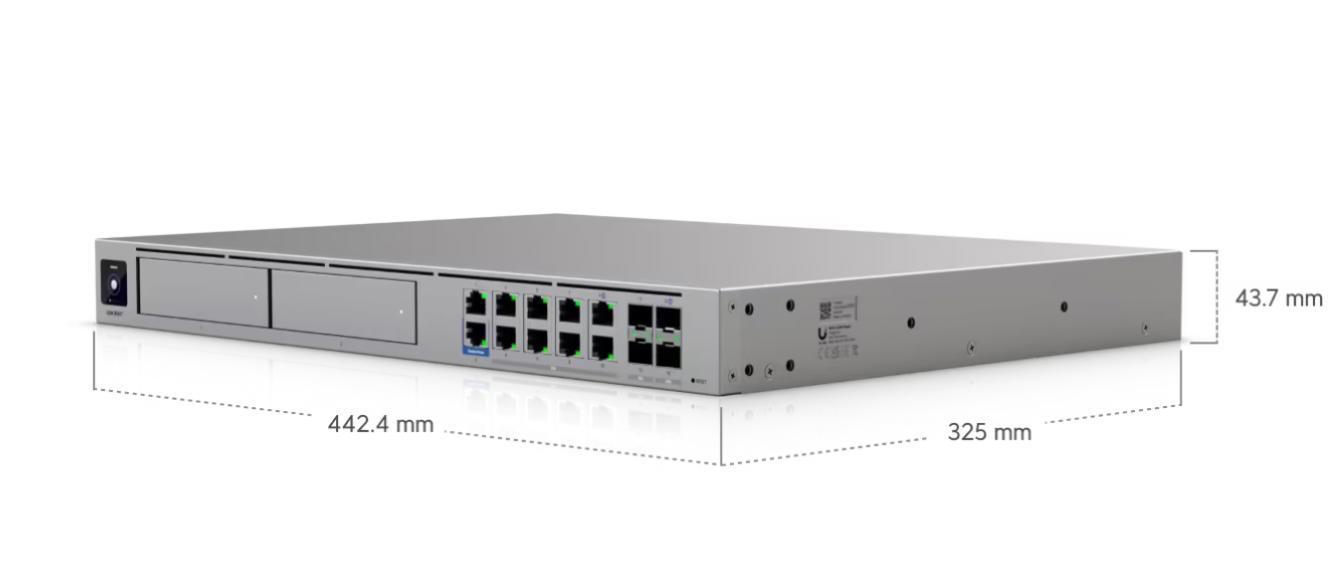

Dimensions

442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")

UniFi Application Suite

Network

✓

Protect

✓

Access

✓

Talk

✓

Connect

✓

Managed UniFi Devices

750+

Managed Cameras

(100) HD (60) 2K (40) 4K

Managed Access Hubs

200

Simultaneous Users Connected

7,500+

Max. WAN Port Count

8

Default WAN Ports

(1) 25G SFP28 (1) 10 GbE RJ45

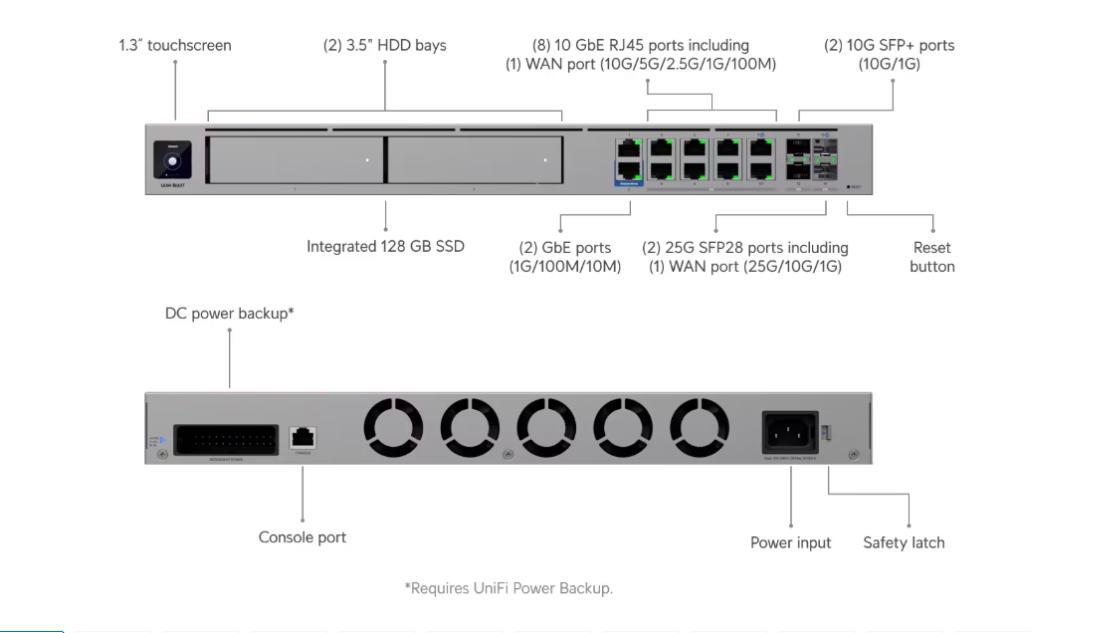

Port Layout

1 GbE RJ45

2 (1G/100M/10M)

10 GbE RJ45

8 (10G/5G/2.5G/1G/100M)

10G SFP+

2 (10G/1G)

25G SFP28

2 (25G/10G/1G)

Console

1

IDS/IPS Throughput

25 Gbps

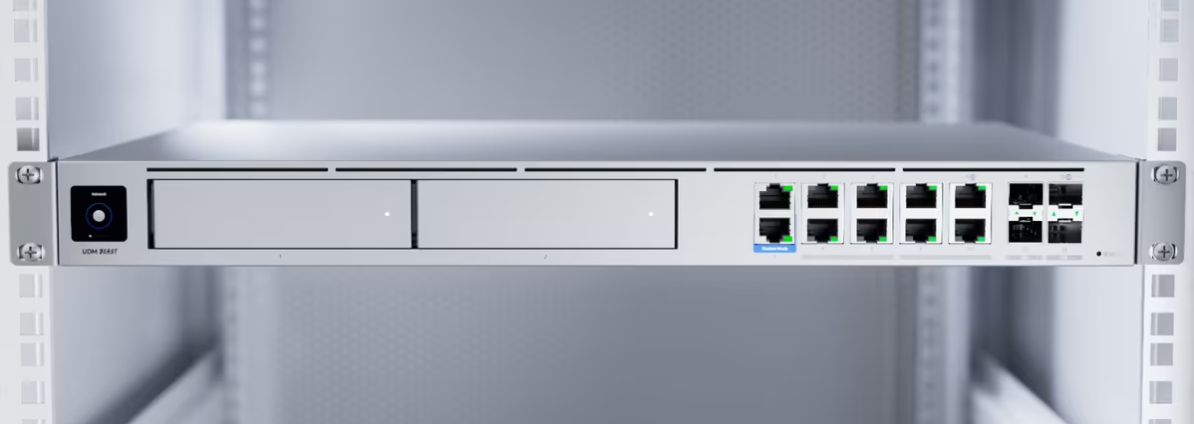

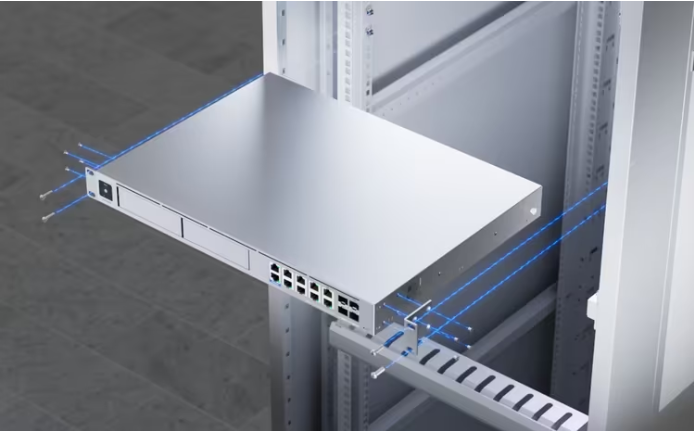

Form Factor

Rack mount (1U)

Redundancy

Shadow Mode (VRRP) Gateway Failover DC Power Backup

Stateful Firewall

✓

Application-Aware Layer 7 Firewall

✓

DPI & Traffic Identification

✓

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

✓

Content Filtering

✓

Intrusion Prevention (IPS/IDS)

✓

Ad Blocking

✓

IDS/IPS Signatures

55,000+ with CyberSecure

License-Free SD-WAN

✓

Site-to-Site VPN

Site Magic

✓

IPsec

✓

OpenVPN

✓

VPN Server

Identity Endpoint One-Click VPN

✓

Teleport Zero-Configuration VPN

✓

WireGuard

✓

OpenVPN

✓

L2TP

✓

VPN Client

OpenVPN

✓

WireGuard

✓

Multi-WAN Load Balancing

✓

Shadow Mode (VRRP) High Availability

✓

LACP Port Aggregation

✓

Dynamic Routing

OSPF

✓

BGP

✓

Advanced QoS

✓

Multicast DNS (mDNS)

✓

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

✓

Integrated RADIUS Server

✓

RADIUS over TLS (RadSec)

✓

Additional Internet Failover with UniFi LTE Backup

✓

Internet Quality and Outage Reporting

✓

MAC Address Table Size

32,000

Policy-based WAN and VPN Routing

✓

Customizable DHCP Server

✓

IPv6 ISP Support

✓

IGMP Proxy

✓

All Traffic Flows

✓

NVR Storage

(2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience

Max. Power Consumption

100W

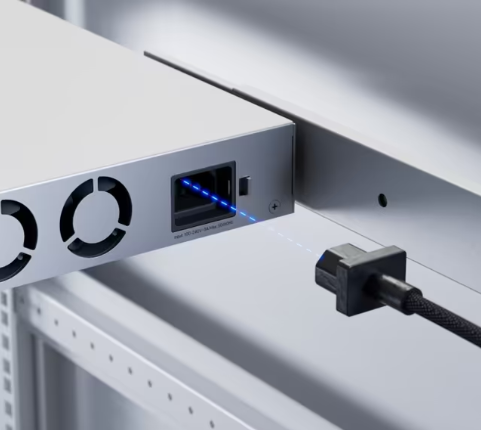

Power Method

(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 13.05A

Power Supply

AC/DC, internal, 150W

Supported Voltage Range

100–240V AC

Heat Dissipation

342 BTU/hr

Processor

Octa-core ARM® v9 at 2.1 GHz

System Memory

16 GB

On-board Storage

Integrated 128 GB SSD

Weight

5.5 kg (12.13 lb)

Enclosure Material

Aluminium CNC, SGCC steel

Mount Material

SGCC steel

LCM Display

1.3" touchscreen

Management

Ethernet Bluetooth

LEDs

Ethernet

✓

SFP+

✓

SFP28

✓

RPS

✓

HDD

✓

Button

(1) Factory reset

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

NDAA Compliant

✓

Certifications

CE, FCC, IC

Application Requirements

Mobile App

UniFi iOS™: Version 10.34.0 and later UniFi Android™: Version 10.37.1 and later
