UniFi Enterprise 24-Port PoE+ Switch (1U Rack-Mountable)

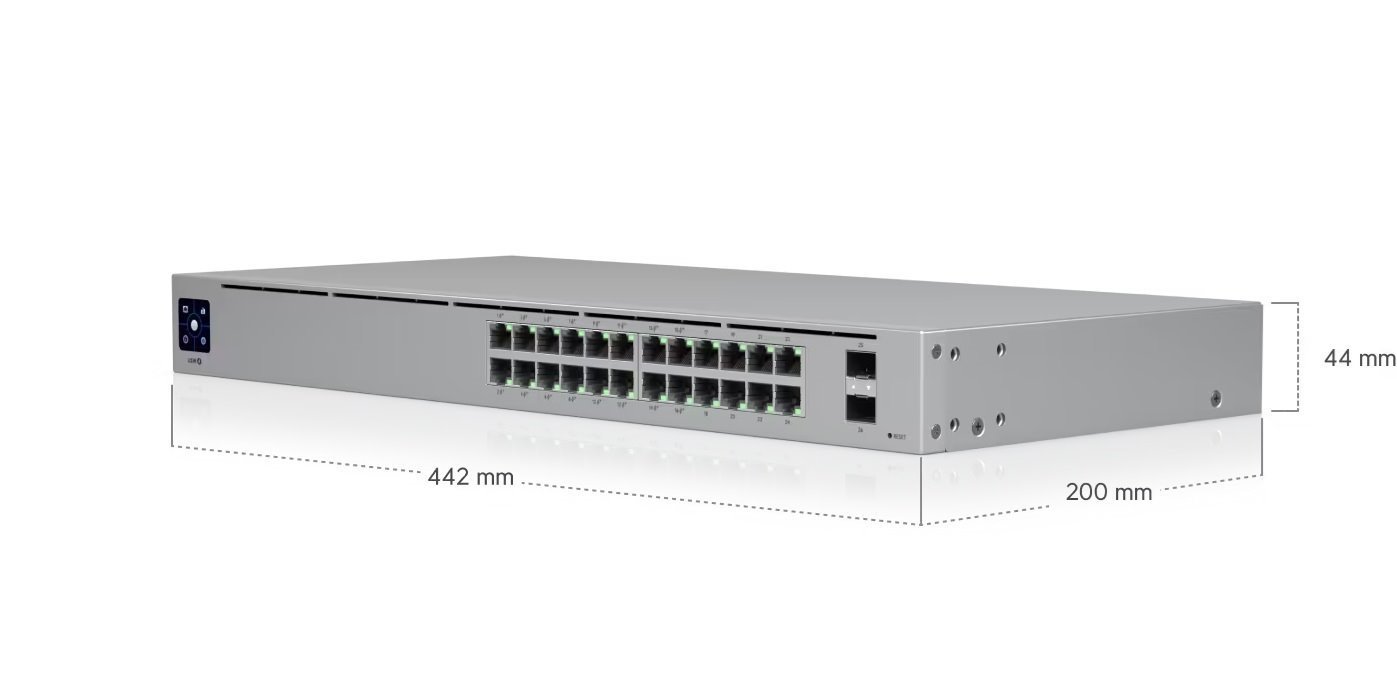

Dimensions: 442 × 200 × 44 mm (17.4 × 7.9 × 1.7")

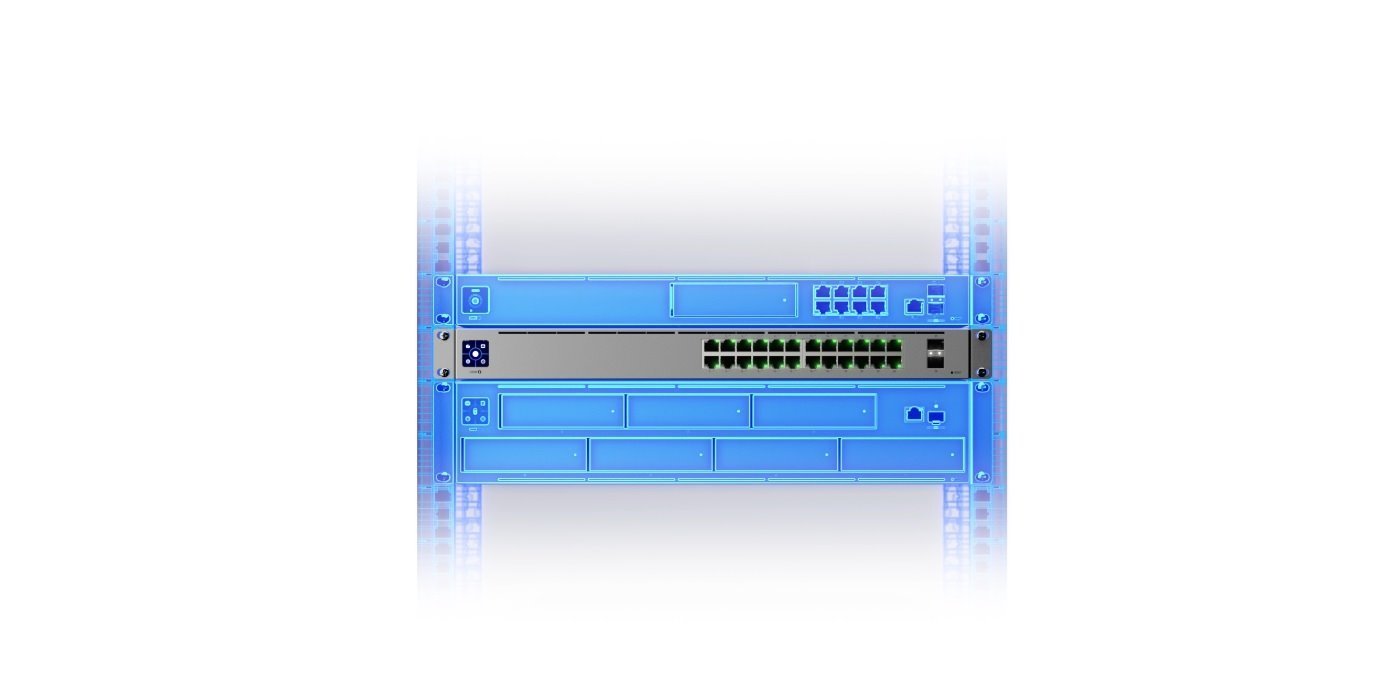

Form Factor: Rack Mount (1U)
PoE Capability: 16× PoE+ Ports (Up to 32W per port)

Performance & Switching

• Switching Capacity: 52 Gbps

• Non-Blocking Throughput: 26 Gbps

• Forwarding Rate: 39 Mpps

• Supported VLANs: 1,000

• MAC Address Table: 8,000 entries

• Packet Buffer: 0.5 MB

Port Configuration

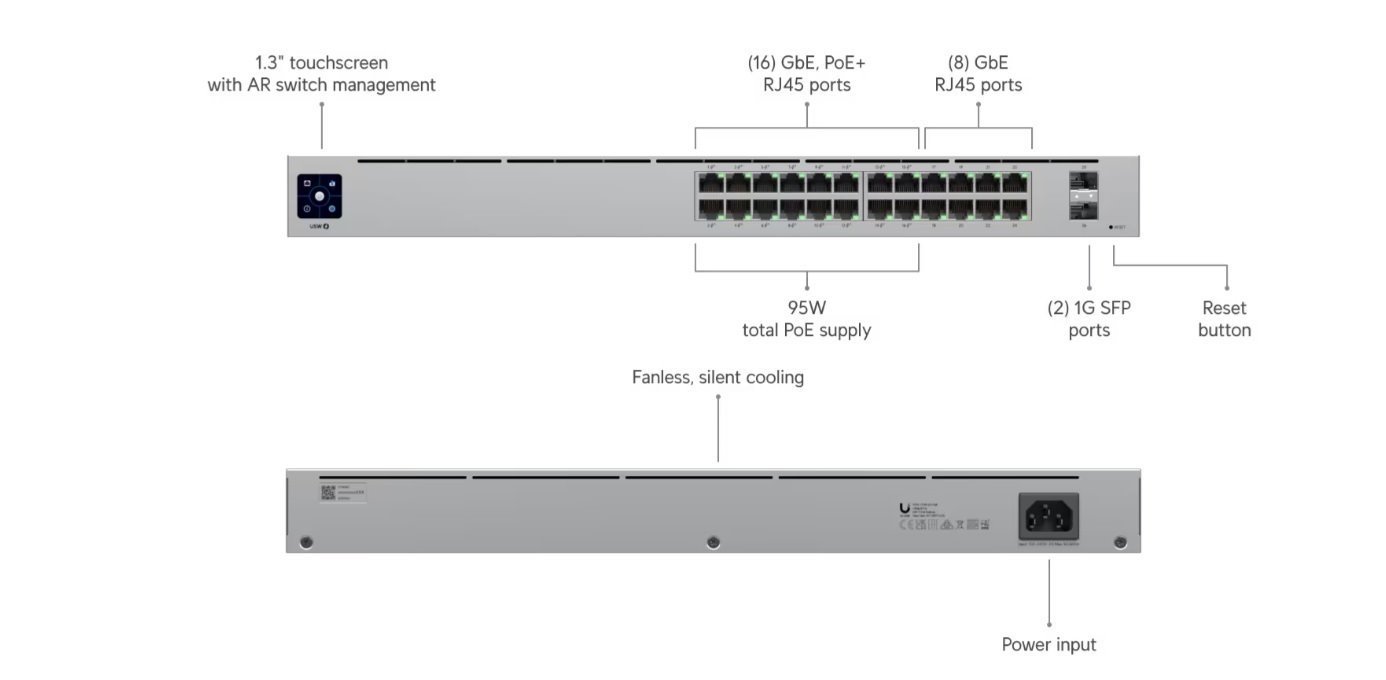

• Total Ports: 26

  • 24× 1 GbE RJ45 (16 PoE+)

  • 2× 1G SFP (Fiber)

• PoE Standards: PoE / PoE+

• Total PoE Budget: 95W

Layer 2 Features

• LACP Port Aggregation | STP / RSTP | Jumbo Frames

• Advanced IGMP (Querier, Fast Leave, Router Port) | IGMP Snooping

• 802.1X Network Access Control

• QoS (DSCP) | Voice VLAN | LLDP-MED

• DHCP Snooping & Guarding | Port Isolation | Loop Protection

• MAC/IP-Based ACLs & Device Isolation

• Flow, Storm, Multicast & Broadcast Rate Limiting

• Port Mirroring | MAC Address Blocking | Egress Rate Limiting

Hardware & Power

• PoE Ports: 16× PoE+ (15.4W PoE | 32W PoE+)

• Power Supply: Internal 120W AC/DC PSU | Universal Input (100–240V AC, 50/60 Hz)

• Max Power Consumption: 120W (Including PoE Output) / 25W (Excluding PoE Output)

• Enclosure: SGCC Steel | Weight: 3.0 kg (6.6 lb) without brackets / 3.1 kg (6.8 lb) with brackets

• Rack Depth: 400–1200 mm (15.7–47.2")

• Display: 1.3" Touchscreen LCM

• Heat Dissipation: 85.3 BTU/hr (Excluding PoE Output)

Environmental & Compliance

• Operating Temp: –5 to 40 °C (23 to 104 °F)

• Humidity: 10–90% non-condensing

• ESD Protection: Air ±16 kV | Contact ±12 kV

• Certifications: CE, FCC, IC, Anatel (00593-21-08356) | NDAA Compliant
