UniFi Enterprise Layer 3 PoE Switch (1U Rackmount)

• High-capacity enterprise Layer 3 switch designed for core and access-layer deployments

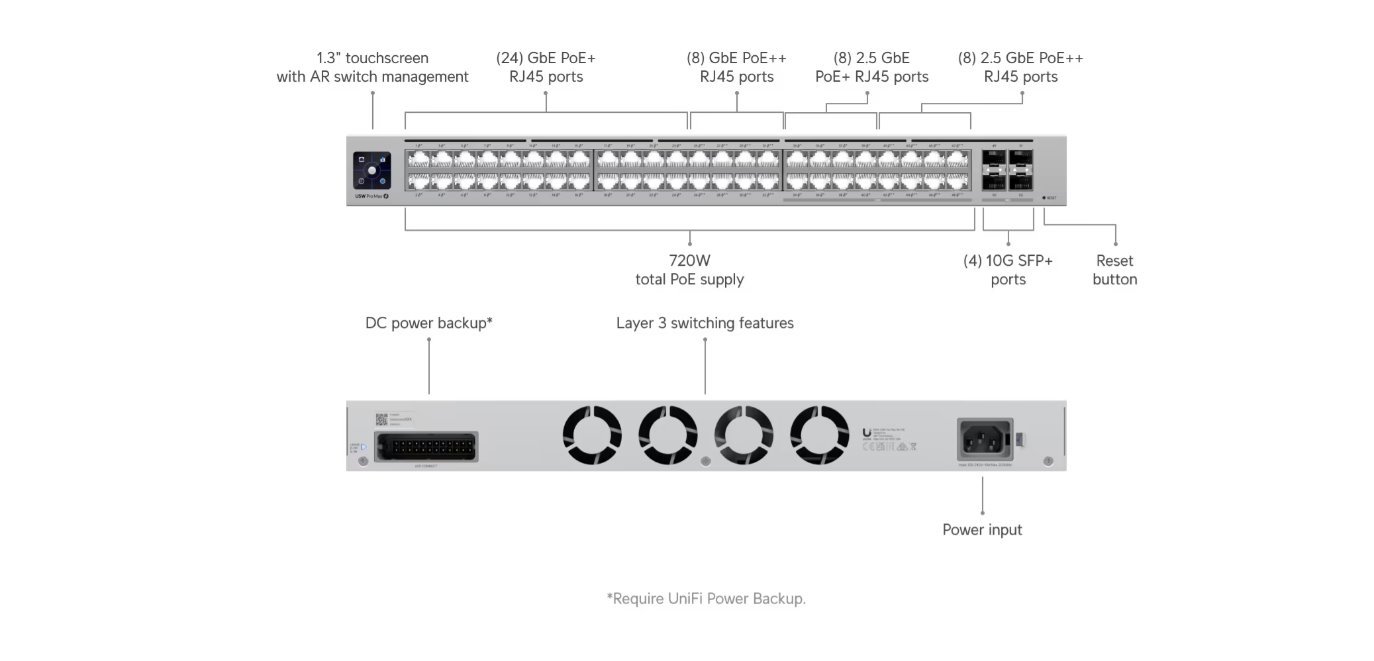

• Provides a total of 52 Ethernet ports, including 32 × 1 GbE and 16 × 2.5 GbE ports with mixed PoE+ and PoE++ support, plus 4 × 10G SFP+ uplinks

• Delivers up to 720W total PoE budget, supporting PoE, PoE+, and PoE++ devices up to 64W per port

• Advanced Layer 3 functionality including inter-VLAN routing, static routing, DHCP server, and DHCP relay

• High-performance switching with 224 Gbps switching capacity, 112 Gbps non-blocking throughput, and 167 Mpps forwarding rate

• Enterprise-grade Layer 2 features including LACP, STP/RSTP, QoS (DSCP), jumbo frames, port mirroring, and advanced multicast handling

• Optimized for professional AV environments with built-in Pro AV profiles (Dante, Q-SYS, NDI, AES67, Crestron, SDVoE, and more)

• Enhanced security with 802.1X authentication, ACLs, DHCP snooping, MAC/IP-based isolation, and storm control

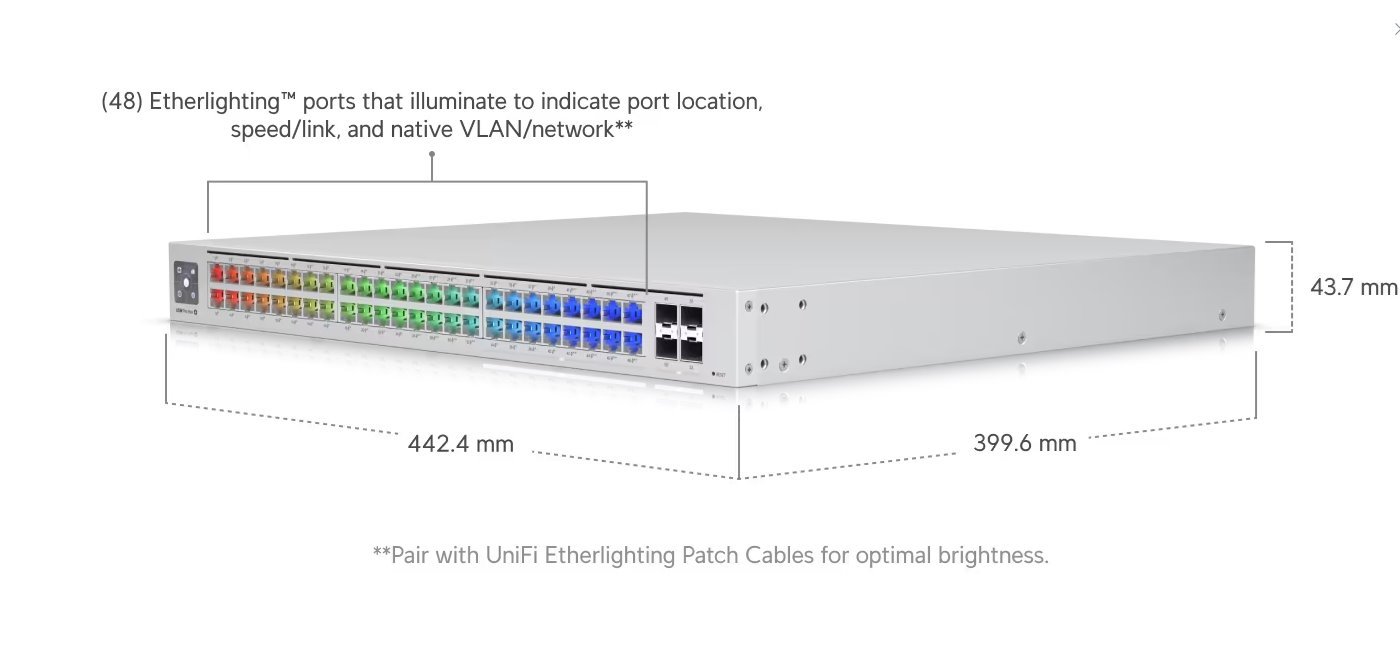

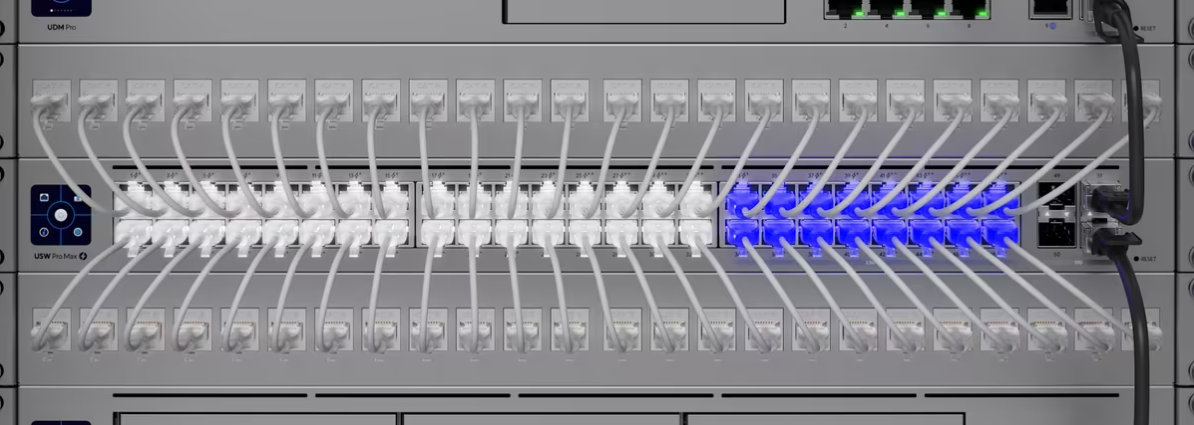

• Integrated Etherlighting™ port illumination for simplified port identification and troubleshooting

• Redundant power support via internal AC power supply with DC backup (USP RPS compatible)

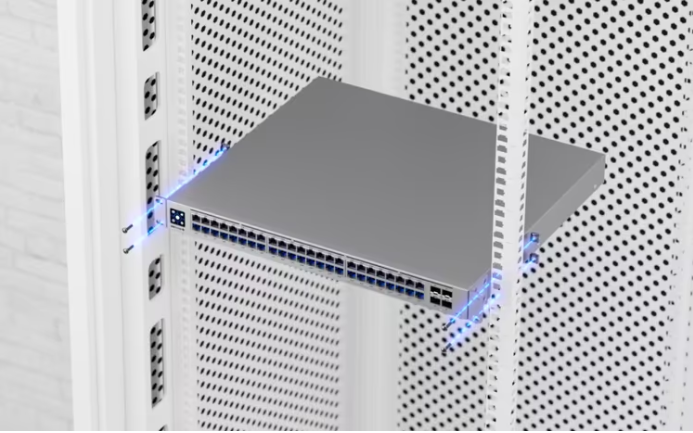

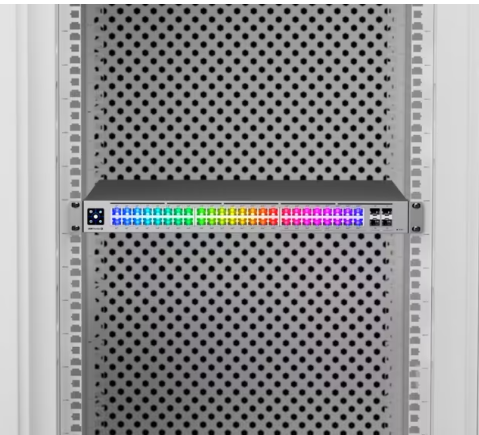

• 1U rackmount steel enclosure with touchscreen status display and support for standard rack depths

• Centrally managed through UniFi Network (v8.0.24 or later)

• NDAA compliant and certified (CE, FCC, IC, Anatel)
