UniFi managed 1kVA uninterruptible power supply with 5 backup outlets 5 surge outlets and hot swappable battery, 108Wh, half load (300W) runtime of 7 minutes. Supports Graceful Shutdown for UNVR and UNAS, and includes NUT compatibility for third-party devices.

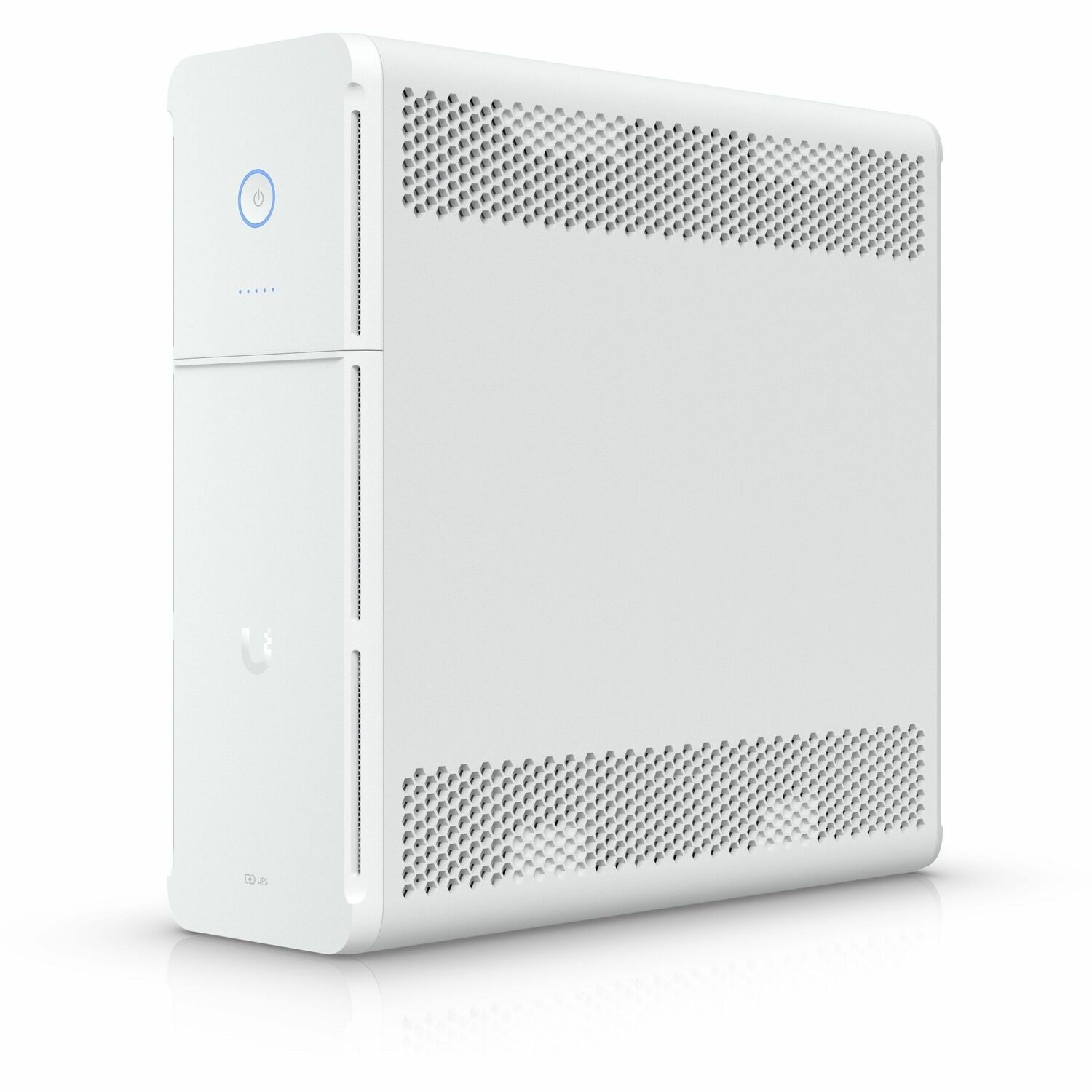

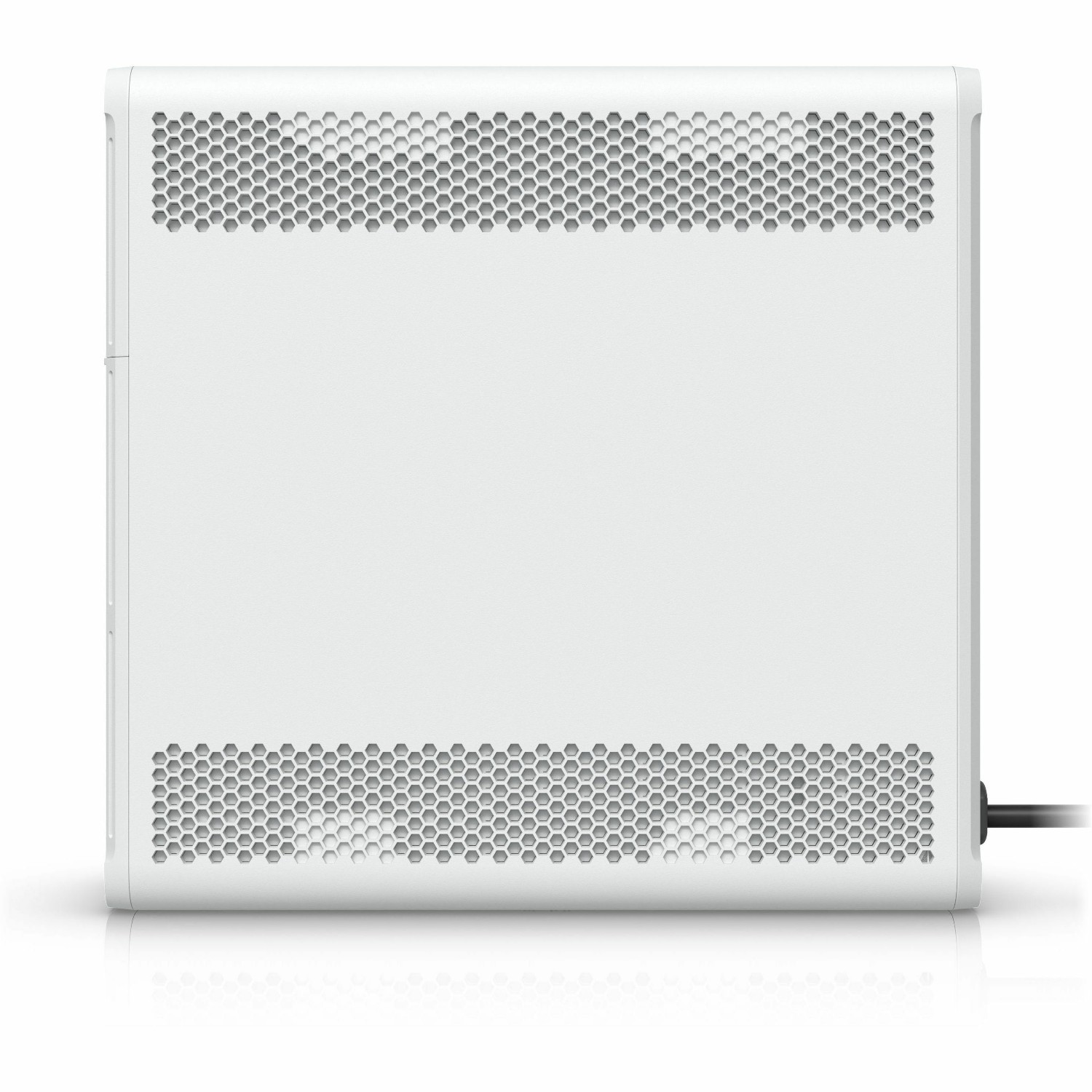

UniFi Desktop UPS – OVC II Series
Line-interactive uninterruptible power supply (UPS) with battery backup, surge protection, and Ethernet management. Designed for desktop deployment with IP20 protection.
Dimensions & Weight:

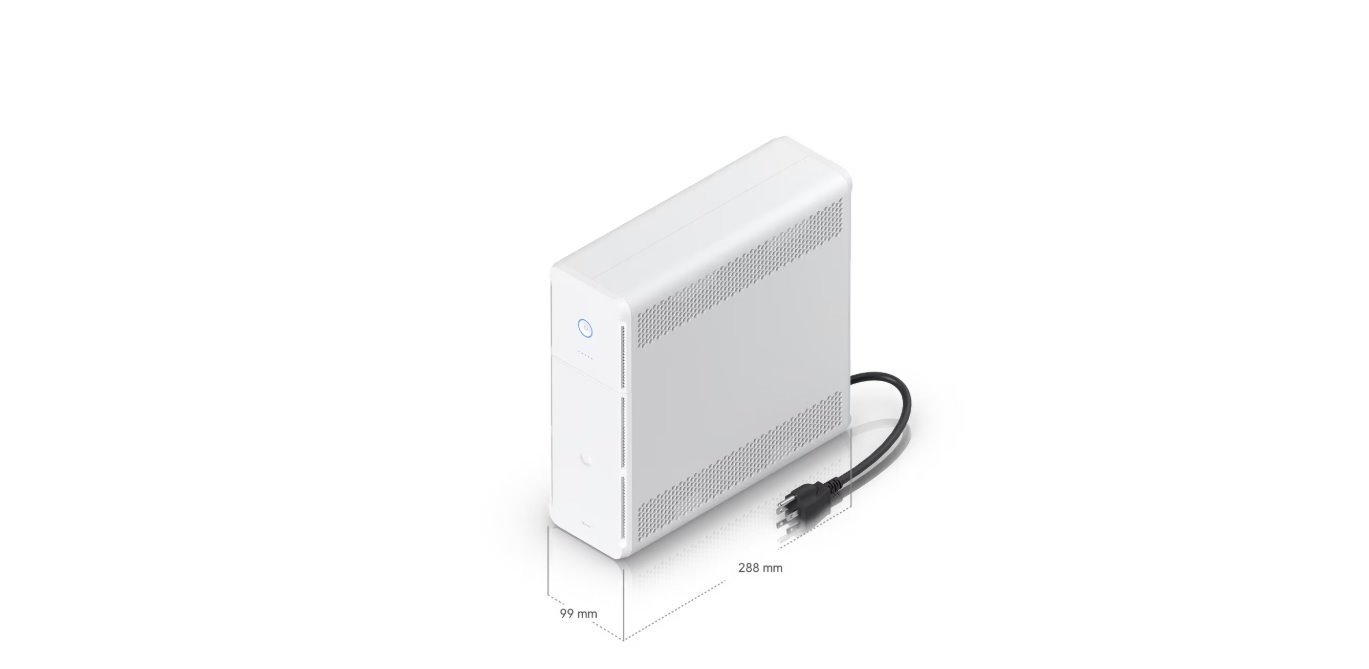

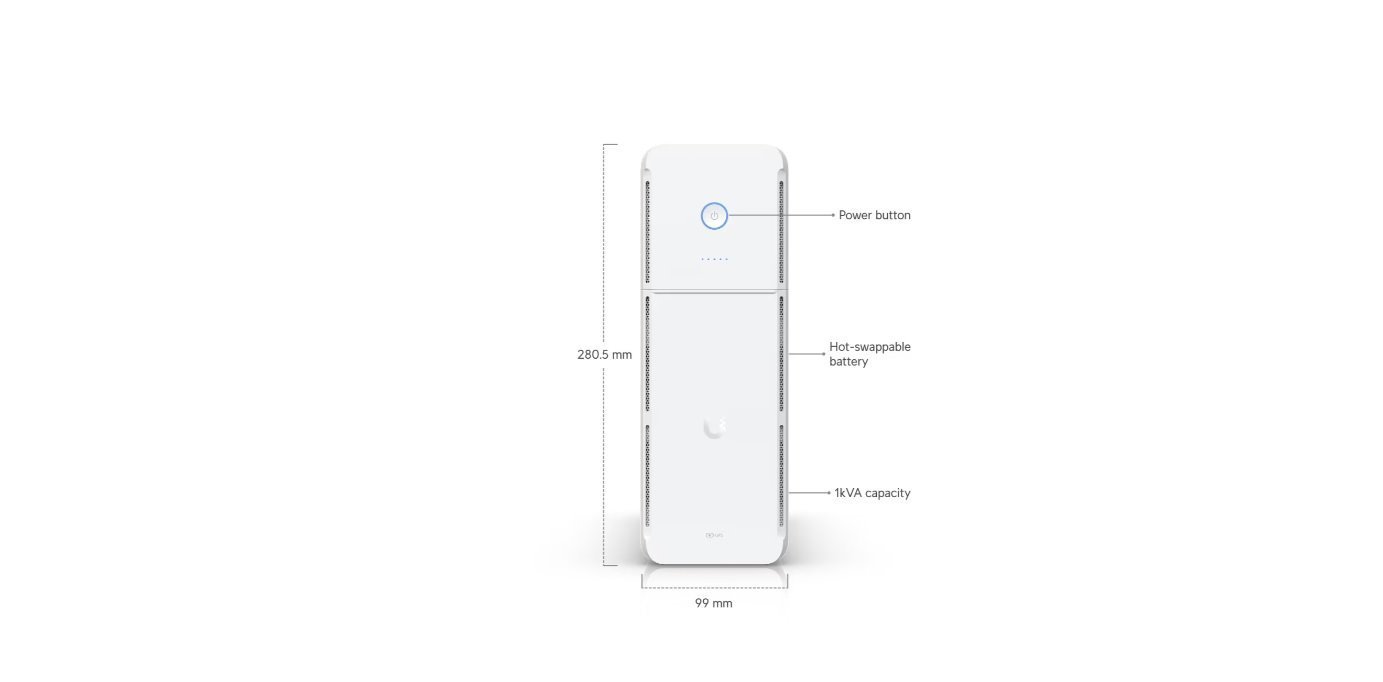

288 × 99 × 280.5 mm (11.3 × 3.9 × 11 in)
Weight: 8.17 kg (18 lb)
Enclosure: Polycarbonate and ABS blend
Form Factor:
Desktop, IP20 rated
Networking & Management:

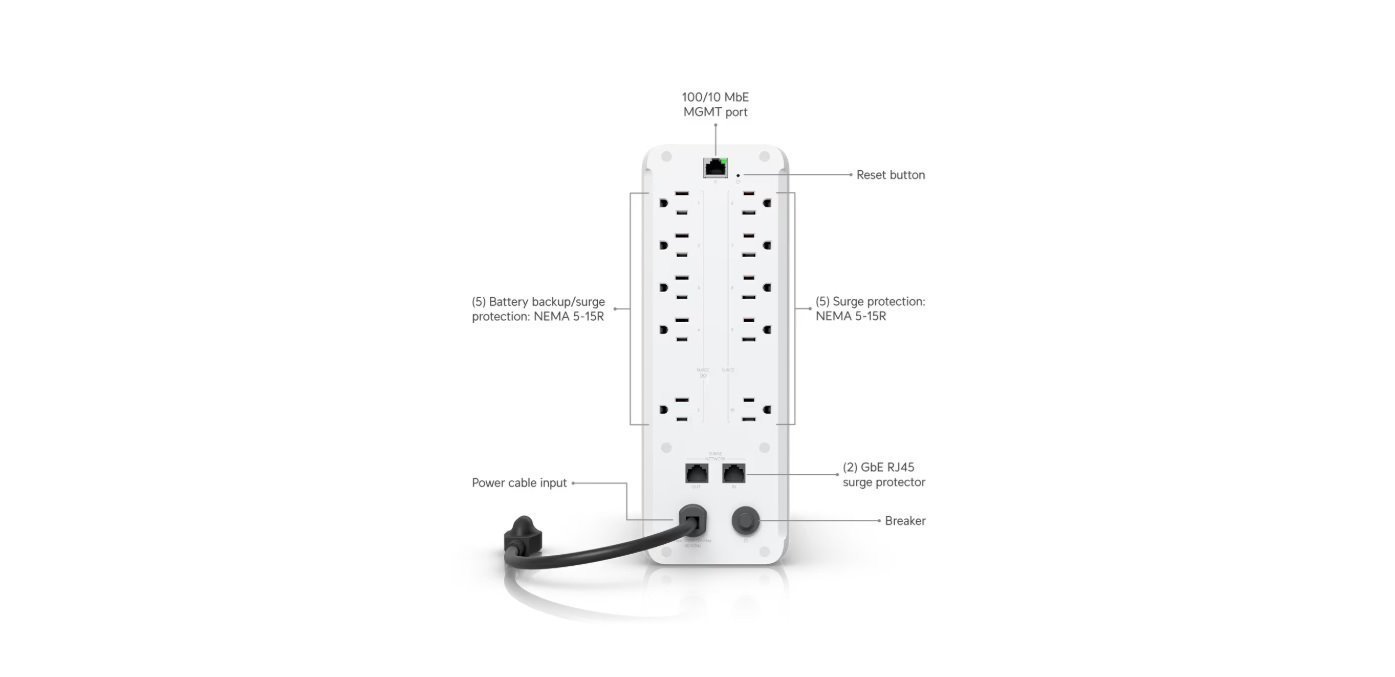

(1) 100/10 MbE port for network connection
(2) GbE ports for surge in/out
Power & Capacity:
Capacity: 1,000VA / 600W
Input: 89–145V AC, 120V nominal, 50/60 Hz
Output: 120V AC, simulated sine wave (battery mode)
Transfer time (AC → battery): 6 ms typical / 10 ms max
AC voltage regulation: ±10% (battery mode)
Line interactive
Battery:
Lead acid 12V, 9Ah
Runtime: Full load: 2 min, Half load: 7 min
Charging: 6–8 hours to 90% capacity
Protection & Safety:
Overload: AC mode: 110% → 5 min, 120% → immediate fault; Battery mode: 110% → 5 sec shutdown, 120% → immediate
Short-circuit protection: Breaker, 250V AC, 15A
Output short-circuit current: Ipeak 334.8A, Irms 68.2A
User Interface & LEDs:
Power & Factory reset buttons
Status LED indicators for power, adoption, battery level, and alerts
Operating Environment:
Temperature: 0–40° C (32–104° F), Storage: -20–50° C (-4–122° F)
Humidity: 0–95% noncondensing
Max operating altitude: 3,000 m (1.9 mi)
Pollution degree: 2
Compliance & Certifications:
NDAA Compliant
FCC, IC, UL 1778, CSA C22.2 No. 107.3
