UI U7 Pro Outdoor

  • Part: 1002074
$371.80

Availability

In Stock

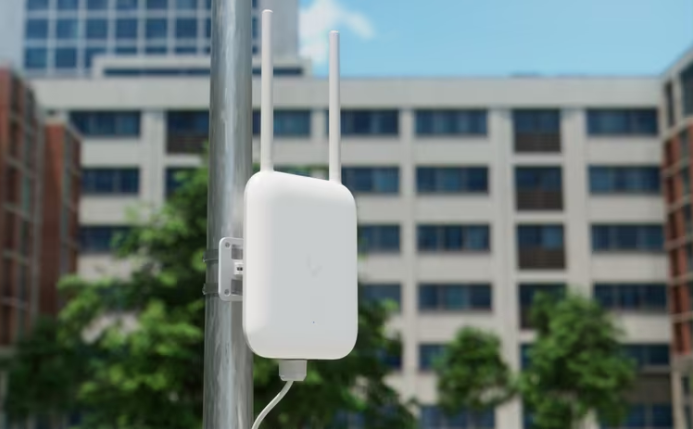

All-weather IP67 WiFi 7 AP with 6 spatial streams, extended-range AFC 6 GHz support, integrated directional super antenna, and articulation mounting bracket.

  • Dimensions:

    • Without mount: 170 × 208 × 66.5 mm (6.7 × 8.2 × 2.6")

    • With mount: 170 × 208 × 121.8 mm (6.7 × 8.2 × 4.8")

  • Weight:

    • Device: 1.2 kg (2.6 lb)

    • With mount: 1.33 kg (2.9 lb)

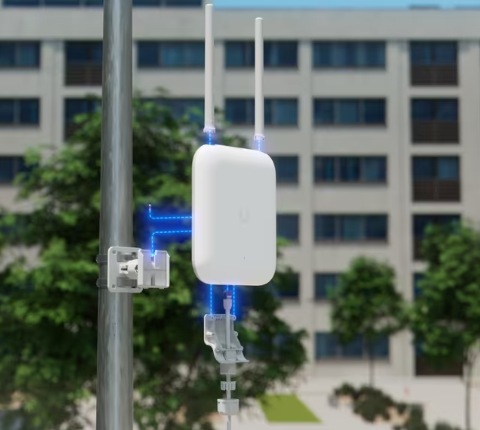

  • Mounting: Wall / Pole (mounts included)

  • Pole Mount Diameter: 1–2.5" (25–63.5 mm)

  • Enclosure Material: UV-stabilized polycarbonate, aluminum alloy

  • Mount Material: UV-stabilized polycarbonate

  • Weatherproofing: IPX6; IP67 with cable-gland door kit

  • Power Method: PoE+

  • Max Power Consumption: 21W

  • Supported Voltage: 42.5–57V DC

  • Operating Temp: –30 to 60°C (–22 to 140°F)

  • Operating Humidity: 5–95% non-condensing

  • Wind Loading: 74.6 N @ 200 km/h (16.8 lbf @ 125 mph)

  • NDAA Compliant

Networking & Interface

  • WiFi Standard: WiFi 7 (802.11be)

  • Spatial Streams: 6

  • Coverage Area: 465 m² (5,000 ft²)

  • Max Client Count: 300+

  • Uplink: 1/2.5 GbE RJ45 port

  • Management: Ethernet

  • LEDs:

    • System power: White/Blue

    • Mesh signal: (4) Blue

Radio Performance

  • MIMO (DL/UL MU-MIMO):

    • 6 GHz: 2×2

    • 5 GHz: 2×2

    • 2.4 GHz: 2×2

  • Max Data Rates:

    • 6 GHz: 5.8 Gbps (BW320)

    • 5 GHz: 4.3 Gbps (BW240)

    • 2.4 GHz: 688 Mbps (BW40)

  • Antenna Gain:

    • 6 GHz: 10 dBi directional (90° × 45°)

    • 5 GHz: 11 dBi directional (90° × 45°); 8 dBi external omni (360° × 15°)

    • 2.4 GHz: 8 dBi directional (90° × 90°); 6 dBi external omni (360° × 15°)

  • Max TX Power:

    • 6 GHz: 26 dBm

    • 5 GHz: 26 dBm

    • 2.4 GHz: 23 dBm

  • Max BSSIDs: 8 per radio

Supported Data Rates

  • 802.11be (WiFi 7): 7.3 Mbps–5.8 Gbps

  • 802.11ax (WiFi 6/6E): 7.3 Mbps–2.4 Gbps

  • 802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps

  • 802.11n: 6.5 Mbps–300 Mbps

Features

  • Wireless Meshing

  • Band Steering

  • 802.11v BSS Transition Management

  • 802.11r Fast Roaming

  • 802.11k Radio Resource Management (RRM)

  • Advanced Radio Management

  • Passpoint (Hotspot 2.0)

  • Captive Portal with Custom Branding

  • Voucher / Payment / Password Authentication

  • External Portal Server Support

  • Guest Network Isolation

  • Private Pre-Shared Key (PPSK)

  • WiFi Speed Limiting

  • Client Device Isolation

  • WiFi Scheduling

  • RADIUS over TLS (RadSec)

  • Dynamic RADIUS-assigned VLAN

Certifications

  • FCC, IC

Software Requirements

  • UniFi Network version 9.0.114+

  • Mobile App:

    • iOS 10.20.2+

    • Android 10.21.7+
