UniFi Enterprise 48-Port PoE+ Switch (1U Rack-Mountable)

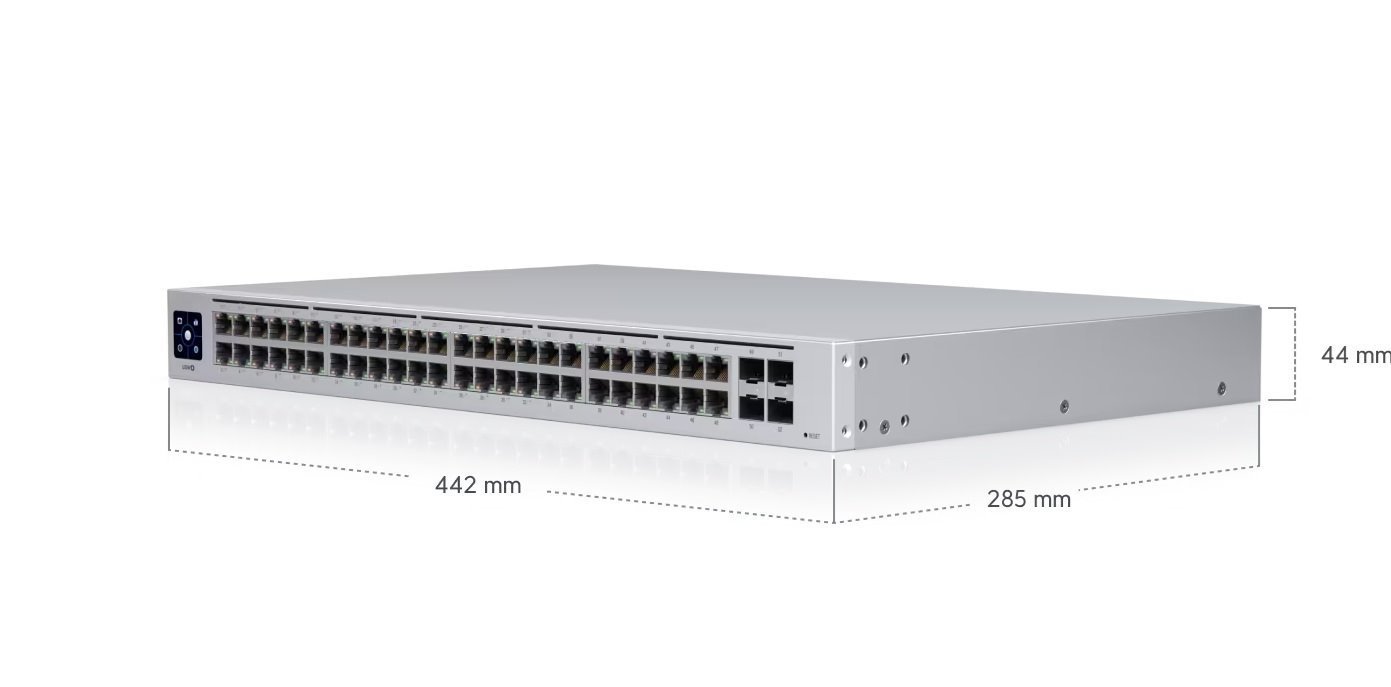

Dimensions: 442 × 285 × 44 mm (17.4 × 11.2 × 1.7")

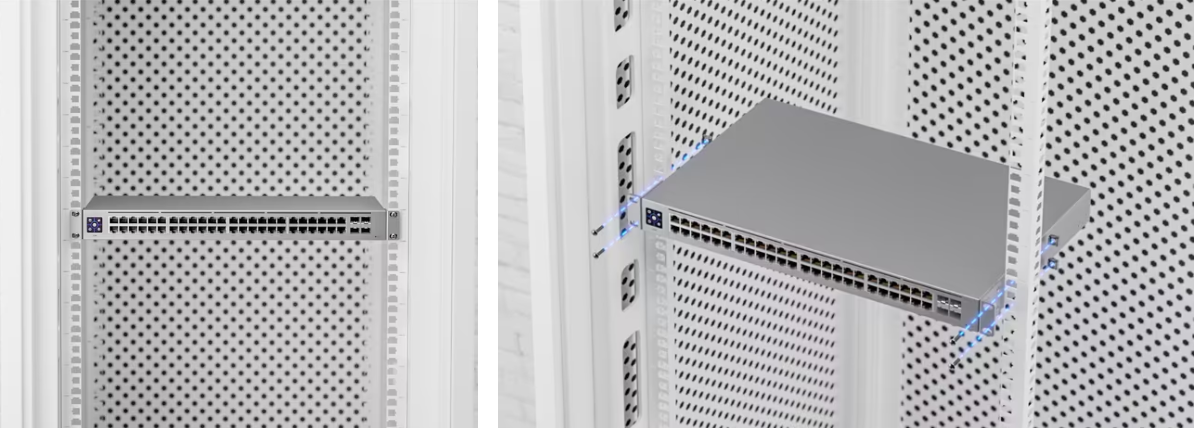

Form Factor: Rack Mount (1U)
PoE Capability: 32× PoE+ Ports (Up to 32W per port)

Performance & Switching

• Switching Capacity: 104 Gbps

• Non-Blocking Throughput: 52 Gbps

• Forwarding Rate: 77 Mpps

• Supported VLANs: 1,000

• MAC Address Table: 16,000 entries

• Packet Buffer: 1.5 MB

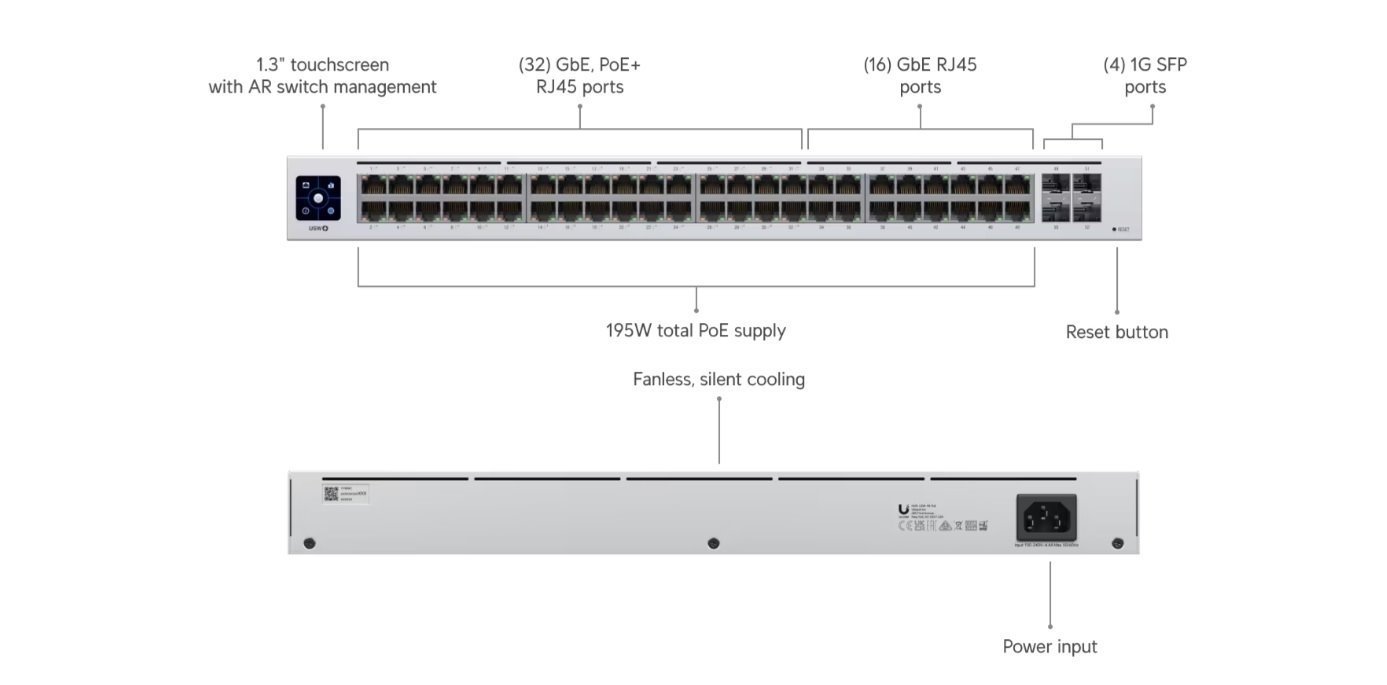

Port Configuration

• Total Ports: 52

  • 48× 1 GbE RJ45 (32 PoE+)

  • 4× 1G SFP (Fiber)

• PoE Standards: PoE / PoE+

• Total PoE Budget: 195W

Layer 2 Features

• LACP Port Aggregation | STP / RSTP | Jumbo Frames

• Advanced IGMP (Querier, Fast Leave, Router Port) | IGMP Snooping

• 802.1X Network Access Control

• QoS (DSCP) | Voice VLAN | LLDP-MED

• DHCP Snooping & Guarding | Port Isolation | Loop Protection

• MAC/IP-Based ACLs & Device Isolation

• Flow, Storm, Multicast & Broadcast Rate Limiting

• Port Mirroring | MAC Address Blocking | Egress Rate Limiting

Hardware & Power

• PoE Ports: 32× PoE+ (15.4W PoE | 32W PoE+)

• Power Supply: Internal 240W AC/DC PSU | Universal Input (100–240V AC, 50/60 Hz)

• Max Power Consumption: 240W (Including PoE Output) / 45W (Excluding PoE Output)

• Enclosure: SGCC Steel | Weight: 4.5 kg (10 lb) without brackets / 4.6 kg (10.2 lb) with brackets

• Rack Depth: 400–1200 mm (15.7–47.2")

• Display: 1.3" Touchscreen LCM

• Heat Dissipation: 153.54 BTU/hr (Excluding PoE Output)

Environmental & Compliance

• Operating Temp: –5 to 40 °C (23 to 104 °F)

• Humidity: 10–90% non-condensing

• ESD Protection: Air ±16 kV | Contact ±12 kV

• Certifications: CE, FCC, IC, Anatel (00593-21-08356) | NDAA Compliant
