Overview
This high-performance 5G modem delivers multi-gigabit cellular connectivity for UniFi deployments requiring resilient WAN access. Designed for instant adoption through any UniFi PoE port, the modem provides rapid deployment and high-speed wireless connectivity reaching up to 3.4 Gbps.
Intelligence
Automatic provisioning streamlines integration into UniFi-managed environments without manual configuration. Dual SIM and eSIM support offer carrier flexibility, while seamless failover ensures connectivity continuity during primary link interruptions. Certified compatibility with major U.S. carriers supports reliable deployment across varied service regions.
Features
PoE-powered operation eliminates separate power requirements and simplifies installation. Advanced cellular performance enables bandwidth-intensive workloads and backup connectivity strategies. Flexible SIM configuration allows optimization of carrier selection for reliability and redundancy across enterprise and branch deployments.
Applications

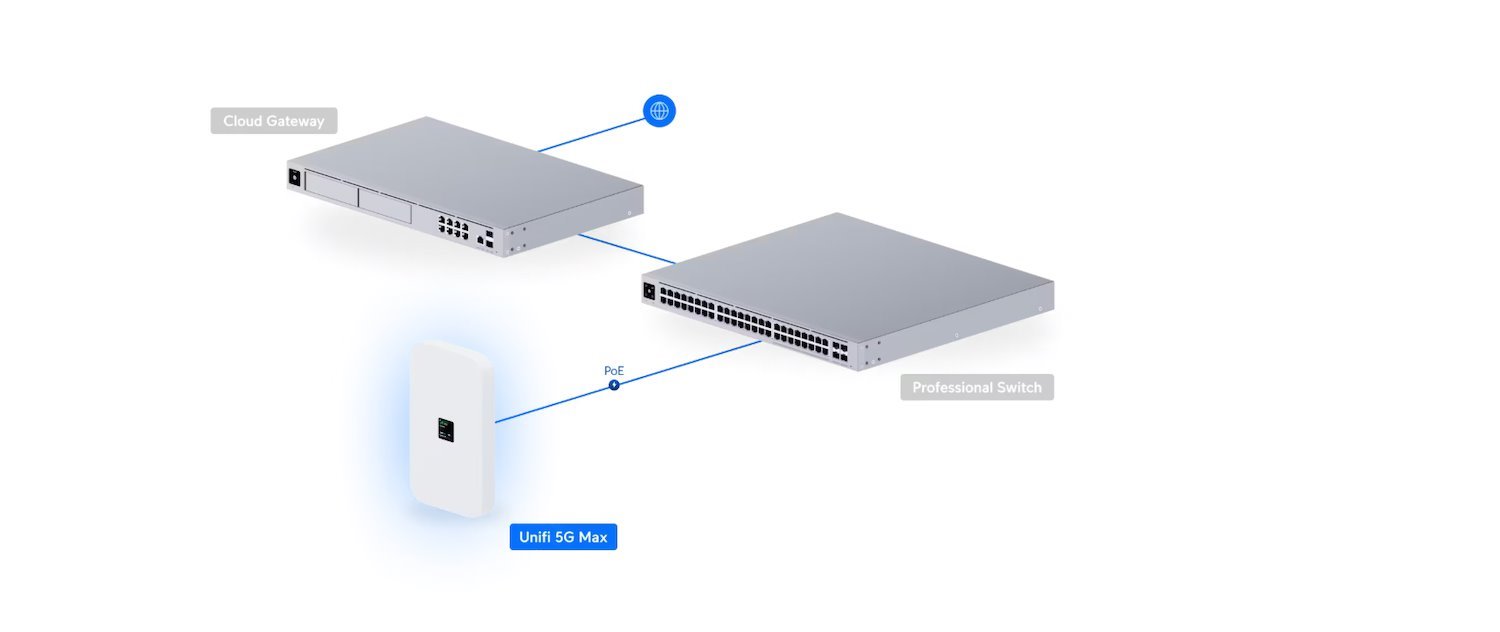

Primary or backup WAN connectivity for UniFi networks
Branch or remote office connectivity
Temporary or mobile site deployments
Network resiliency and failover planning
Carrier Compatibility
AT&T Certified
T-Mobile Certified (Data-only plan required; Home Internet SIMs not supported)
Verizon Certification Expected February
Physical

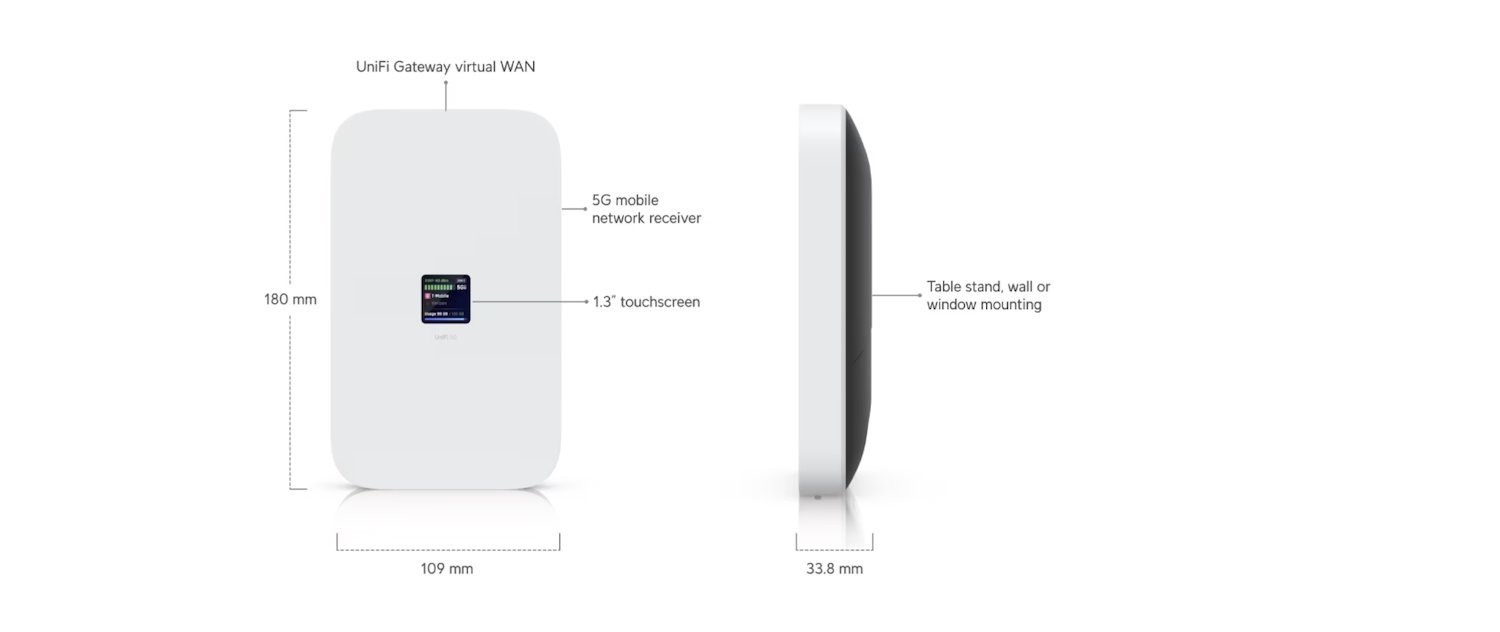

• Dimensions: 180 × 109 × 33.8 mm (7.1 × 4.3 × 1.3")
• Enclosure Material: Polycarbonate; Aluminum Alloy
• Mount Material: Polycarbonate; Silicone Rubber

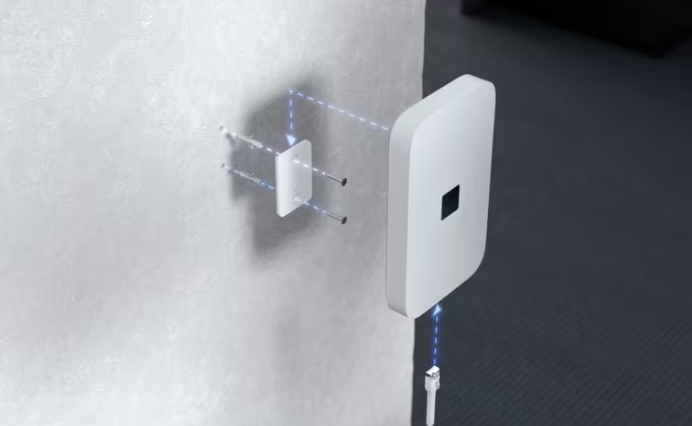

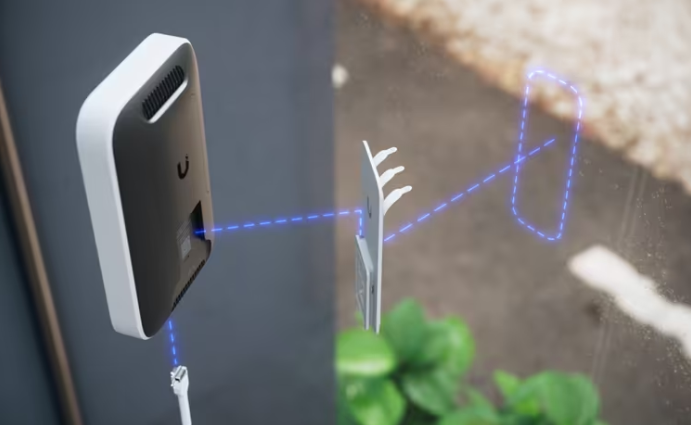

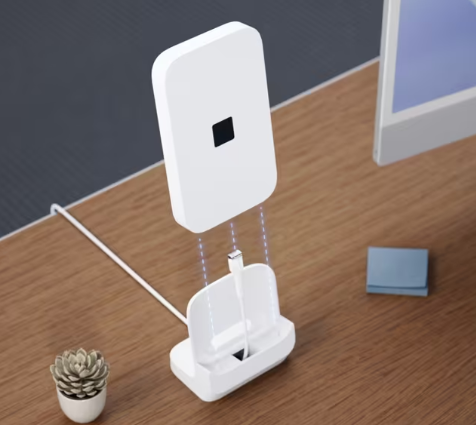

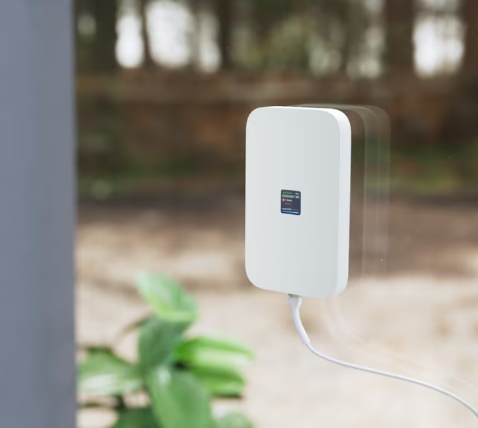

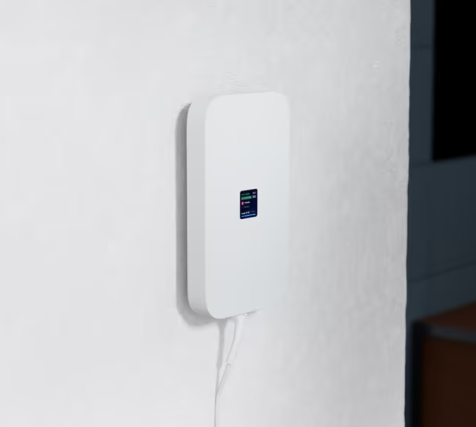

• Mounting Options: Desktop Stand; Wall Mount; Window Mount (Included)
• Tamper Resistance: IK04
Mechanical
• Weight — Device: 410 g (14.5 oz)
• Weight — Stand: 215 g (7.6 oz)
• Weight — Wall Mount: 7.6 g (0.3 oz)
• Weight — Window Mount: 20 g (0.7 oz)
Networking Interface

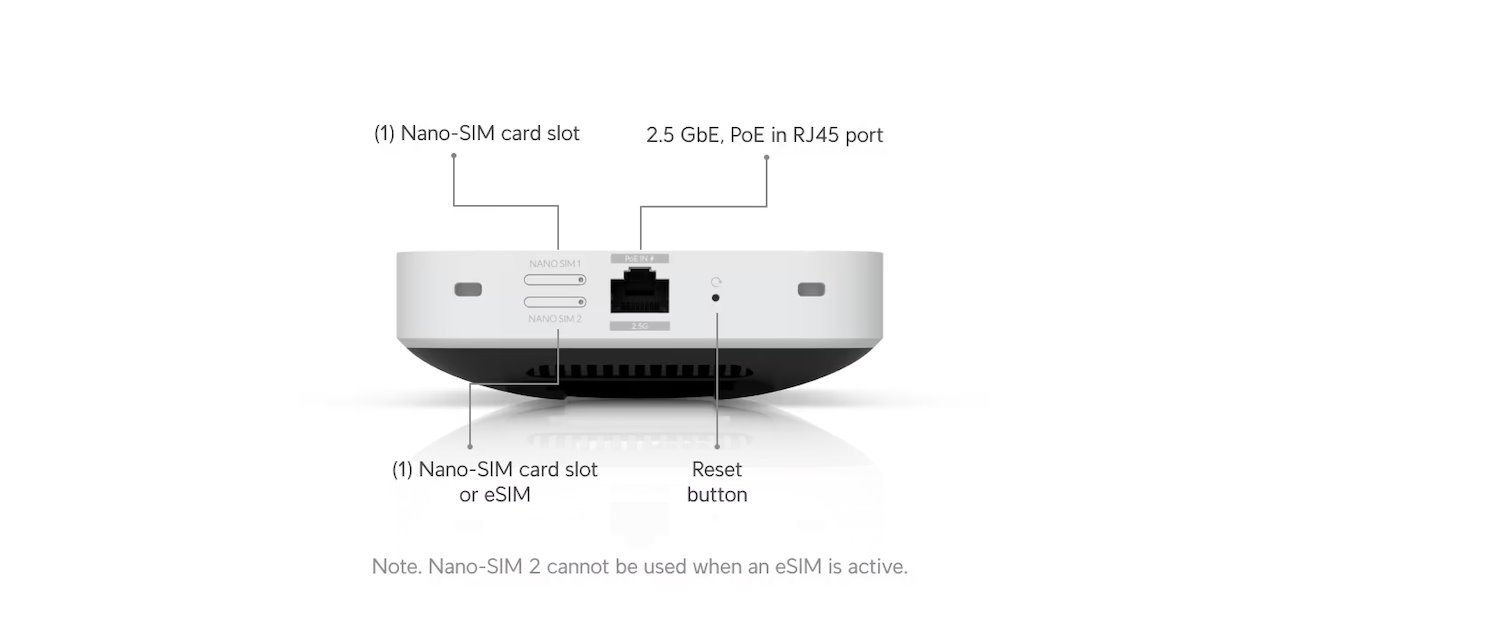

• Ethernet: 1 × 2.5 GbE RJ45
• Cellular Radio: 5G NR; LTE

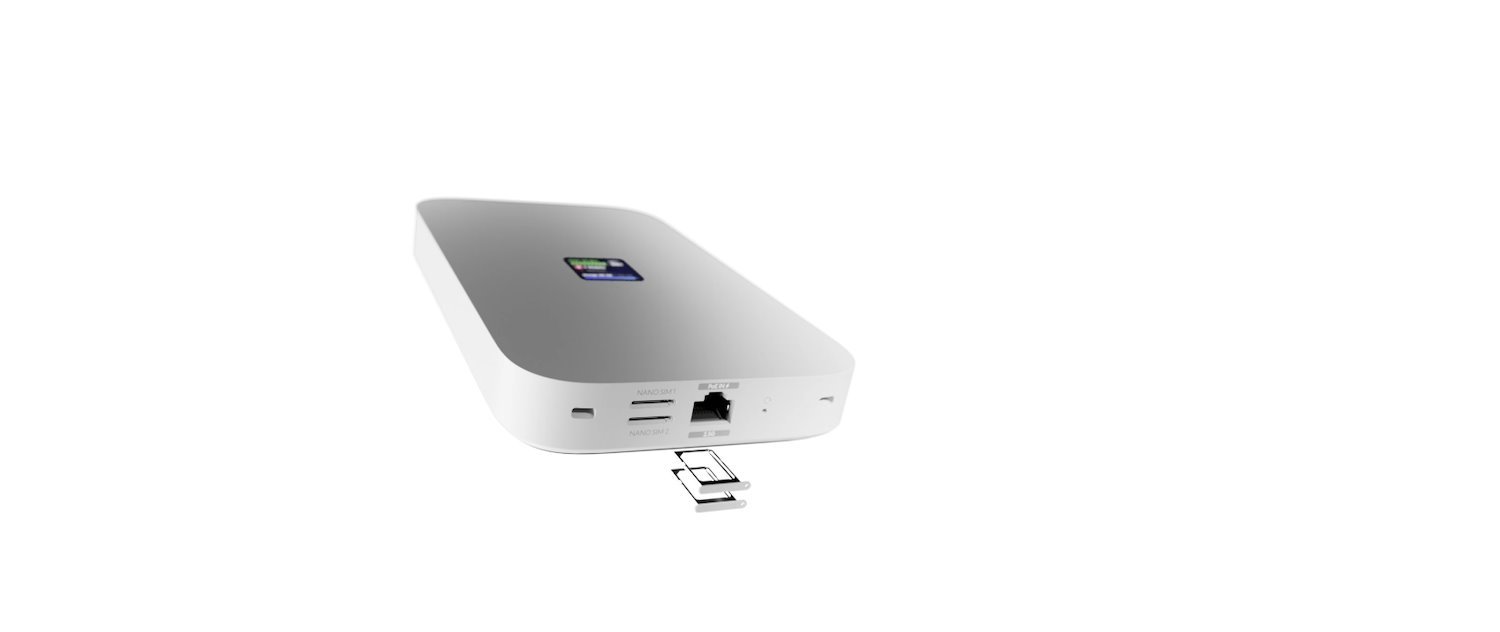

SIM
• Nano SIM: 1
• Nano SIM or eSIM: 1
PoE
• PoE Interface: 1 × PoE Input
Hardware / Management
• Management Interface: Ethernet
• Antennas: 4 × Embedded Cellular Antennas
• Display: 1.3" Touchscreen
• Buttons: 1 × Factory Reset
• Max Power Consumption: 14.5 W
• Power Method: PoE
Cellular — 5G NR
• Category: 5G NR
• Frequency Bands: n1; n2; n3; n5; n7; n8; n12; n13; n14; n18; n20; n25; n26; n28; n29; n30; n38; n40; n41; n48; n66; n71; n75; n76; n77; n78; n79
• Max TX Power: HPUE Power Class 2 — 26 dBm
Cellular — 4G LTE
• Frequency Bands: B1; B2; B3; B4; B5; B7; B8; B12; B13; B14; B17; B18; B19; B20; B25; B26; B28; B29; B30; B32; B34; B38; B39; B40; B41; B42; B43; B46; B48; B66; B71
• Max TX Power: HPUE Power Class 2 — 25 dBm
Cellular — 3G UMTS
• Frequency Bands: B1; B2; B4; B5; B8; B19
Peak Data Speeds
• 5G NSA: Downlink 3.4 Gbps; Uplink 560 Mbps
• 5G SA: Downlink 1.8 Gbps; Uplink 650 Mbps
• 4G LTE: Downlink 1.6 Gbps; Uplink 210 Mbps
Environmental
• Operating Temperature: 0°C to +40°C (32°F to 104°F)
• Operating Humidity: 5%–95% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; CE; PTCRB; GCF; AT&T; T-Mobile; Verizon
Software
• Application Requirement: UniFi Network v10.0.162+
