UI LTE Backup
- Part: 1002286
Overview
This failover connectivity solution provides seamless internet redundancy for UniFi gateways, enabling automatic backup connectivity when primary WAN links are disrupted. Delivered with an included AT&T SIM and data plan, the unit supports plug-and-play deployment for rapid integration into UniFi-managed networks.
Intelligence
Designed specifically for failover scenarios, the device maintains continuity of network operations by activating cellular connectivity when upstream connectivity is lost. Native compatibility with the AT&T network ensures predictable deployment within supported coverage areas, while integration with UniFi infrastructure enables centralized monitoring and management.
Features
The pre-installed SIM and bundled data plan eliminate complex setup requirements, allowing immediate deployment. Compact installation and PoE-powered operation streamline infrastructure requirements, while PoE+ input supports passthrough functionality when supported by the network environment.
Applications

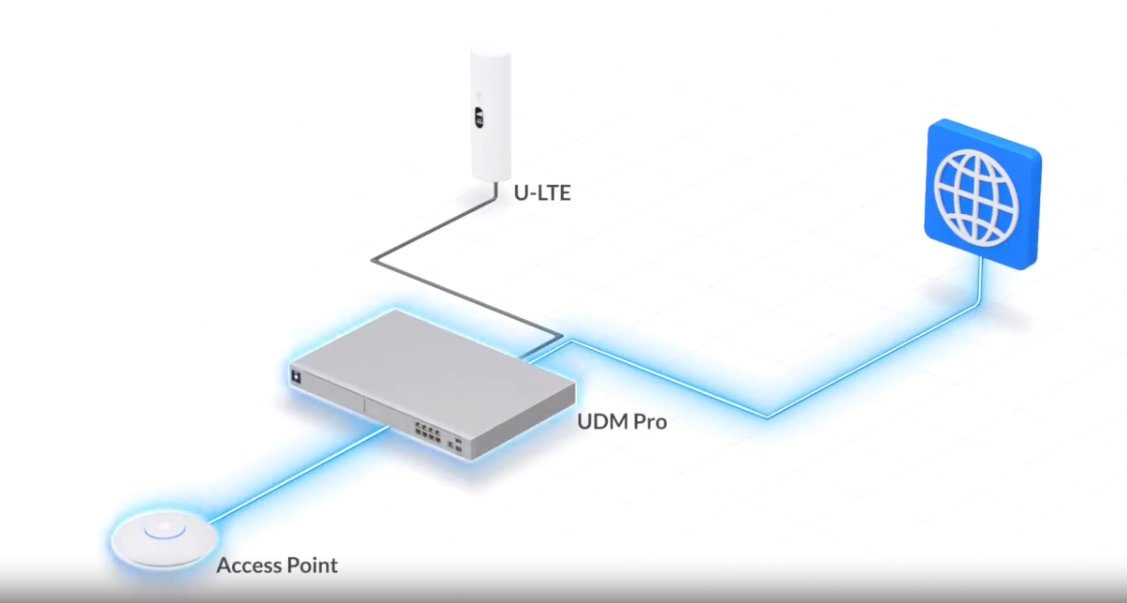

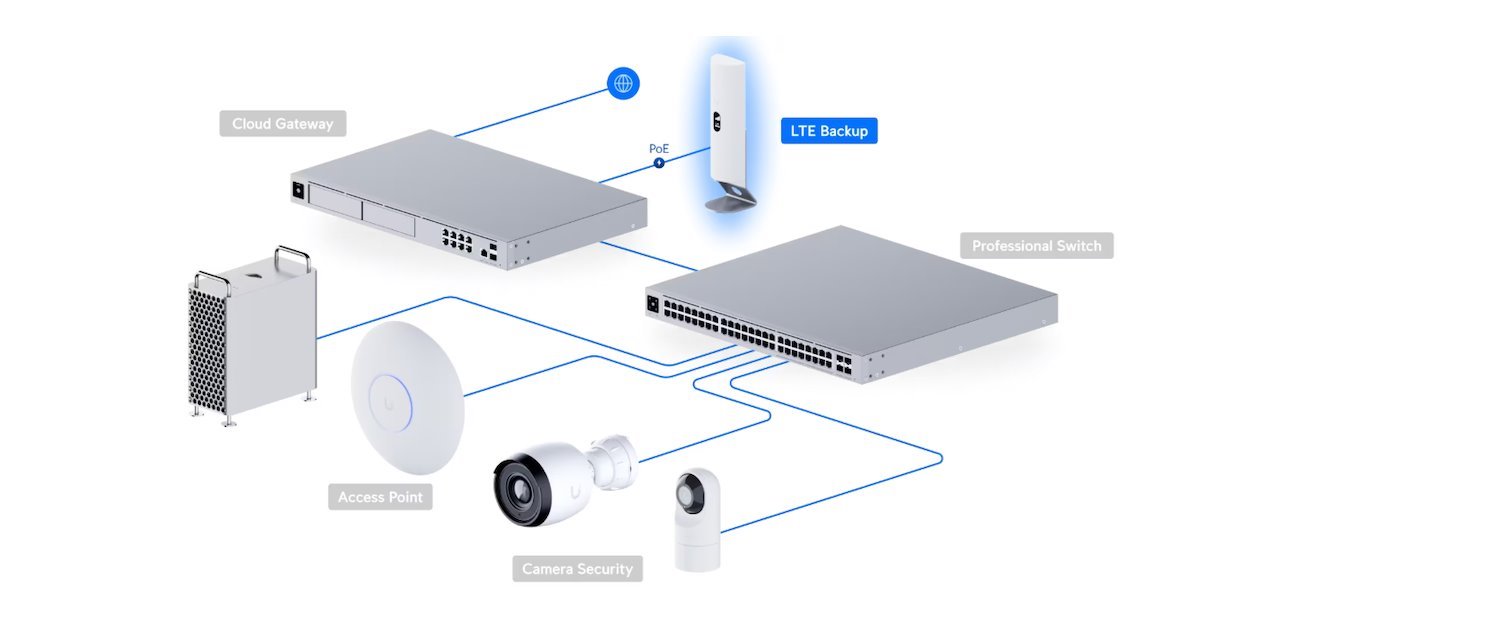

WAN redundancy for UniFi gateway deployments
Business continuity connectivity planning
Branch or retail location uptime protection
Remote site connectivity backup
Data Plan Details
$15/month — 1 GB data
$10 per additional GB
Notes
Compatible with AT&T network
PoE+ input required for PoE passthrough
Physical

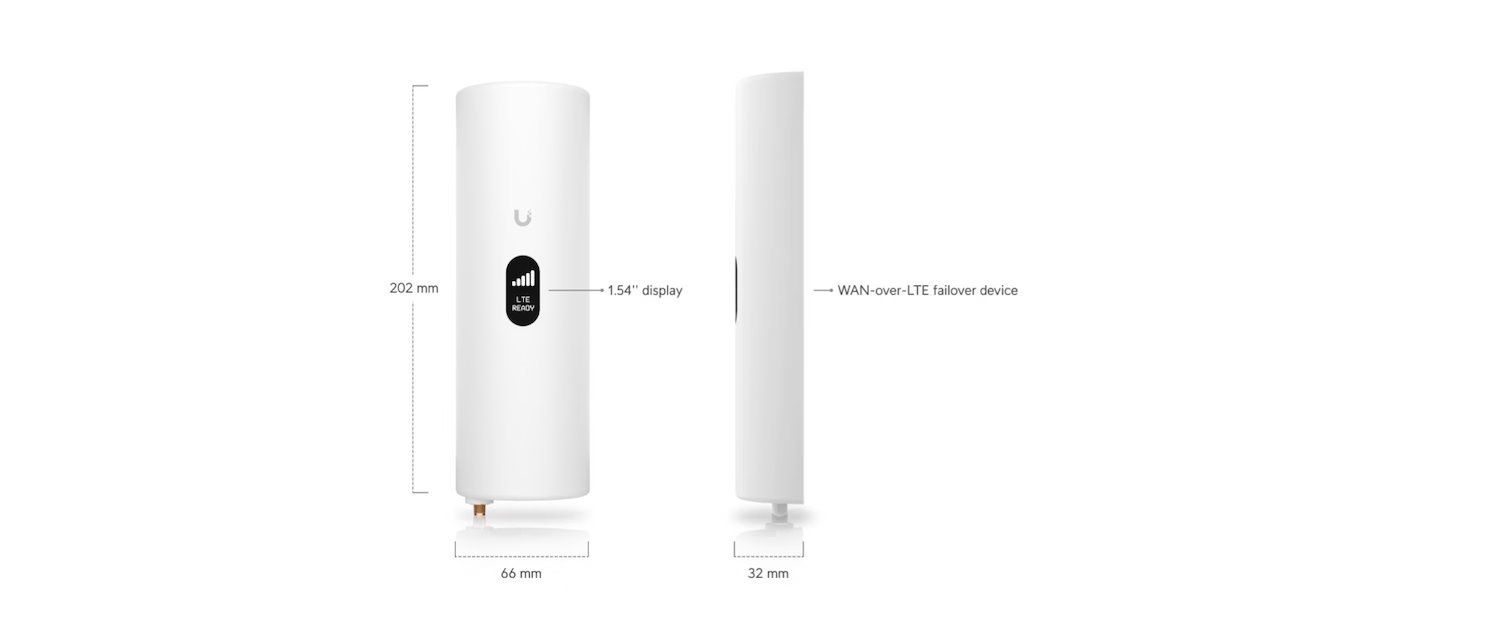

• Dimensions: 66 × 202.12 × 32.2 mm (2.6 × 8 × 1.3")
• Weight — Without Mount: 200 g (7.1 oz)
• Weight — With Mount: 316 g (11.2 oz)

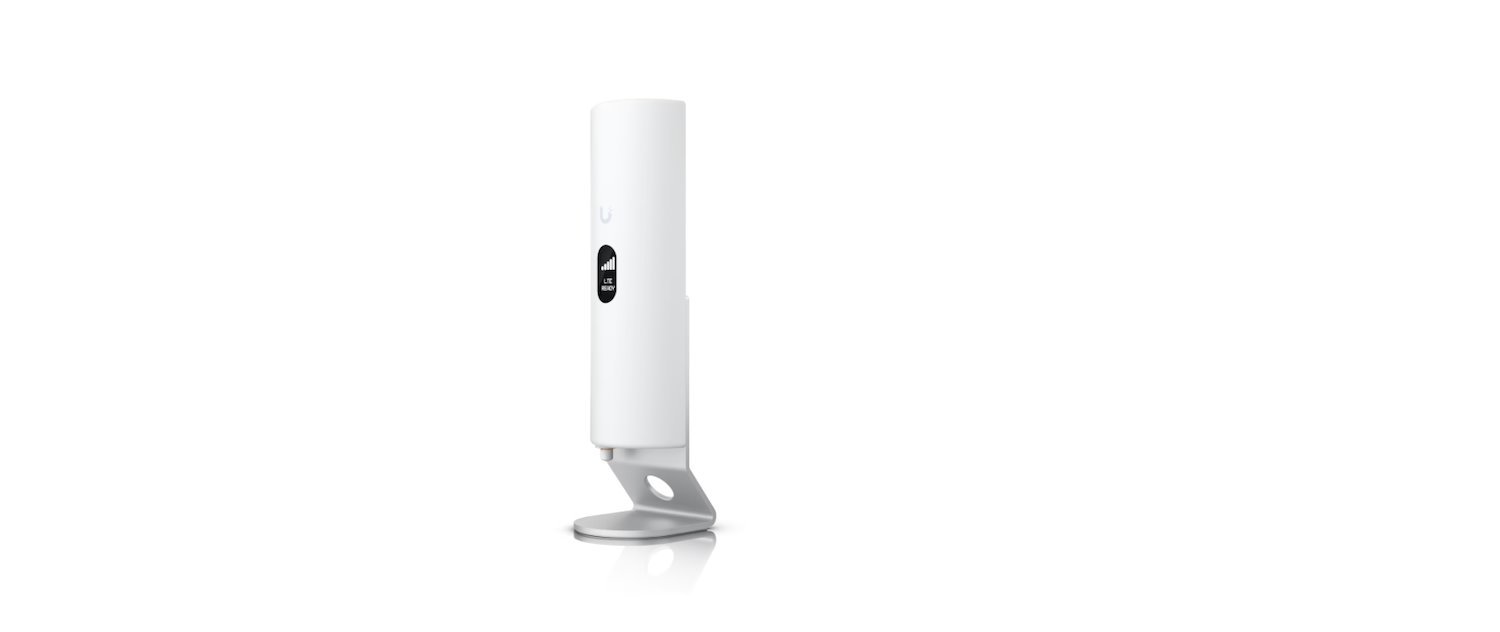

• Mounting: Wall Mount; Foot Stand (Included)
Networking / Interfaces

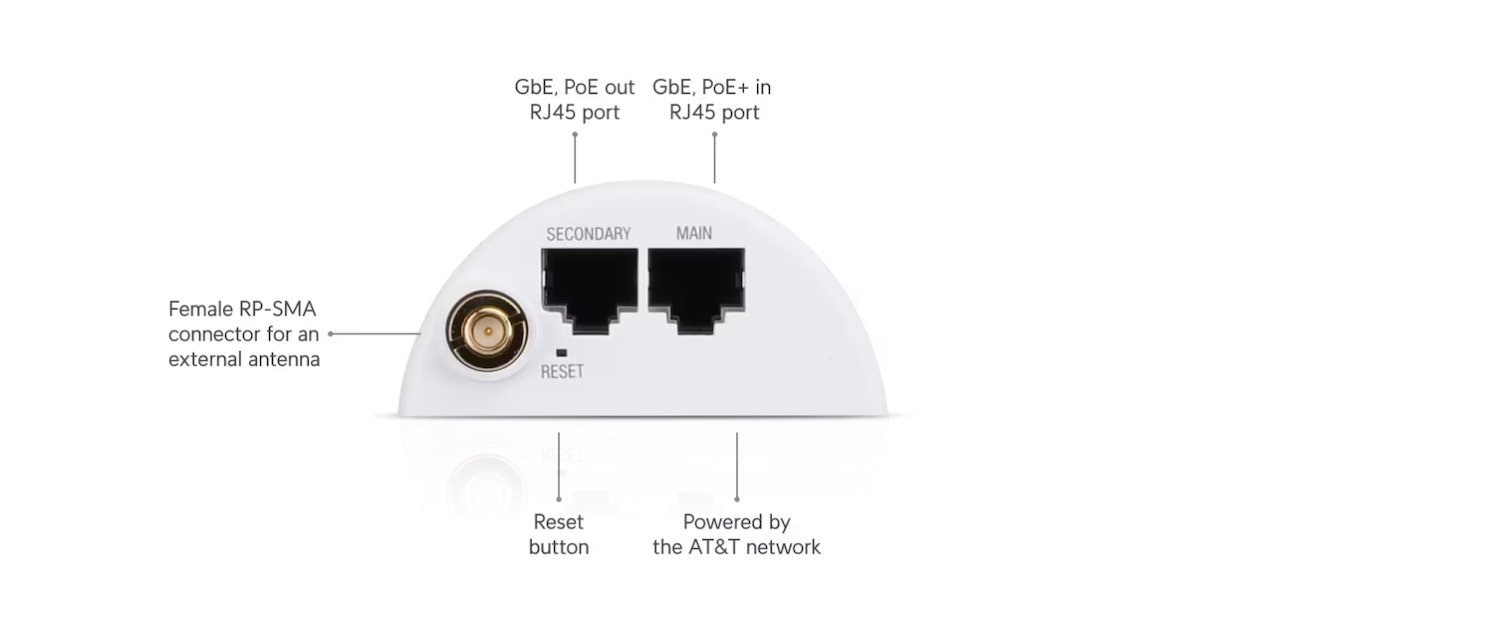

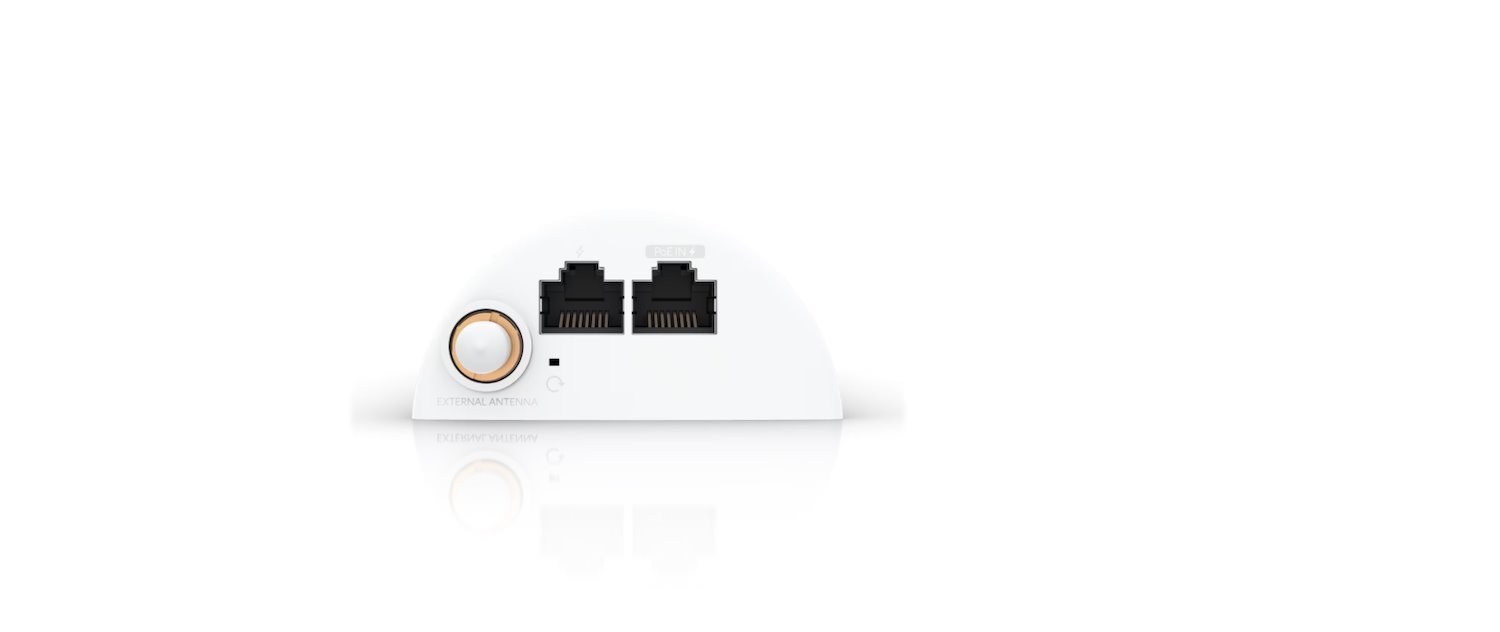

• Ethernet Ports: 2 × GbE RJ45
• Cellular Radio: LTE Category 4
• Management Interfaces: Ethernet; Bluetooth
• SIM: Nano-SIM
• LTE Bands: B2; B4; B5; B12
• LTE MIMO: 2 × 2
• Operating Frequency: 2400–2483.5 MHz
• External Antenna: 1 × LTE Antenna; RP-SMA Female Connector
Power
• Power Method: PoE+
• Pairs 1,2+; 3,6−; Pairs 4,5+; 7,8−
• Max Power Consumption: 8.5 W
• Power Supply: UniFi PoE Switch
• Supported Voltage Range: 44–57 VDC
Hardware
• Display: 1.54" LCM Screen
Environmental
• Operating Temperature: −10°C to +50°C (14°F to 122°F)
• Operating Humidity: 5%–95% RH (Non-Condensing)
Software
• Management Application: UniFi Network v6.5.55+
Compliance
• Certifications: FCC; IC; PTCRB; AT&T
