UniFi Enterprise 25G/100G Aggregation Switch (1U Full-Depth Rack Mountable)

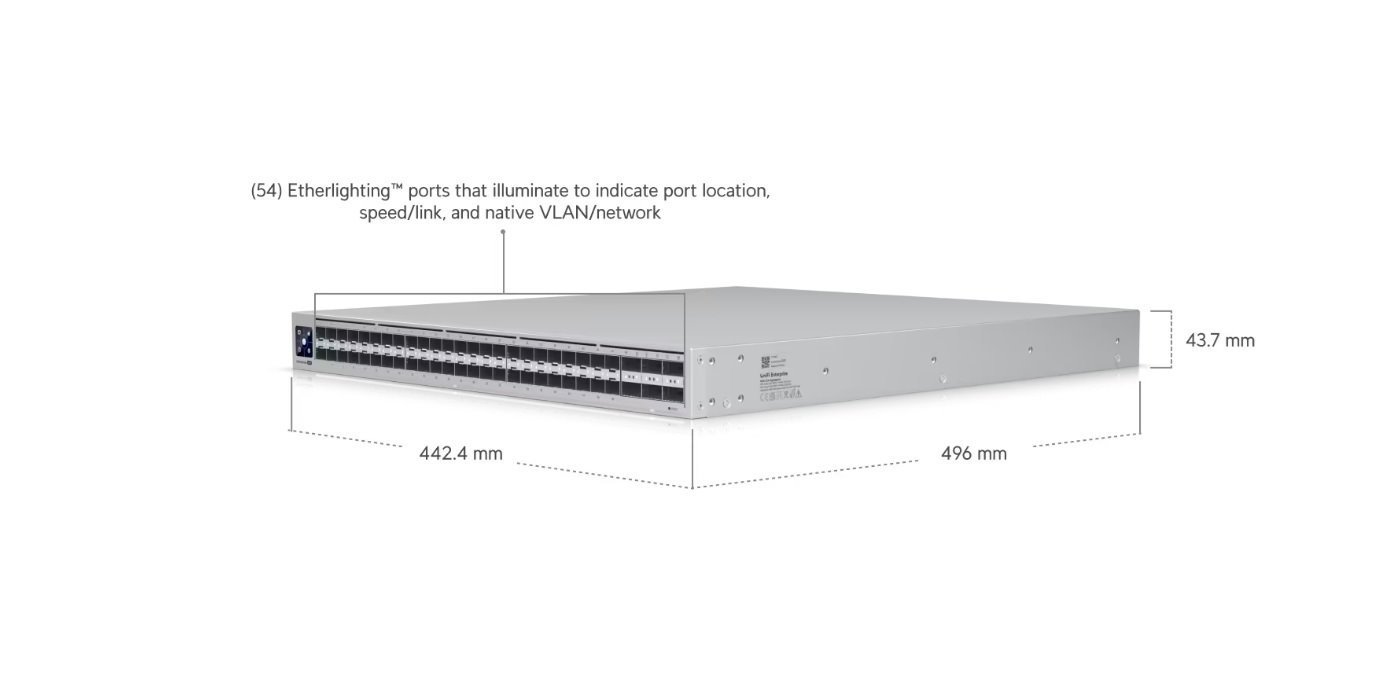

Dimensions: 442.4 × 43.7 × 496 mm (17.4 × 1.7 × 19.5")
Form Factor: Rack Mount (1U, Full-Depth)
Redundancy: MC-LAG Support | Dual Hot-Swappable PSUs | Five Hot-Swappable Fans

Performance & Switching

• Switching Capacity: 3.6 Tbps

• Non-Blocking Throughput: 1.8 Tbps

• Forwarding Rate: 2.4 Bpps

• Supported VLANs: 1,000

• MAC Address Table: 128,000 entries

• L3 Table Size: 96,000 ARP / 288,000 IPv4 Routes

• Packet Buffer: 24 MB

Port Configuration

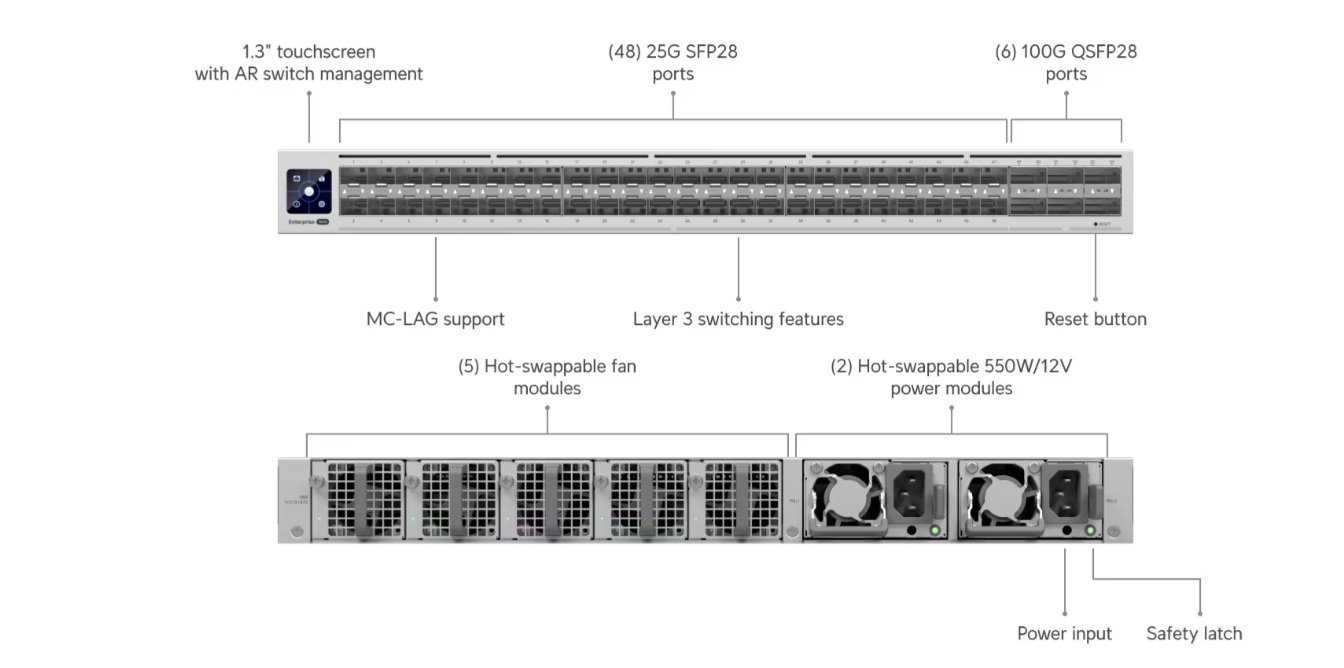

• Total Ports: 54

  • 48× 25G SFP28 (25G/10G)

  • 6× 100G QSFP28 (100G/40G)

• Etherlighting™: Supported on SFP28 and QSFP28 Ports

Layer 3 Features

• DHCP Server (Local Networks)

• DHCP Relay

• Inter-VLAN Routing (Local Networks)

• Static Routing (Local Networks)

• Border Gateway Protocol (BGP)

Layer 2 Features

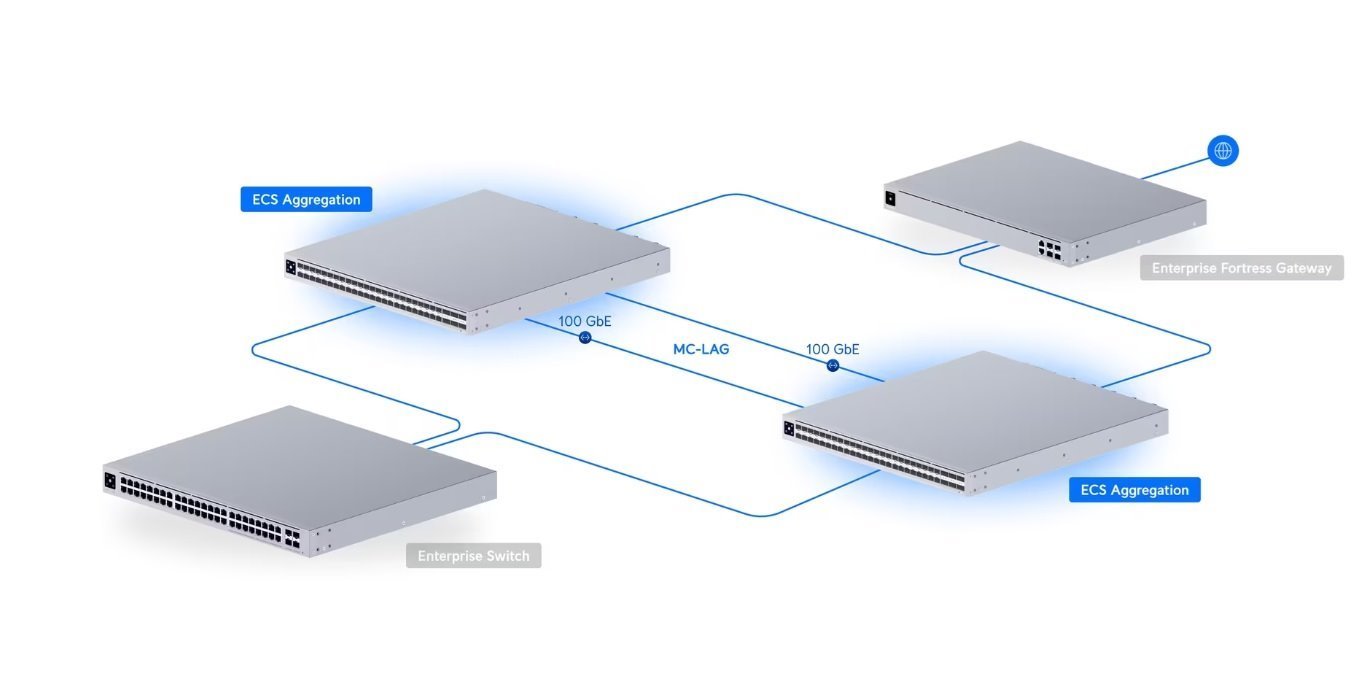

• LACP Port Aggregation | MC-LAG | STP & RSTP

• Advanced IGMP (Querier, Fast Leave, Router Port) | IGMP Snooping

• 802.1X Network Access Control | LLDP-MED

• QoS (DSCP) | Voice VLAN | Loop Protection

• DHCP Snooping & Guarding | Port Isolation | Flow Control

• MAC/IP-Based ACLs & Device Isolation

• Egress Rate Limiting | Port Mirroring | Jumbo Frames

• MAC Address Blocking | Multicast & Broadcast Rate Limiting

Hardware & Power

• Power Supply: (2) Hot-Swappable 550W AC/DC Modules

• Power Method: Dual Universal Input (100–240V AC, 50/60 Hz)

• Max Power Consumption: 340W

• Enclosure: SGCC Steel | Weight: 9.9 kg (21.8 lb) without brackets / 10 kg (22 lb) with brackets

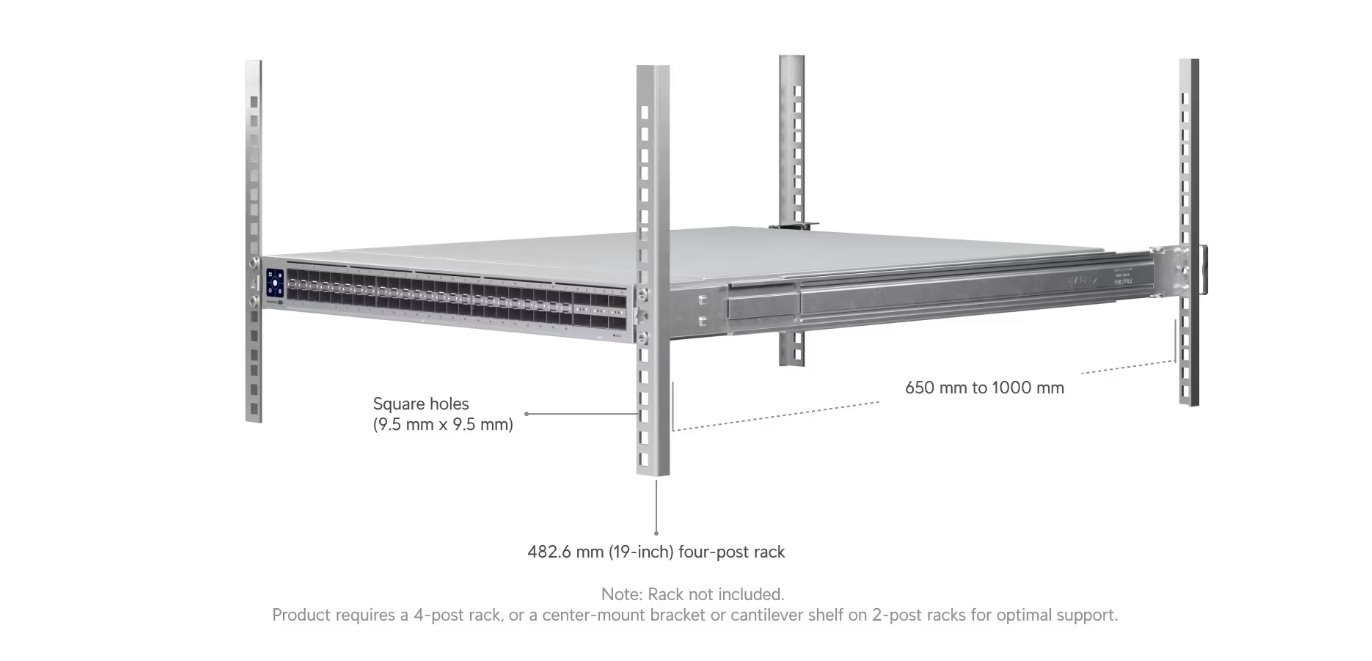

• Rack Depth: 482.6 mm (19") Four-Post Racks (650–1,000 mm depth range)

• Display: 1.3" Touchscreen LCM

• Heat Dissipation: 1160.08 BTU/hr (Excluding PoE Output)

Environmental & Compliance

• Operating Temp: –5 to 40 °C (23 to 104 °F)

• Humidity: 10–95% non-condensing

• ESD Protection: Air ±12 kV | Contact ±8 kV

• Certifications: CE, FCC, IC, Anatel (01327-25-08356) | NDAA Compliant
