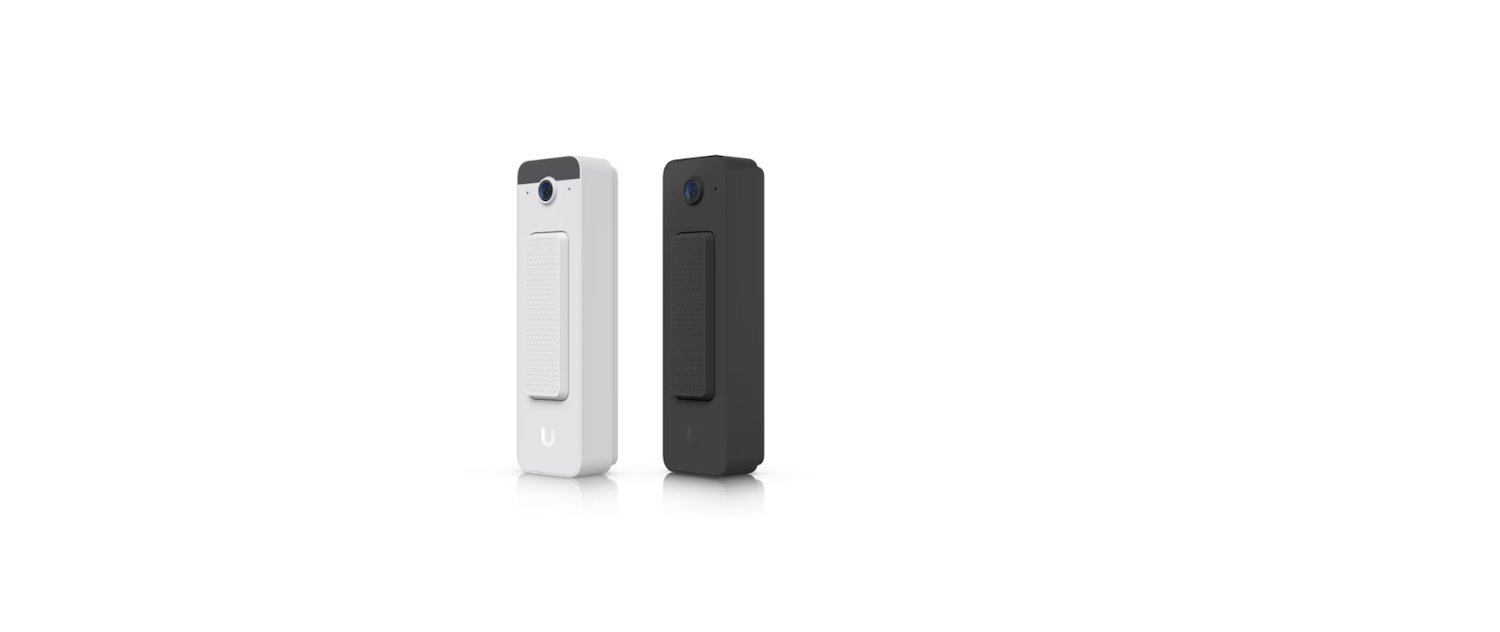

Overview
Enhance entryway monitoring with a compact PoE-powered video doorbell designed for professional residential and commercial deployments. Delivering reliable video communication and flexible installation options, this device integrates seamlessly into managed surveillance environments while maintaining a clean, unobtrusive footprint.
Communication

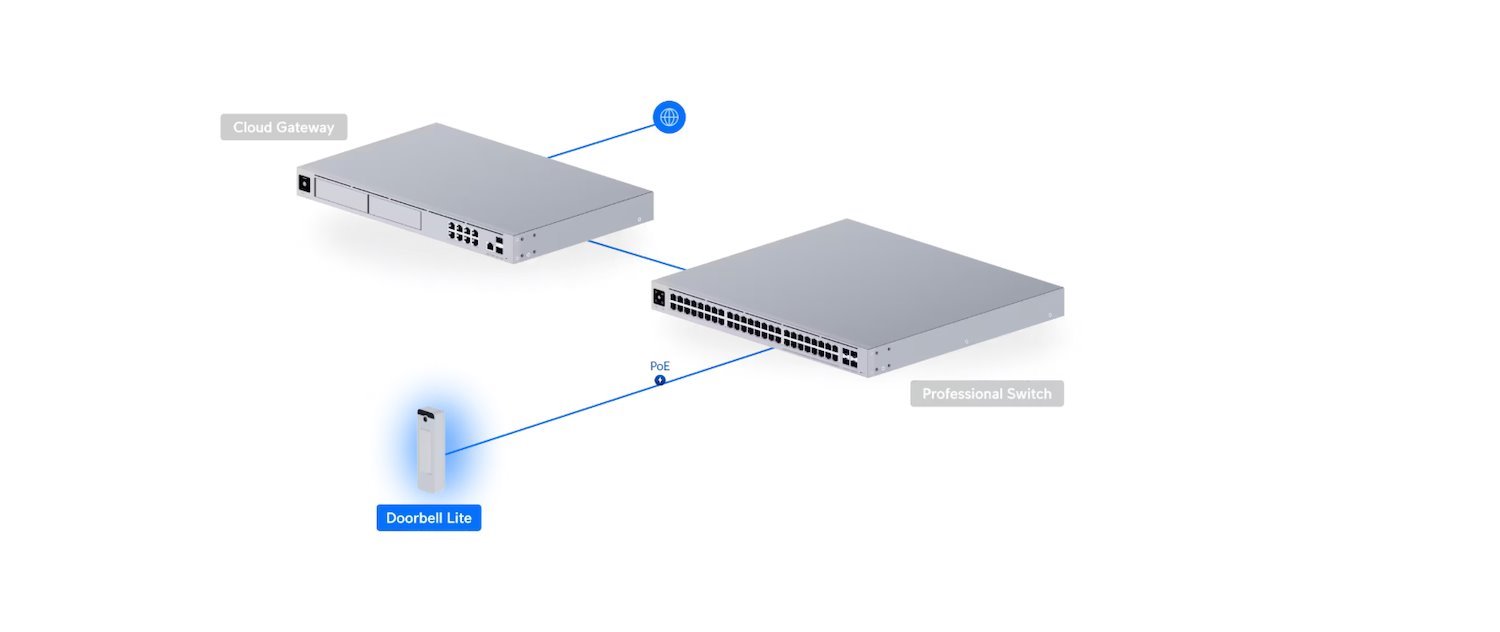

Built-in two-way audio enables real-time interaction with visitors, improving situational awareness and access management. Powered via PoE, the doorbell simplifies installation by consolidating power and network connectivity into a single cable while supporting centralized system integration.
Features

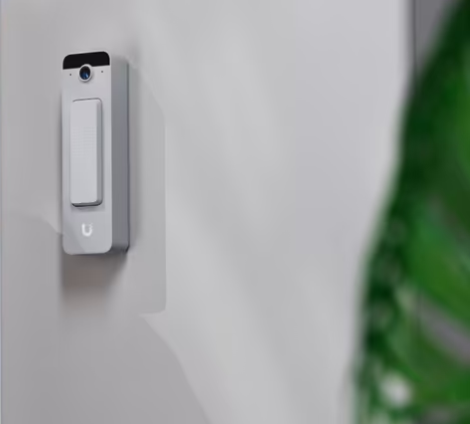

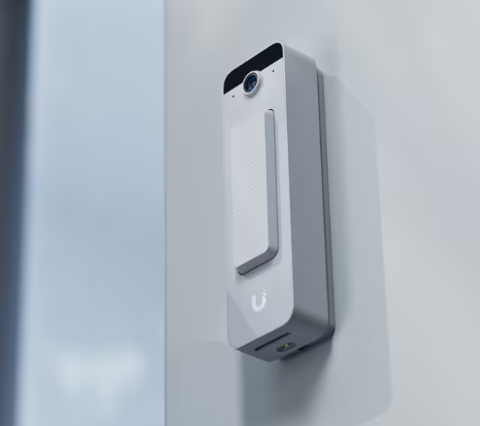

The compact form factor accommodates a wide range of mounting scenarios with versatile installation options to suit varying architectural requirements. Engineered for managed environments, it provides dependable performance as part of an integrated security or surveillance deployment.
Applications
Residential entry monitoring
Multi-tenant building access points
Office and commercial reception areas
Warehouse or service entrances
Security-focused surveillance deployments
Overview

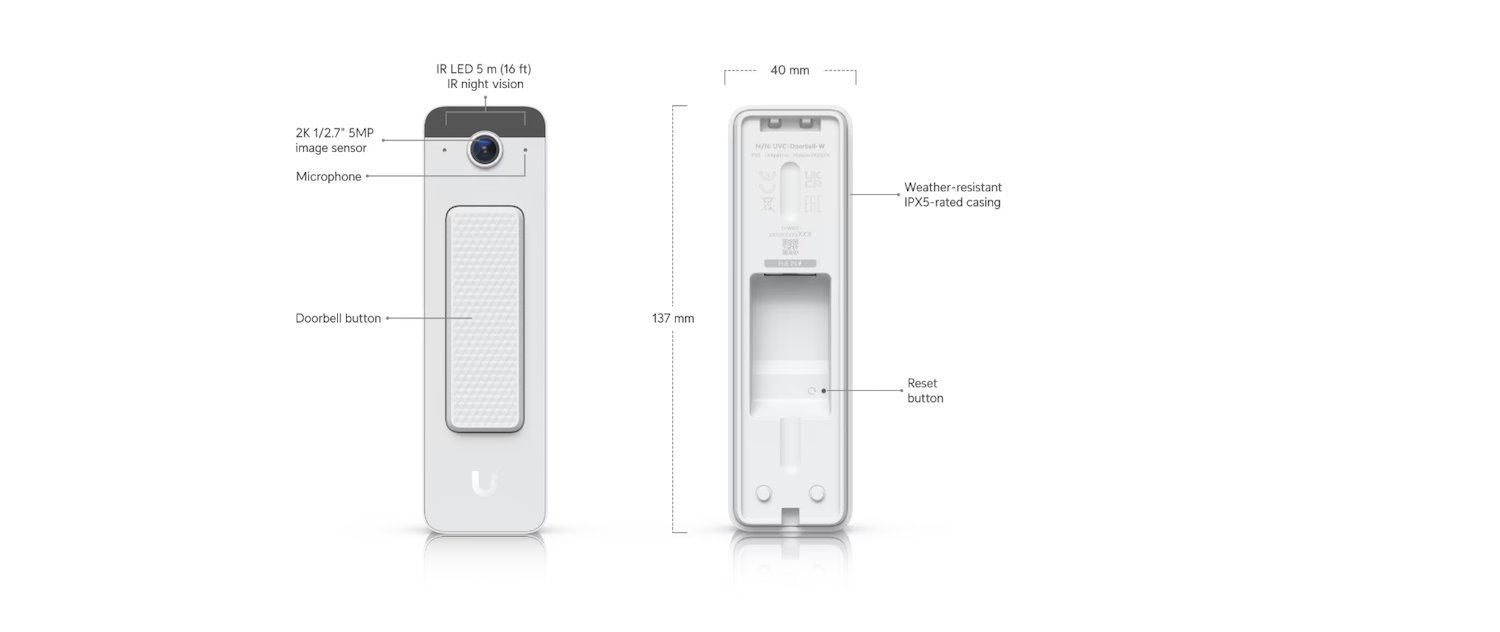

• Dimensions: 137 x 40 x 26.4 mm (5.4 x 1.6 x 1")
• IR Night Vision: 5 m (16 ft)
• Smart Detections: People; Vehicles; Animals
• Resolution: 5MP
• Field of View: H: 95.8°; V: 131.2°; D: 175.9°
• Audio: Two-way audio
• Weatherproofing: IPX5

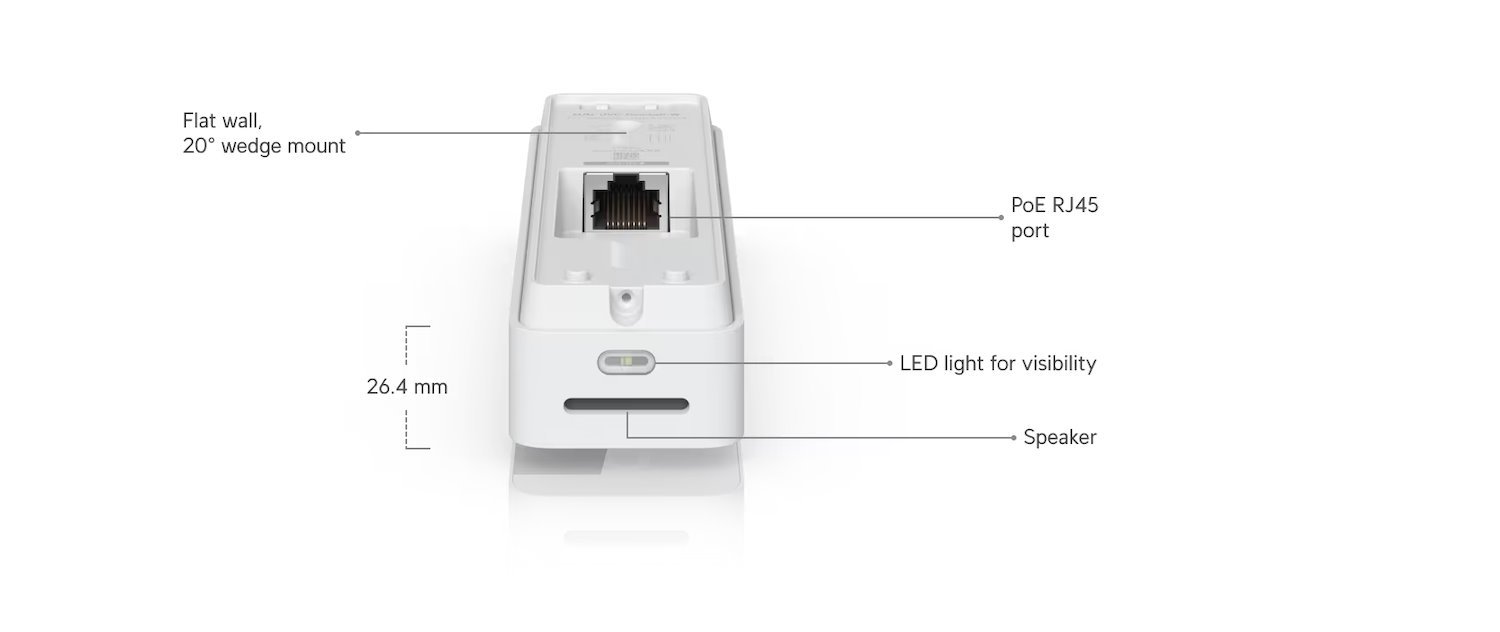

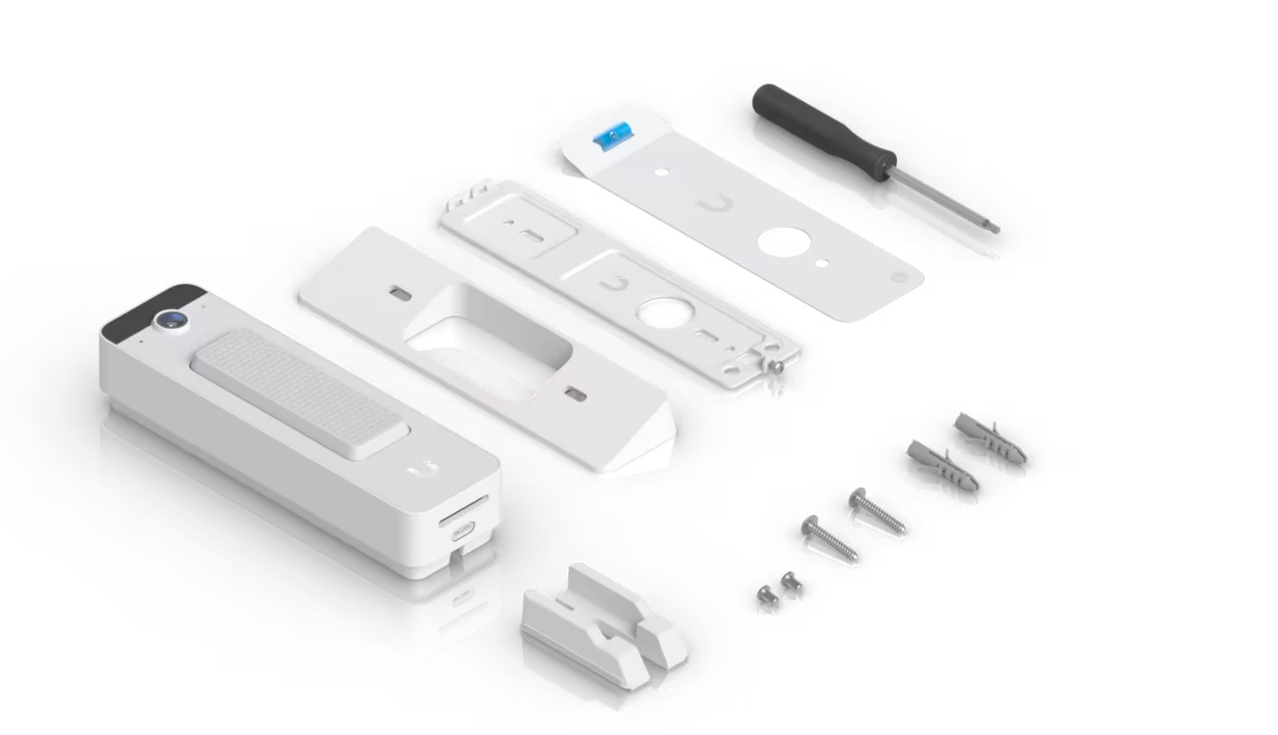

• Mounting: Wall; 20° wedge (included)
• Optional Mounting: Gang box; junction box
• UniFi Application Suite: Protect
Performance

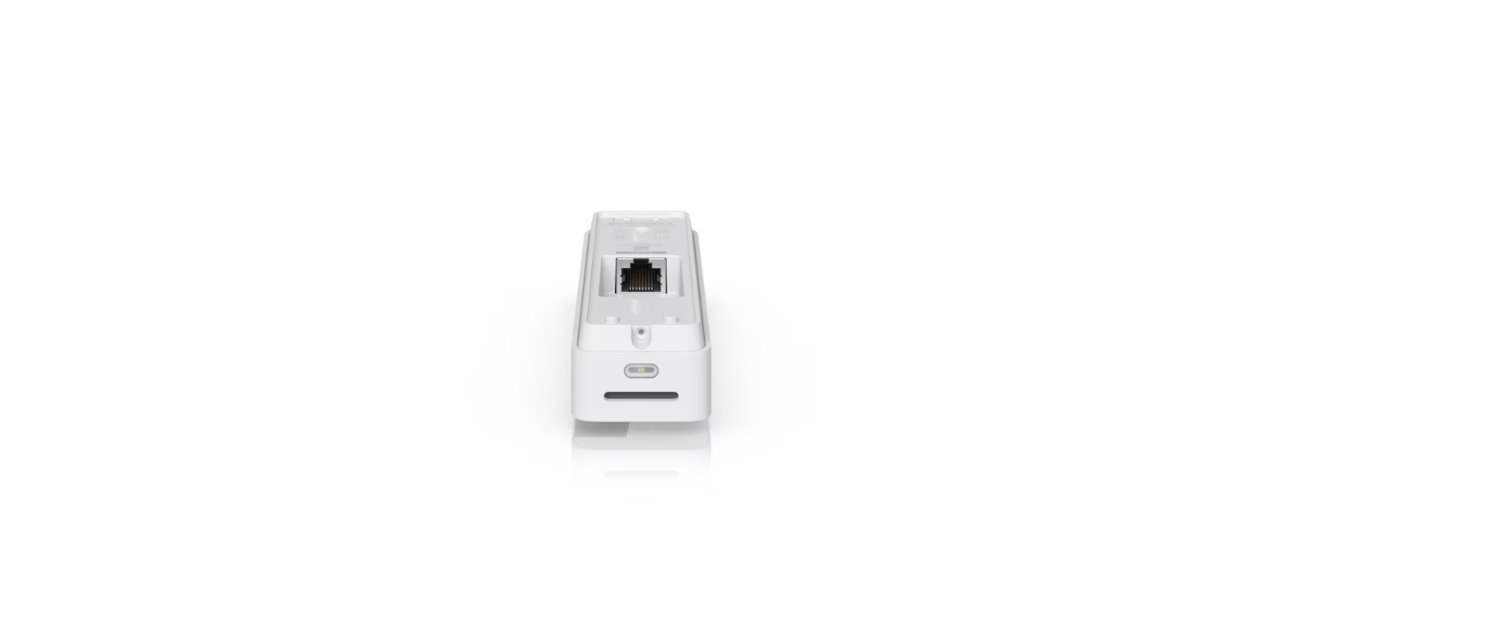

• Networking Interface: 10/100 MbE port
Video
• Image Settings: Color; brightness; sharpness; contrast; white balance; exposure control; 2DNR; 3DNR; NR by motion; masking; text overlay
• Max Frame Rate: 24 FPS
• Resolution: 5MP 1920 x 2560 (3:4)
Optics
• Sensor: 1/2.7" 5MP
• Lens: Fixed focal length
• Night Mode: Built-in IR LED illumination; IR cut filter
Hardware
• Max Power Consumption: 8W
• Supported Voltage Range: 37–57V DC
• Power Method: PoE
• Processor: Dual-core Arm® Cortex®-A7 based chip
• Weight
• Device: 142 g (5 oz)
• With flat wall mount: 165 g (5.8 oz)
• With 20° wedge mount: 179 g (6.3 oz)
• Enclosure Material: Polycarbonate; metal

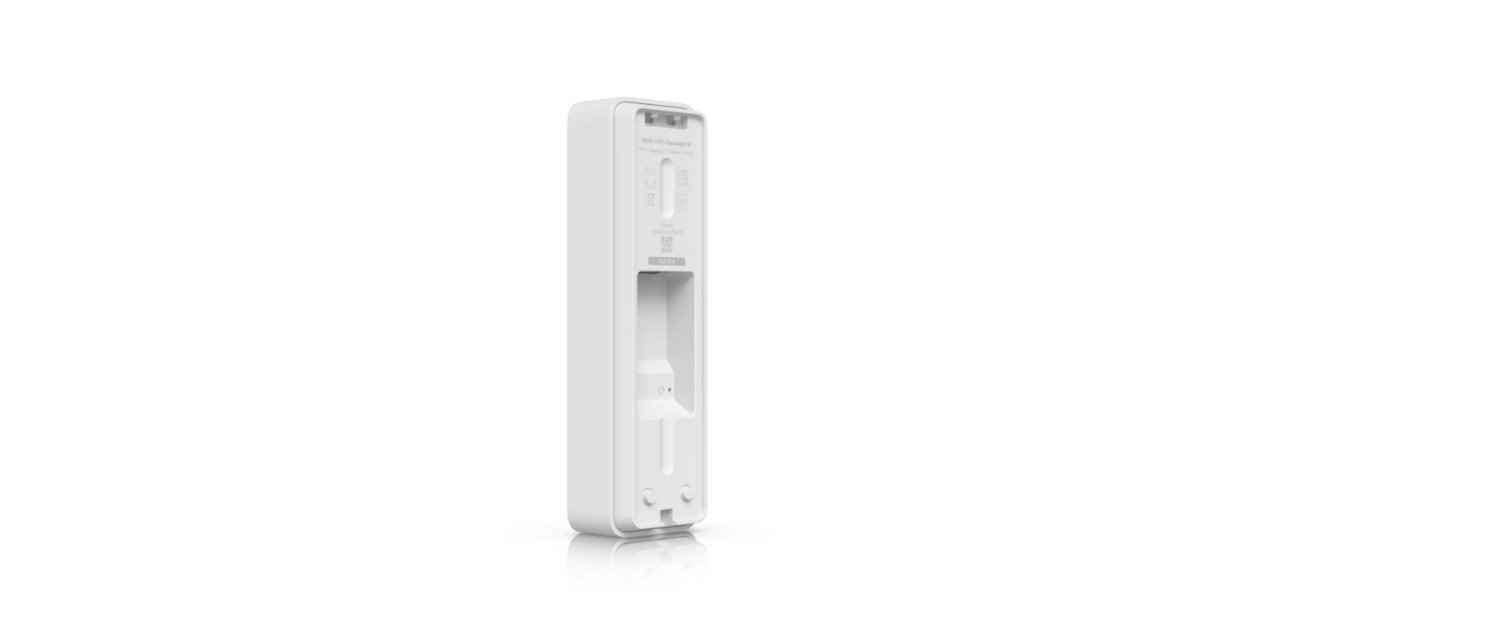

• Mount Material: Formed sheet metal
• Buttons: (1) Ring button; (1) Factory-reset
Environmental
• Operating Temperature: -30 to 50° C (-22 to 122° F)
• Operating Humidity: 20 to 90% noncondensing
Compliance
• NDAA Compliant: ✓
• Certifications: CE; FCC; IC
