UniFi Layer 3 Aggregation Switch (1U Rackmount)

• Enterprise-grade Layer 3 switch designed for access and aggregation layer deployments

• Provides 26 total ports, including 16 × 1 GbE RJ45, 8 × 2.5 GbE RJ45, and 2 × 10G SFP+ uplinks

• High-performance switching with 112 Gbps switching capacity, 56 Gbps non-blocking throughput, and 83 Mpps forwarding rate

• Advanced Layer 3 capabilities including inter-VLAN routing, static routing, DHCP server, and DHCP relay

• Comprehensive Layer 2 feature set including LACP, STP/RSTP, QoS (DSCP), jumbo frames, port mirroring, and advanced multicast controls

• Optimized for professional AV environments with built-in Pro AV profiles (Dante, Q-SYS, NDI, AES67, Crestron, and more)

• Enterprise security features including 802.1X authentication, ACLs, DHCP snooping, MAC/IP-based isolation, and storm control

• Integrated Etherlighting™ for port-level identification and simplified troubleshooting

• Redundant power support with internal AC power supply and DC backup (USP RPS compatible)

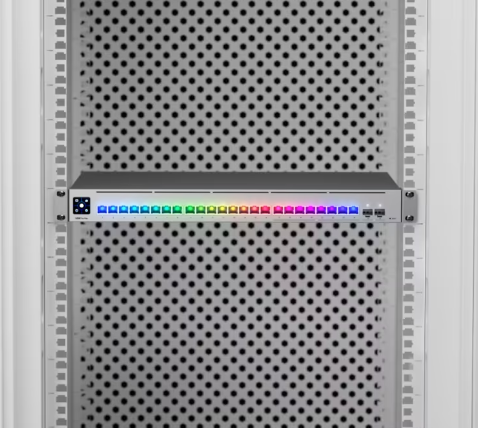

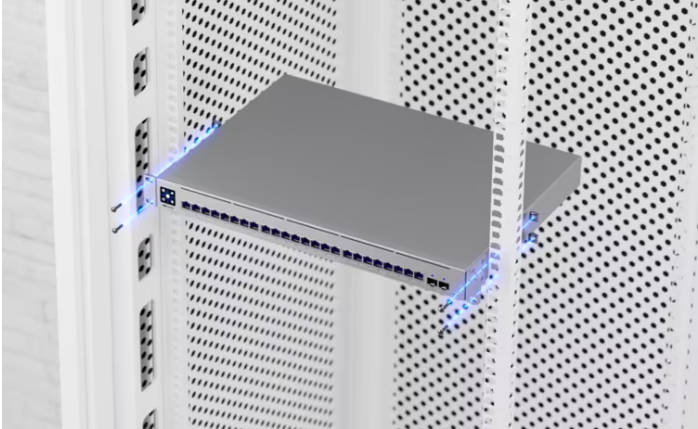

• 1U rackmount steel enclosure with touchscreen status display

• Centrally managed through UniFi Network (v8.0.24 or later)

• NDAA compliant and certified (CE, FCC, IC, Anatel)
