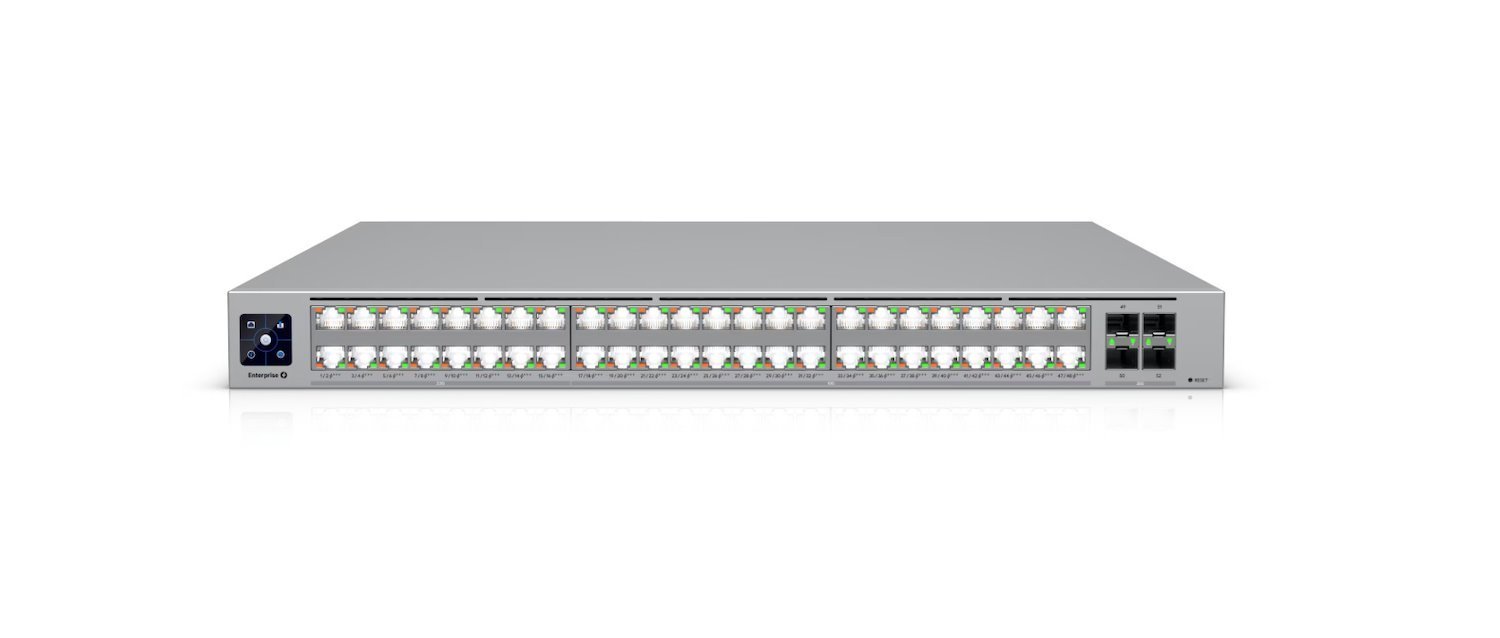

The Pro 48X represents the pinnacle of enterprise-grade switching, engineered for high-density deployments, advanced PoE power delivery, and uncompromising reliability. Designed for modern IT, AV, and automation networks, it combines top-tier Layer 3 performance, intelligent redundancy, and next-generation Etherlighting™ technology in a sleek, full-depth 1U rackmount form factor.
Key Highlights
48 Multi-Gigabit PoE+++ Ports (up to 90W per port)
4 × 25G SFP28 uplinks for lightning-fast backbone connectivity
Massive 2,150W shared PoE power budget (200–240V AC)
Redundant, hot-swappable PSUs and fans for uninterrupted uptime
Layer 3 Routing and advanced network segmentation
Etherlighting™ for dynamic port status visualization
Full UniFi Network integration for unified management
Dimensions: 442.4 × 43.7 × 496 mm (17.4 × 1.7 × 19.5”)
Weight: 9.56 kg (21.1 lb)
Performance
Switching Capacity: 920 Gbps
Total Non-Blocking Throughput: 460 Gbps
Forwarding Rate: 684 Mpps
Supported VLANs: 1,000
MAC Address Table: 128,000 entries
Layer 3 Tables: 128,000 ARP entries / 256,000 IPv4 routes
Packet Buffer: 8 MB
This switch delivers enterprise-level throughput, ensuring seamless data transfer for demanding workloads including IP surveillance, AV-over-IP, and automation systems.
Power & Efficiency
PoE Ports: 48 × PoE+++
Max Power per Port:
PoE: 15.4W
PoE+: 30W
PoE++: 60W
PoE+++: 90W
Total PoE Power Budget:
2,150W @ 200–240V AC (Shared Mode)
1,750W @ 100–120V AC (Shared Mode)
950W @ 200–240V AC (Redundant Mode)
750W @ 100–120V AC (Redundant Mode)
Power System:
(2) Hot-swappable 1,200W AC/DC power modules
Universal 100–240V AC input
(4) Hot-swappable cooling fans for maximum reliability
Max Power Consumption: 250W (excluding PoE), 2,400W (including PoE)
Connectivity

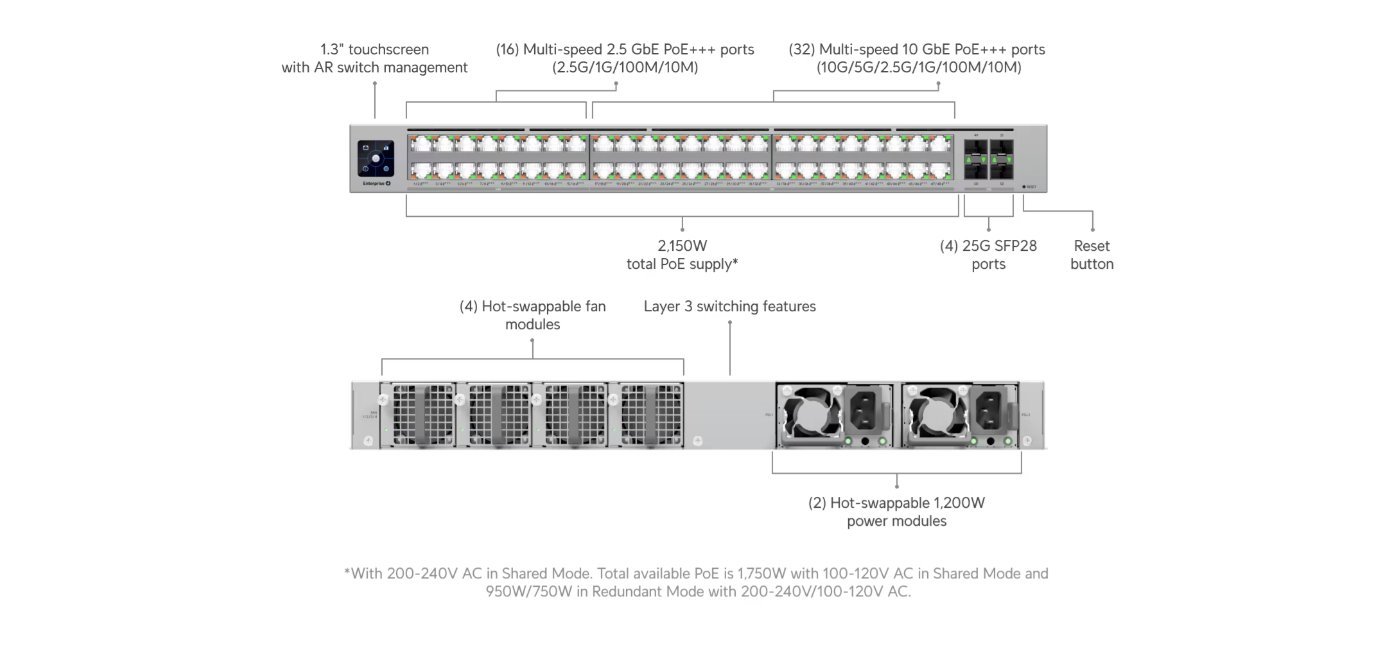

Port Configuration
10 GbE RJ45: 32 ports (PoE+++)
2.5 GbE RJ45: 16 ports (PoE+++)
25G SFP28: 4 uplink ports (25G/10G/1G)
All ports deliver multi-gigabit speeds and intelligent PoE allocation to power everything from cameras and access points to lighting controllers and high-performance AV endpoints.
Layer 3 & Layer 2 Features
Layer 3 Capabilities
DHCP Server & Relay
Inter-VLAN Routing
Static Routing
Layer 2 & Security Enhancements
LACP Port Aggregation
STP/RSTP
QoS with DSCP Prioritization
DHCP Snooping & Guarding
IGMP Snooping & Advanced IGMP Configuration
802.1X Authentication & MAC-Based ACLs
Storm Control, Rate Limiting, and Flow Control
Jumbo Frame Support & Port Mirroring
Voice VLAN & LLDP-MED
Loop Protection & Port Isolation
Pro AV Optimization
Native profiles for Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron systems—ideal for high-performance AV networks.
Hardware & Reliability

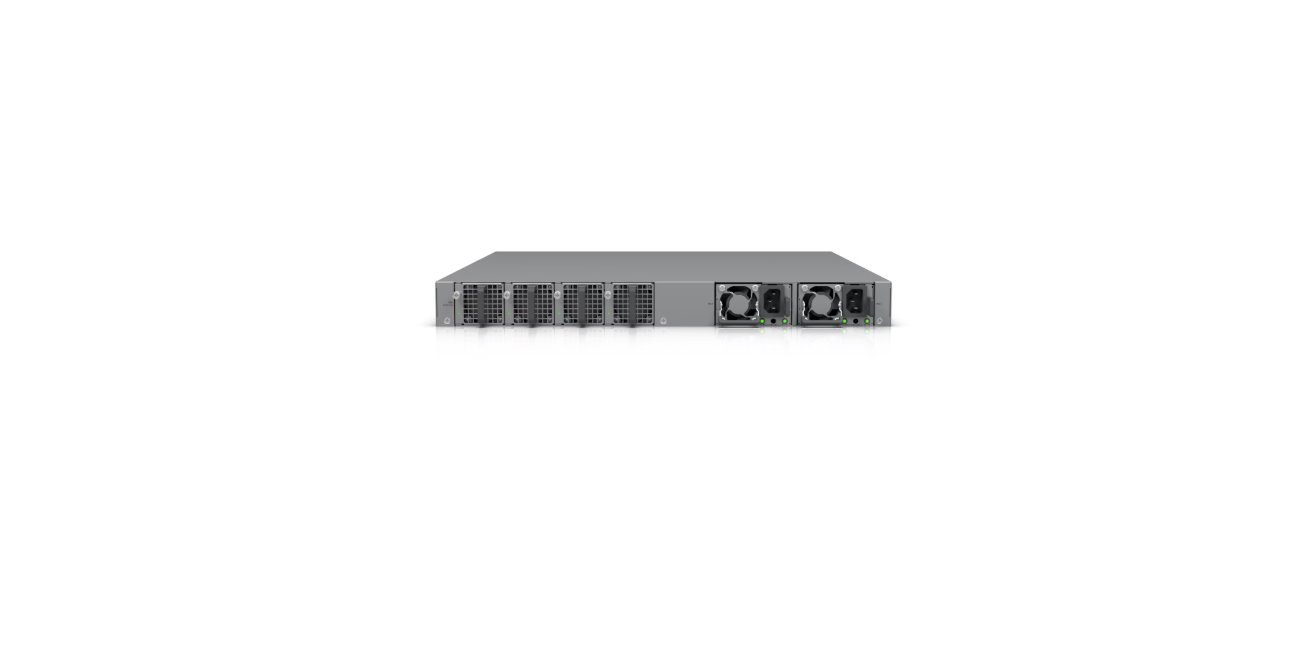

Redundancy: (2) hot-swappable PSUs + (4) hot-swappable fans

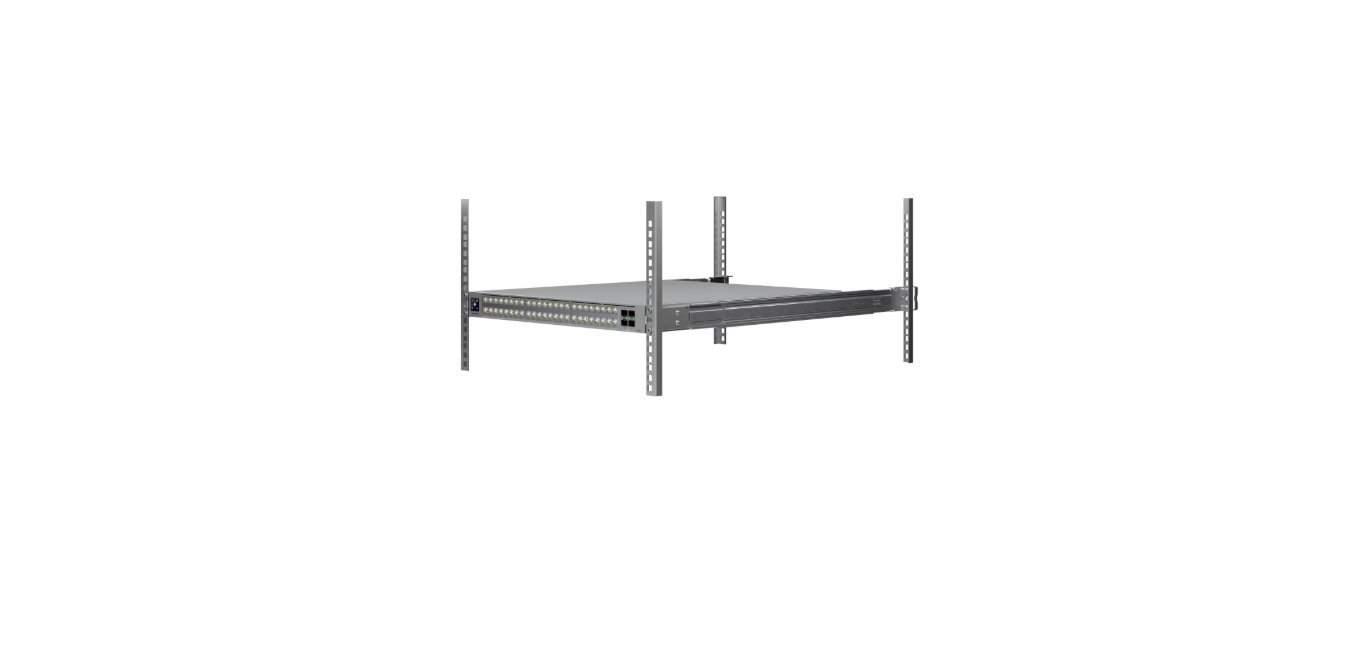

Construction: SGCC steel enclosure with four-post rack compatibility
Supported Rack Depth: 650–1,000 mm (25.6–39.4”)
Touchscreen LCM Display: 1.3” for real-time monitoring and quick setup

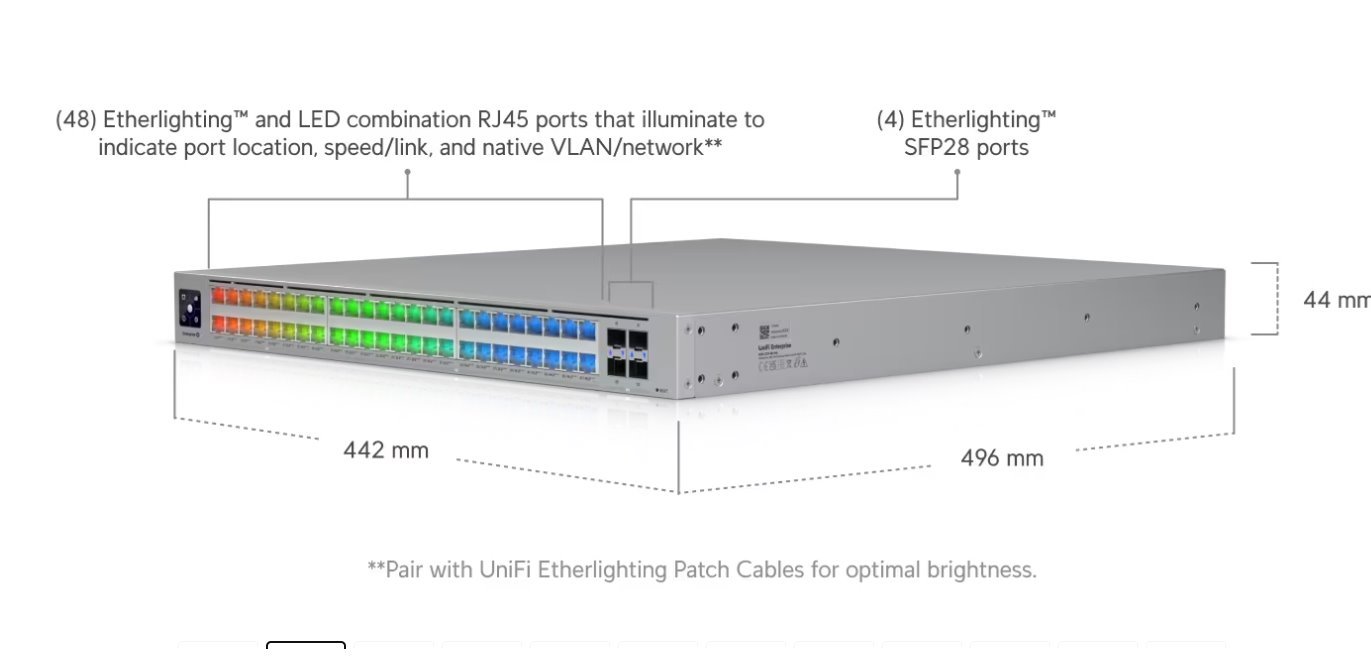

Etherlighting™: Visual diagnostics for Ethernet and SFP28 ports
ESD Protection: ±30kV (Air), ±19kV (Contact)
Operating Temperature: -5°C to 40°C (23°F to 104°F)
Humidity: 10–90% non-condensing
Compliance: NDAA Compliant; CE, FCC, IC Certified
Management & Software
Fully managed via UniFi Network Application (version 9.0.114 and later)
Real-time configuration, monitoring, and automation through the UniFi interface

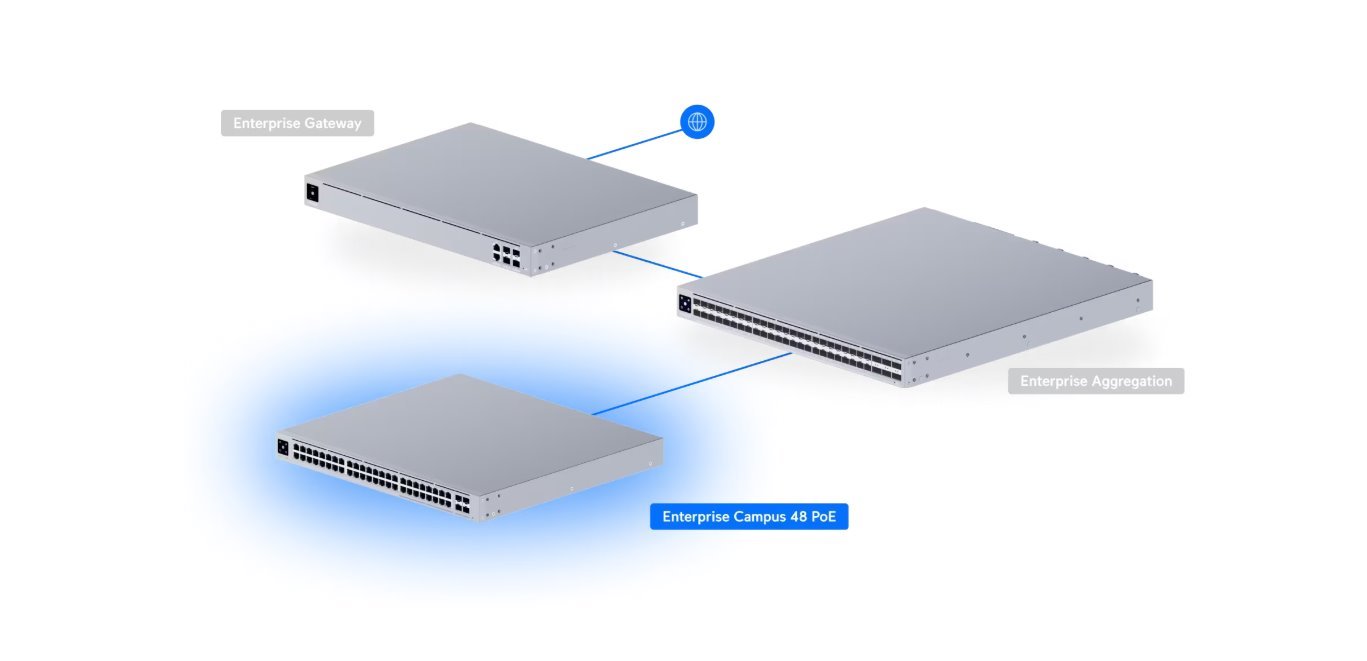

Seamless integration with UniFi gateways, APs, and controllers for centralized management
