Product Specifications

Dimensions:
117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite:
Network: ✓
Managed UniFi Devices: 30+
Simultaneous Users Connected: 300+

WAN & Port Specs:
Max. WAN Port Count: 1
Default WAN Ports: (1) 10 GbE RJ45

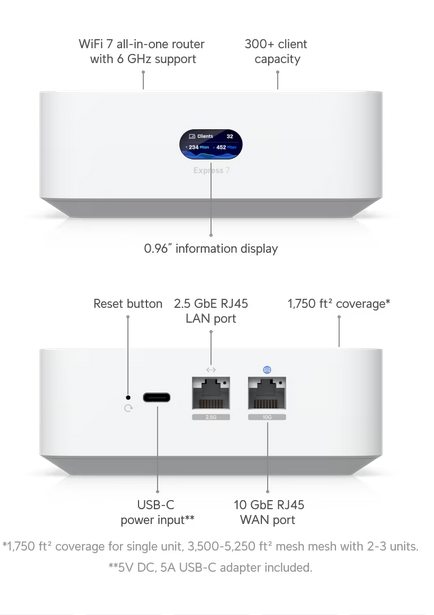

Port Layout:

• 2.5 GbE RJ45: 1 (2.5G/1G/100M/10M)

• 10 GbE RJ45: 1 (10G/5G/2.5G/1G/100M)

Security & Firewall Features:
IDS/IPS Throughput: 2.3 Gbps
Stateful Firewall: ✓
Application-Aware Layer 7 Firewall: ✓
DPI & Traffic Identification: ✓
Zone-Based Firewall (Regions, Domains, Apps): ✓
Content Filtering: ✓
Intrusion Prevention (IPS/IDS): ✓
Ad Blocking: ✓
IDS/IPS Signatures: 20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation: ✓
License-Free SD-WAN: ✓

VPN Support:
Site-to-Site VPN:

• Site Magic: ✓

• IPsec: ✓

• OpenVPN: ✓

VPN Server:

• Identity Endpoint One-Click VPN: ✓

• Teleport Zero-Configuration VPN: ✓

• WireGuard: ✓

• OpenVPN: ✓

• L2TP: ✓

VPN Client:

• OpenVPN: ✓

• WireGuard: ✓

Advanced Routing & Network Features:
Dynamic Routing (OSPF): ✓
Advanced QoS: ✓
Multicast DNS (mDNS): ✓
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
Integrated RADIUS Server: ✓
RADIUS over TLS (RadSec): ✓
Additional Internet Failover with UniFi LTE Backup: ✓
Internet Quality & Outage Reporting: ✓
Policy-based WAN and VPN Routing: ✓
Customizable DHCP Server: ✓
IPv6 ISP Support: ✓
IGMP Proxy: ✓

WiFi Specifications:
WiFi Standard: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Wireless Throughput:

• 6 GHz: 5.7 Gbps

• 5 GHz: 4.3 Gbps

• 2.4 GHz: 688 Mbps

MIMO Configuration:

• 6 GHz: 2 x 2 (DL/UL MU-MIMO)

• 5 GHz: 2 x 2 (DL/UL MU-MIMO)

• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Antenna Gain:

• 6 GHz: 6 dBi

• 5 GHz: 7 dBi

• 2.4 GHz: 4 dBi

Max TX Power:

• 6 GHz: 24 dBm

• 5 GHz: 26 dBm

• 2.4 GHz: 23 dBm

Wireless Security:
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max BSSIDs:

• 4 per Radio (Gateway Mode)

• 4 per Radio (AP Mode)

Supported Data Rates:

• 802.11a: 6–54 Mbps

• 802.11b: 1–11 Mbps

• 802.11g: 6–54 Mbps

• 802.11n: 6.5 Mbps to 300 Mbps (HT 20/40)

• 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (VHT 20/40/80/160)

• 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (HE 20/40/80/160)

• 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (EHT 20/40/80/160/240/320)

Hardware & Power:
Max Power Consumption: 22W
Power Method: USB-C (5V DC/5A)
Power Supply: USB-C Adapter Included
Supported Voltage: 100–240V AC

Processor & Memory:
CPU: Quad-core ARM® Cortex®-A53 @ 1.5 GHz
System Memory: 3 GB

Physical & Environmental:
Weight: 422 g (14.9 oz)
Form Factor: Compact desktop
Enclosure Material: Polycarbonate
LCM Display: 0.96" status screen
Management Interfaces: Ethernet, Bluetooth
LED Indicators: Ethernet: ✓
Button: (1) Factory Reset
ESD/EMP Protection: Air ±8kV, Contact ±4kV
Operating Temperature: -10 to 40°C (14 to 104°F)
Operating Humidity: 5 to 95% noncondensing

Compliance & Certification:
NDAA Compliant: ✓
Certifications: CE, FCC, IC

VLAN Support:
802.1Q
Guest Traffic Isolation: ✓

Application Requirements:
UniFi Network version 9.0.108 and later
