• Length: 305 m (1,000 ft)

• Type: Category 6

• Flame Rating: CMR

• Operating Environment: Indoor

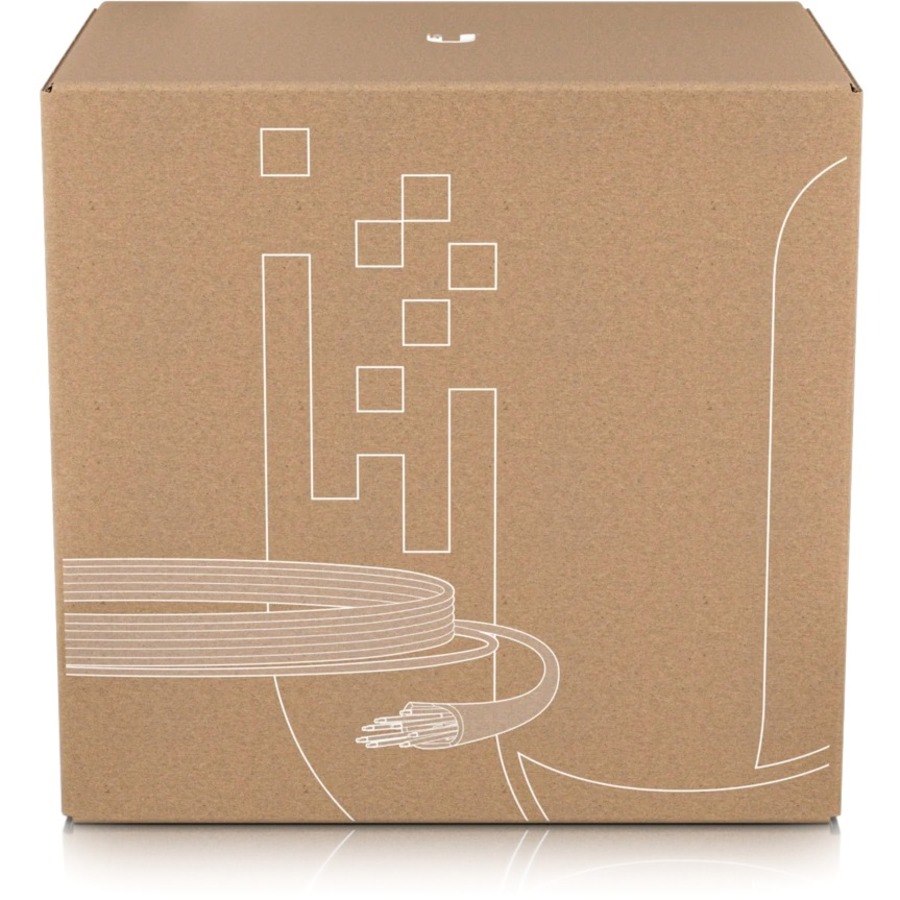

Box

• Dimensions: 476 × 306 × 419 mm (18.7 × 12 × 16.5 in)

• Weight: 14.6 kg (32.2 lb)

Cable

• Jacket Color: White

• Jacket Diameter: 5.9 ± 0.2 mm

• Jacket Material: Flame-retardant polyvinyl chloride (FRPVC)

• Shielding Type: UTP

• Conductor Type: Solid bare copper

• Conductor Wire Gauge: 23 AWG

• Bend Radius: Minimum 24 mm

• Twisting:

  • 4 twisted pairs with color code

  • Pair 1: white-blue / blue

  • Pair 2: white-orange / orange

  • Pair 3: white-green / green

  • Pair 4: white-brown / brown

• Anti-Crosstalk Divider: Included

• Ripcord: Included

Standards Compliance

• Electrical Transmission: ANSI/TIA-568.2-D; ISO/IEC 11801 (Ed. 2.2); IEC 61156-5 (Ed. 2.1)

• Flame Test: UL 1666 (CMR)

• Material & Construction: UL 444; CSA 22.2 No. 214

• Environmental Compliance: RoHS2 (EU 2011/65/EU), LVD (EU 2006/95/EC)

Environmental Ratings

• Installation Temperature: 0 to 60°C (32 to 140°F)

• Storage Temperature: –20 to 75°C (–4 to 167°F)

• Operating Temperature: –20 to 60°C (–4 to 140°F)
