Overview

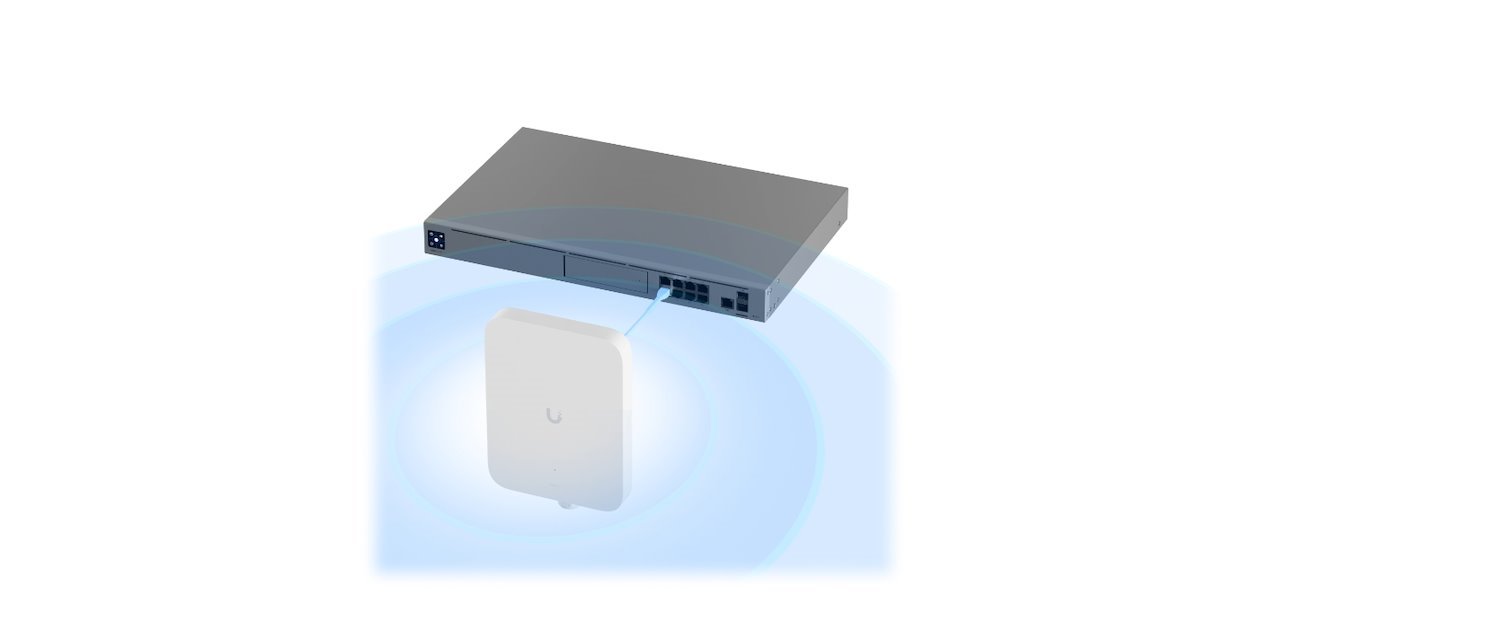

This full-performance 5G modem delivers multi-gigabit cellular connectivity for UniFi consoles and Cloud Gateways, enabling resilient WAN access in outdoor deployments. Designed for external installation, the unit integrates directional antennas and dual SIM capability to maximize signal performance while providing seamless failover between carriers.
Intelligence
Automatic integration with UniFi infrastructure allows rapid provisioning and centralized management across network deployments. Dual SIM functionality supports redundancy strategies, while planned remote SIM capability expands deployment flexibility in future updates. Carrier certification ensures operational compatibility across major U.S. cellular networks with defined plan requirements.
Features
Optimized for outdoor installation, the modem leverages directional antenna design to improve signal acquisition and stability. High-speed 5G throughput reaching up to 3.4 Gbps supports bandwidth-intensive applications, while failover capability maintains connectivity during primary link disruption. Included UI Care coverage extends operational assurance through prioritized support and advanced replacement services.
Applications
Outdoor WAN connectivity for UniFi console deployments

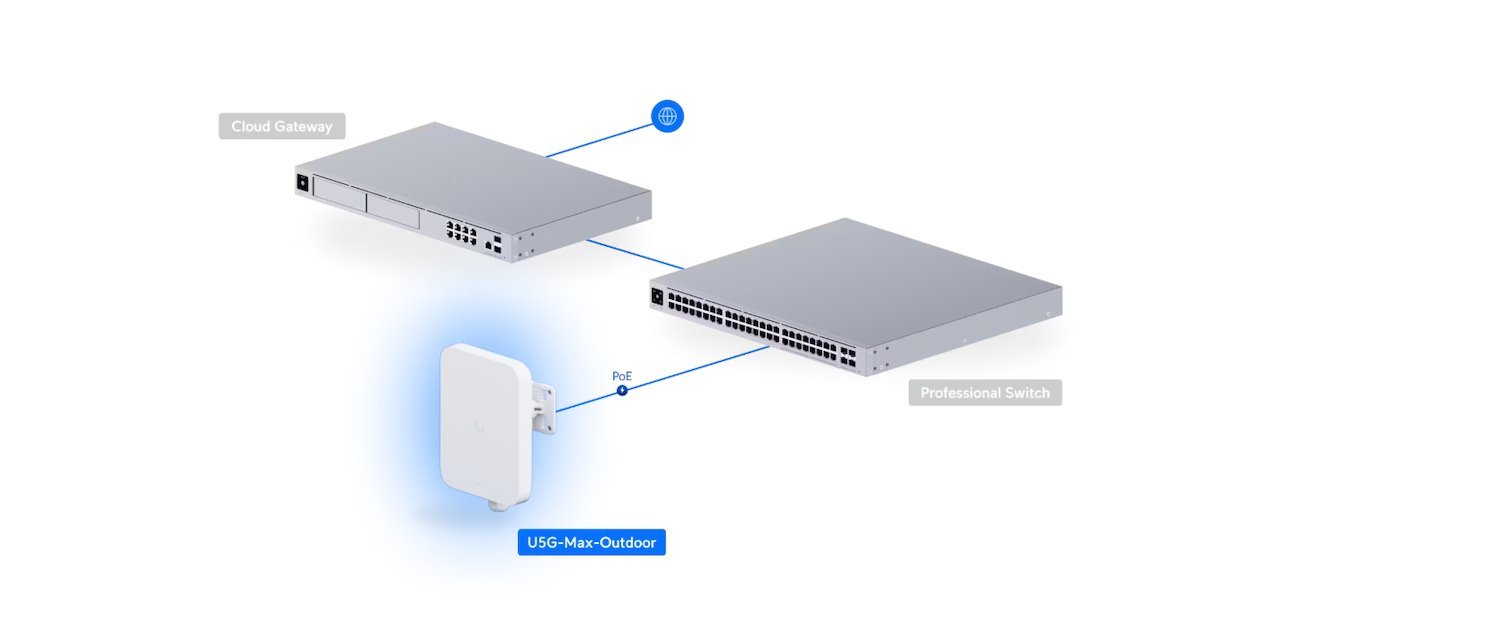

Backup or primary cellular uplink for Cloud Gateways
Remote site or branch network connectivity
Network resiliency and continuity planning
Carrier Compatibility
AT&T Certified
T-Mobile Certified (Data-only plan required; Home Internet SIMs not supported)
Verizon Certification Expected February
Physical

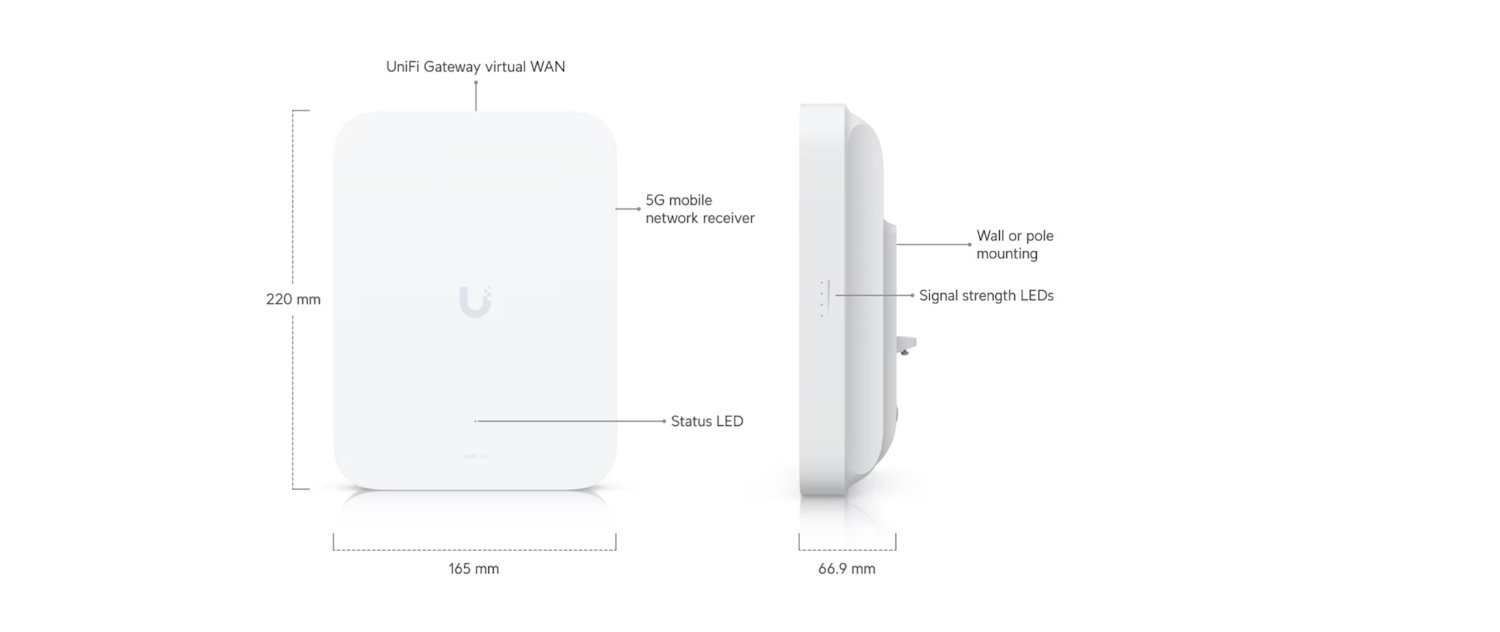

• Dimensions — Device: 220 × 165 × 66.9 mm (8.7 × 6.5 × 2.6")
• Dimensions — With Mount: 220 × 165 × 122 mm (8.7 × 6.5 × 4.8")
• Enclosure Material: Aluminum Alloy; UV-Stabilized Polycarbonate
• Mount Material: UV-Stabilized Polycarbonate

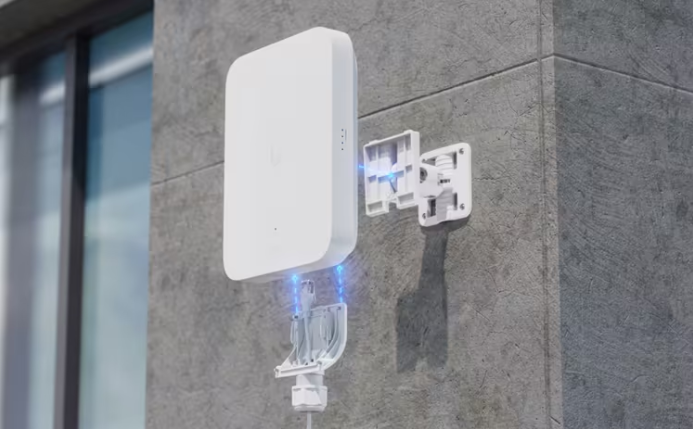

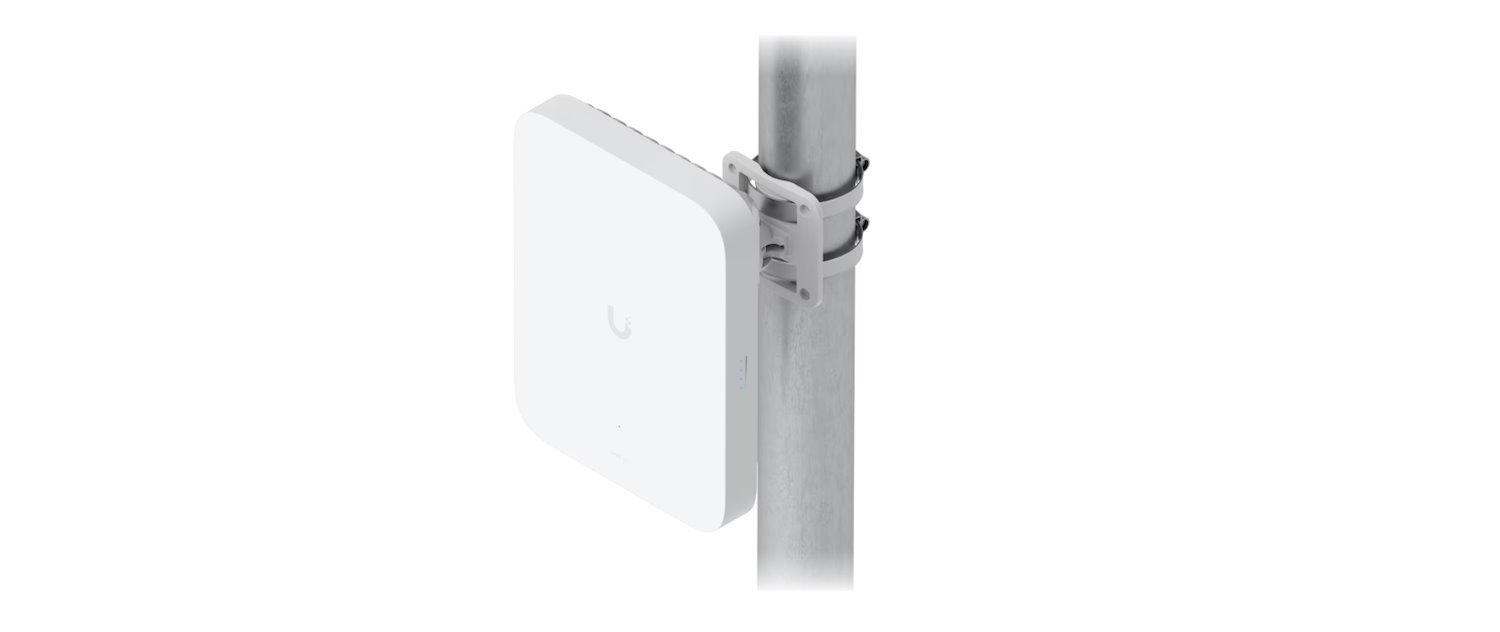

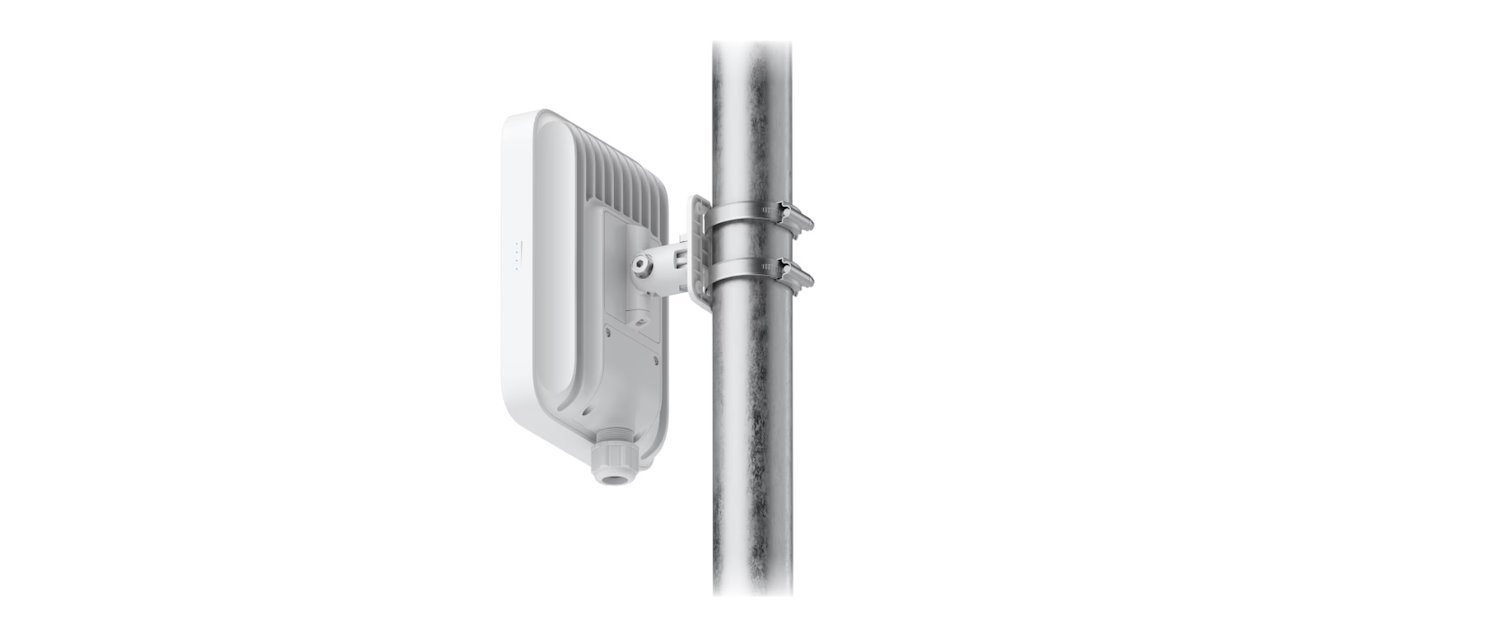

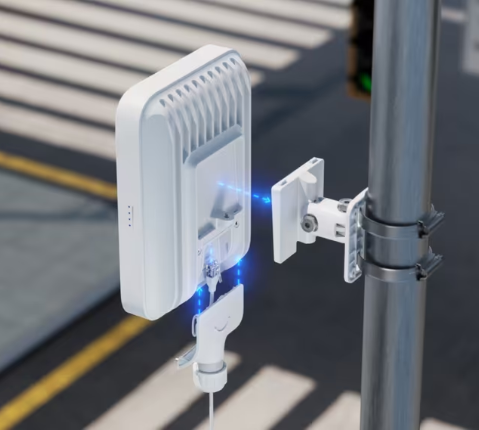

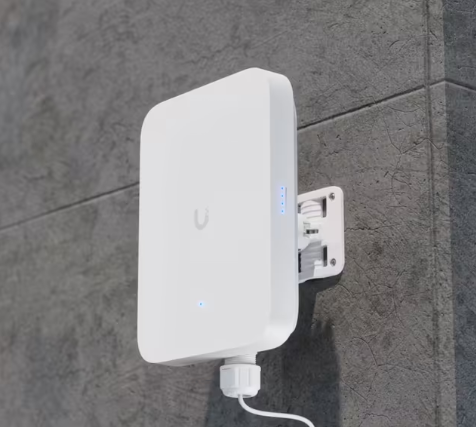

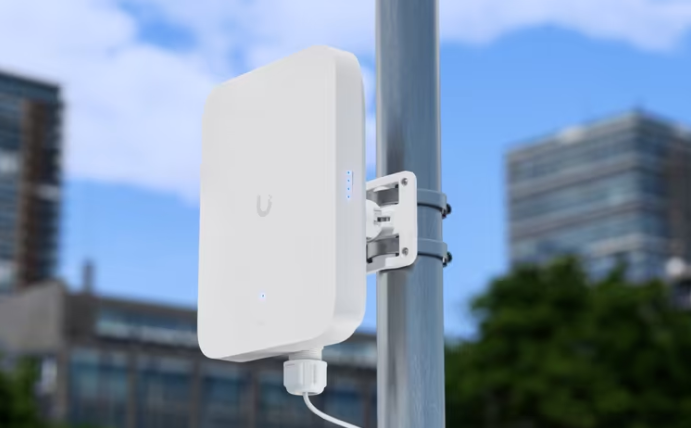

• Mounting Options: Pole Mount; Wall Mount (Included)
• Pole Mount Diameter: 1–2.5" (25–63.5 mm) Pipe Outer Diameter

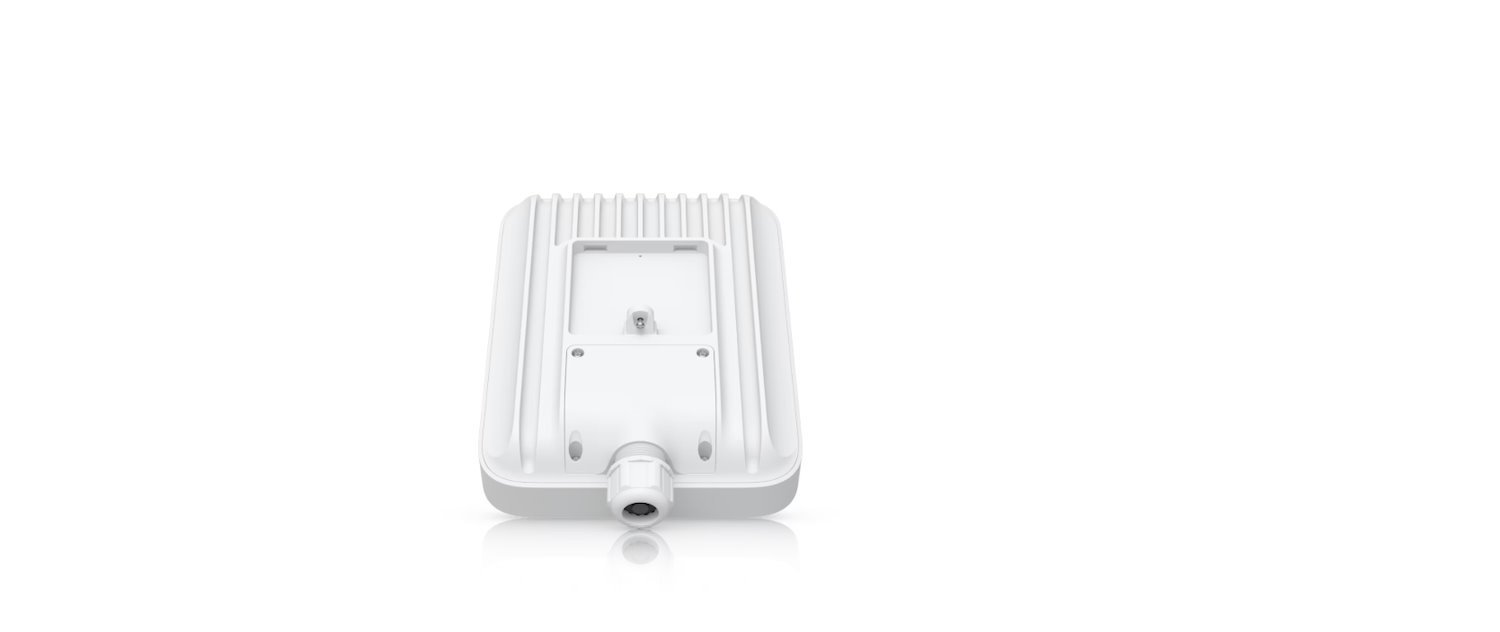

• Weatherproofing: IPX6; IP67 (With Cable-Gland Door Kit)
• Wind Loading: 91 N at 200 km/h (20.45 lbf at 125 mph)
Mechanical
• Weight — Device: 1.2 kg (2.6 lb)
• Weight — Mount: 130 g (4.6 oz)
Networking Interface

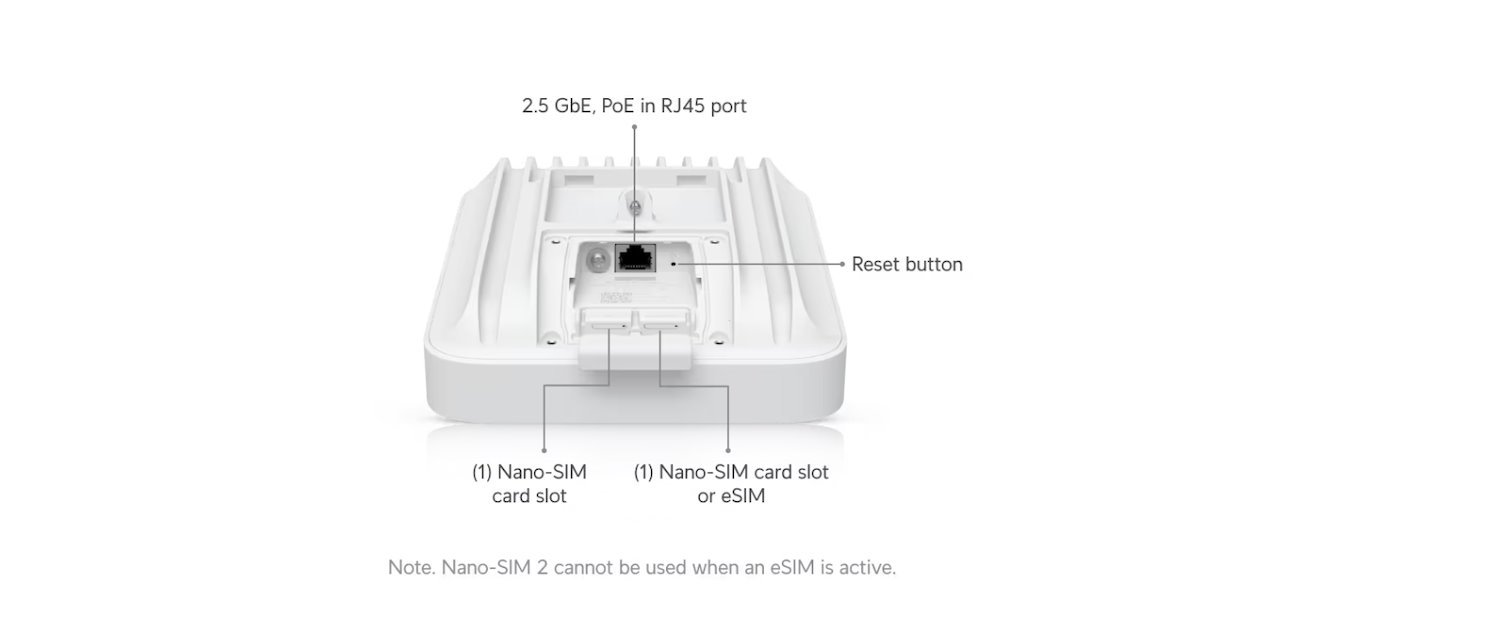

• Ethernet: 1 × 2.5 GbE RJ45
• Cellular Radio: 5G NR; LTE
SIM
• Nano SIM: 1
• Nano SIM or eSIM: 1
PoE
• PoE Interface: 1 × PoE Input
Hardware / Management
• Management Interface: Ethernet
• Antennas:
• 6 × Embedded Cellular Antennas
• Includes 2 × High-Gain Downlink Antennas — Peak 9 dBi; 85° × 85°
• Buttons: 1 × Factory Reset
• LEDs: Yes
• Max Power Consumption: 14.5 W
• Power Method: PoE
Cellular — 5G NR
• Category: 5G NR
• Frequency Bands: n1; n2; n3; n5; n7; n8; n12; n13; n14; n18; n20; n25; n26; n28; n29; n30; n38; n40; n41; n48; n66; n71; n75; n76; n77; n78; n79
• Max TX Power: HPUE Power Class 2 — 26 dBm
Cellular — 4G LTE
• Frequency Bands: B1; B2; B3; B4; B5; B7; B8; B12; B13; B14; B17; B18; B19; B20; B25; B26; B28; B29; B30; B32; B34; B38; B39; B40; B41; B42; B43; B46; B48; B66; B71
• Max TX Power: HPUE Power Class 2 — 25 dBm
Cellular — 3G UMTS
• Frequency Bands: B1; B2; B4; B5; B8; B19
Peak Data Speeds
• 5G NSA: Downlink 3.4 Gbps; Uplink 560 Mbps
• 5G SA: Downlink 1.8 Gbps; Uplink 650 Mbps
• 4G LTE: Downlink 1.6 Gbps; Uplink 210 Mbps
Environmental
• Operating Temperature: −40°C to +65°C (−40°F to +149°F)
• Operating Humidity: 5%–95% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; CE; PTCRB; GCF; AT&T; T-Mobile; Verizon
