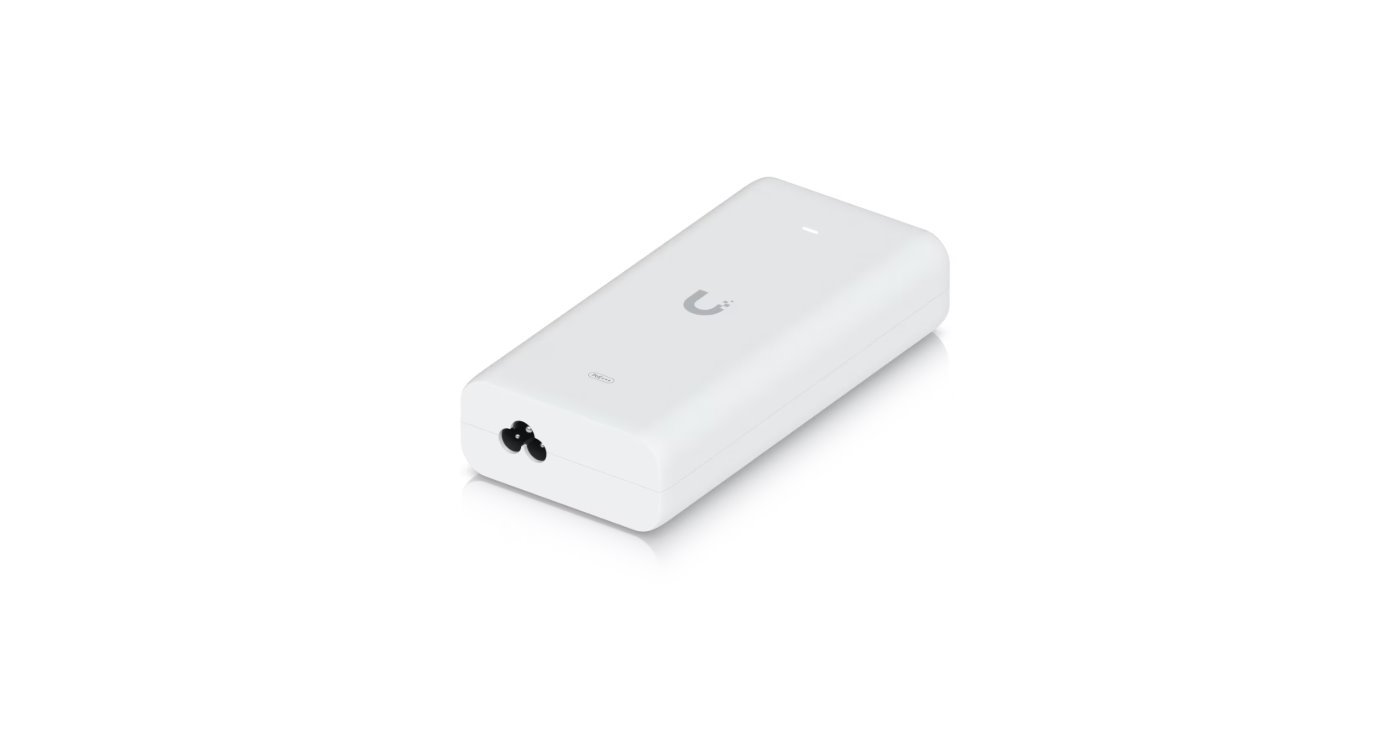

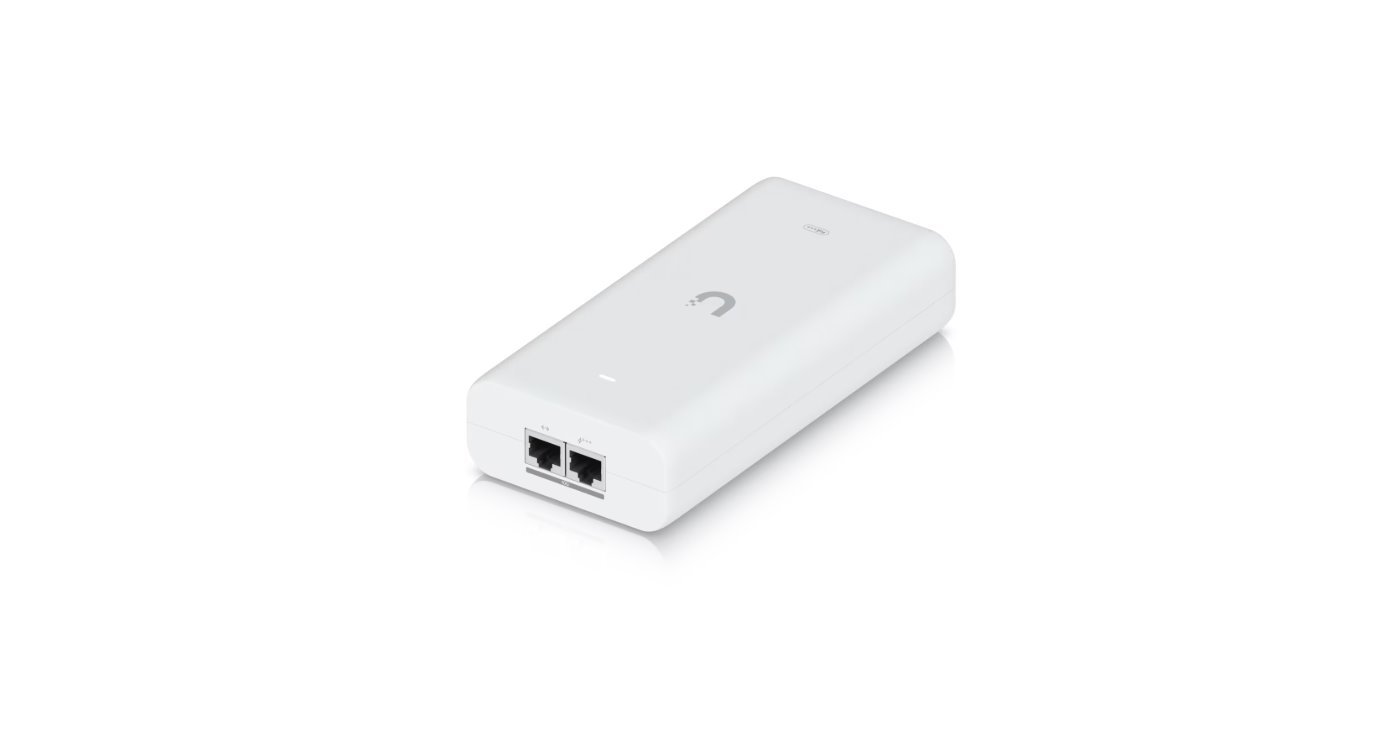

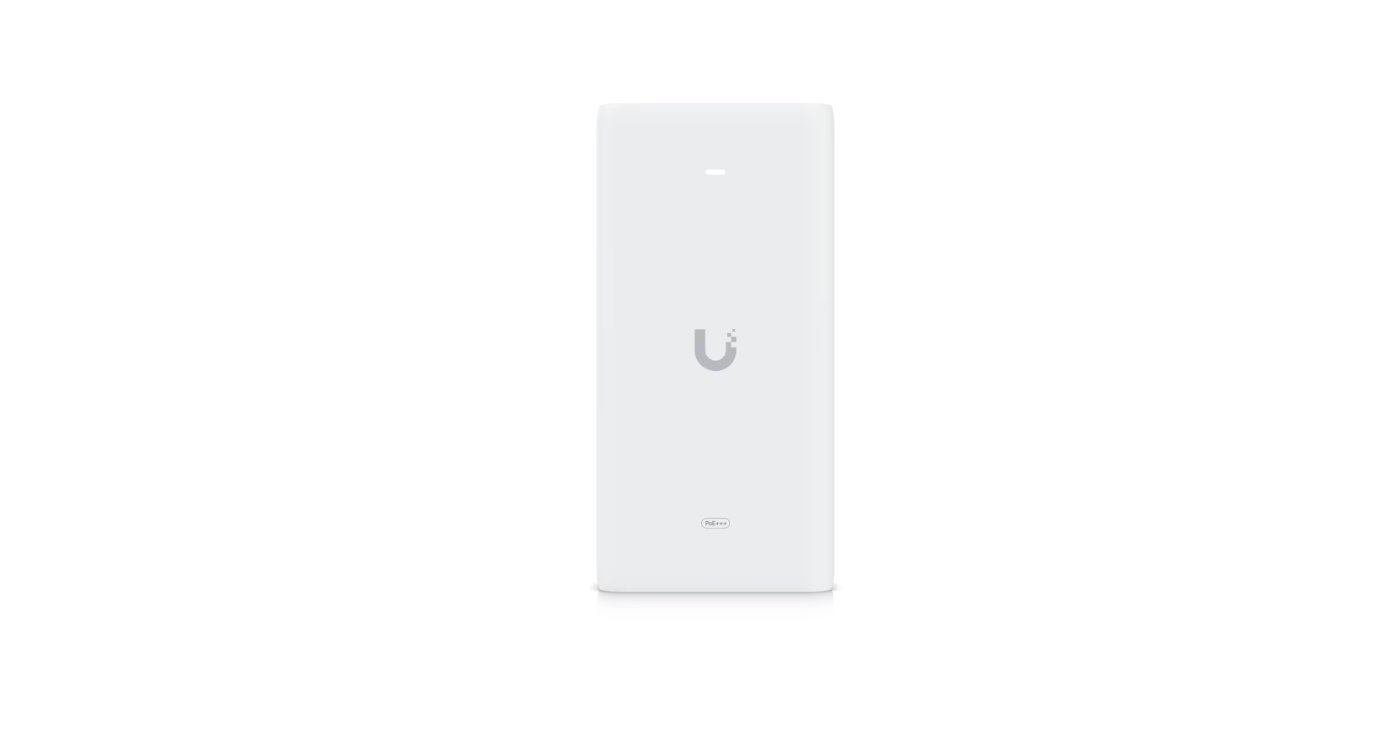

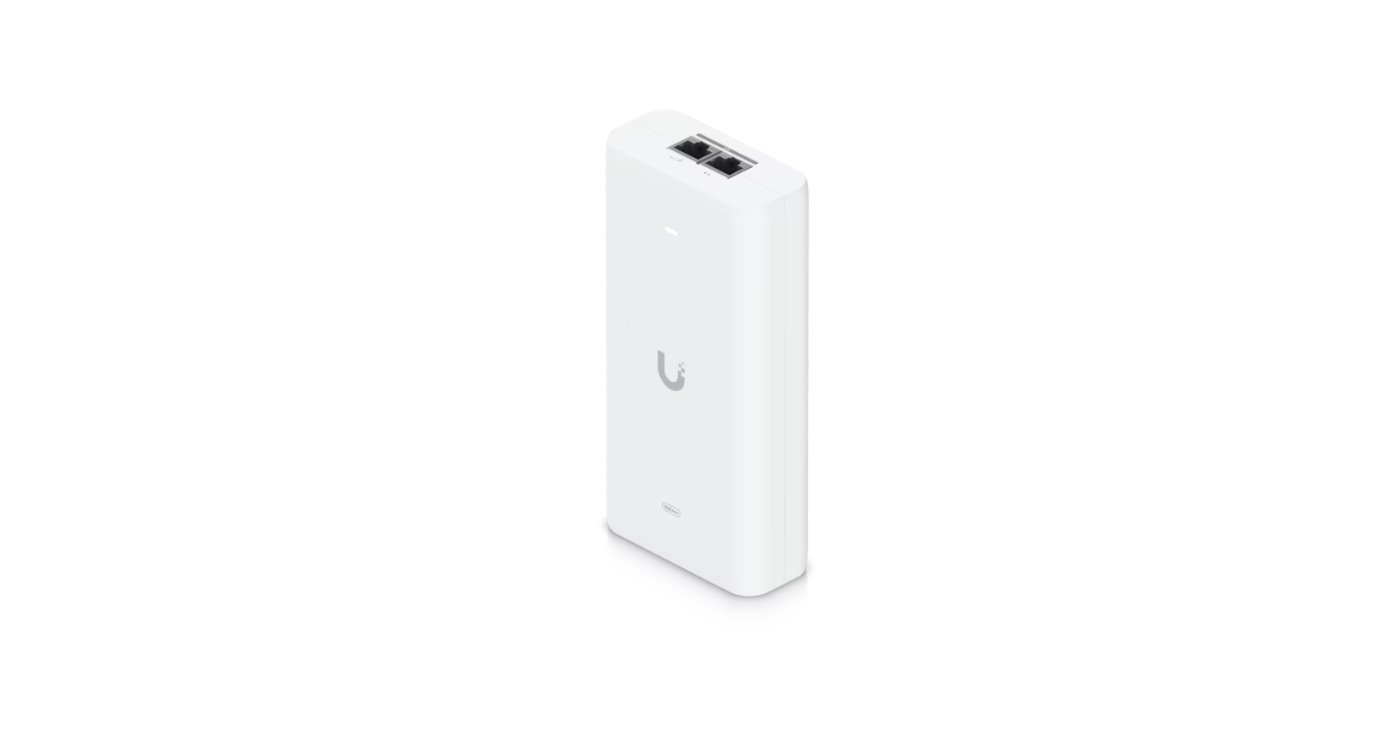

UI 10G PoE+++ Adapter (90W)

  • Part: 1002235
$53.90

Availability

In Stock

Power demanding UniFi PoE+++ devices with confidence using this high-performance adapter designed to reduce reliance on switch-based power while delivering reliable Multi-Gigabit network connectivity. Engineered for professional deployments, this compact solution provides up to 90W of PoE+++ output, making it ideal for powering high-consumption devices such as advanced access points, cameras, or other network hardware.

Built with robust electrical safeguards, the adapter includes surge, peak pulse, and overcurrent protection to ensure stable and secure operation in enterprise and industrial environments. Connectivity is streamlined with an RJ45 data input, grounded AC power cable, and dedicated PoE+++ output, while an integrated LED indicator allows for quick status monitoring during operation.

Flexible installation options support a variety of deployment scenarios, including wall mounting, DIN rail attachment, or floating placement*, allowing seamless integration into racks, enclosures, or structured cabling environments.

Key Features

  • Delivers up to 90W PoE+++ output for high-power UniFi devices

  • Provides Multi-Gigabit LAN connectivity

  • Built-in surge and overcurrent protection for reliability

  • RJ45 data input with grounded AC power connection

  • Status LED for quick operational monitoring

  • Supports wall mount, DIN rail, and floating installation*

*Mounting accessories may be sold separately.

Camera / Image / Electrical

  • Output Voltage: 54V DC @ 1.67A

  • Rated Voltage: 100–240V AC, 50/60Hz

  • Input Current: 1.5A Max

  • Inrush Current: <120A peak @ 230V AC

  • Efficiency: >88%

  • Switching Frequency: 65 kHz

  • Output Ripple: 1% Max

  • Line Regulation: ≤2%

  • Load Regulation: ≤5%

  • Max PoE Output: 90W per port

Networking / Interface

  • Data In / PoE: RJ45 shielded socket

  • LAN Port: Gigabit

  • LAN Activity Indicator: —

  • Remote Reset Capability: —

  • Reset Button: —

  • Powering Method: 4-pair

    • Pins 1,2,4,5 (+)

    • Pins 3,6,7,8 (–)

Protection

  • Clamping Protection: 11V (data), 60V (power)

  • Surge Protection: Differential & common mode

  • Max Surge Discharge: 1500A (8/20 μs) power

  • Peak Pulse Current: 36A (10/1000 μs) data

  • Response Time: <1 ns

  • Shunt Capacitance: <5 pF data

Physical

  • Dimensions: 164.5 × 71 × 42 mm (6.5 × 2.8 × 1.7 in)

  • Weight: 372 g (13.1 oz)

Environmental

  • Operating Temperature: 0 to 40°C (32 to 104°F)

  • Storage Temperature: -30 to 70°C (-22 to 158°F)

  • Operating Humidity: 10–95% non-condensing

Compliance

  • NDAA Compliant: Yes

  • Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
