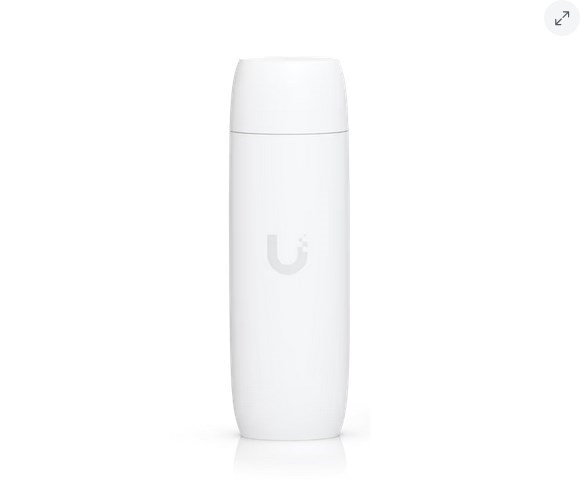

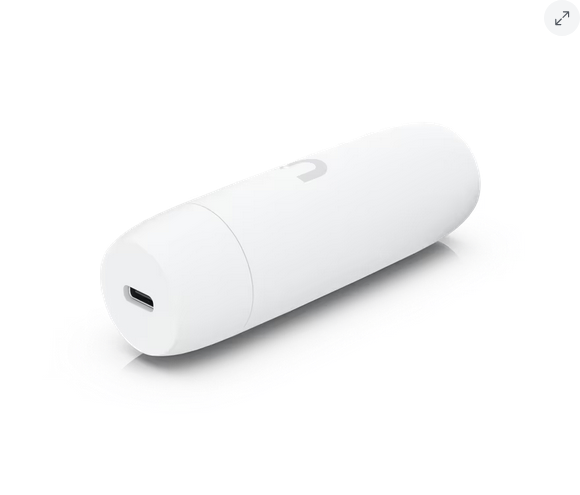

Versatile adapter that provides power and connectivity to USB-C devices, including compatible Protect WiFi cameras.
Compatibility: UVC-G4 Doorbell Pro, UVC-G4-INS, UVC-G6-INS
(1) GbE PoE input
(1) USB-C output
Transforms the G4 Doorbell Pro* and G4/G6 Instant** into a wired PoE camera
Provide GbE connectivity*** to USB-C device, such as notebook.
Dimensions
Without cable: Ø30.4 x 95 mm (Ø1.2 x 3.7")
Weight
85 g (3 oz)
Enclosure Material
Polycarbonate
Ports
(1) Input: RJ45
(1) Output: USB Type-C
Networking Interface
(1) GbE RJ45 port (Data out)
Power & Protection
Power Method: PoE
Input Rating: 48V DC, 0.25A
Output Rating: 5V DC, 2A
ESD/EMP Protection: Air: ±8kV; Contact: ±4kV
Compatibility
Camera G4 Instant (UVC-G4-INS)
G4 Doorbell Pro (UVC-G4-Doorbell-Pro)
Environmental
Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC
