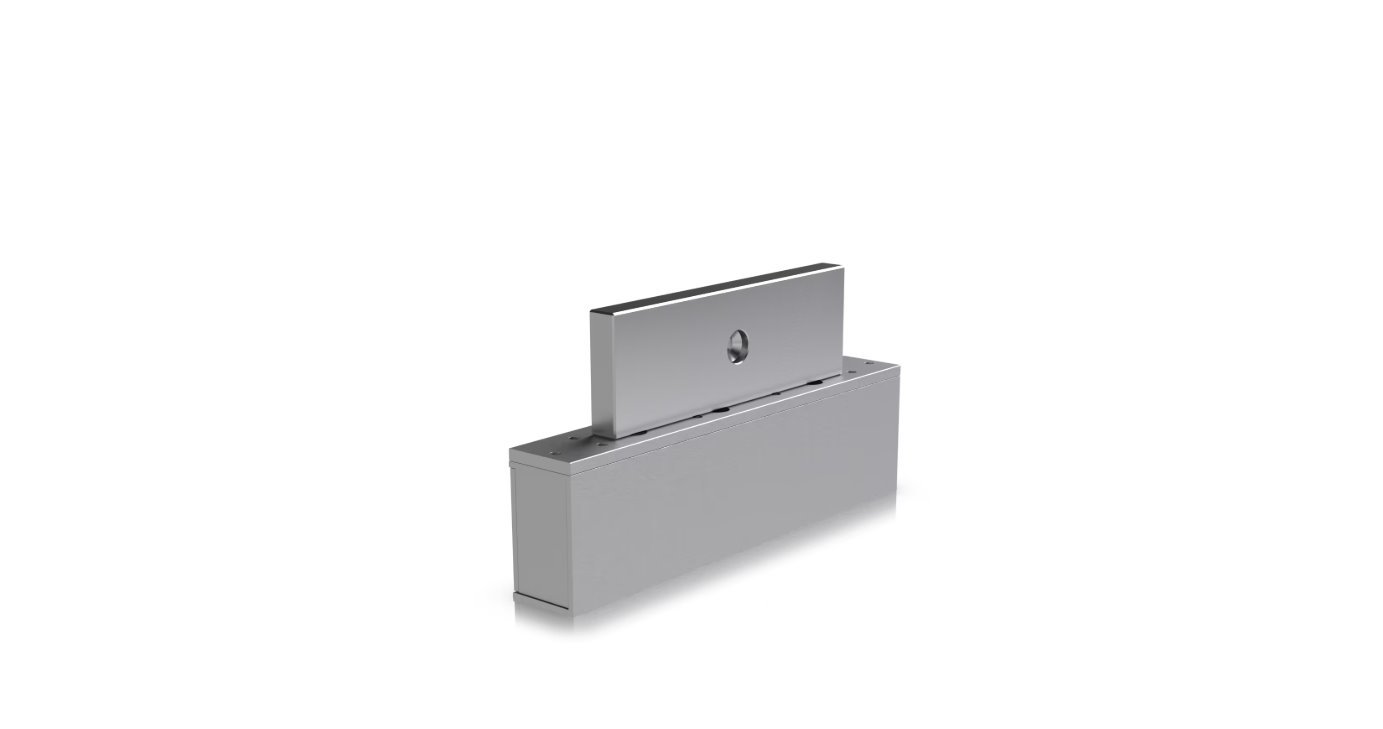

Overview
This fail-safe magnetic lock is designed for inswing and outswing door applications and integrates seamlessly with UniFi access control hubs. It delivers dependable electromagnetic locking performance while supporting centralized credential management and monitoring within UniFi-managed deployments.
Intelligence
Fail-safe operation ensures the lock releases when power is removed, supporting safety and egress compliance requirements. Integration with UniFi access infrastructure allows centralized monitoring, event logging, and access automation through compatible hub controllers.
Features
Engineered for straightforward installation, the lock supports mounting on both inswing and outswing doors, enabling consistent deployment across varied facility layouts. Direct connectivity to supported UniFi hubs simplifies system design and reduces additional interface requirements.
Applications
Enterprise environments using UniFi access platforms
Commercial or institutional door security installations
Retrofit upgrades to UniFi-managed systems
Entry points requiring fail-safe electromagnetic locking

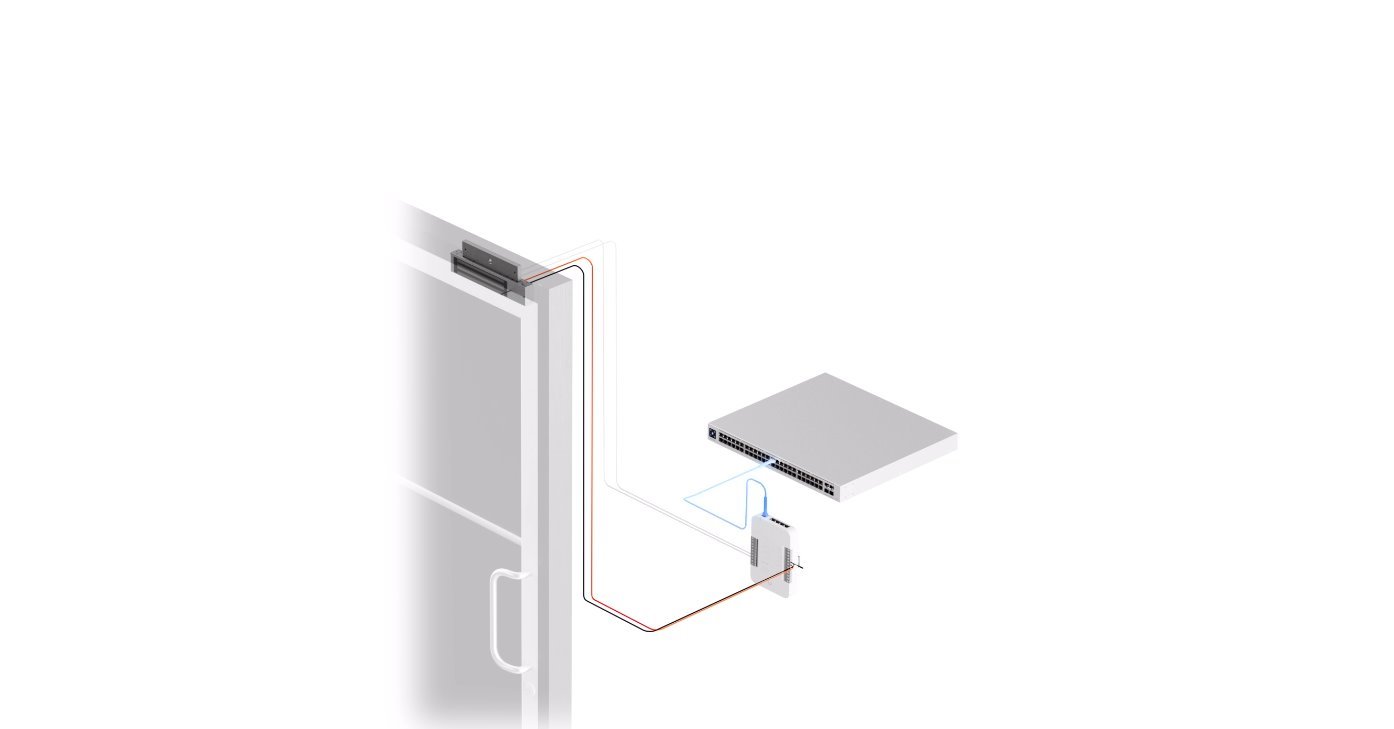

Compatibility
UA-Hub-Door
EAH-8
UA-Hub-Door-Mini
UA-Ultra
UA-Hub-Gate
UA-Retrofit-Hub-2

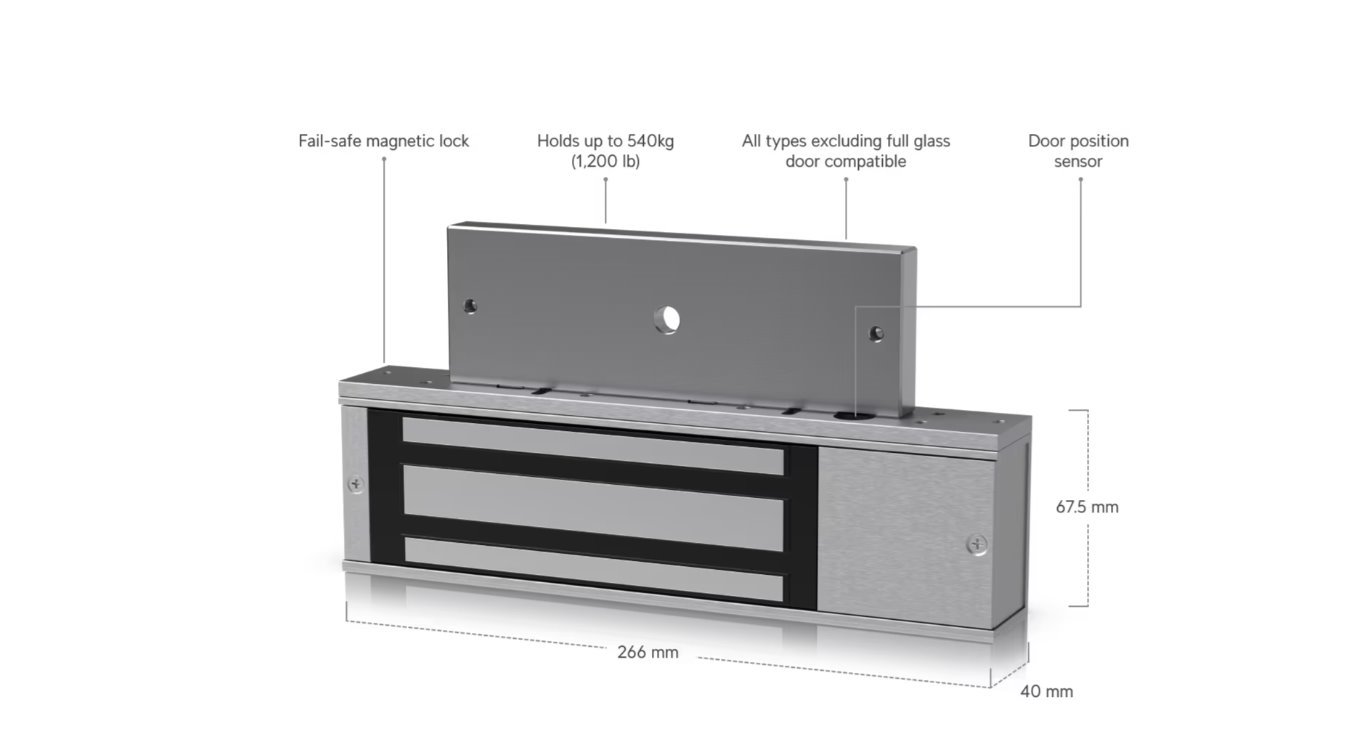

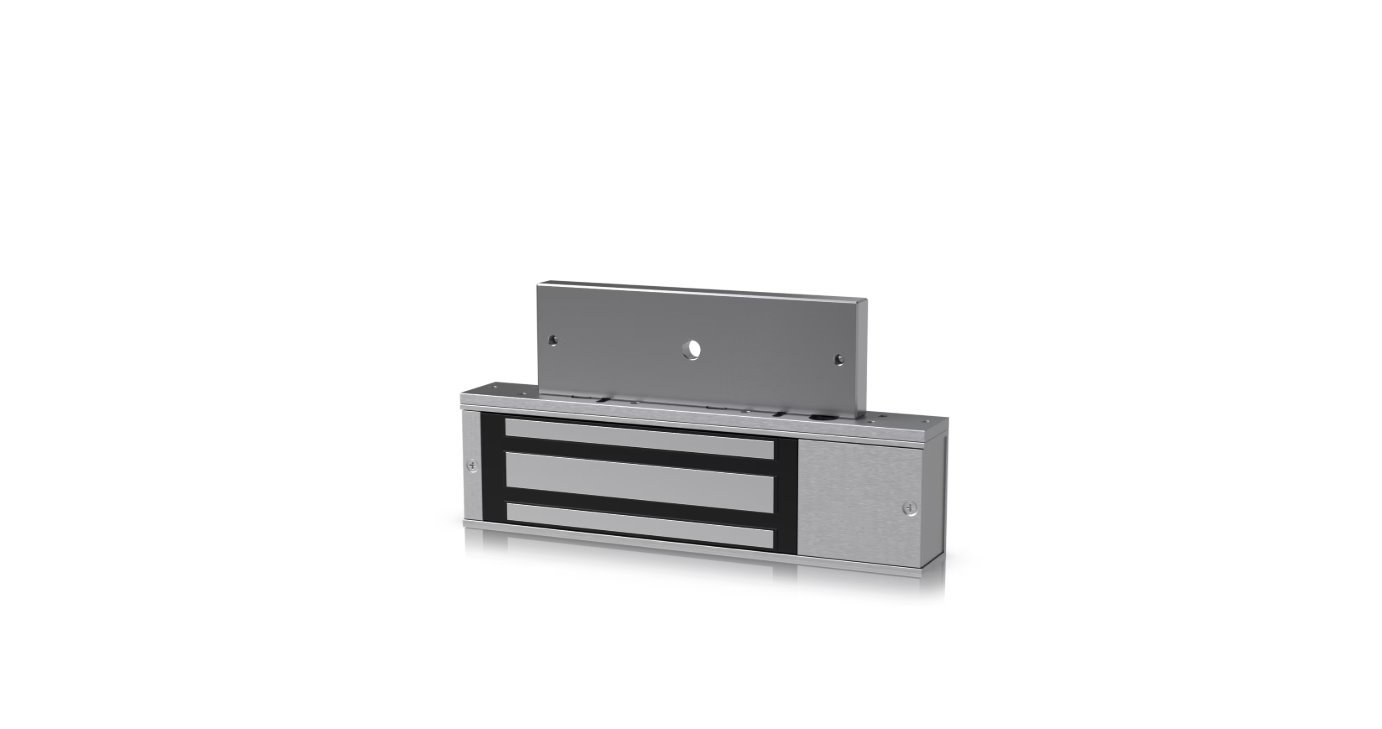

Dimensions — UA-Lock-Magnetic-270kg
• Lock Body: 250 × 42.5 × 26 mm (9.8 × 1.7 × 1")
• Install Plate: 250 × 25 × 5 mm (9.8 × 1 × 0.2")
• Armature: 185.5 × 38.5 × 11 mm (7.3 × 1.5 × 0.4")
Dimensions — UA-Lock-Magnetic-540kg
• Lock Body: 266 × 67.5 × 40 mm (10.5 × 2.7 × 1.6")
• Install Plate: 266 × 40 × 6 mm (10.5 × 1.6 × 0.2")
• Armature: 185 × 61 × 16 mm (7.3 × 2.4 × 0.6")
Weight — UA-Lock-Magnetic-270kg
• Lock Body: 1 kg (2.2 lb)
• Install Plate: 70 g (0.15 lb)
• Armature: 600 g (1.3 lb)
Weight — UA-Lock-Magnetic-540kg
• Lock Body: 2.9 kg (6.4 lb)
• Install Plate: 145 g (0.3 lb)
• Armature: 1.4 kg (3.1 lb)
Construction
• Enclosure Material — Device/Brackets: Aluminum
• Enclosure Material — Armature: Steel
Lock Features
• Lock Type: Fail Safe
• Supported Door Types:
• 270 kg Model: Single Door (Wood; Metal; Glass)
• 540 kg Model: Single Door (Wood; Metal)
• Door Position Sensor (DPS): Embedded
• Holding Force:
• 270 kg Model: 270 kg (600 lb)
• 540 kg Model: 540 kg (1,200 lb)
Electrical
• Current Draw: 500 mA ±10%
• Supported Voltage Range: 12 VDC ±10%
• Wiring Leads:
• Lock 12V/NC — Red
• Lock 12V/COM — Black
• DPS/+ — White
• DPS/− — Yellow

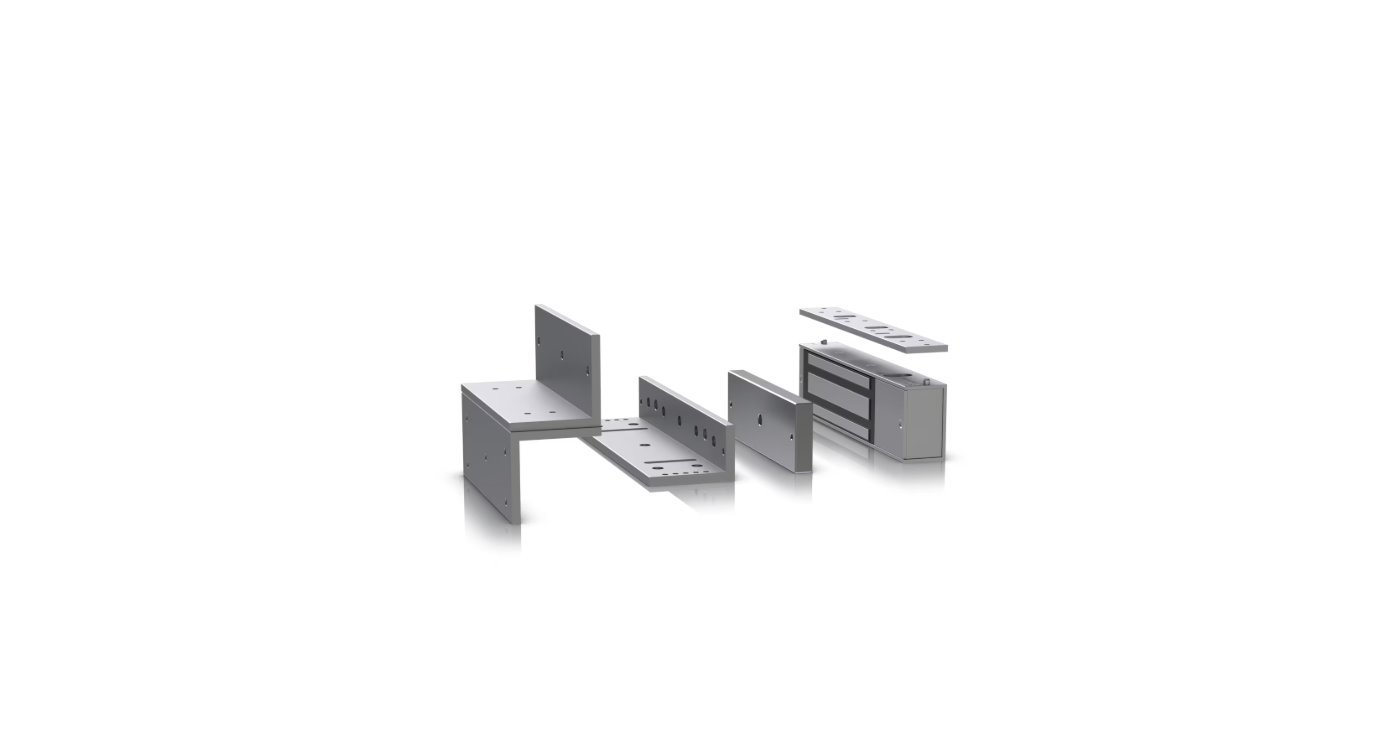

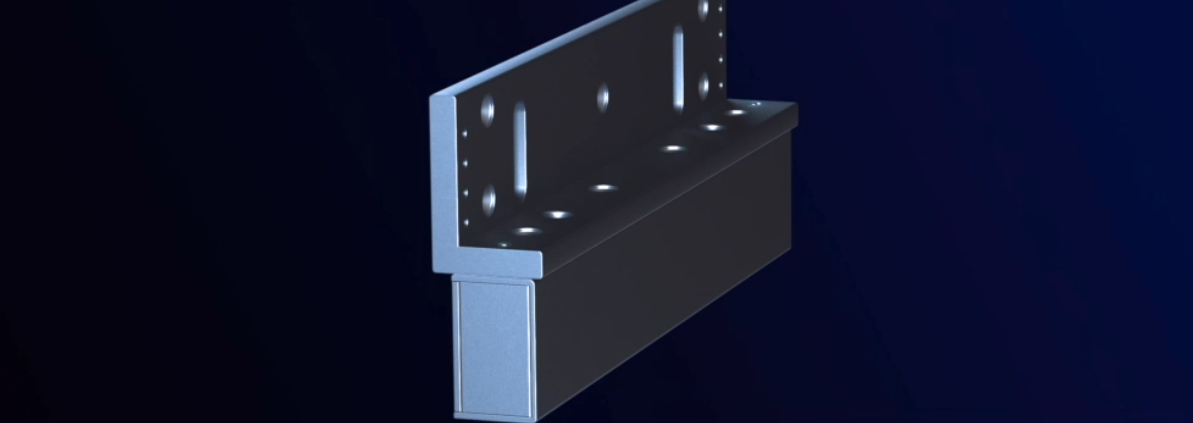

Mounting — UA-Lock-Magnetic-270kg
• L Bracket: Outward Opening Door Thickness < 42 mm (<1.7")
• Z Bracket: Inward Opening Door; Used with L Bracket
• U Bracket: Glass Door Thickness ≤ 17 mm (≤0.7"); Door Gap ≤ 5 mm (≤0.2")
Mounting — UA-Lock-Magnetic-540kg
• L Bracket: Outward Opening Door Thickness < 42 mm (<1.7")
• Z Bracket: Inward Opening Door; Used with L Bracket
Indicators
• LED Status:
• Green — Unlocked
• Red — Locked
Environmental
• Storage Temperature: −20°C to +70°C (−4°F to +158°F)
• Operating Temperature: −10°C to +60°C (14°F to +140°F)
• Operating Humidity: 5%–90% RH (Non-Condensing)
Compliance
• NDAA Compliant: Yes
• Certifications: FCC; IC; CE
