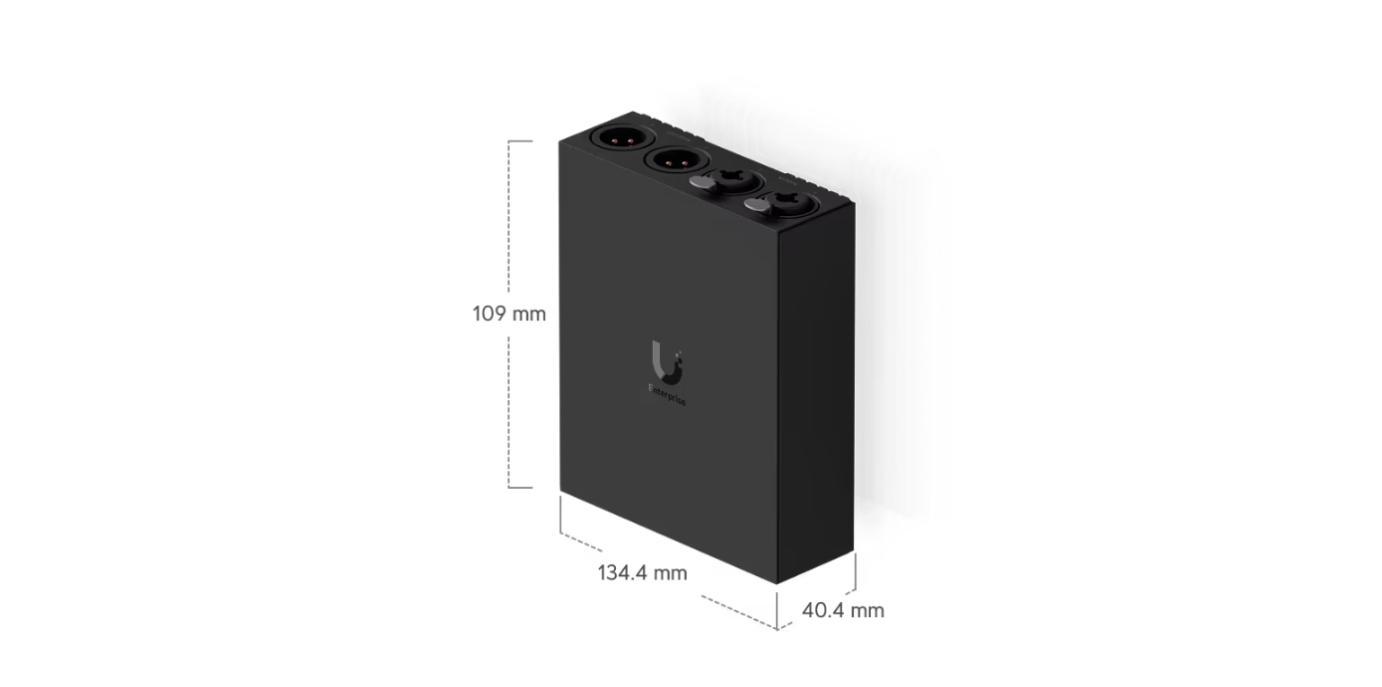

Dimensions
109 × 134.4 × 40.4 mm (4.3 × 5.3 × 1.6 in)

Weight
560 g (1.2 lb)

Enclosure Material
Aluminum

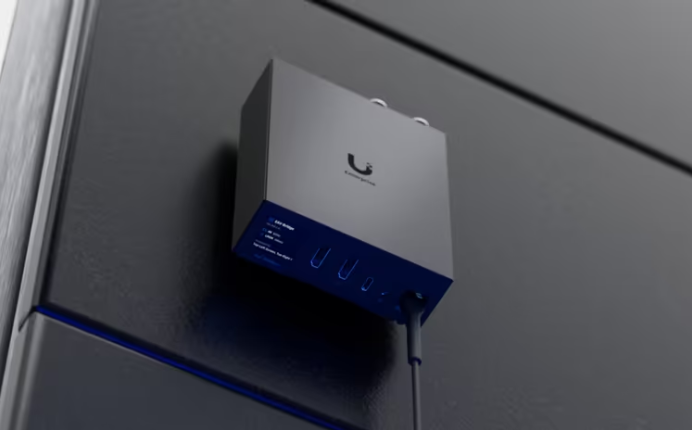

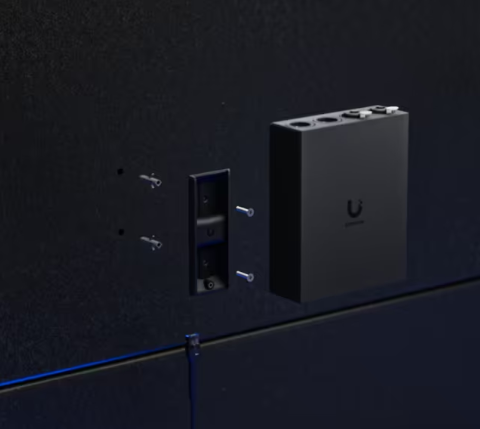

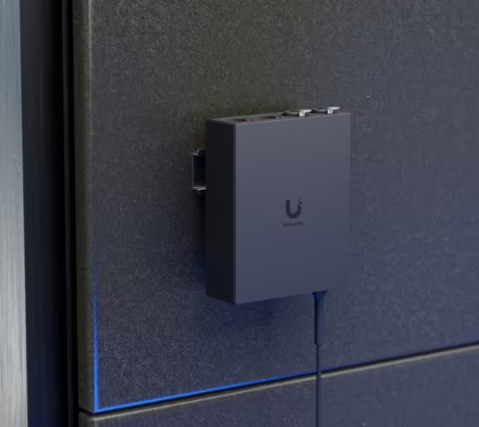

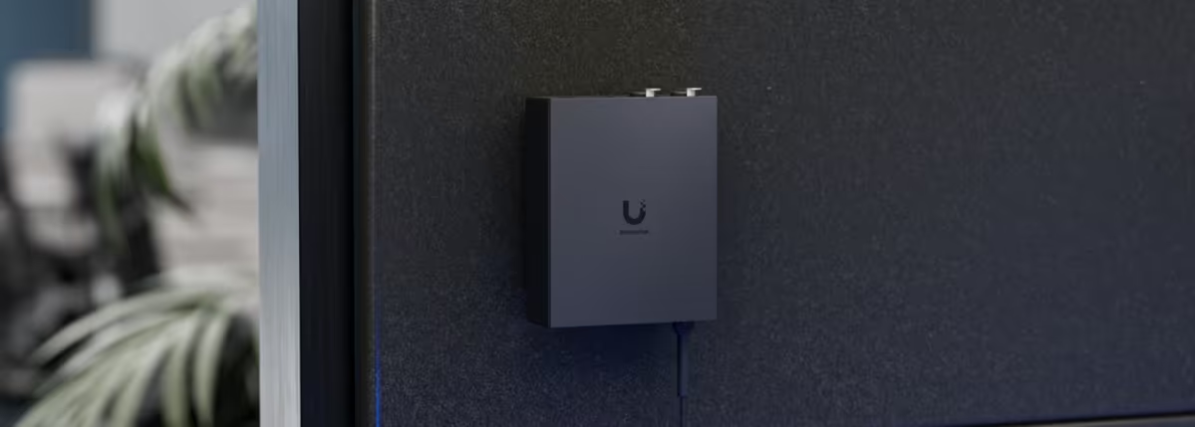

Mounting

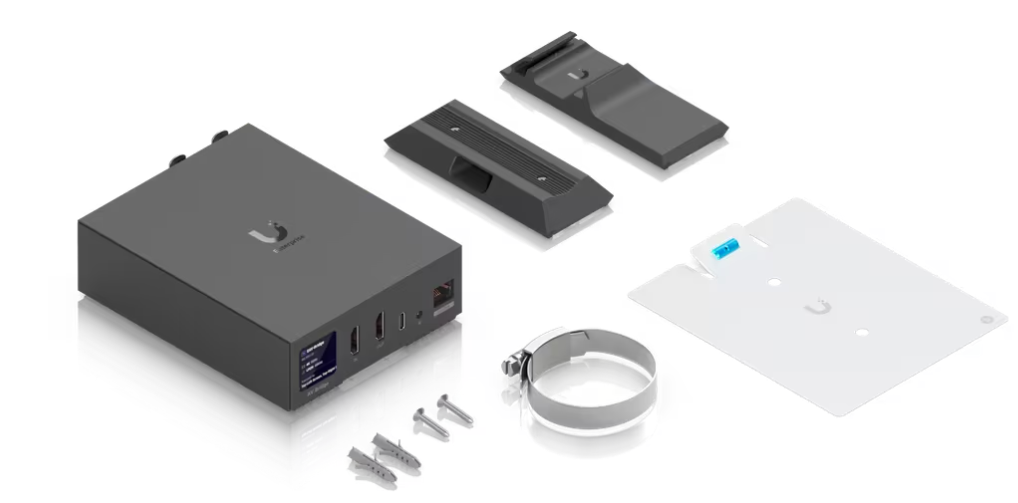

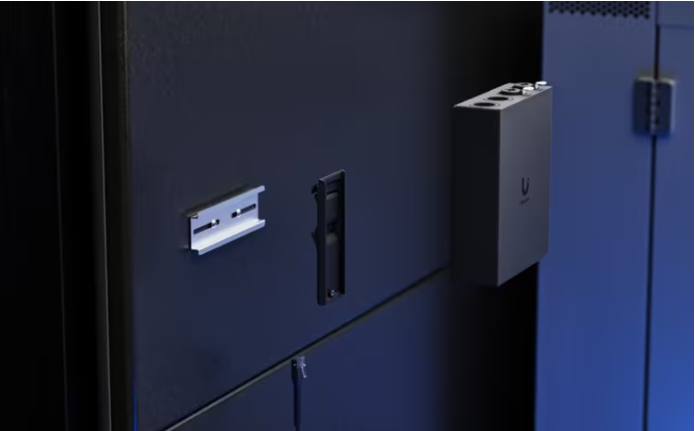

DIN rail, wall, or pole mount (included)

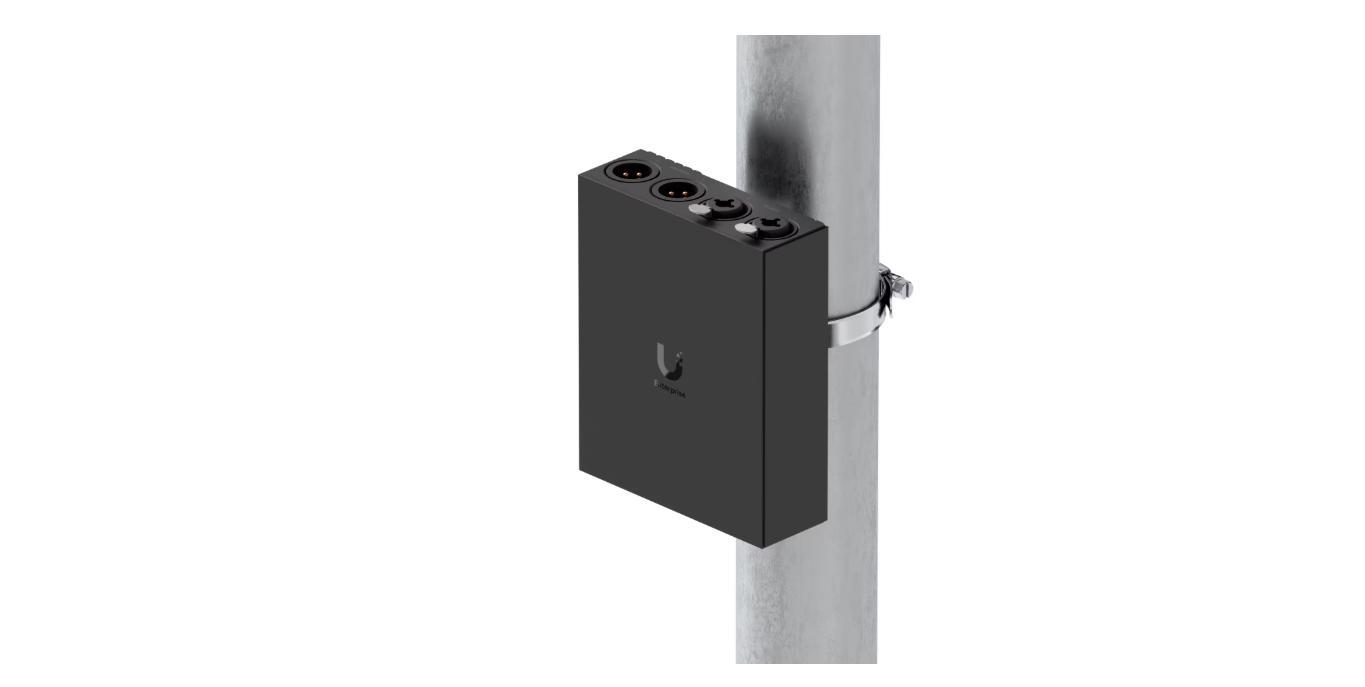

Pole Mount Diameter
1.5–2 in (38–50 mm)

Audio

Output
Mono or stereo sound

Surround Format
PCM

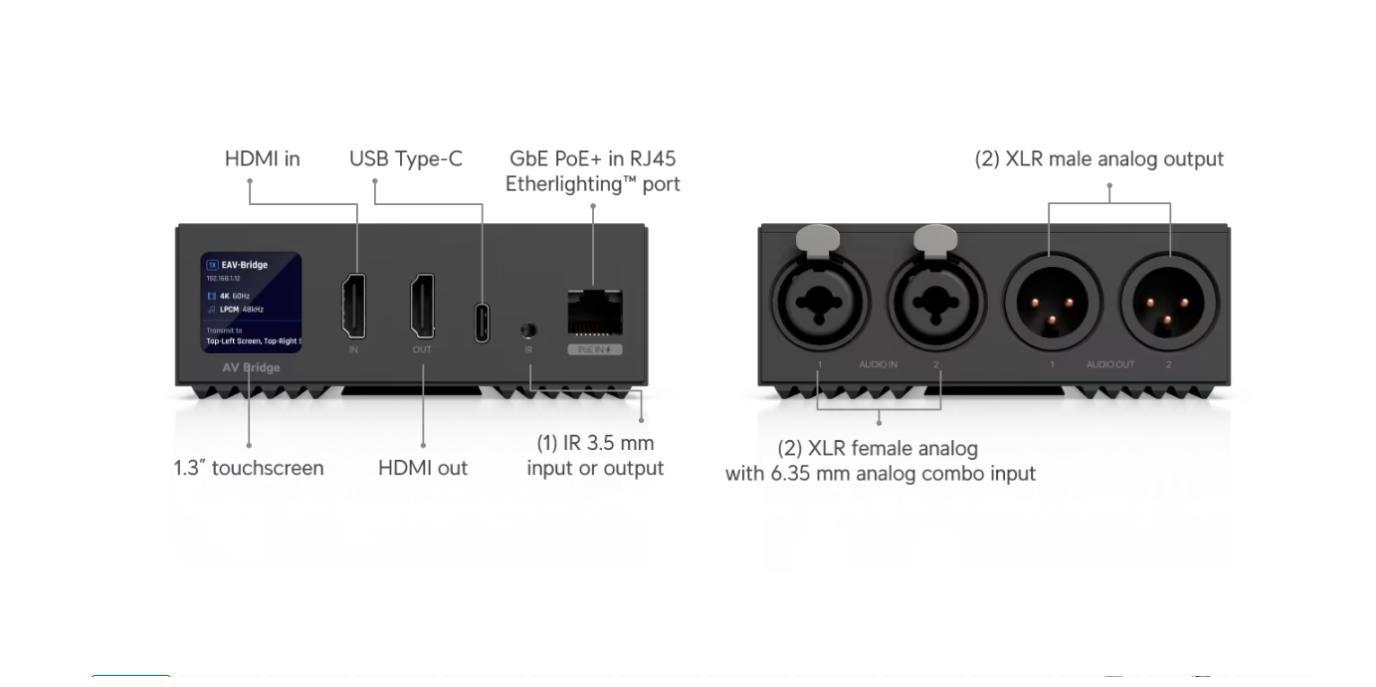

Audio Input

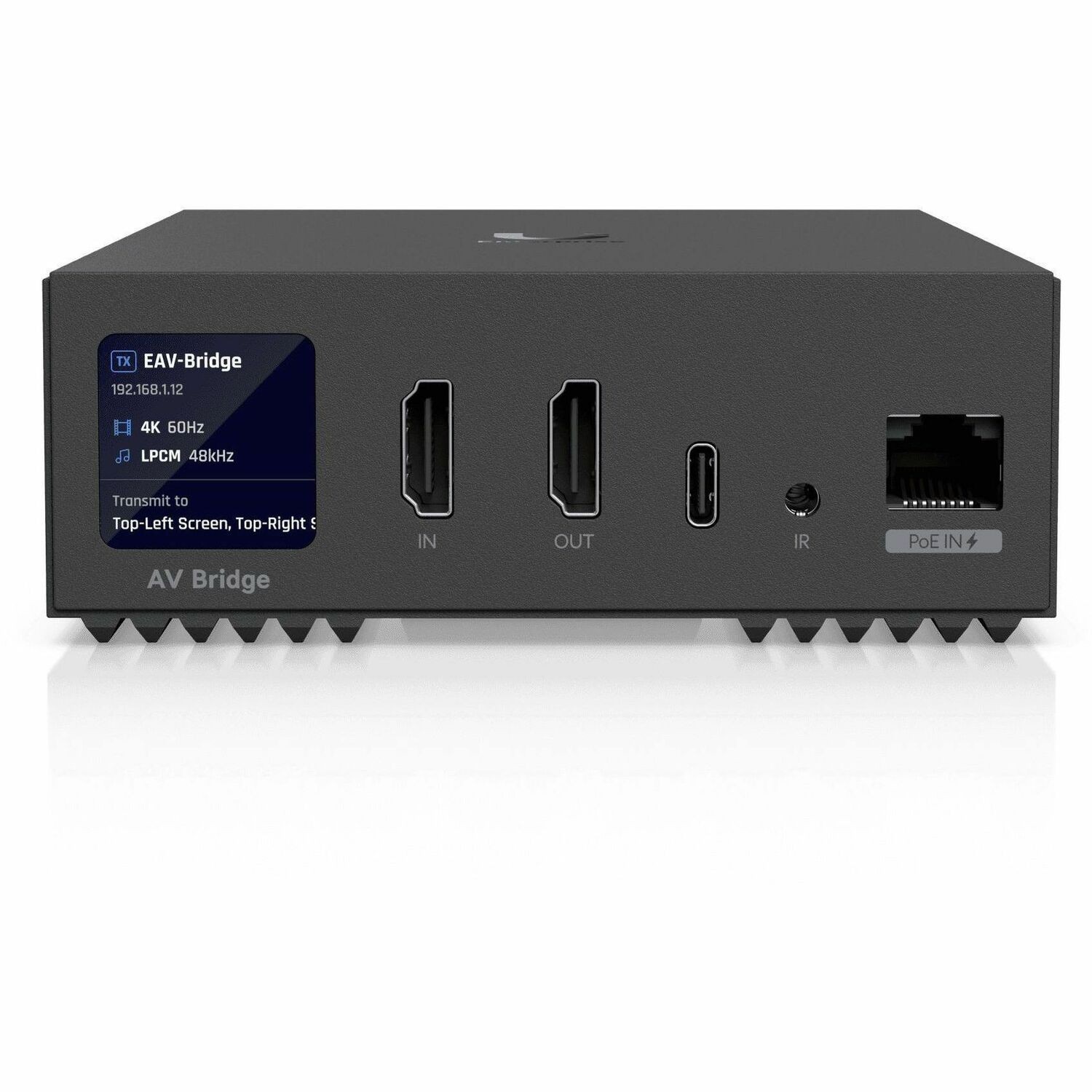

1 × HDMI in

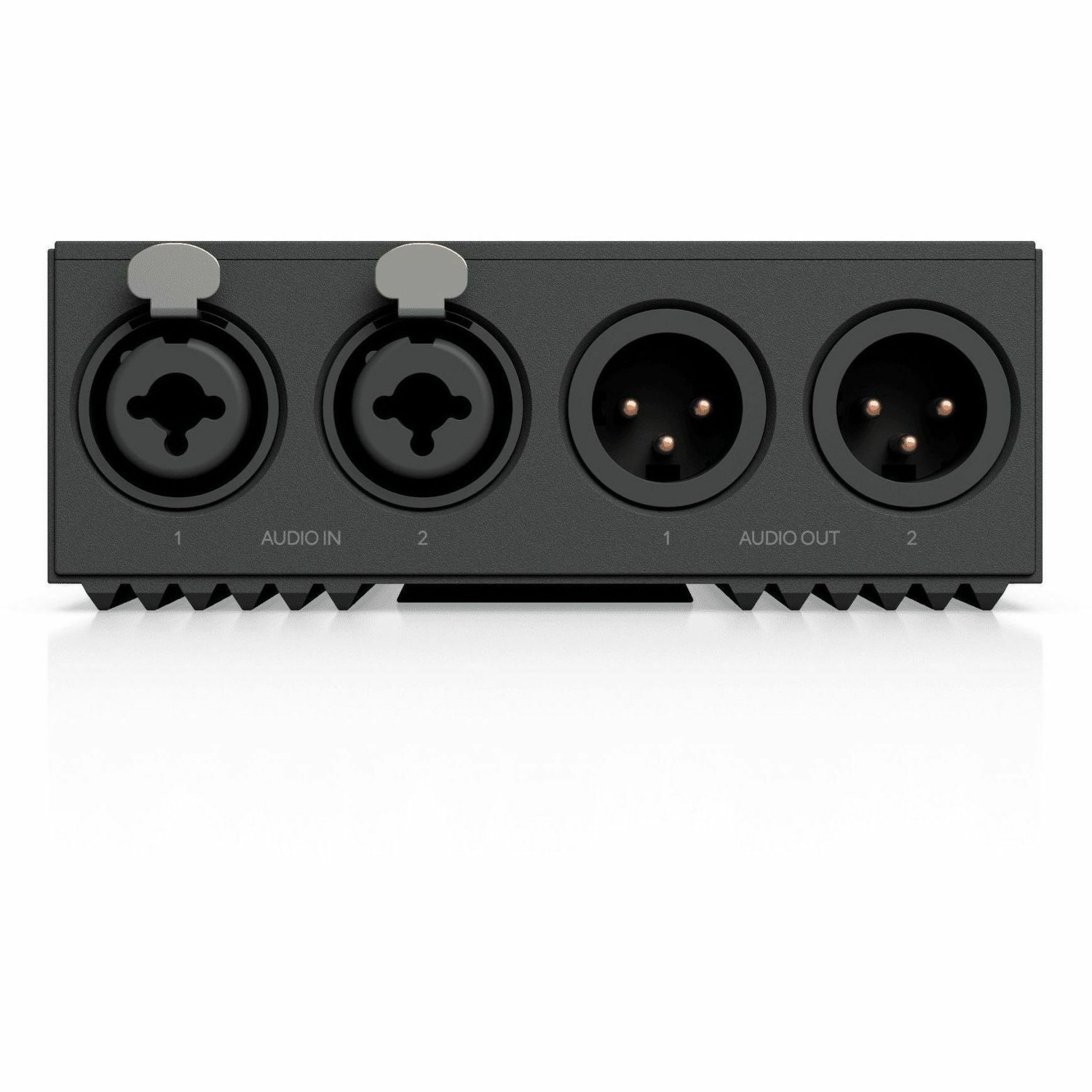

2 × XLR female analog inputs with 6.35 mm combo input
48V DC phantom power supported

Audio Output
1 × HDMI out
2 × XLR male analog outputs

Frequency Response
20 Hz to 20 kHz ±0.5 dB

Video

Video Input
1 × HDMI 2.0, 4K at 60 Hz (60 fps)

Video Output
1 × HDMI 2.0, 4K at 60 Hz (60 fps)

Video Content Support
480p, 720p, 1080p, 4K

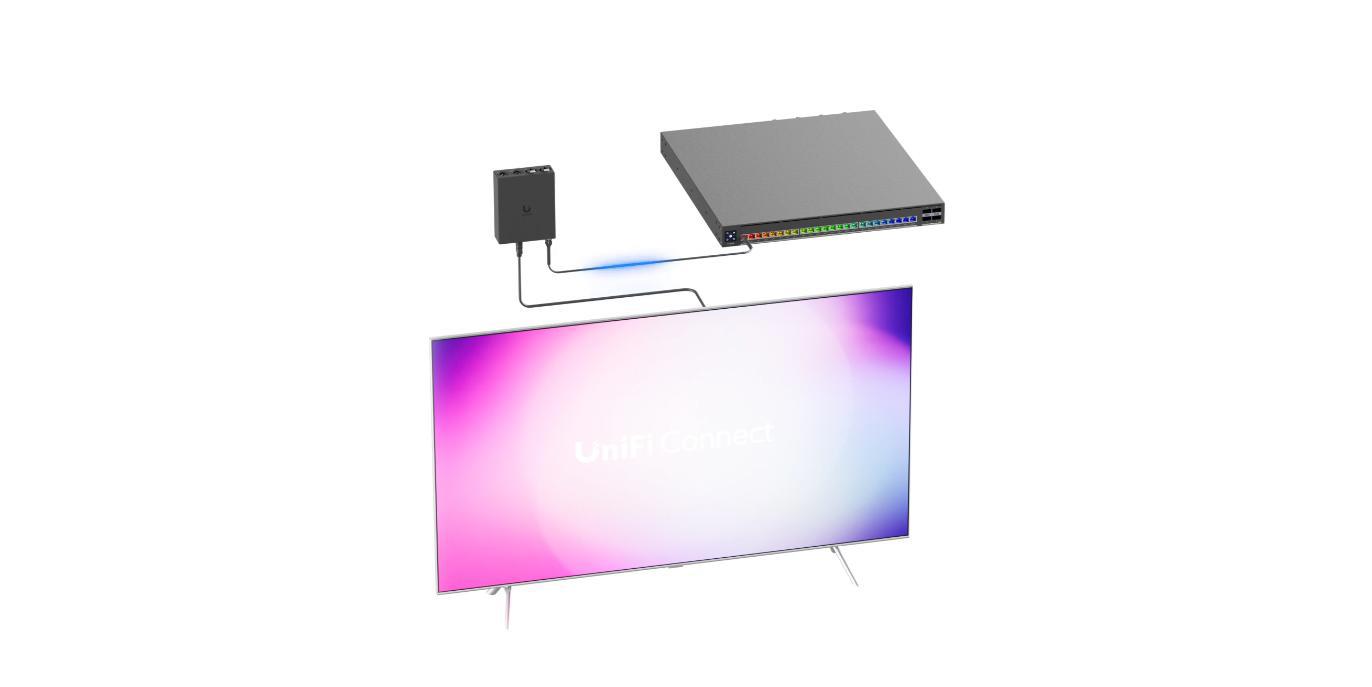

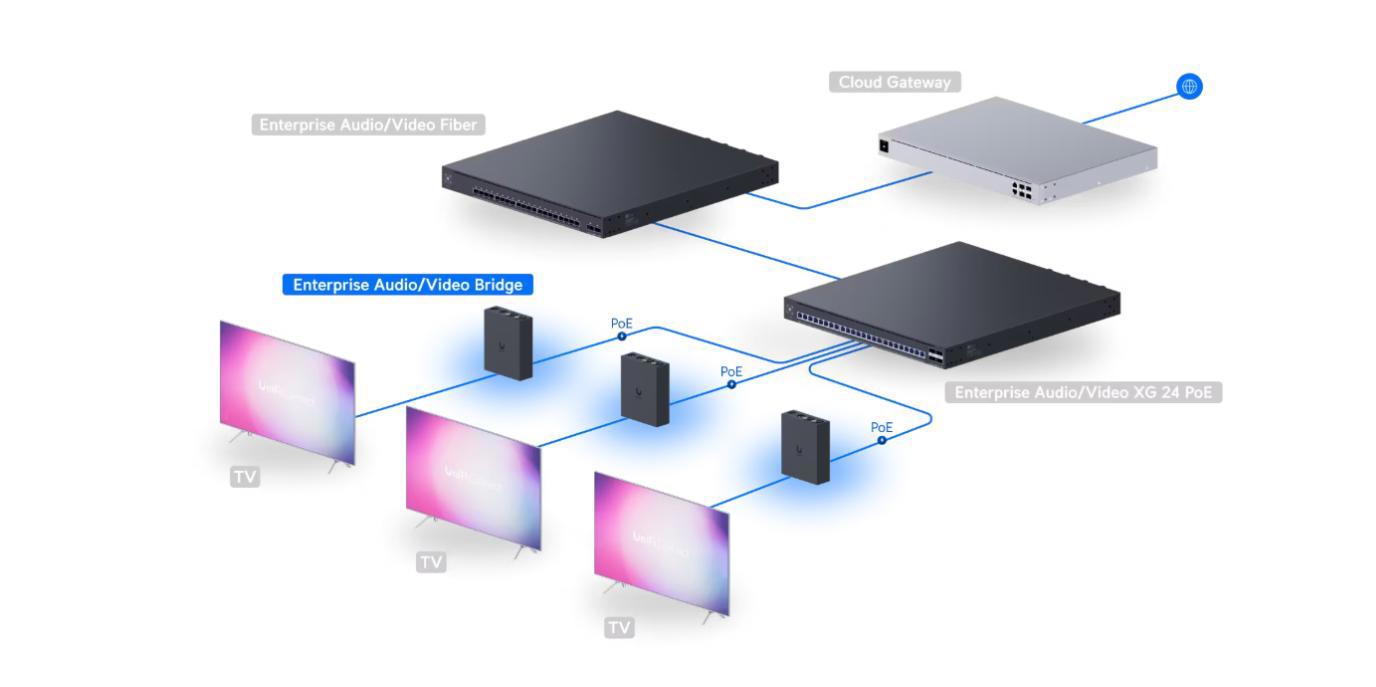

Signal Distribution
1-to-1, 1-to-N streaming
1 to 8×8 TV wall configuration

Hardware

Networking Interface
1 × GbE RJ45 PoE+ input with Etherlighting™

Versatile Port
1 × USB Type-C, 5V / 1A

IR Connection
1 × 3.5 mm input/output

Power Method
PoE+

Maximum Power Consumption
14W

LCM Display
1.3-inch touchscreen

Buttons
1 factory reset button

Environmental

Operating Temperature
-5 to 40°C (23 to 104°F)

Operating Humidity
5–90% non-condensing

Compliance
FCC, IC, CE
NDAA compliant
