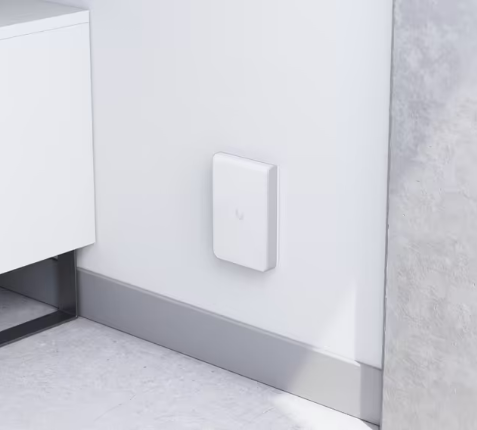

Wall-mounted WiFi 6 AP with 6 spatial streams and a built-in 4‑port switch ideal for single-room coverage in hospitality environments.
Note. PoE+ input required for single-port PoE output.
WiFi 6 Indoor Access Point – Key Specifications
WiFi Standard: WiFi 6 (802.11ax)
Radios / MIMO:
5 GHz: 4×4 MU-MIMO
2.4 GHz: 2×2 MU-MIMO
Max Data Rates:
5 GHz: 4.8 Gbps (BW160)
2.4 GHz: 573.5 Mbps (BW40)
Spatial Streams: 6
Coverage & Capacity: Up to 115 m² (1,250 ft²), 250+ clients
Antenna Gain: 5.9 dBi (5 GHz), 5 dBi (2.4 GHz)
Max TX Power: 26 dBm (5 GHz), 22 dBm (2.4 GHz)
BSSIDs: Up to 8 per radio
Channel Bandwidth: 20/40/80/160 MHz (HT/VHT/HE)
Hardware & Connectivity
Uplink: 1× GbE RJ45 (data-in)
Built-in Switch: (4) GbE ports with 1× PoE output (PoE+ required for PoE out)
Power: PoE / PoE+
Max Power Consumption: 13W (excluding PoE output)
Management: Ethernet & Bluetooth
Construction: Plastic/aluminum enclosure; aluminum mount
LED: White/Blue system indicator
Dimensions / Weight: 139.7 × 96 × 31.2 mm; 460 g

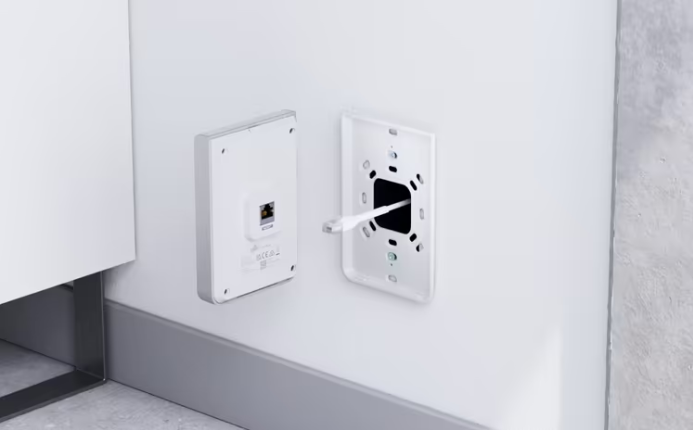

Mounting: Wall mount (included)
Advanced Features
Wireless meshing
Band steering
802.11k/v/r fast roaming
Advanced radio management
Passpoint (Hotspot 2.0)
Captive portal with custom branding, vouchers, payment authentication & external portal
Guest network isolation & client isolation
Private Pre-Shared Key (PPSK)
WiFi speed limiting & scheduling
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLANs
Environmental & Compliance
Operating Temperature: –30 to 60°C
Humidity: 5–95% non-condensing
Certifications: CE, FCC, IC, SRRC, Anatel
NDAA Compliant: Yes
