1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
10-Port 10GbE PoE+++ Layer-3 Managed Switch with 10G SFP+ Uplinks

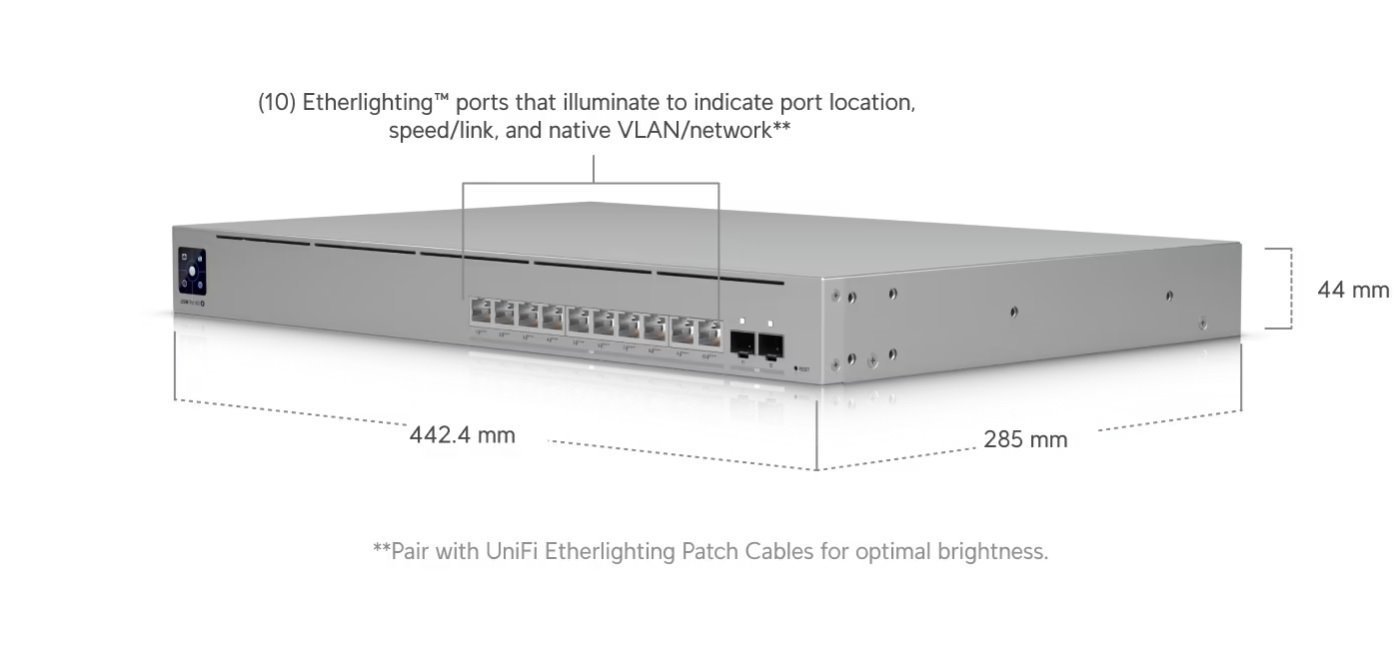

Dimensions: 442.4 × 285 × 44 mm (17.4 × 11.2 × 1.7")

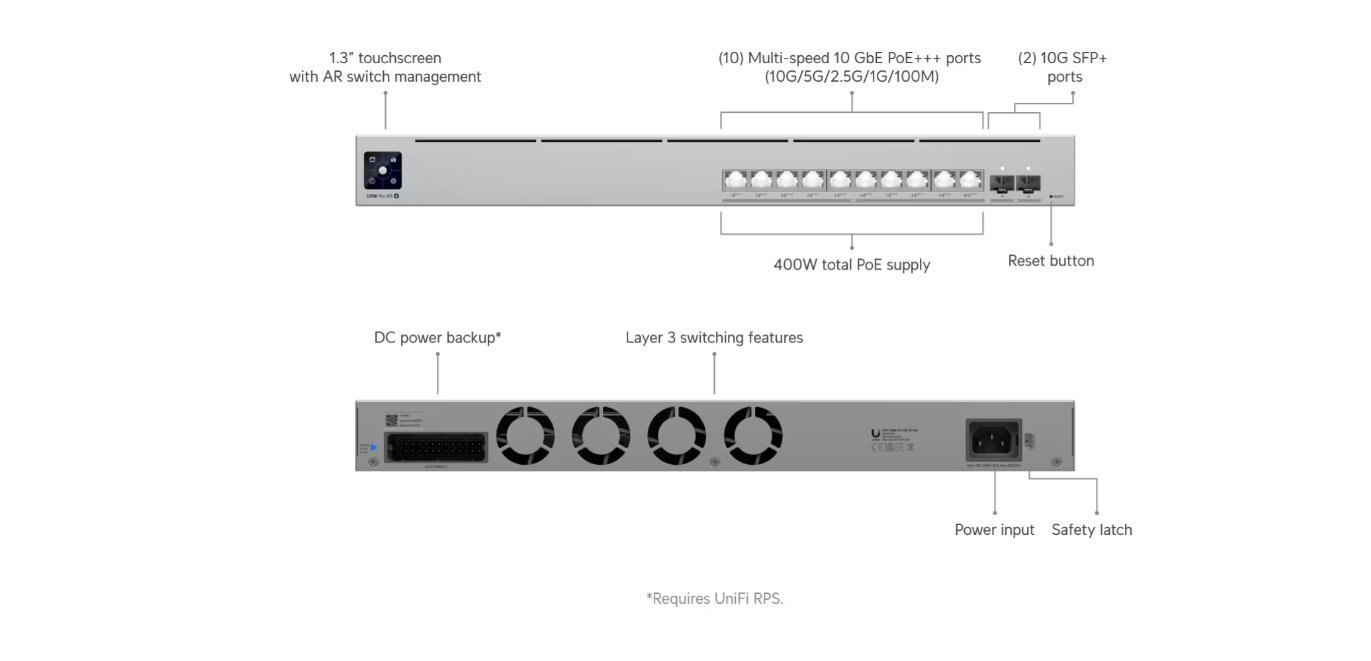

Ports:
• 10 × 10GbE RJ45 (all PoE+++)
• 2 × 10G SFP+ uplinks
PoE Capability: PoE+++ per port (up to 90W); 400W total PoE budget
Power & Redundancy: Internal 550W PSU; Universal 100–240V AC input; USP RPS DC backup support

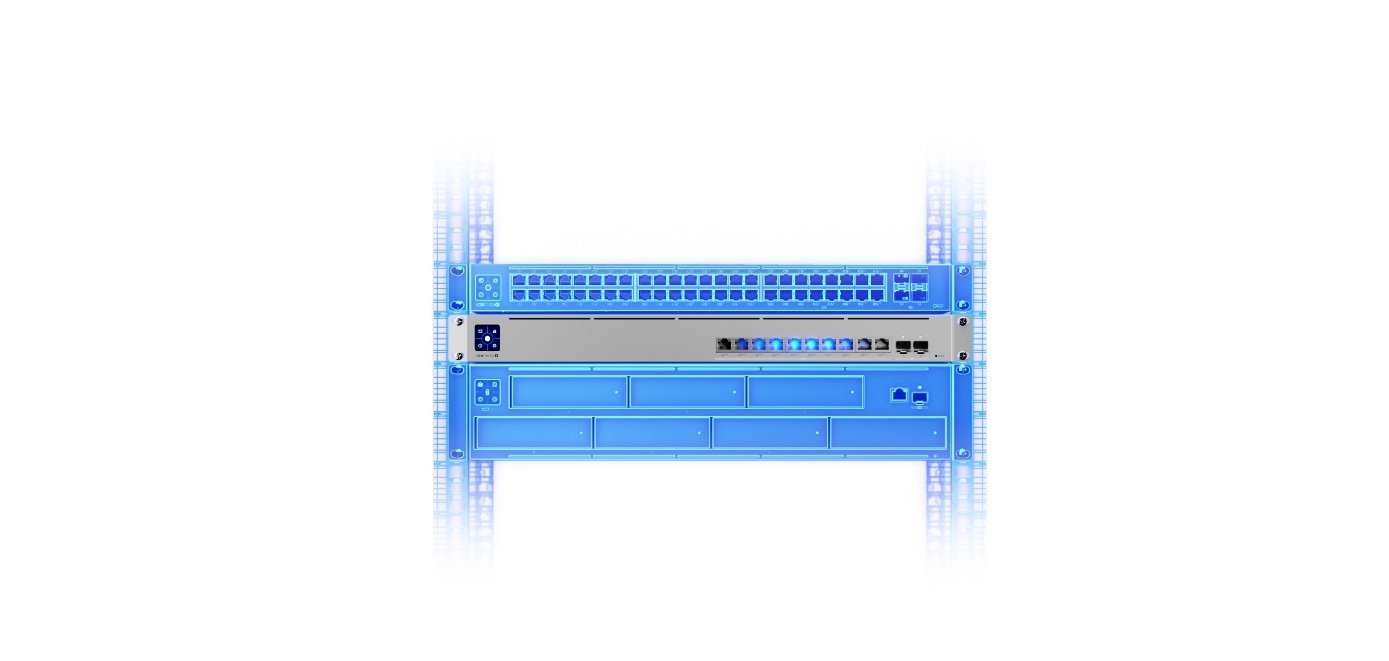

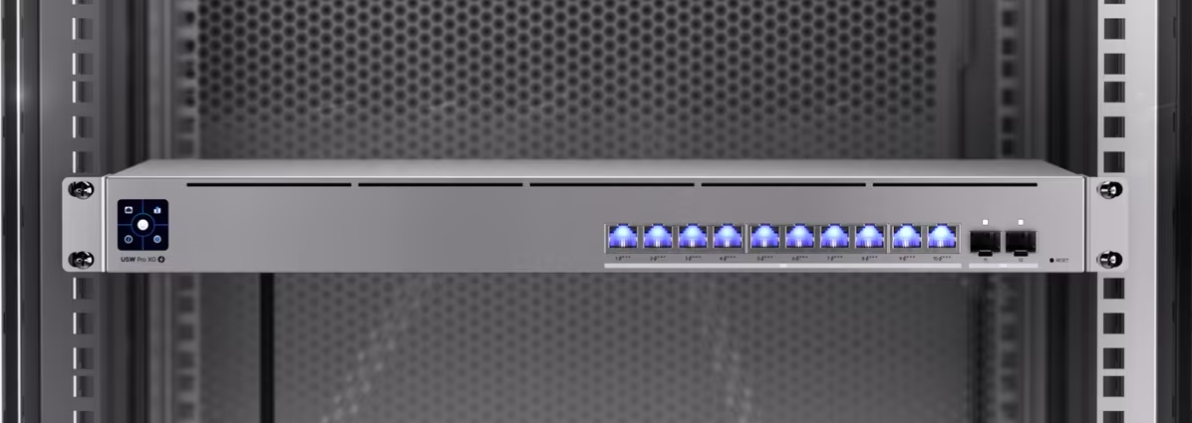

Form Factor: Rack-mount (1U)
Etherlighting™: Supported
Performance:
• 240 Gbps switching capacity
• 120 Gbps non-blocking throughput
• 179 Mpps forwarding rate
• 1,000 VLANs; 32K MAC addresses
• L3 tables: 12,000 ARP entries; 12,000 IPv4 routes
• 2 MB packet buffer
Layer 3 Features: DHCP server/relay, static routing, inter-VLAN routing
Layer 2 Features: LACP, STP/RSTP, QoS (DSCP), advanced IGMP, DHCP snooping/guarding, ACLs, port isolation/mirroring, jumbo frames, LLDP-MED, voice VLAN, loop protection
Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
Hardware:
• 10 PoE+++ ports
• Max power draw: 65W (switch only) / 520W including PoE
• SGCC steel enclosure and mount
• 1.3" touchscreen LCM display
• Weight: 4.6–4.7 kg

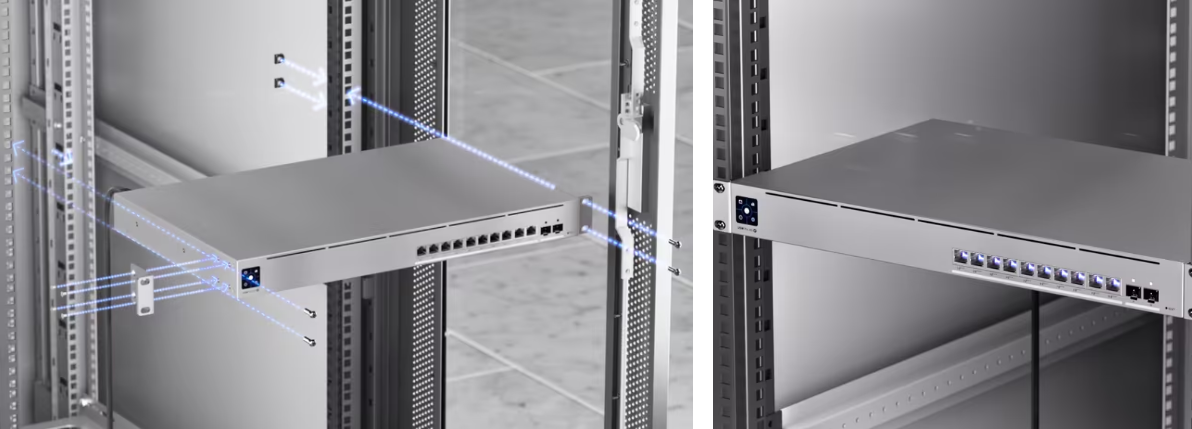

• Supported rack depth: 400–1200 mm
• ESD protection: ±30kV (air/contact)
Environmental: –5 to 40°C operating; 10–90% non-condensing humidity
Compliance: NDAA compliant; CE, FCC, IC, Anatel certified
