Pro 48 PoE – Enterprise-Grade Power and Performance
The Pro 48 PoE is a high-performance, Layer 3 managed switch designed for demanding enterprise, hospitality, and AV environments. Combining exceptional power delivery, advanced networking capabilities, and rock-solid reliability, it’s ideal for large-scale deployments where uptime and performance matter most.
Key Highlights

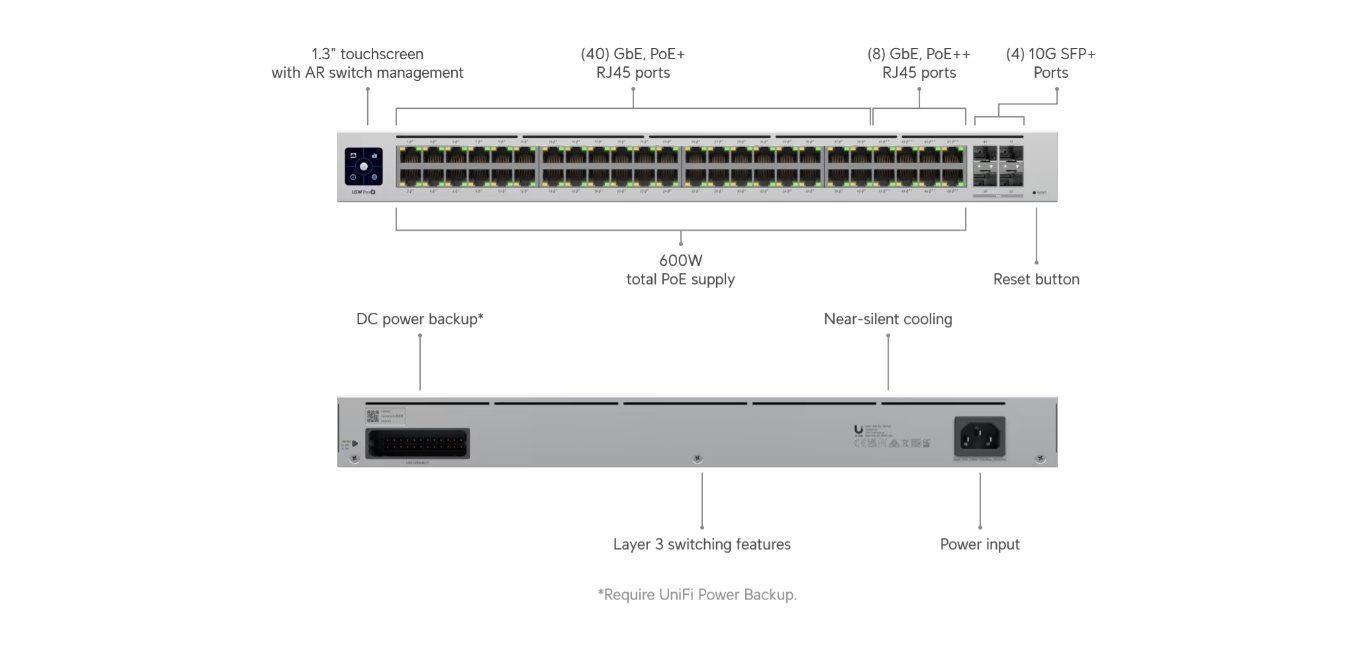

48 Gigabit Ethernet Ports – 40 × PoE+ and 8 × PoE++ ports
Total PoE Power Budget: 600W
4 × 10G SFP+ Uplinks for high-speed aggregation
Layer 3 Switching with DHCP, Static Routing, and Inter-VLAN capabilities
Redundant Power Support via DC backup input
Rack-Mountable 1U Form Factor with durable SGCC steel construction

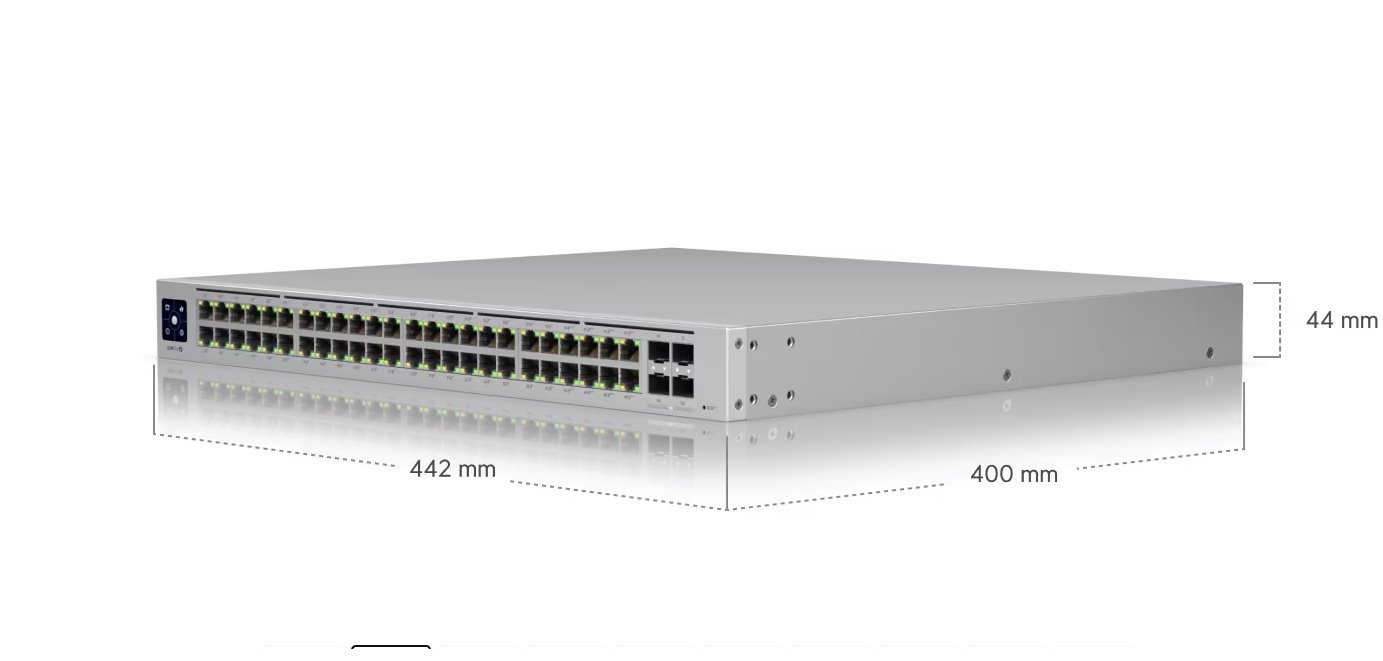

Dimensions: 442 × 400 × 44 mm (17.4 × 15.7 × 1.7”)
Weight: 6.3 kg (13.9 lb, with brackets)
Performance
Switching Capacity: 176 Gbps
Total Non-Blocking Throughput: 88 Gbps
Forwarding Rate: 131 Mpps
VLANs Supported: 1,000
MAC Address Table: 16,000 entries
Layer 3 Tables: 4,000 ARP / 1,000 IPv4 routes
Packet Buffer: 4 MB
Built for uninterrupted, high-bandwidth operations, the Pro 48 PoE ensures smooth network performance even under heavy traffic loads.
Power & Efficiency
PoE Ports: 40 × PoE+ (32W), 8 × PoE++ (64W)
Total PoE Availability: 600W
Power Consumption:
60W (excluding PoE)
660W (including PoE)
Power Inputs:
100–240V AC, 50/60Hz
Optional DC RPS backup
Internal 660W Power Supply for reliable performance
Advanced Network Features
Layer 3 Capabilities
DHCP Server & Relay
Inter-VLAN Routing
Static Routing
Layer 2 & Security Features
Link Aggregation (LACP)
STP & RSTP
QoS with DSCP tagging
Advanced IGMP (Querier, Fast Leave, Router Port)
802.1X, DHCP Snooping & Guarding
MAC/IP-based ACLs, Device & Port Isolation
Loop Protection, Storm Control, Flow Control
Port Mirroring, Jumbo Frames, Voice VLAN, LLDP-MED
Pro AV Ready
Optimized profiles for: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, and Crestron systems.
Hardware & Design
1.3” Touchscreen Display for quick status and configuration
ESD Protection: ±16kV (Air), ±12kV (Contact)
Operating Temp: -5°C to 40°C (23°F to 104°F)
Humidity: 10–90% non-condensing
Certifications: CE, FCC, IC, Anatel
NDAA Compliant
Software & Management
Managed through the UniFi Network Application (version 5.10.5 or later), providing intuitive control, monitoring, and automation tools for seamless network management.
Why Choose the Pro 48 PoE
Enterprise-grade reliability with redundant power support
High-capacity PoE++ for modern devices
Full Layer 3 feature set for scalable networks
Easy integration with the UniFi ecosystem
