Overview

Deliver high-performance storage and file sharing with this 1U rack-mount NAS engineered for enterprise and large-scale deployments. Featuring four hybrid drive bays supporting both 2.5" and 3.5" HDDs, along with dual M.2 NVMe cache slots, it provides accelerated data access, reduced latency, and reliable performance for demanding storage environments.

Performance

Integrated NVMe SSD cache support enhances read and write speeds by minimizing disk access latency, improving responsiveness for frequently accessed data. High-speed 10 Gbps networking ensures rapid file transfers and seamless access for multiple users, making it ideal for bandwidth-intensive applications and centralized storage workloads.

Features

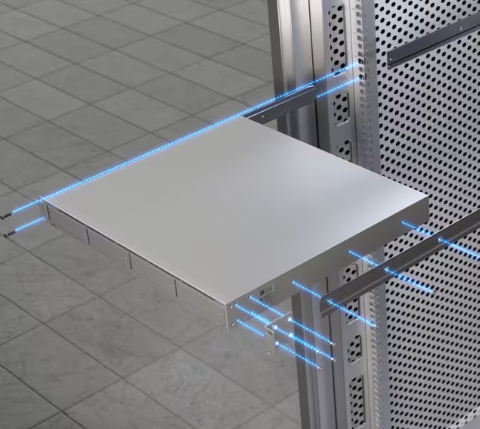

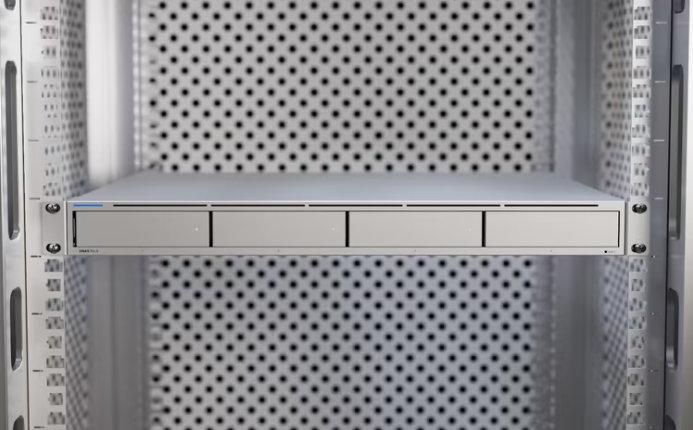

The compact 1U rack-mount form factor enables efficient deployment in standard server racks while maximizing storage density. Designed for high availability and reliability, the system supports scalable storage configurations, centralized file management, and optimized performance across enterprise networks.

Applications

Enterprise file storage and centralized data management
Backup and disaster recovery infrastructure
Media production and large file workflows
Virtualization and high-speed data access environments
Business and institutional network storage deployments

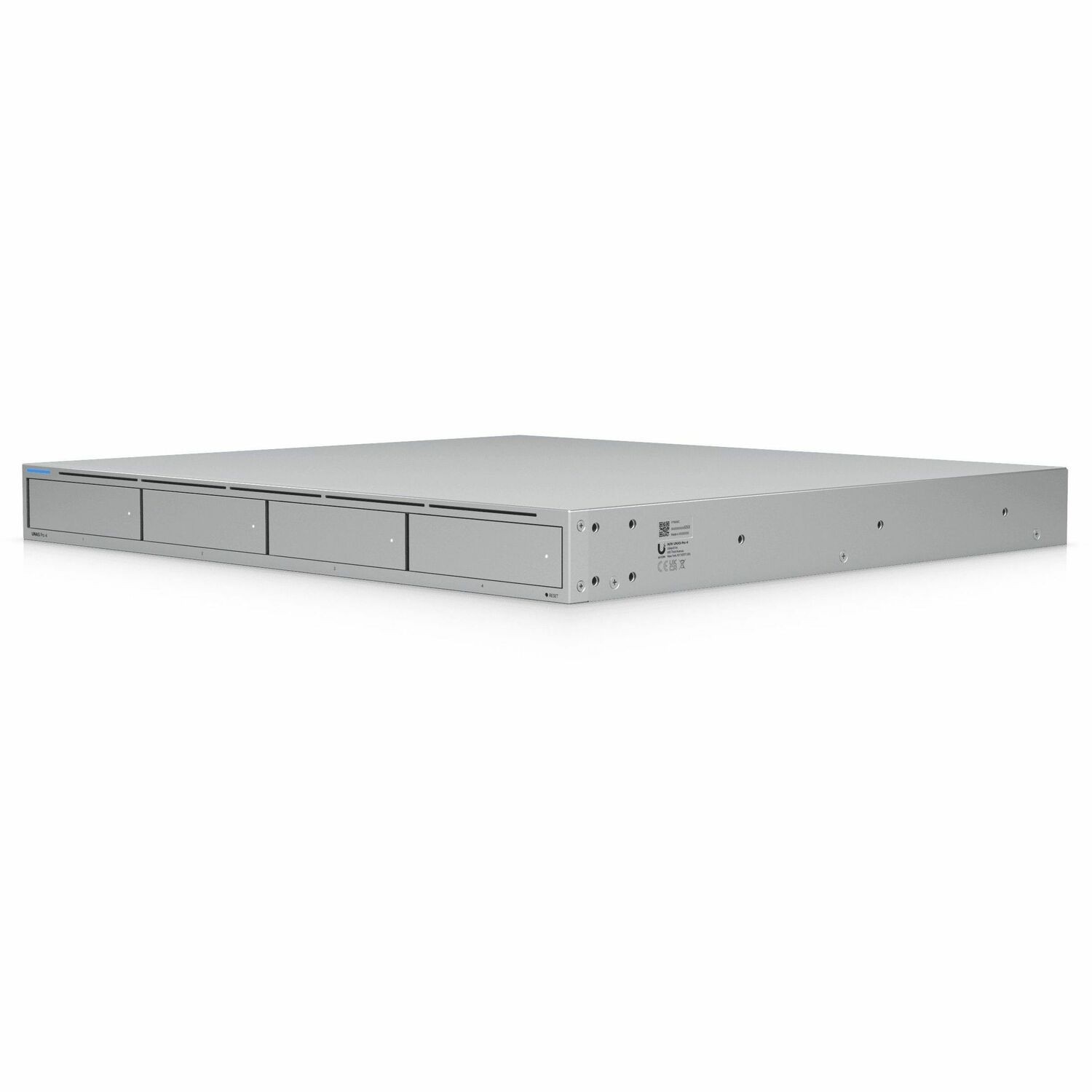

Mechanical

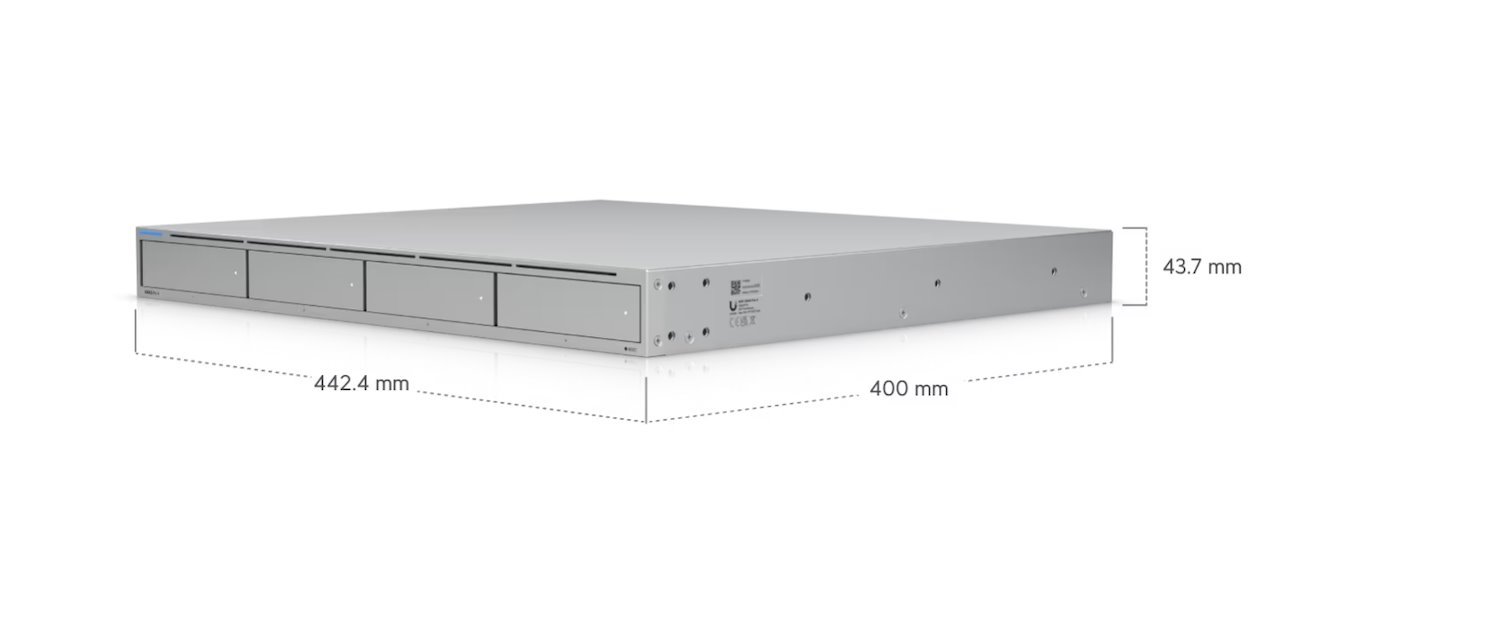

• Dimensions: 442.4 x 400 x 43.7 mm (17.4 × 15.7 × 1.7")
• Weight: 6.7 kg (14.8 lb)

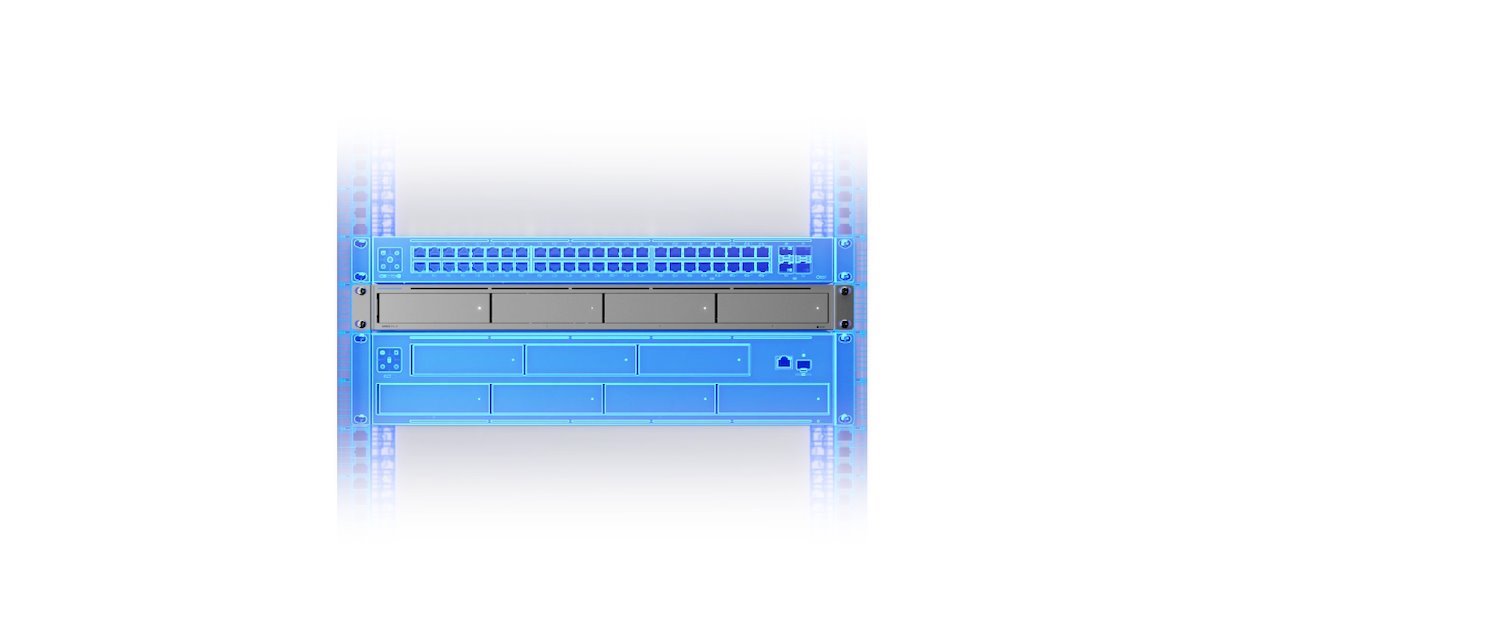

• Form Factor: Rack mount (1U)
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel

Storage

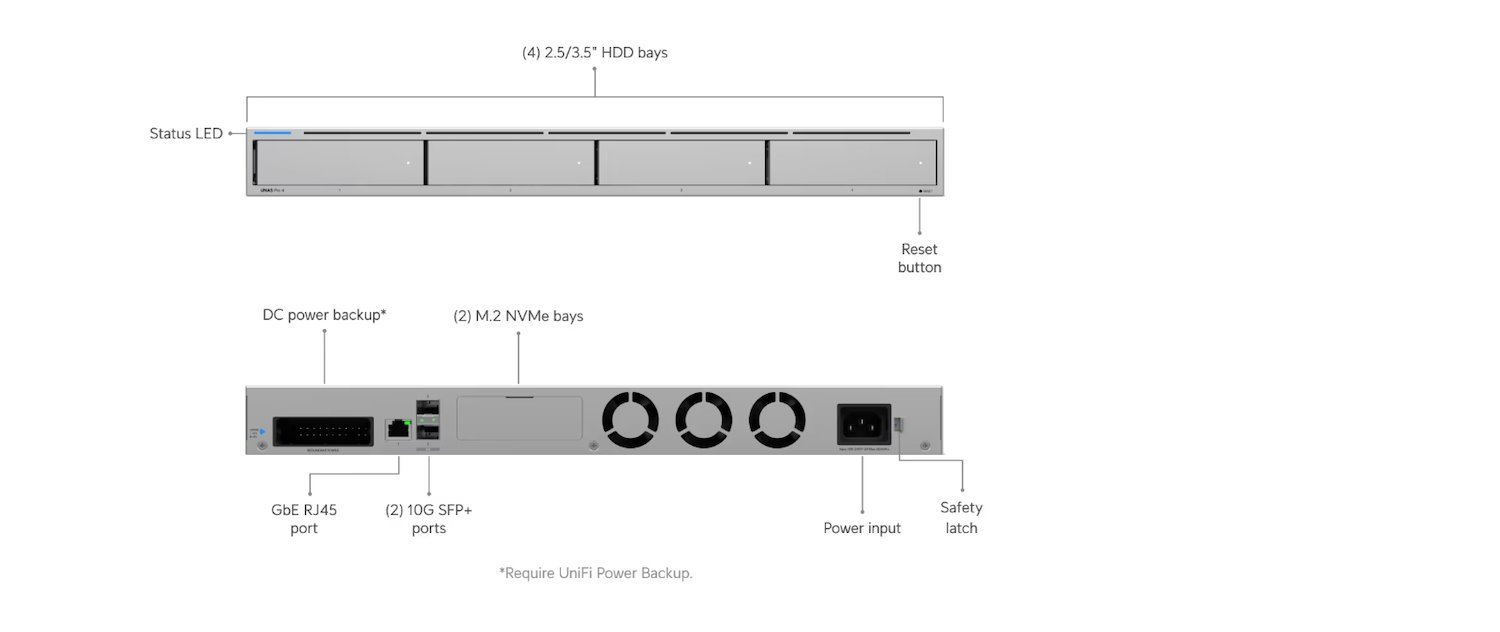

• Drive Bays
• (4) 2.5"/3.5" HDD/SSD bays

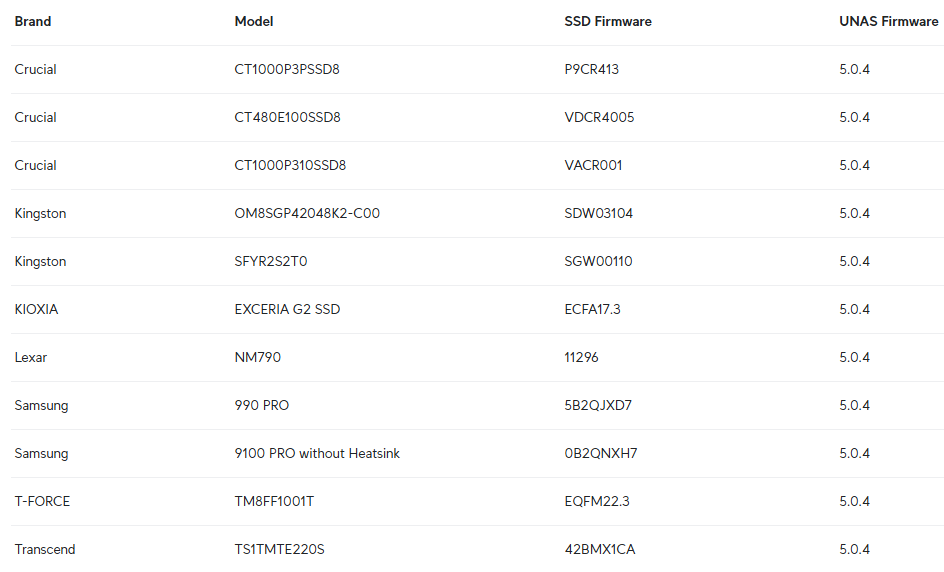

• (2) M.2 NVMe SSD bays
• Max Power Budget for Drives: 125W
• Max NVMe SSD Capacity Supported: 4 TiB
• SSD Cache Support: Yes

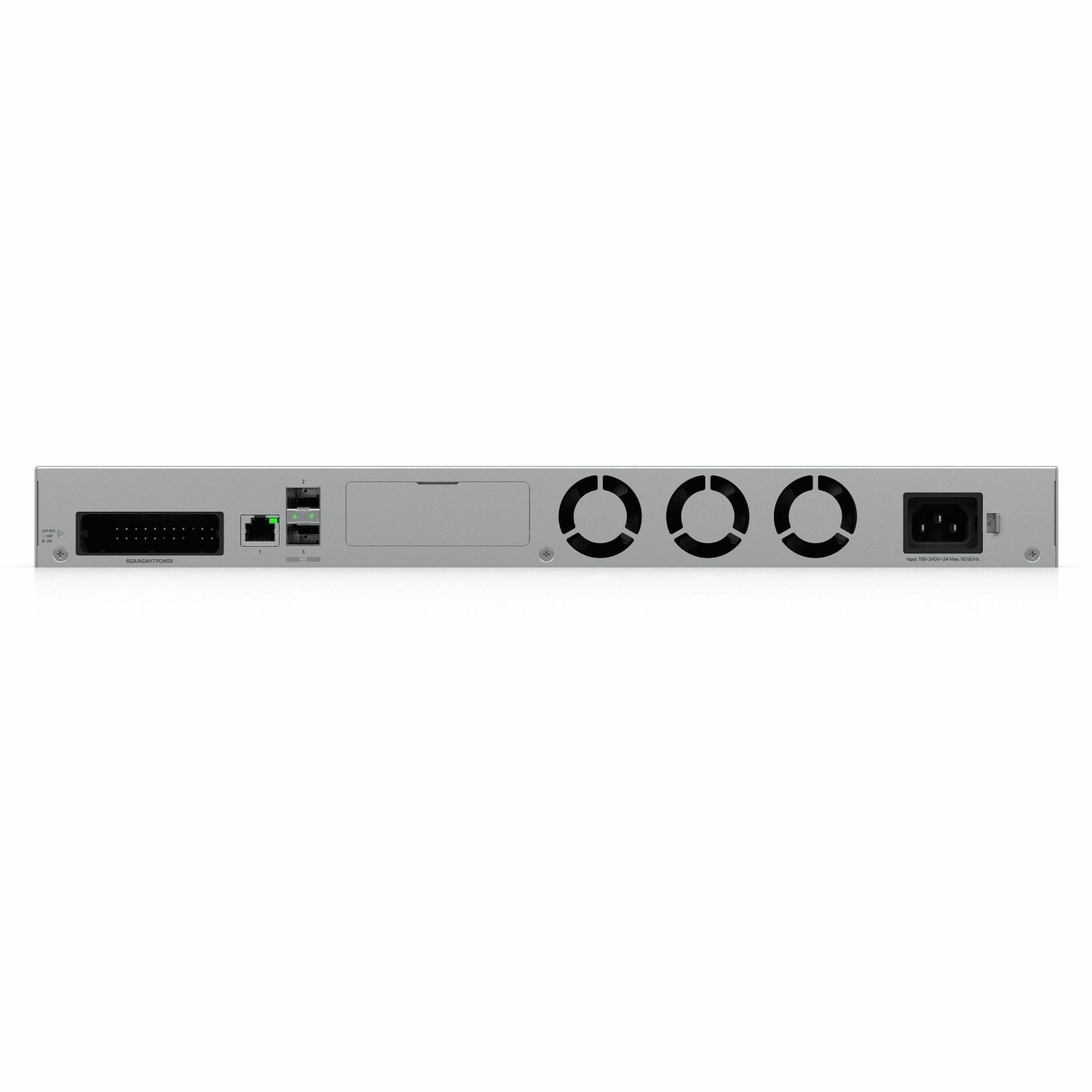

Network & Interface

• Networking Interface
• (2) 10G SFP+ ports (10G only)
• (1) GbE RJ45 port (1G/100M/10M)

• Management Interface: Ethernet
• RF Interface: Bluetooth 4.1

Hardware

• Processor: Quad-core ARM® Cortex®-A57 at 2.0 GHz
• Memory: 8 GB
• Max Power Consumption: 150W

• Power Method
• (1) Universal AC input: 100–240V AC, 3A max., 50/60 Hz
• (1) USP-RPS DC input: 11.5V DC, 13.91A

• Power Supply: Internal AC/DC, 150W
• Power Redundancy: Supported

• LEDs
• Ethernet
• SFP+
• HDD
• RPS
• System

Environmental

• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% noncondensing

Compliance

• NDAA Compliant: ✓
• Certifications: FCC; CE; IC

Software & Storage Features

• Supported File Protocols: NFS; SMB

• RAID Support
• RAID 5
• RAID 6
• RAID 10
• RAID Group: Single

• Storage Features
• Personal drive and shared drive support
• File encryption
• Backup to remote UNAS
• Backup to CIFS/SMB server
• Backup to cloud services (Google Drive, OneDrive, Dropbox, Amazon S3, Backblaze B2, Wasabi)
• Snapshots
• Share links
• Time Machine backup
• Client app support
• User group management

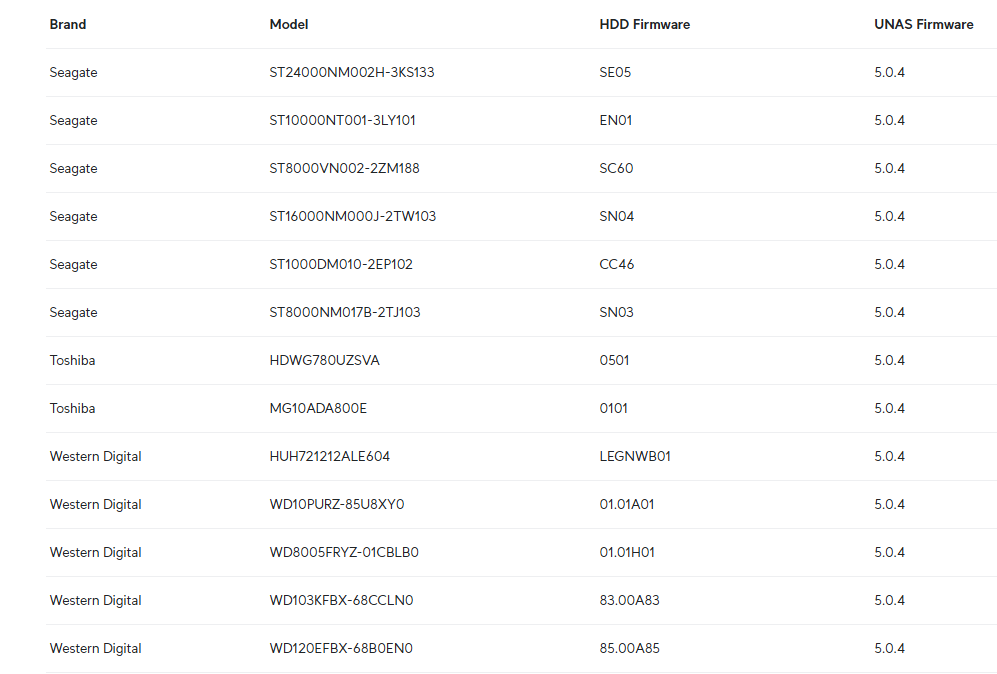

HDD
