Physical & Power

• Dimensions: Ø160 × 33 mm (Ø6.3 × 1.3")

• Weight:

  • Device: 338 g (11.9 oz)

  • With mount: 413 g (14.6 oz)

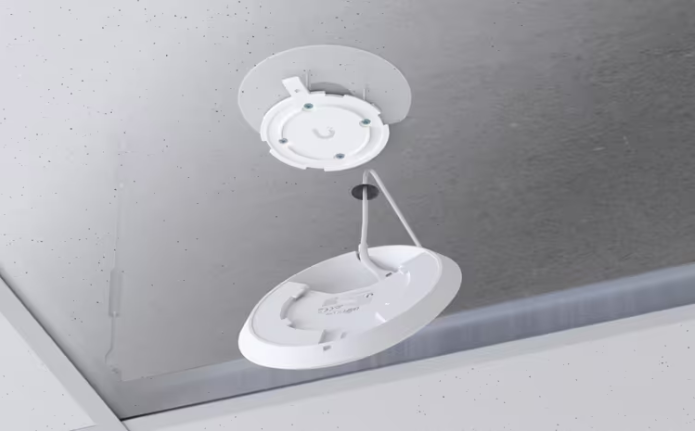

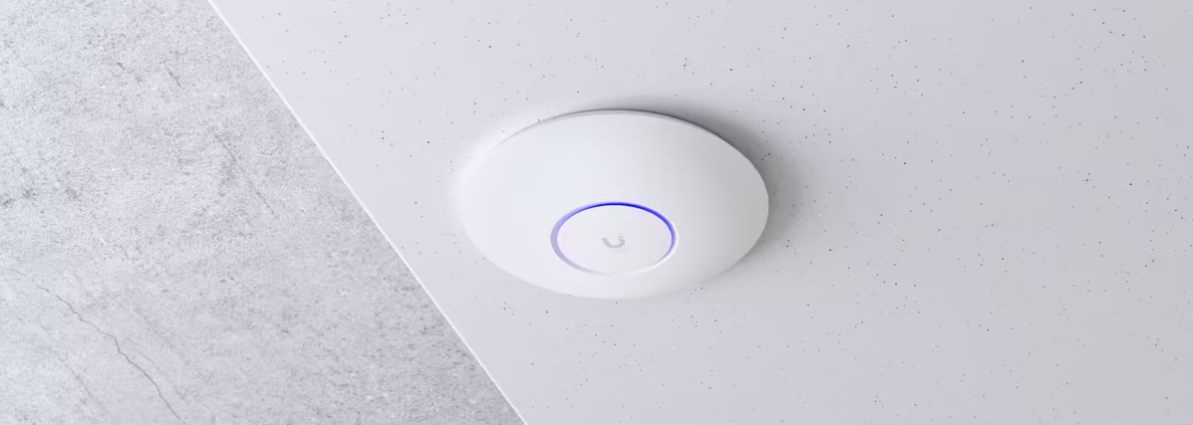

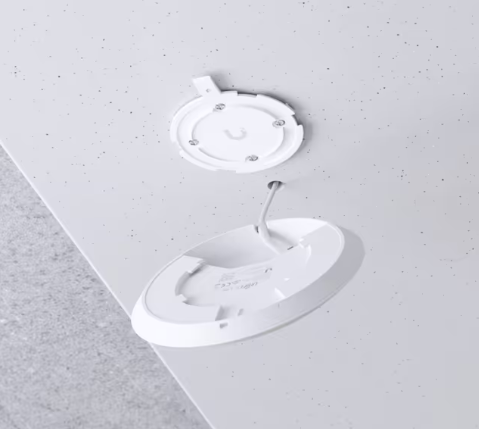

• Mounting: Ceiling / Wall (mounts included)

• Enclosure Material: Polycarbonate, aluminum

• Mount Material: ABS, SGCC steel

• Power Method: PoE

• Max Power Consumption: 9W

• Supported Voltage: 44–57V DC

• Operating Temperature: –30 to 60°C (–22 to 140°F)

• Operating Humidity: 5–95% non-condensing

• NDAA Compliant

Networking & Interface

• WiFi Standard: WiFi 6 (802.11ax)

• Spatial Streams: 4

• Coverage Area: 140 m² (1,500 ft²)

• Max Client Count: 300+

• Uplink: 1× GbE RJ45

• Management: Ethernet

• LEDs: System (White/Blue)

Radio Performance

• MIMO:

  • 5 GHz: 2×2 DL/UL MU-MIMO

  • 2.4 GHz: 2×2 DL/UL MU-MIMO

• Max Data Rates:

  • 5 GHz: 2.4 Gbps (BW160)

  • 2.4 GHz: 573.5 Mbps (BW40)

• Antenna Gain:

  • 5 GHz: 5.4 dBi

  • 2.4 GHz: 3 dBi

• Max TX Power:

  • 5 GHz: 23 dBm

  • 2.4 GHz: 23 dBm

• Max BSSIDs: 8 per radio

• Channel Bandwidths: HT/VHT/HE 20/40/80/160 MHz

• Operating Frequencies:

  • US/CA: 2400–2472 MHz; U-NII-1/2A/2C/3

  • Worldwide: 2400–2483.5 MHz; 5150–5725 MHz

Supported Data Rates

• 802.11ax (WiFi 6): 7.3 Mbps–2.4 Gbps

• 802.11ac (WiFi 5): 6.5 Mbps–1.7 Gbps

• 802.11n: 6.5 Mbps–300 Mbps

Features

• Wireless Meshing

• Band Steering

• 802.11v BSS Transition Management

• 802.11r Fast Roaming

• 802.11k Radio Resource Management (RRM)

• Advanced Radio Management

• Passpoint (Hotspot 2.0)

• Captive Portal with Custom Branding

• Voucher / Payment / Password Authentication

• External Portal Server Support

• Guest Network Isolation

• Private Pre-Shared Key (PPSK)

• WiFi Speed Limiting

• Client Device Isolation

• WiFi Schedules

• RADIUS over TLS (RadSec)

• Dynamic RADIUS-assigned VLAN

Certifications

• CE, FCC, IC, SRRC, Anatel: 10539-23-08356

Software Requirements

• UniFi Network version 7.3.76 and later
