Overview
Extend doorbell and access event awareness with this PoE-powered plug-and-play notification device engineered for seamless deployment within UniFi environments. Designed to provide clear visual and audible alerts, it integrates directly with supported doorbell and access hub systems while simplifying installation through single-cable power and connectivity.
Integration
The device pairs easily with compatible UniFi doorbell and entry systems, enabling centralized configuration and management within the UniFi ecosystem. PoE connectivity eliminates the need for separate power infrastructure, allowing flexible placement throughout commercial or residential environments.
Features
Compact and installer-friendly, this notification unit delivers reliable event signaling to improve response time to visitors or access events. Its plug-and-play operation minimizes setup complexity, making it ideal for both new deployments and retrofit integrations within existing UniFi installations.
Applications
Interior notification points for entry events
Commercial reception and office environments
Residential multi-room alerting
Retail counters and service areas
Facilities utilizing integrated UniFi access or doorbell systems
Mechanical

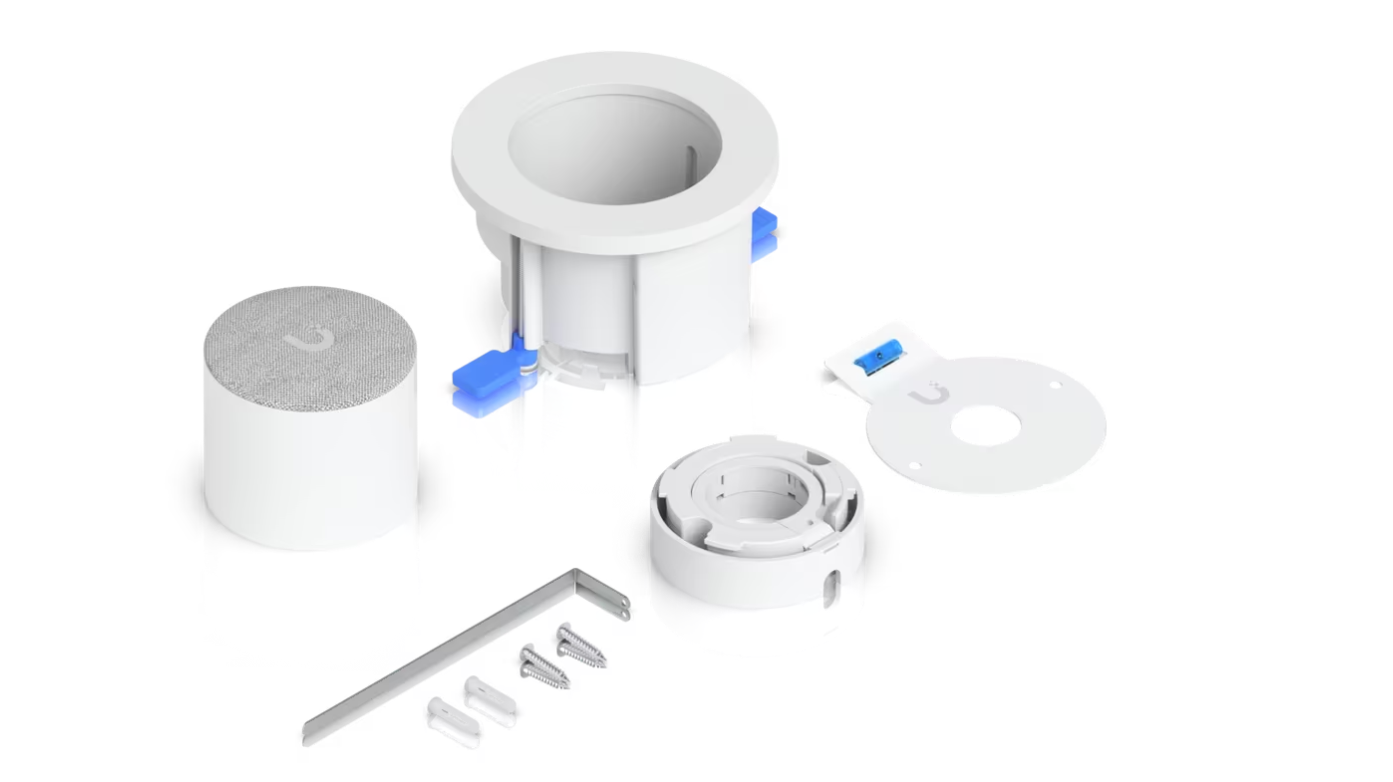

• Dimensions
• Device: Ø62 x 54 mm (Ø2.5 x 2.1")

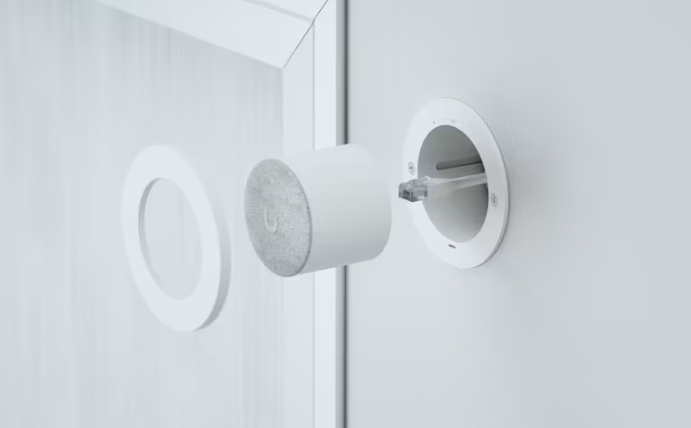

• In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5")

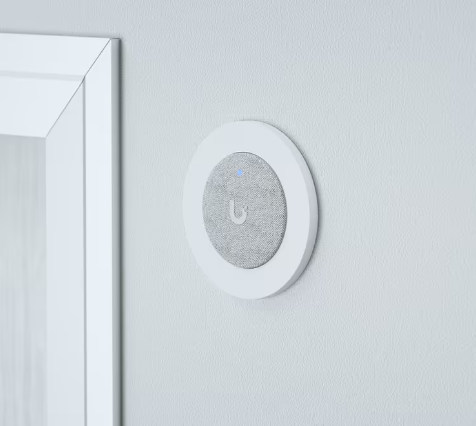

• On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8")
• Weight
• Device: 158 g (5.6 oz)
• In-wall mount: 91 g (3.2 oz)
• On-wall mount: 28 g (1 oz)
• Enclosure Material: Polycarbonate; aluminum alloy
• Mount Material: Polycarbonate; zinc alloy
Hardware
• Networking Interface: 10/100 MbE port
• Speaker: Yes
• Buzzer: Yes
• Power Method: PoE
• Supported Voltage Range: 44–57V DC
• Max Power Consumption: 3W
• ESD Protection: Air ±8 kV; Contact ±4 kV
• LEDs: R/G/B/W
• Buttons: (1) Factory reset
Environmental
• Operating Temperature: 0 to 40° C (32 to 104° F)
• Operating Humidity: 10 to 90% noncondensing
Compliance
• NDAA Compliant: ✓
• Certifications: CE; FCC; IC
Software
• Application Requirements
• Web Application: UniFi Protect; UniFi Access
• Mobile App: UniFi Protect iOS and Android
