Dimensions
353 × 46 × 34.4 mm (13.9 × 1.8 × 1.4 in)

WiFi Standard
WiFi 5

Spatial Streams
4

Coverage Area
140 m² (1,500 ft²)

Maximum Client Count
200+

Uplink
GbE

Mounting

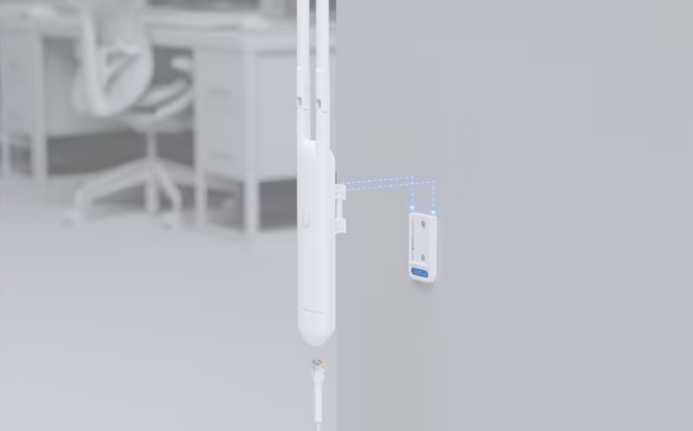

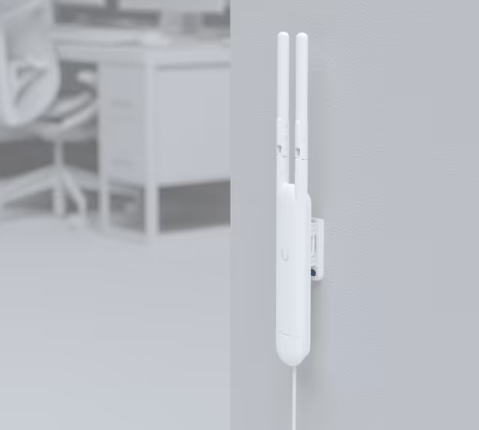

Wall or pole mount (mounts included)

Weatherproofing
IPX4

Hardware

Power Method
PoE

Maximum Power Consumption
8.5W

Supported Voltage Range
44–57V DC

Networking Interface
1 × GbE RJ45 port

Weight
152 g (5.4 oz)

Pole Mount Diameter
1–3 in (25–76 mm)

Enclosure Material
Polycarbonate

Channel Bandwidth
HT 20/40, VHT 20/40/80 MHz

Compliance
NDAA compliant
CE, FCC, IC, UKCA, Anatel

Performance

MIMO
5 GHz: 2 × 2 DL MU-MIMO
2.4 GHz: 2 × 2 DL MU-MIMO

Maximum Data Rate
5 GHz: 867 Mbps (BW80)
2.4 GHz: 300 Mbps (BW40)

Antenna Gain
5 GHz: 4 dBi
2.4 GHz: 3 dBi

Maximum TX Power
5 GHz: 20 dBm
2.4 GHz: 20 dBm

Maximum BSSIDs
8 per radio

Supported Data Rates
802.11ac (WiFi 5): 6.5 Mbps to 867 Mbps (MCS0–MCS9, NSS1/2, VHT 20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0–MCS15, HT 20/40)

Features

Wireless Meshing
Band steering
802.11v BSS transition management
802.11r fast roaming
802.11k radio resource management (RRM)
Advanced radio management
Passpoint (Hotspot 2.0)
Captive hotspot portal with custom branding landing page
Voucher authentication
Payment-based authentication
External portal server support
Password authentication
Guest network isolation
Private pre-shared key (PPSK)
WiFi speed limiting
Client device isolation
WiFi schedules
RADIUS over TLS (RadSec)
Dynamic RADIUS-assigned VLAN

Operating Environment

Operating Frequency
US/CA: 2400–2472 MHz, U-NII-1: 5150–5250 MHz, U-NII-2A: 5250–5350 MHz, U-NII-2C: 5470–5725 MHz, U-NII-3: 5725–5850 MHz
Worldwide: 2400–2483.5 MHz, 5150–5850 MHz

Operating Temperature
-30 to 70°C (-22 to 158°F)

Operating Humidity
5–95% non-condensing

Software Requirements

UniFi Network
Version 6.0.45 or later
