UniFi LTE/WiFi Gateway
Outdoor-capable LTE and WiFi 4 gateway with dual Ethernet ports, VPN support, and PoE functionality. Suitable for DIN rail, wall, or pole mounting.

Dimensions:

• Without antennas/outdoor cover: 114.5 × 93.6 × 32 mm (4.5 × 3.7 × 1.3 in)

• With antennas: 213 × 93.6 × 32 mm (8.3 × 3.7 × 1.3 in)

• With antennas and outdoor cover: 217 × 94 × 32 mm (8.5 × 3.7 × 1.3 in)

Weight:

• Device: 360 g (12.7 oz)

• Device with cover: 395 g (13.9 oz)

• Mounts: 25 g (0.9 oz)

Mechanical & Mounting:

• Enclosure: Polycarbonate, aluminum

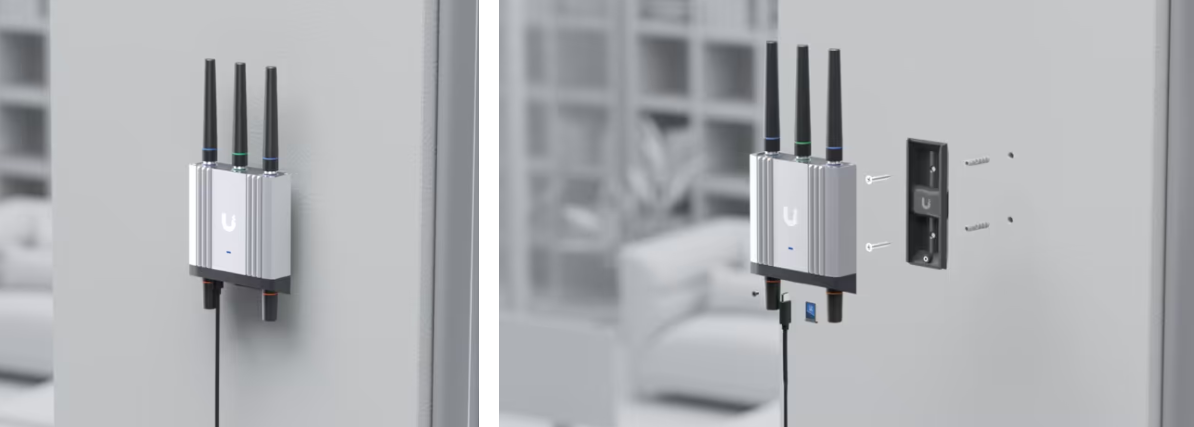

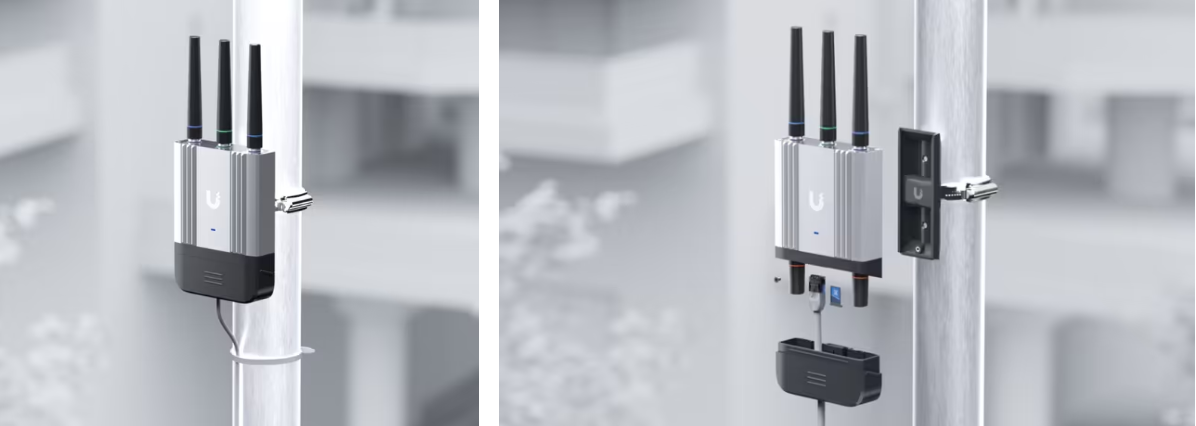

• Mount options: DIN rail, wall, pole (included)

• Pole mount diameter: 1–2"

• Weatherproofing: IP66

• Wind loading: 38.8 N at 200 km/h (8.7 lbf at 125 mph)

Networking & Wireless:

• Ethernet: (2) GbE RJ45 ports, PoE input & output (Max 10W)

• WiFi: WiFi 4 (802.11b/g/n, 2x2 MIMO)

• LTE: LTE Cat 4, nano SIM, Bands B2, B4, B5, B12, B13, B14, B25, B26, B66, B71

• WAN Fallback & Priority: Yes

• VPN Client: OpenVPN, WireGuard

• Site-to-Site VPN: IPsec, WireGuard

• LTE Throughput: 150 Mbps down / 50 Mbps up

• GPS: Yes

• WiFi Data Rates: 6.5–300 Mbps

Hardware:

• Antennas:

  • (2) LTE external

  • (2) WiFi external

  • (1) GPS external

• Max TX Power: 22 dBm

• Power Consumption: 12.5 W

• Power Methods:

  • PoE+ (48–54V DC)

  • USB Type-C (5V DC, 3A, adapter included)

  • 4-pin ATX DC (9–30V DC)

• Buttons: Factory-reset

Operating Conditions:

• Temperature: -40 to 70° C (-40 to 158° F)

• Humidity: 5–95% noncondensing

Compliance & Certifications:

• NDAA Compliant

• FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®
